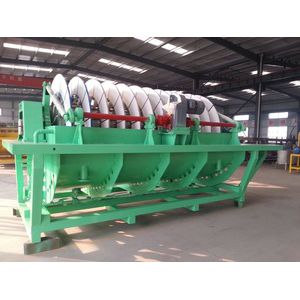

CE ISO GSG approved vacuum rotary drum filter

Disc vacuum is designed to separated liquids from solids for dewatering purpose.

Technical Feature

  • Henan, China (Mainland)
  • hongji
  • optional
  • New
  • Engineers available to service machinery overseas
  • Ore
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$2~59

PRIMARY PARAMETERS

Place of Origin
Henan, China (Mainland)
Brand Name
hongji
Model Number
optional
Condition
New
After-sales Service Provided
Engineers available to service machinery overseas
Application
Ore
Type
Separator
Product name
vacuum ceramic filter
Name
Disc Vacuum Filter
Warranty
12 Months
Certificate
SGS CE ISO
Usage
Waste Recycling
Color
Customer's Request
Other name
Industrial Water Treatment
Installation
Engineer's Guidance

DETAIL DESCRIPTION

CE ISO GSG approved vacuum rotary drum filter



Product Description

 Disc vacuum is designed to separated liquids from solids for dewatering purpose. The machine uses negative pressure to remove water from solid. Disc vacuum filter consists of a rotor, slurry tank, ceramic filter plate, distributor, discharge scraper, cleaning device, frame, agitating device, pipe system, vacuum system, automatic acid dosing system, automatic lubricating system, valve and discharge chute. The operation and construction principle of disc vacuum filter resemble those of a conventional disc filter, but the filter medium is replaced by a finely porous ceramic disc.



features

  • Reduction in energy consumption
  • Higher vacuum levels
  • Low operating costs
  • High output capacity
  • Longer service life

applications



Disc vacuum filter is used for environment protection, paper making, metallurgy, and water treatment, and chemical, ore beneficiation process in mining (iron, gold, nickel, copper and quartz).

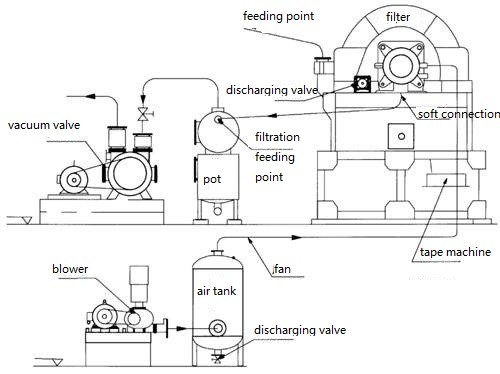

working principle

The filter disc rotates in the slurry tank When working. With the help of pressure difference generated by vacuum pump, the particle is absorbed on the cloth of the disc and forming a filter cake with a certain thickness. Filtration will discharge from the central shaft through the filter cake and cloth, and the filter cake will fall down under the pressure of the scraper and blower, and then drop into the discharging filter cake tank.

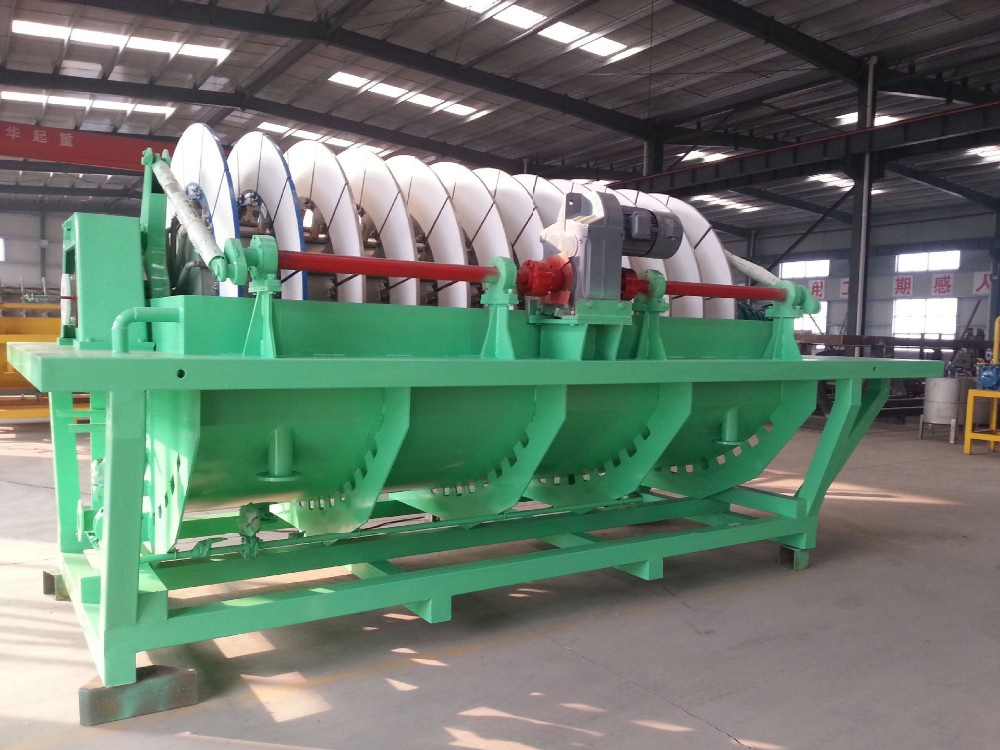

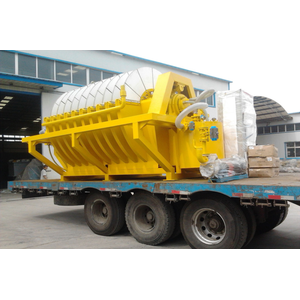

Finished products

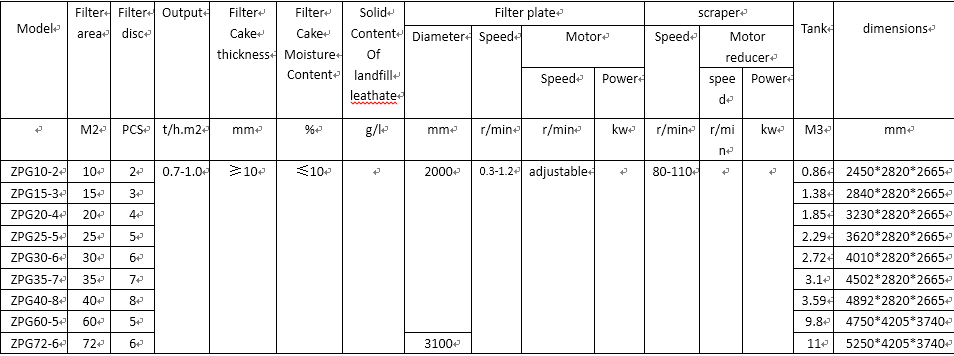

parameters

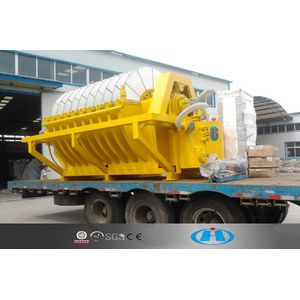

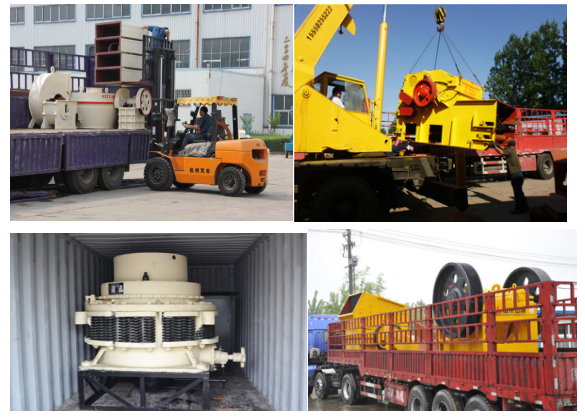

Packaging & Shipping

 Packaging Details:

Main machinery in container

Spare parts in Wooden or steel box

Oversized parts in nude packing

Delivery time: 10-60 days after confirm the order.

Our Services

 Assist you to selecting equipment.

Go through all the questions you have by chatting online.

Design production line for you and the equipment you selected will be fitted together by our professional engineer.

Send our technician to your work scene to help you to install the equipment and commissioning.

Help you to train you stuff.

Offering technical consultation.

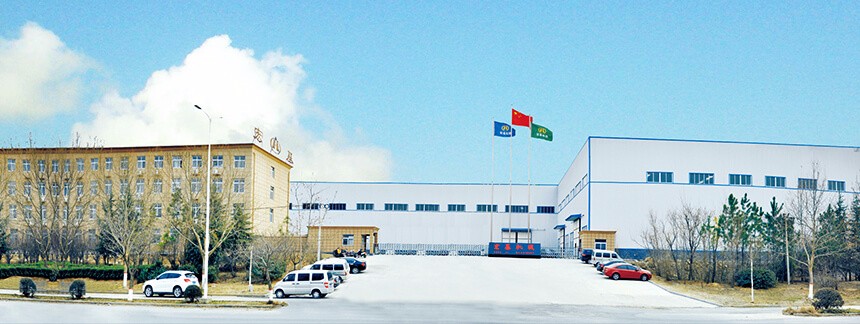

Company Information

 Henan Hongji(group) mining machinery co,. Ltd is an import and export company. Hongji is mainly specialized in producing big and medium size mining machinery, construction and metallurgy equipment and hydraulic mining equipment. It is a shared company integrated with research & development, workforce and sales.

The headquarter of the company, is located in machinery industrial district, north Taojia Road, zhengzhou city, occupies 80,000 acres with over 180 production equipment, the annual output of mining equipment is over 800, the total fixed assets is over 8000,0000 yuan. There are four subsidiaries and a research & development department.

There are over 880 workers in the company right now, 138 intermediate and senior engineers, 200 engineers above intermediate. The company is in cooperation with home and abroad research department for advanced technology, technique and testing site.

Quality is the life of the company, our company is certificated by ISO9001;2000, after-sale is to ensure our quality of service. We have a group of experienced engineers and skillful workers all over the world to serve you.

What customer demands is what we are serving for. To satisfy our customers is what we are pursuing.

For over 20 years, hongji insists on innovation, beyond ourselves and firmly believe” development is the key”, quality creates brand, service improves brand. Hongji aims to create world-class brand with innovative spirits, to make great contributions for the rise of national industry.

FAQ

 Q: how’s the quality of your product?

A: our product is carefully manufactured according to the international standard.



Q: Do you provide operation training and installment?

A: Yes, we will send our engineer to your working site to assist you to install the equipment and offer some operation training..



Q: what’s the capacity of this equipment?

A: According to different model, the capacity is different.



Q: How to install this equipment?

A: Choose a suitable site and leave some spaces for repairing. Our engineer will assist you to install it.



Q: How long do we have to replace the ceramic disc?

A: it is durable, It can be used for quite a long time..
