China finished starch milk dewatering machine-- rotary vacuum filter

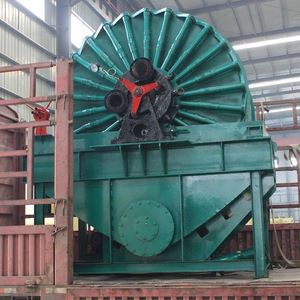

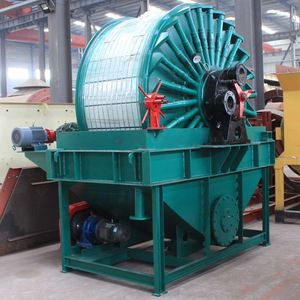

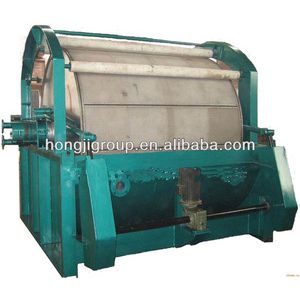

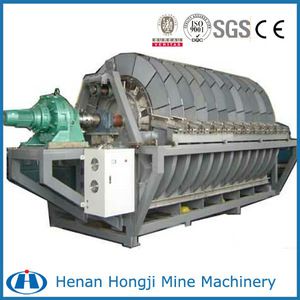

1.the description of vacuum drum filter
Vacuum Filter is a special device of forming concentrate that makes pure pulp dehydrate. This equipment uses negative pressure to drive off moisture forming concentrate filter cake.
2.weight size and packing of vacuum drum filter
we think the customer is the first,we will do our best for our customer.as the packing we can observe the china export standard.for the weight size we have list a form for looking.
Model | Filtering area | Diameter (m) | Length | Filter form | Production capacity (t/h) | Barrel speed(r/min) | Model(t/h) | Power | Overall dimension | Weight |
GN-8 | 8 | 2956 | 1020 | Inside | 2.4-5 | 0.34-1.43 | Y112M-6 | 2.2 | 3200×3176×3367 | 6.94 |
GN-12 | 12 | 2956 | 1370 | Inside | 3.5-7 | 0.34-1.43 | Y112M-6 | 2.2 | 3200×3176×3367 | 7.0 |
GN-20 | 20 | 3670 | 1920 | Inside | 6-12 | 0.12-2.18 | Y132M2-6 | 5.5 | 5120×3900×4050 | 12.7 |
GW-5 | 5 | 1750 | 970 | Outside | 0.5-1.5 | 0.13-0.49 | Y90S-4 | 1.1 | 2975×2570×2092 | 3.9 |
GW-10 | 10 | 2000 | 1880 | Outsid | 1.5-5.5 | 0.18-0.37 | Y112M-6 | 2.2 | 4340×3400×2240 | 5 |
GW-12 | 12 | 2000 | 2000 | Outside | 2-7 | 0.10-0.60 | Y112M-6 | 2.2 | 4110×2820×2450 | - |
GW-20 | 20 | 2000 | 2000 | Outside | 3-12 | 0.14-0.5 | JDO-42-8/4 | 2.5/4 | 4480×4085×2890 | 10.6 |
Certificate and honour:
Looking forward to hearing from you and welcome to visit our factory!
