Online viscometer

TQ-810 vibration type online viscometer is assembled with probe and transmitter, can online measuring viscosity of liquid, and output 4-20mA signal to complex the auto control, the product is intergrated designed, easy to install it onto reaction still, r

Technical Feature

  • Easy to wash
  • Real-time measurement
  • Can adjust data
  • Connect 4-20mA signal
  • Temperature compensation is optional
  • Easy to stall
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$500~5000

PRIMARY PARAMETERS

Usage
Measuring viscosity
Accuracy grade
0.5%
Work temperature
-
Stability
-
Environmental temp.
-
Range
1-10000000cP
Protection level
IP67
Power supply
24VDC
OEM/ODM
Available

MODEL SPECIFICATIONS

Model TQ-810
Viscosity range 1-10000000cP
Precision level 0.5%
Power supply 24VDC
Output signal 4-20mA
Temperature range ≤450℃
Pressure range ≤6Mpa
Material SS316L HC (other material can be chosen)
Protection level IP67
Explosive-proof level Exd ii BT4
Connect method Flange, quick, screw

DETAIL DESCRIPTION

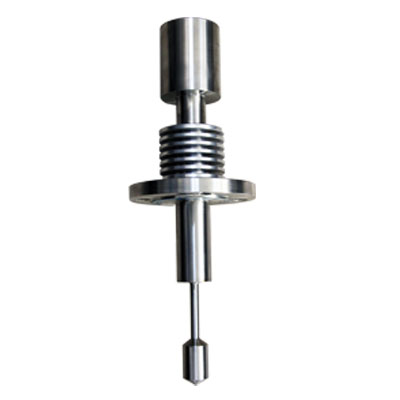

TQ-810 online viscometer


TQ-810 vibration type online viscometer is assembled with probe and transmitter, can online measuring viscosity of liquid, and output 4-20mA signal to complex the auto control, the product is intergrated designed, easy to install it onto reaction still, reaction tank and pipes. The measuring is not influenced by temperature and pressure.


Advantage character

  1. Easy to wash

  2. Real-time measurement

  3. Can be adjusted

  4. Connect 4-20mA output signal

  5. Temperature compensation is optional
