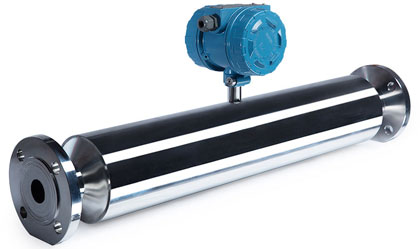

Tubular densitometer

TQ-884 liquid densitometer is installed in the pipes, can continuous online measure the density of the fluid, it is used for the process control which density is the most important control point, or as viewer of weight control data such as solid percent o

Technical Feature

  • Single straight pipe
  • Measuring the material with lots of bubble or large viscosity
  • Kinds of material and flanges
  • High precision continuous measuring
  • Not sensitive to plant's vibration, pressure or temperature
  • low cost
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$200~2000

PRIMARY PARAMETERS

Usage
Measuring density
Accuracy grade
0.001g/cc
Work temperature
-50-150
Stability
-
Environmental temp.
-40-85
Range
0-3g/cc
IP
65
Power supply
-
OEM/ODM
Available

MODEL SPECIFICATIONS

Model TQ-884
Precision +-0.001g/cc
Working range 0.3g/cc
Repeatability +-0.0001g/cc
Process temperature influence +-0.0001g/cc
Process pressure influence Ignore
Process temperature -50℃-150℃
Environment temperature -40℃-85℃
Max. working pressure 2MPa/100bar (normal/high pressure)
Test pressure 1.5 time of max. working pressure
Protection level IP65

DETAIL DESCRIPTION



TQ-884 straight tubular densitometer


TQ-884 liquid densitometer is installed in the pipes, can continuous online measure the density of the fluid, it is used for the process control which density is the most important control point, or as viewer of weight control data such as solid percent or concentrate percent.


Character

  1. Single straight pipe

  2. Measuring the material with lots of bubble or large viscosity

  3. Kinds of material and flanges

  4. High precision continuous measuring

  5. With inner isolating bellows

  6. Not sensitive to plant's vibration, pressure or temperature

  7. Unnecessary change the existing flange, decrease the installing cost

  8. When errors happen, control medium's leakage
