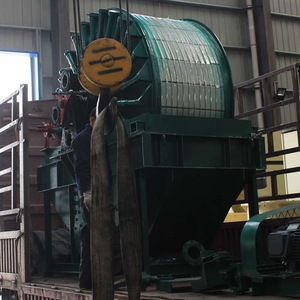

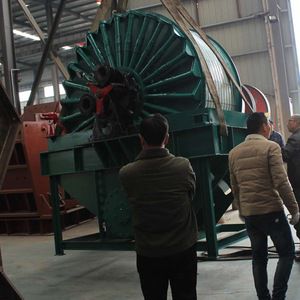

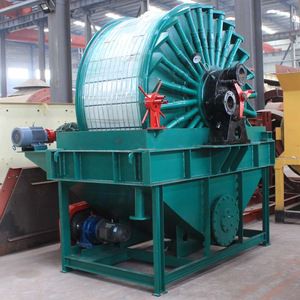

High quality ore vacuum rotary drum filter (Capacity:2.4-12T/H) in mineral selection equipment

Filter is a fine pulp dehydration concentrate the special device.

Technical Feature

  • Henan, China (Mainland)
  • Hongji
  • GN GW series
  • New
  • Engineers available to service machinery overseas
  • offered
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$69~79

PRIMARY PARAMETERS

Place of Origin
Henan, China (Mainland)
Brand Name
Hongji
Model Number
GN GW series
Condition
New
After-sales Service Provided
Engineers available to service machinery overseas
whole processing line design
offered
warranty
one year
certificate
ISO
installation
we supply
spare part
we supply
service
intime and considerable
capacity(t/h)
2.4-12
filter the form
in or out

DETAIL DESCRIPTION

 belt vacuum filter Belt-Type Vacuum Filter

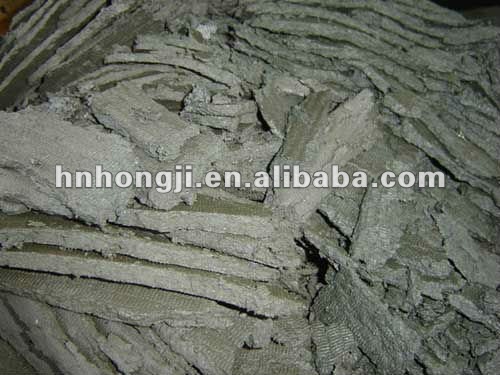

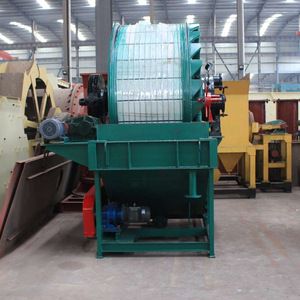

Filter is a fine pulp dehydration concentrate the special device. This equipment use of negtive pressure, water will be discharged in the form of concentrate cake.


Types and features of Vacuum Rotary Drum Pre-coating Filter:

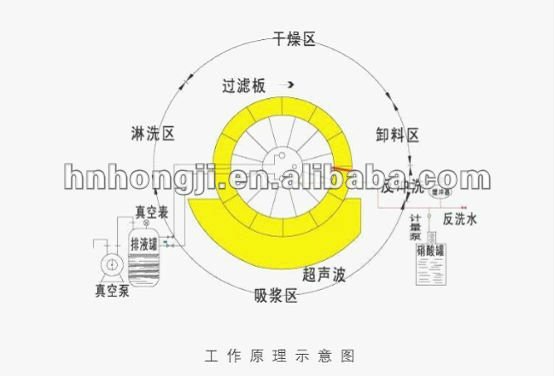

With the precoating adsorbed on the surface of rotary drum, Rotary Drum Vacuum Precoating Filter can discharge filter cakes automatically in coordination with scrapers. It can automatically carry out continuous operation under the condition of vacuum filtration. It can provide specially solidliquid separation solution for soliquid (slurry, sludge, etc) with such characteristics as finegrained, colloid, block (blinding) etc.



Main Technical Parameters of blet vacuum filter:

model
Filters the area
Diameter
Filters the form
Capacity (flotation) (t / h)
Speed (r / min)
Motor
Size (mm)
Weight
(t)
Diameter
(mm)
Length
(mm)
Model
Power (kw)
GN-8
8
2956
1020
in
2.4-5
0.34-1.43
Y112M-6
2.2
3200x3176x3367
6.94
GN-12
12
2956
1370
in
3.5-7
0.34-1.43
Y112M-6
2.2
3200x3176x3367
7.0
GN-20
20
3670
1920
in
6-12
0.12-2.18
Y132M2-6
5.5
5120x3900x4050
12.7
GW-5
5
1750
970
out
0.5-1.5
0.13-0.49
Y90S-4
1.1
2975x2570x2092
3.9
GW-10
10
2000
1880
out
1.5-5.5
0.18-0.37
Y112M-6
2.2
4340x3400x2240
5
GW-12
12
2000
2000
out
2-7
0.10-0.60
Y112M-6
2.2
4110x2820x2450
5.6

GW-20
20
2000
2650
out
3-12
0.14-0.5
JDO-42-8/4
2.5/4
4480x4085x2890
10.6



Henan Hongji Machinery Manufacturing Co.,Ltd is a specilized Vacuum Filter mnufacturer. Hongji Group can offer kinds of separator and the whole set of mineral selection equipment, process design and also can accept 50-2,000t/d production line turnkey project.

More information, pls do not hesitate to contact with Ms. Claire(+8615038349509)

//
