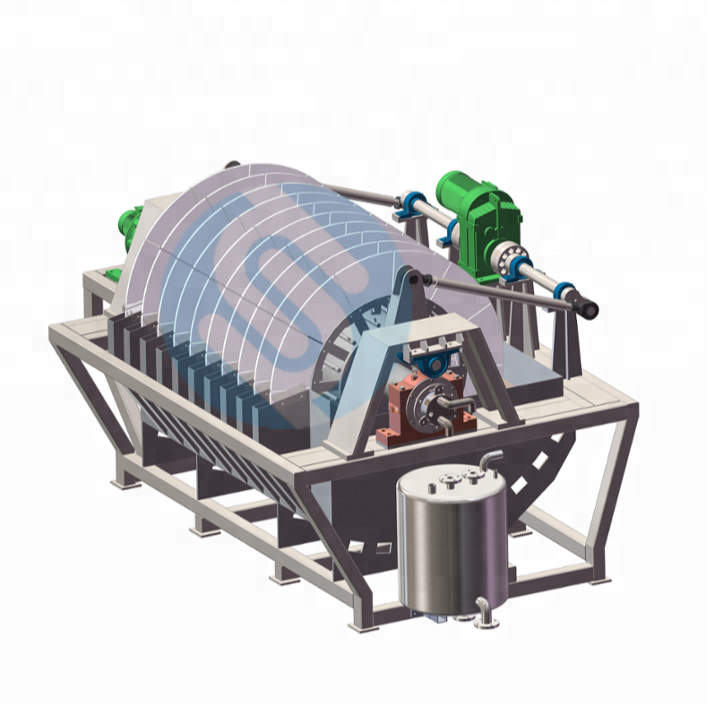

CF Ceramic Rotary Vacuum Disc Filter

The ceramic disc filter is a kind of equipment which use the vacuum negative pressure and the capillarity of ceramic plate to realize solid-liquid separation.

Technical Feature

  • Shandong, China (Mainland)
  • Hesheng
  • New
  • Engineers available to service machinery overseas
  • Mining Equipment
  • Separator
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$30~500

PRIMARY PARAMETERS

Place of Origin
Shandong, China (Mainland)
Brand Name
Hesheng
Condition
New
After-sales Service Provided
Engineers available to service machinery overseas
Application
Mining Equipment
Type
Separator
Usage
Drying Machine
Keywords
Energy-saving

DETAIL DESCRIPTION

Product Description

Brief Introduction

The ceramic disc filter is a kind of equipment which use the vacuum negative pressure and the capillarity of ceramic plate to realize solid-liquid separation.

Extract air inside of the ceramic plate to make the pressure difference with external, under the negative pressure, the solids in the slurry tank will be absorbed on the ceramic plate surface. And the filtrate will be flow from the outside to inside of ceramic plate with negative pressure difference and the hydrophilicity of ceramic plate, so that to reach the purpose of the solid-liquid separation.

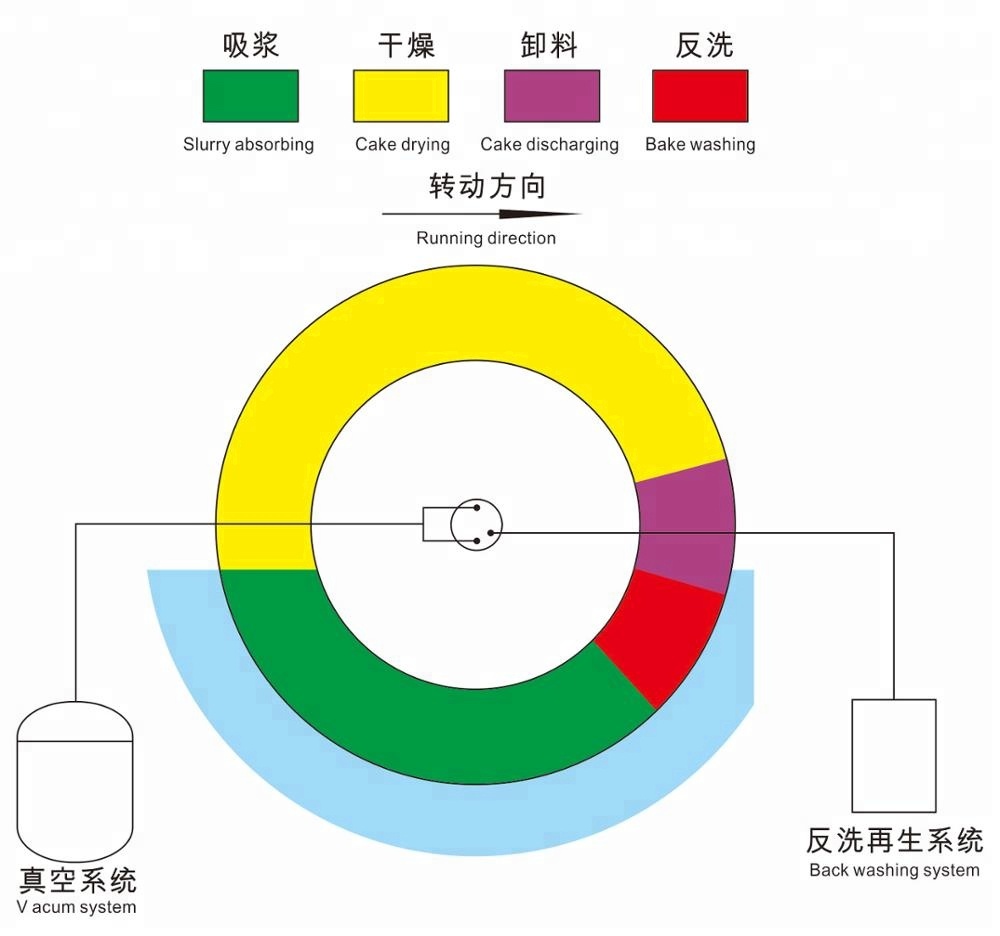

Operation Principle

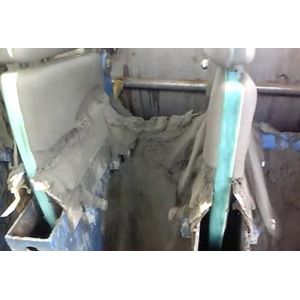

The ceramic plate immersed in the slurry tank, and the material cake layer formed on its surface under vacuum negative pressure and adsorbed by the plate capillary. The liquid passes through the inside of the plate and pipes to the vacuum tank and discharge out.
The cake on the plates running by main roller to drying area, and continues to dehydrate under vacuum function. Then running to cake discharging area (without vacuum) to discharge the cake by ceramic scraper.
After discharging, the ceramic plate running to the back washing area, the process water or compressed air will be enters to the ceramic plate inside by the back washing pipes, and washing the ceramic plate holes from inside to outside.
After working for one shift, the ceramic plate should be washed by ultrasonic waves and combined with low concentration acid to ensure its efficiency.

Main Features

Low power consumption, low operation cost (low vacuum loss), low cake moisture, low solids content in filtrate and can be reused. High automation, compact structure, small space occupied, and easy installation and maintenance.

Specification
Main Parts

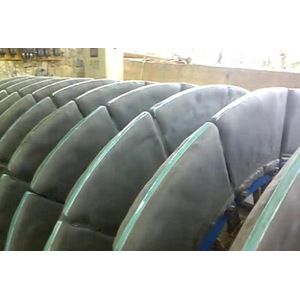

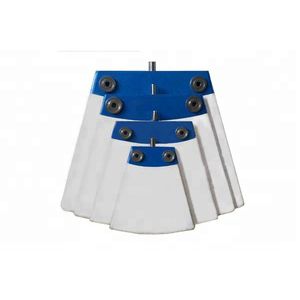

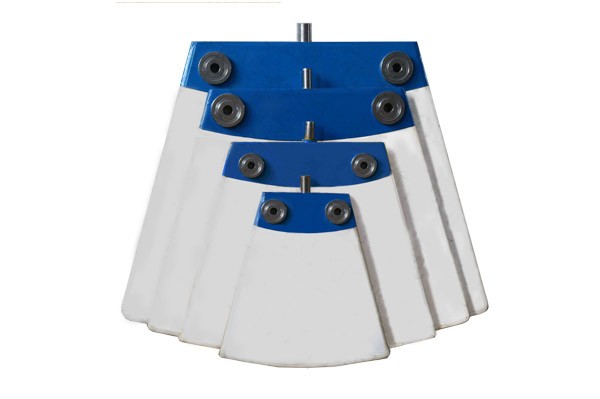

Ceramic Plate

Name: Ceramic Plate

Brand: Hesheng

Original: China

1. High strength of membrane layer, high density of frameworks

2. Outstanding resistance against abrasion, pressure and corrosion.

3. High porosity with efficient water filtration, high filtration accuracy, low vacuum consumption and power consumption.

4. Scientific back-washing system increase the plate service life time.

Distributed Valve

Name: Ceramic Distributed Valve
Brand: Hesheng
Original: China
1. Use ceramic material

2. Minimal friction,  good sealability.

3. Long service life time.

Pinch-off Valve

Name: Pinch-off Valve
Brand:  Hesheng
Original: China

1. Low failure rate

2. easy for control

3. long service life time

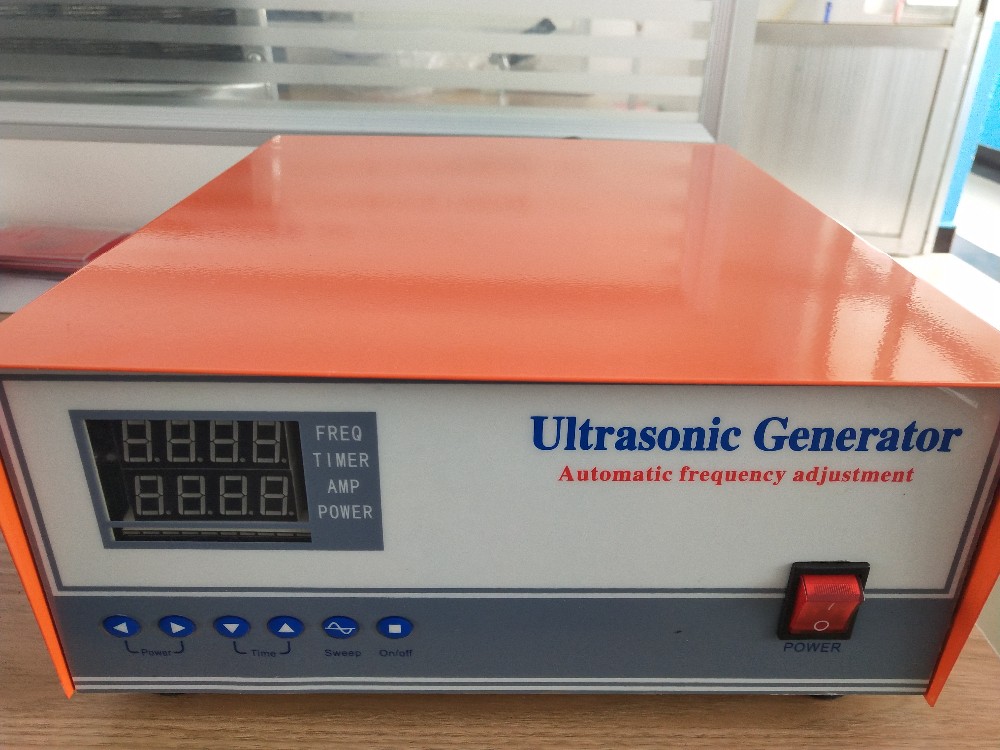

Ultrasonic Power Supply

Name: Ultrasonic Power Supply
Brand: Hesheng
Original: China

1. low failure rate

2. long service life time

3. easy maintenance and change.

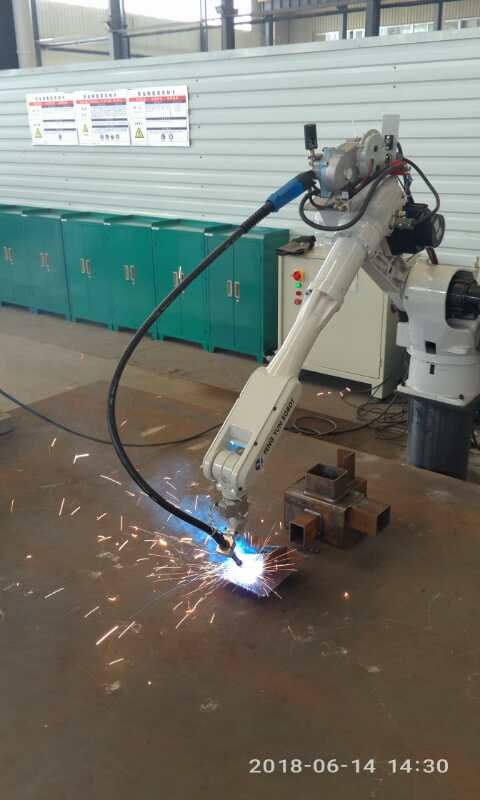

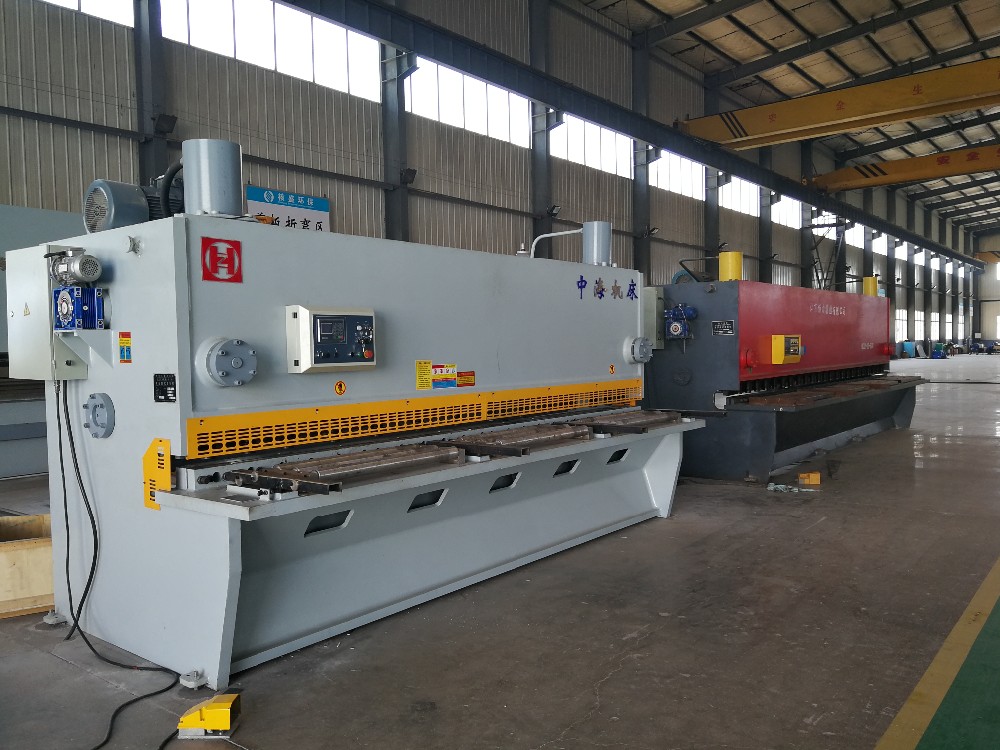

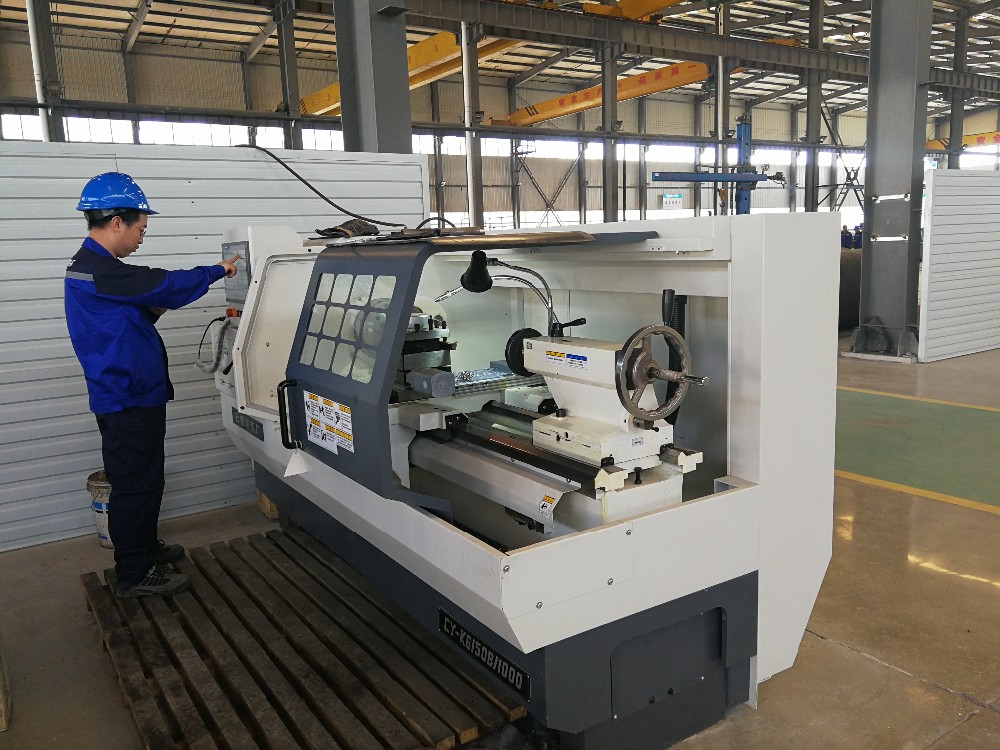

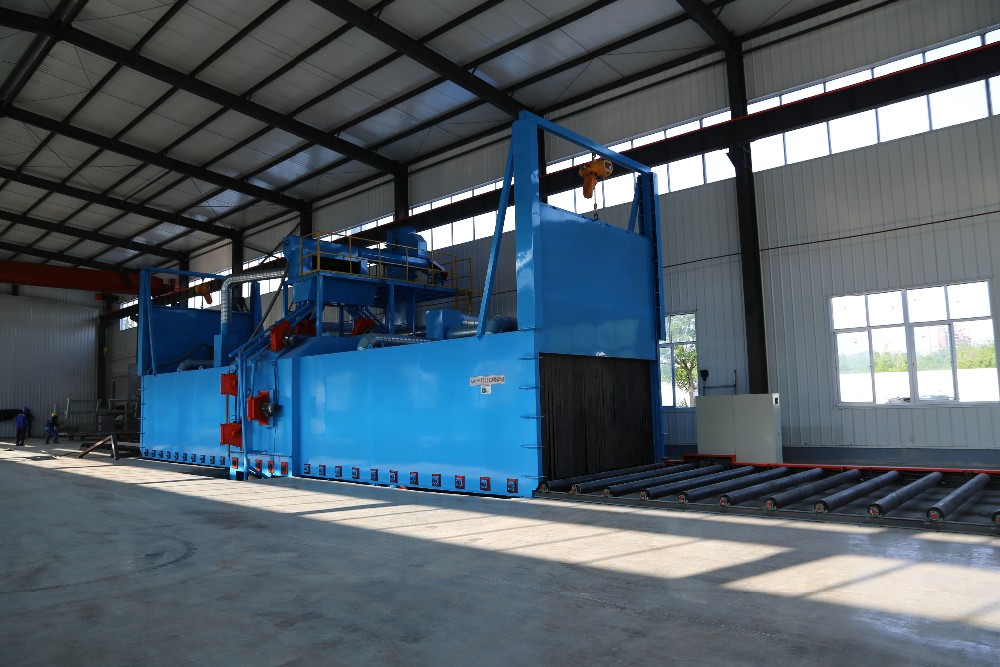

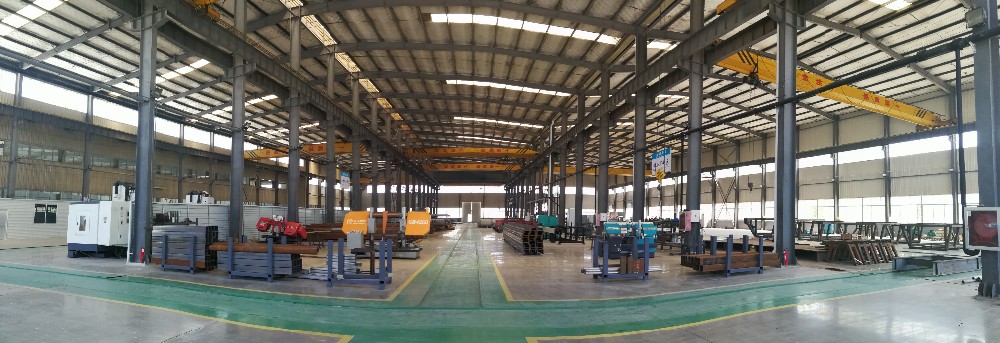

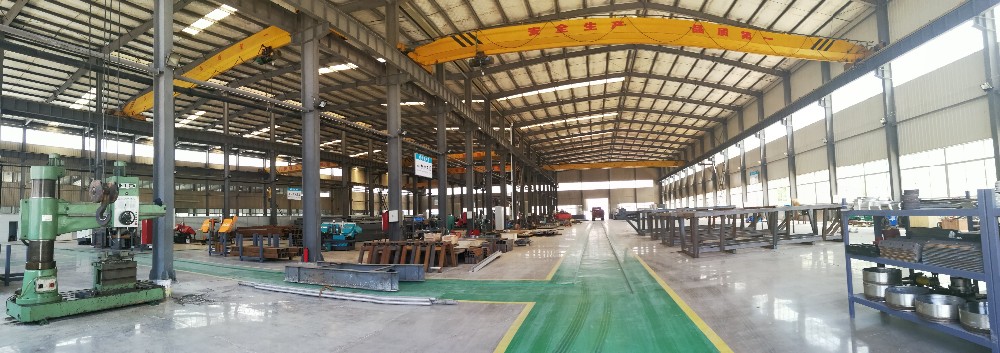

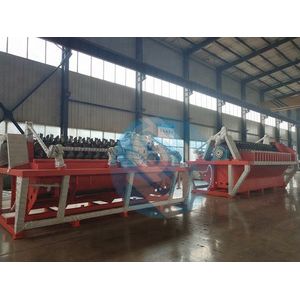

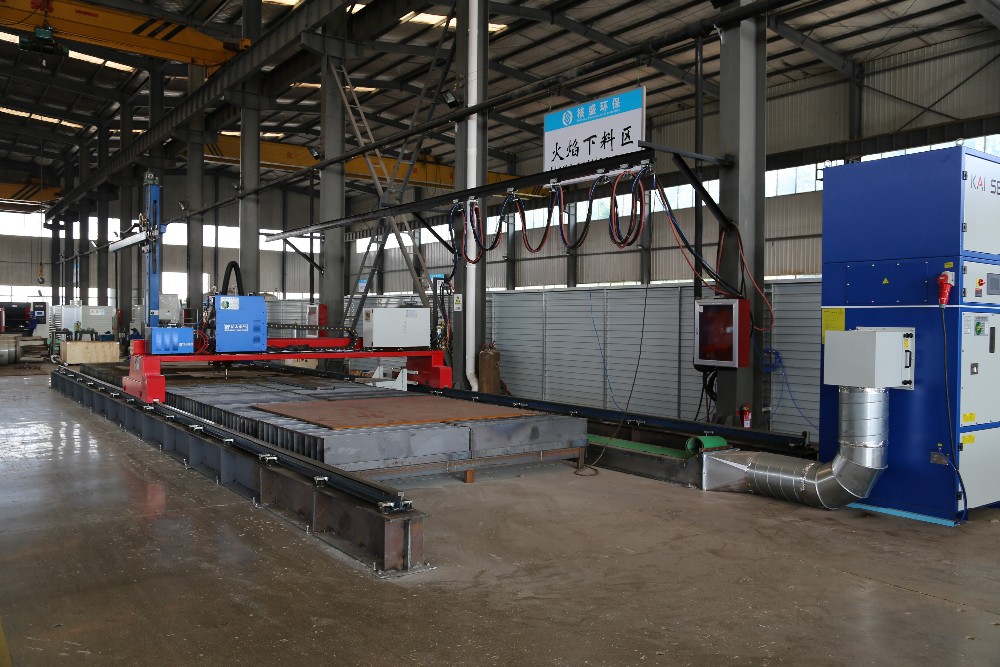

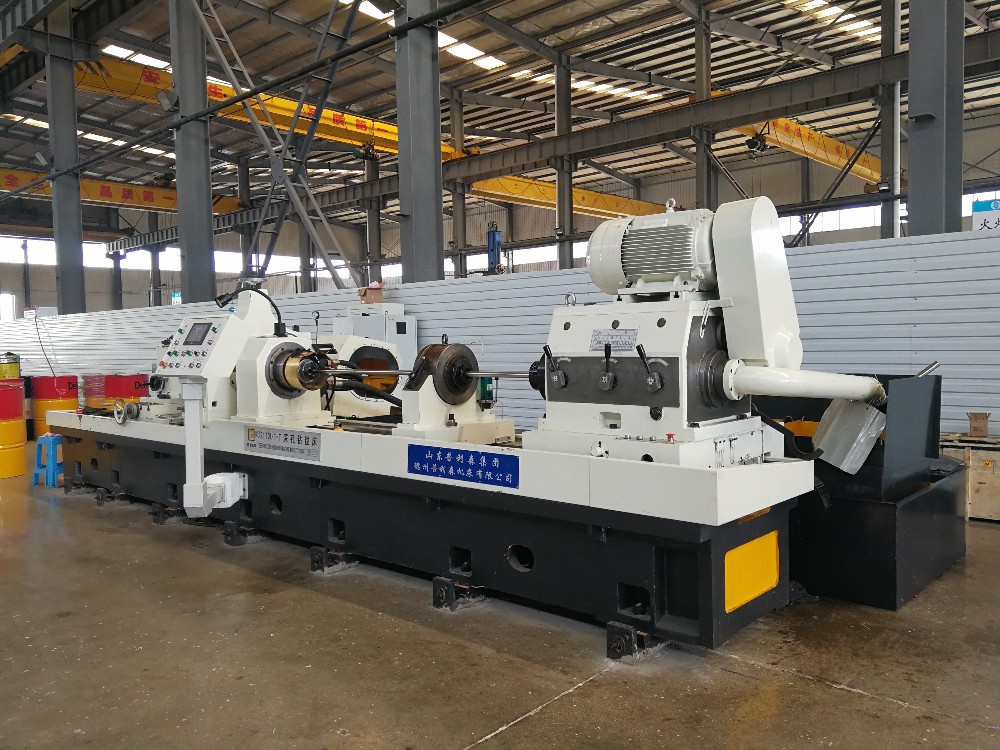

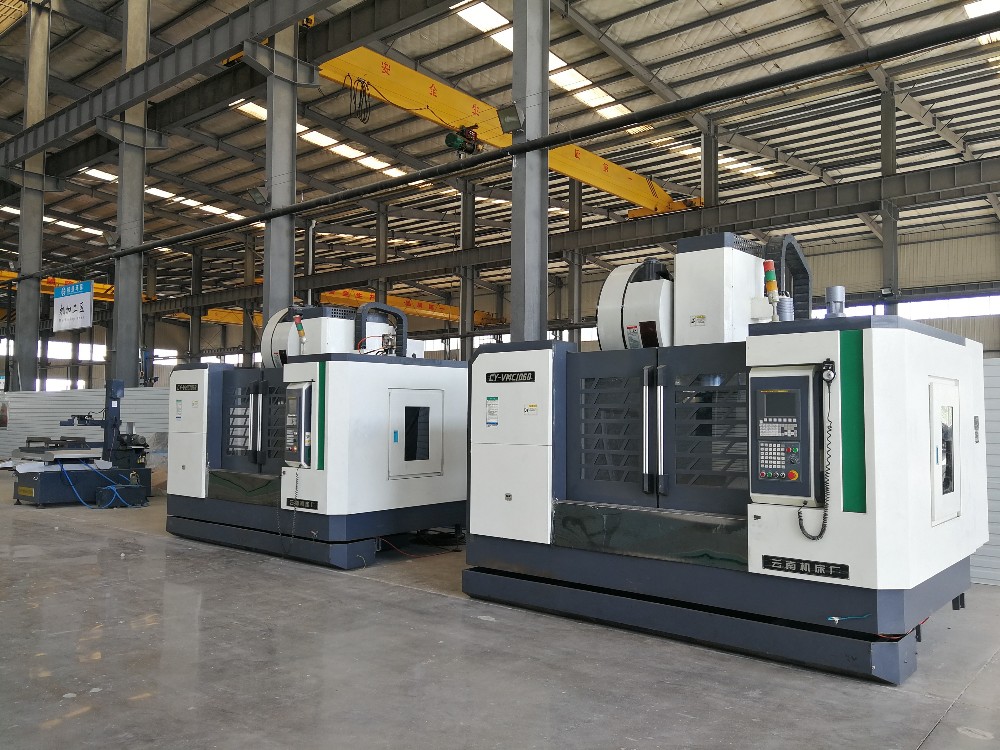

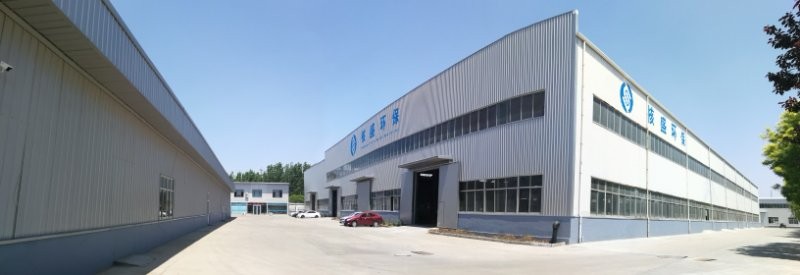

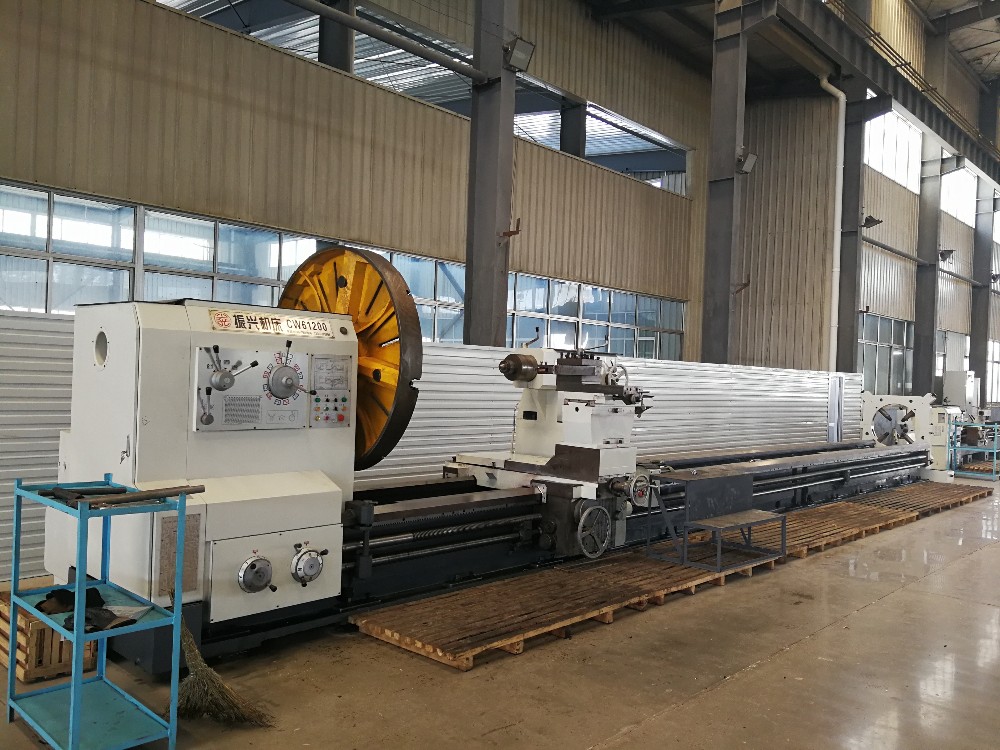

Enterprise Strength
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

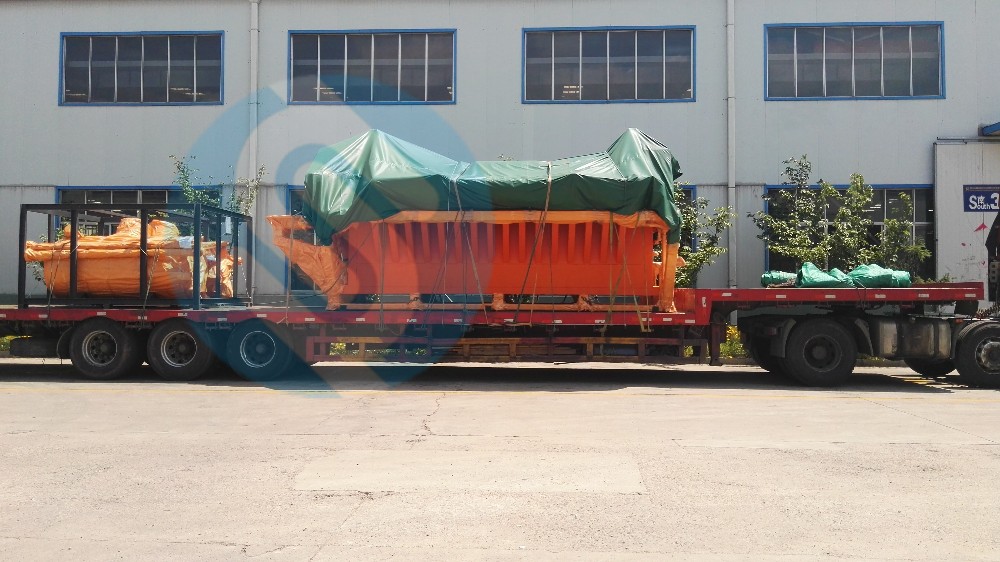

Packing & Delivery
Packaging
Size

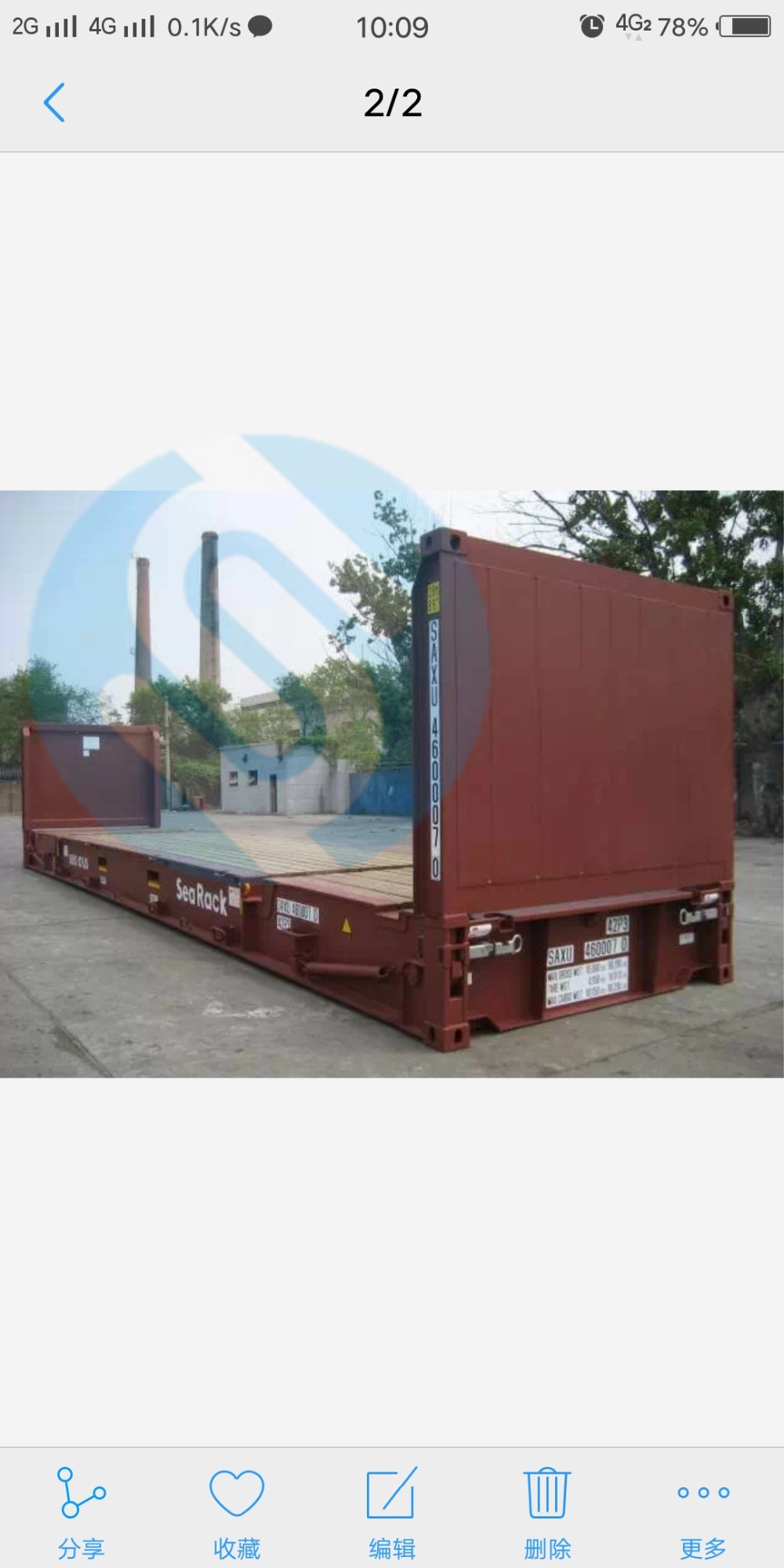

20" or 40" FR Flat Rack Container
Weight
2 tons ~ 60 tons



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Related Products

DU horizontal vacuum belt filter

(https://www.alibaba.com/product-detail/DU-horizontal-vacuum-belt-filter_60771791787.html?spm=a2747.manage.list.15.779371d2TjhuBJ)

91.8% Response Rate

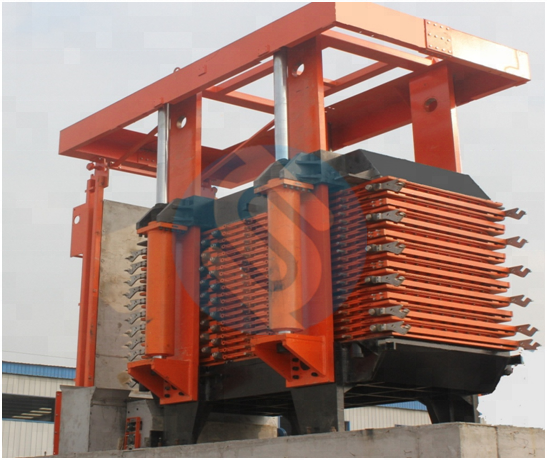

SPF Stacked Filter Press

(https://www.alibaba.com/product-detail/SPF-Stacked-Filter-Press_60774415547.html?spm=a2747.manage.list.9.779371d2TjhuBJ)

91.8% Response Rate

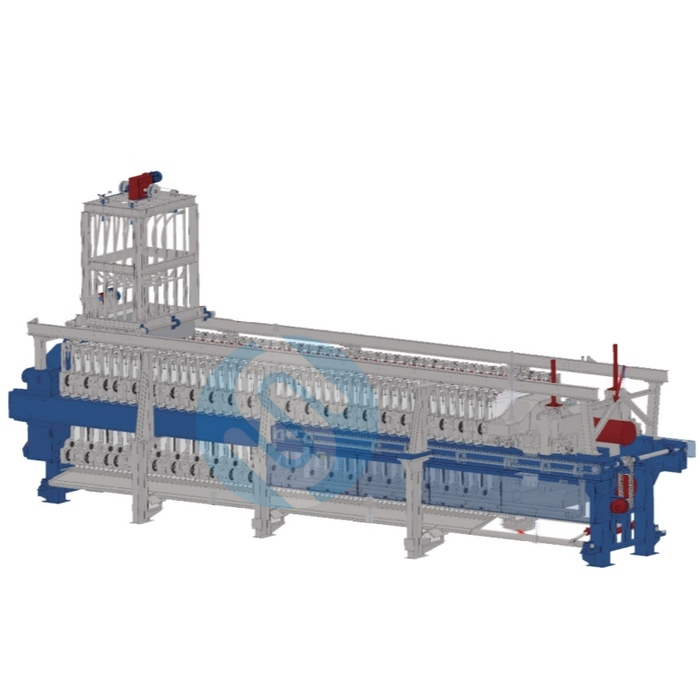

HPF Intelligent Filter Press
