HPF Intelligent Horizontal Filter Press

HPF Intelligent Filter Press is an automatic and high-efficient environmental protection solid-liquid separation equipment.

Technical Feature

  • New
  • Automatic
  • High Efficiency
  • Shandong, China (Mainland)
  • HESHENG
  • HPF4m2 - HPF380m2
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$30~600

PRIMARY PARAMETERS

Condition
New
Automatic Grade
Automatic
Production Capacity
High Efficiency
Place of Origin
Shandong, China (Mainland)
Brand Name
HESHENG
Model Number
HPF4m2 - HPF380m2
Voltage
380V/400V/440V
Power(W)
10-50KW
Weight
3-65 Tons
Dimension(L*W*H)
10800X2555X4497.5mm
Certification
ISO9001
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Application
Solid-liquid Separation
Keywords
Automatic Pressing Machine
Name
Membrane Filter Press
Type
Horizontal Filter Press

DETAIL DESCRIPTION

Product Description

Brief Introduction

HPF Intelligent Filter Press is an automatic and high-efficient environmental protection solid-liquid separation equipment. It can open and close all plates together at one time, and finish slurry feeding, filtering, extrusion, washing, air-drying, cake discharging etc. process automatically. The filter contains main machine, automatic washing system, electric and pneumatic control system, hydraulic system. When start the filter use mechanical drive device to pull the hydraulic cylinder first, and drive the plates close to setting position, after locking device locking the hydraulic cylinder, piston rod reaching out, filter press plates mutual compression to form chamber between each two plates and sealing around. Use slurry feeding pump to feed slurry with a certain pressure to each chamber, solids will be accumulated by cloth to form a cake, liquid will pass through cloth and flow out by filtrate pipes. Feeding high-pressure compressed air to diaphragm and squeezing the cake, then use high-pressure compressed air to air-drying the cake. At last, use drive device to open the chamber, and discharge the cake with gravity. This filter press has the advantages of simple structure, high automatic level, open & close plates with short time and easy maintenance.

Operating Principle

The filtration unit of HPF Intelligent Filter Press is formed by alternate arranged diaphragm and chamber type filter plates and filter medium between them to form groups of chambers, the volume of each chamber can be changed in a certain range. During operation, press the slurry by the feeding pump into the filter chamber to form fluid pressure, filtrate through the cloth and flow along the diversion gap to corner channel of plates, discharge filtrate concentrated. Solids will be accumulated on the cloth to form cake until full of the chamber, that's finish the filtering. After that, the squeezing medium (water or compressed air) will enter into the diaphragm cavity through squeezing channel and form pressure to squeezing the liquid out from cake to corner channel. Then feeding high-pressure compressed air to one side of cake to air-drying the cake. Finally, open all the plates and discharge cake, washing cloth, reclose plates and enter into next cycle.

Main Features

 1) Hydraulic hold-down device which can realize mechanical moving to make the plates open and close quickly.
 2)  Diaphragm squeezing the cake with 1.6MPa pressure, it can reach low cake moisture.
 3) High-pressure automatic cloth washing device can washing the cloth thoroughly and ensure the cloth recycle.
 4) Vibrator cake discharging device can make the cake discharge easily and do not need humans.
 5) The cloth can be disassembled and assembled directly on the top, change cloth becomes more easily and quickly.
 6) Automatic open & close tray device can collect liquid separately to ensure the cake and liquid will not mix together.
 7) Intelligent control system to make the equipment operation safe and reliable.

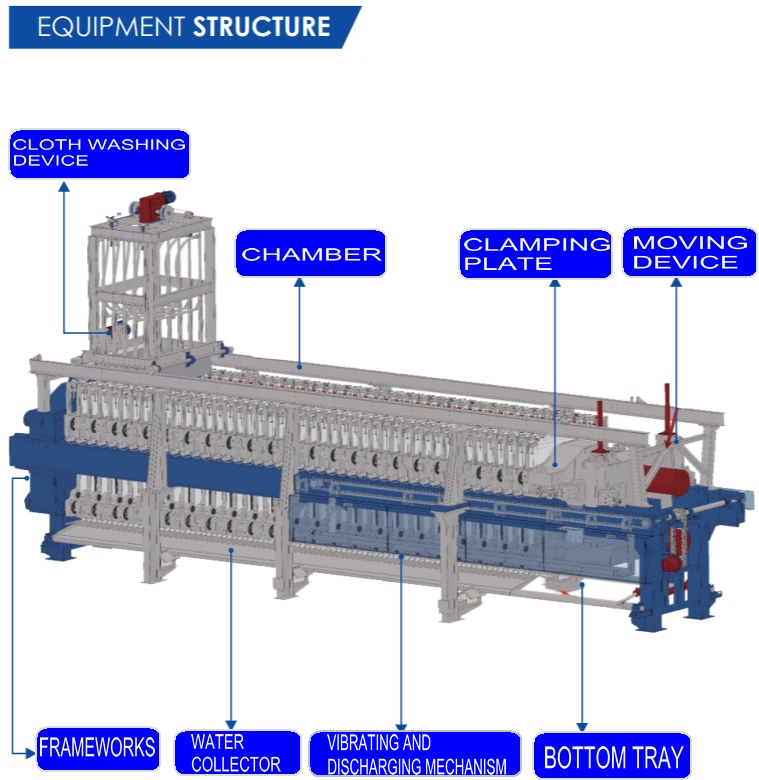

Main Parts

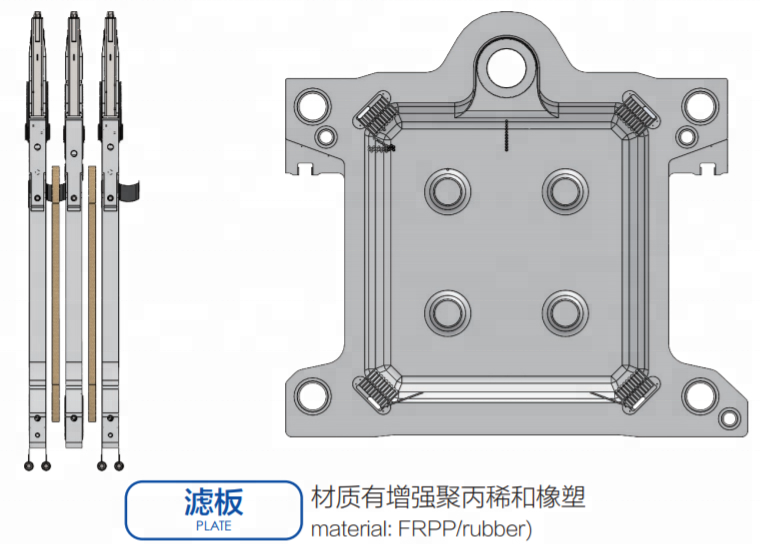

Plate

Name: Plate

Brand: HESHENG

Original: China

High strength plate use FRPP or RUBBER material to maufacture it. Its strength is much higher than others, so as to have a long service life time, greatly reduce operation and maintenance costs.

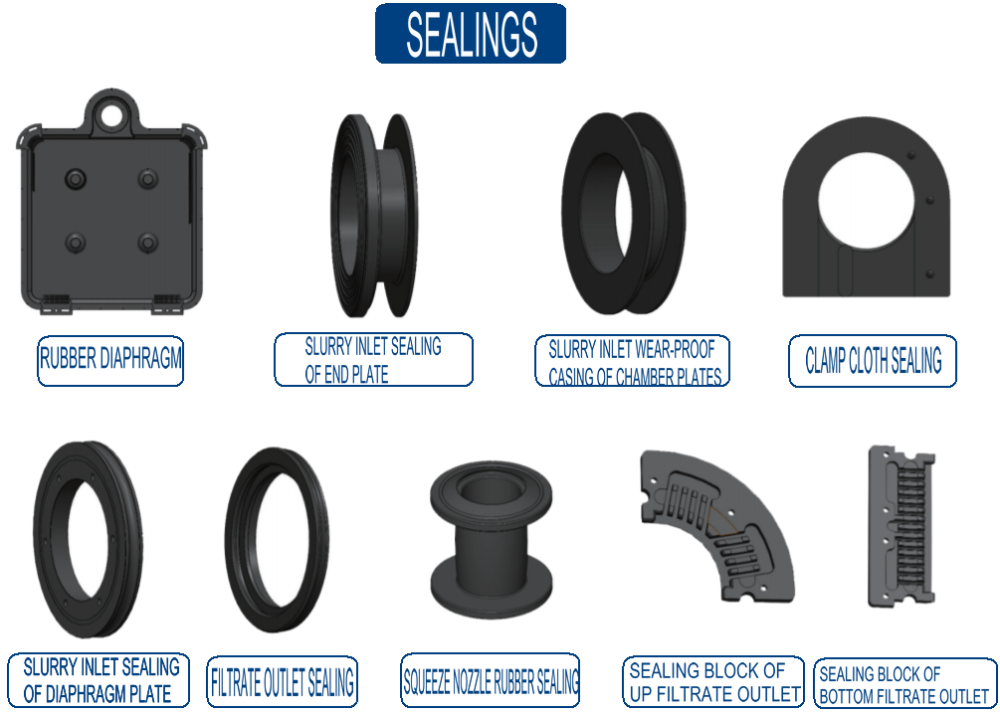

Sealings

Name: Rubber Sealings
Brand: HESHENG
Original: China
Rubber diaphragm and other rubber sealings are stable and resists deformation well, it is easy to exchange during maintenance.

Application
Enterprise Strength
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
suit for 20" & 40" GP, OT, HQ containers
Weight



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
20" & 40" GP, OT, HQ containers
Weight



Packaging Details
We also can use containers as packages to pack all the goods, clients do not need send the containers back.
