Vacuum belt filter press for Sulfuric acid sludge
1.Huge capacity
2.perfect dehydration
3.widely used in many indusryies

Vacuum belt filter press

Our factory

Jincheng® has been a leader in liquid/solid separation equipment design and manufacturing for 20 years, meeting the needs of both industrial and municipal clients. Our equipments operate worldwide in evergrowing range of process and wastewater applications. Our customers come from many different countries, like Australia, Iran, India, South Korea, etc.

Project case:

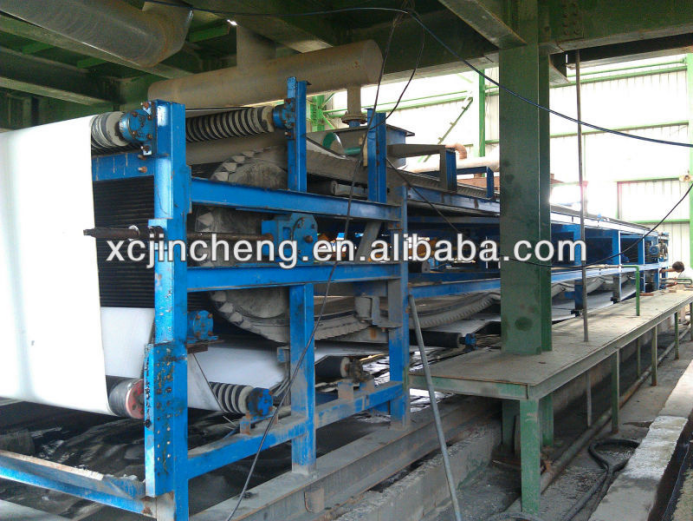

The picture shows our Vacuum belt filter is used in the Xuchang City sludge dewatering project. The totel capacity is 20 tons  per hour.The sewage and sludge from the city rivers and tunnels are collected and transported to our plant, the sludage is filtrated by our belt filter, and the filtrated water is recyled  for the city life using water; and the sludge is filtrated to be used as the fertilizer for the plant of Xuchang City.

This plant is one of the most successful Vacuum belt filter built by my company.

If you are about to build a sewage and sludge treatment plant, the whole tailings treatment plant, or one plant needs a large capacity machine to dehydrate your raw material, our vacuum belt filter is your only choice. Contact with me, and make your decision to cooperate with us., we can supply you the sewage dewatering machine to make you be the No.1  mineral and sludge treatment expert.

 Also, it is used in other industies:

Why you choose the Vacuum belt filter from us.

Highly suitable for large through puts, high porosity materials, minerals, dye-stuff etc.

Overcomes all disadvantages of all other vacuum filters put together.

Filtration takes place on an endless variable porosity filter cloth.

A thick rubber belt supports the endless filter cloth from below.

Slurry feed, gravity filtration, vacuum filtration, multiple cake washing, dewatering, cake discharge, cloth cleaning, alignment take place continuously and un-interruptedly.

Vacuum belt filter press advantages for process plants:

High filtration rates and large tonnage capabilities

Excellent washing efficiencies and lower cake moisture

Long service intervals and low maintenance costs

Operations are truly continuous

Works in consonance with natural filtration parameters.

Gives extremely constant operational parameters.

No oceanic feed slurry movement

Least vacuum losses

No shearing and rubbing forces acting on the filter cloth

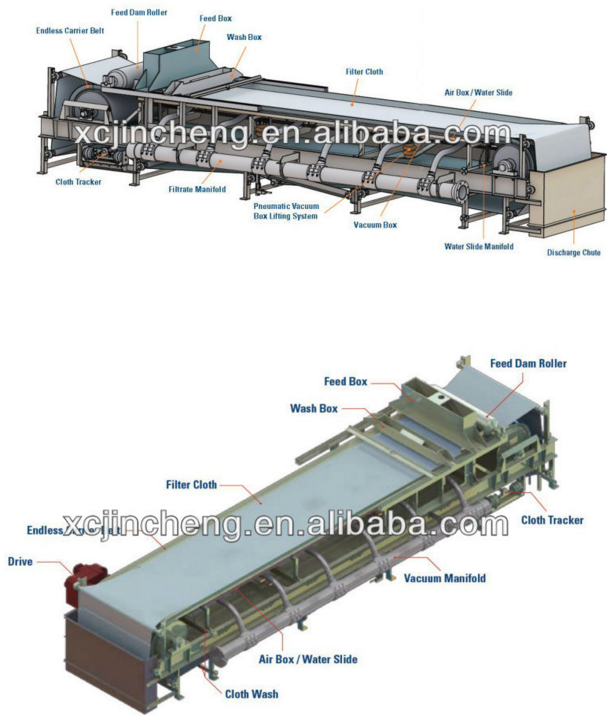

Materials of construction of Vacuum belt filter press

We offer a complete range of solutions for corrosive, abrasive and hot filtering applications, from the highest quality stainless steel to FPRs and plastics. The filter frames are manufactured from open channel and angle sections to prevent problems associated with corrosion when using box sections.

Cake discharge

Cake discharge on most applications is spontaneous, we make use of cake scrapers or water slides to ensure complete cake removal in the event of wet, sticky products.

Endless rubber belt

An endless rubber belt with traversing grooves drains the filtrate towards holes positioned along the belt. Synthetic plies encapsulated in the rubber part below the grooves serve to withstand the longitudinal stresses to which the belt is subjected.

We have constructed the widest filters using 4m rubber belts. These are available in natural rubber, SBR, neoprene, and EPDM, depending on the process requirements, transporter belts have a carcass-free center zone to ensure long life by preventing contact between the carcass and corrosive filtrates.

Endless filter cloth

It retains the cake and moves together with the belt. Various MOC, porosity, weaving type ere. are available.

Vacuum box and wear belts

A vacuum box below the belt is mounted along the filter and collects the filtrate. through a manifold to the receivers. The box at its tops-de has two lips covered with low friction synthetic strip liners that seal through intermediate wear belts between the bottom side ofthe belt and the surface of the strips. Since the belt Is the most expensive part of the filter these endless narrow belts serve as sacrificial component that takes the wear between the surfaces, protects the rubber belt and secures against vacuum leaks.

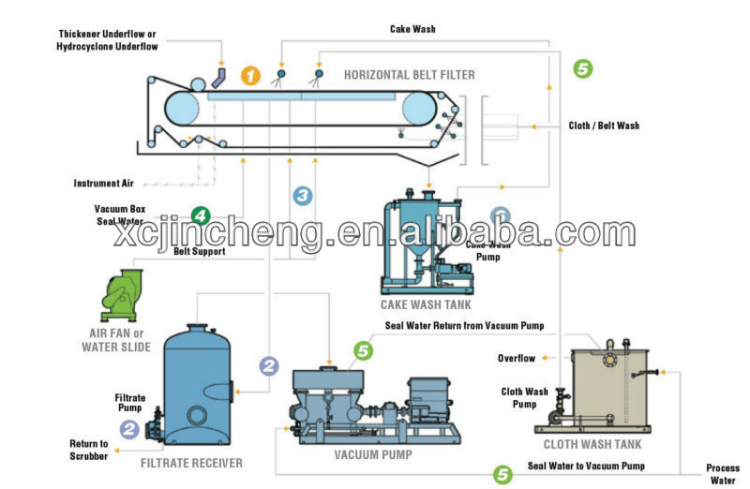

Vacuum belt filter press for mineral suspension Working principle

Horizontal rubber belt vacuum filter with filters as the filter media, is full use of gravity and vacuum suction material to achieve effective separation of the solid-liquid separation equipment. Ring of rubber belt vacuum chamber as a whole. Drag the ring belt from motor runs continuously, filter cloth dressing on the belt and run synchronously, tapes and vacuum skid pad ring contact friction belt and the formation of the water seal. Slurryby the distributor of evenly distributed on the filter cloth. when the vacuum chamber connected to the vacuum system, forming vacuum area on the tape, landfill leachate wearing summary and transverse grooves on the belt filter cloth by a small hole into the vacuum chanber, solid particles are withheld on the filter cake formation. Liquid discharge separator into the vacuum chamber, along with the rubber band to move, cake that has been formed in order to enter the filter cake washed area and dry area, finally separating filter cloth and adhesive tape, filter cake is discharge at the unloading roller. Discharged after washing, the cloth filter regeneration of filter cake, and then through a set of back-up roll and again after correcting device into teh filter area, began to enter new filter cycle.

Vacuum belt filter press Main parameter:

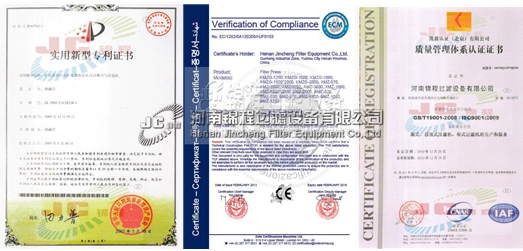

 Our certificate:
