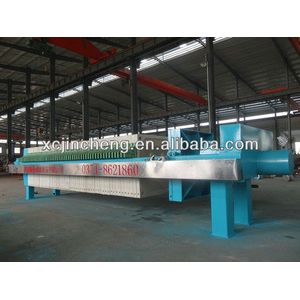

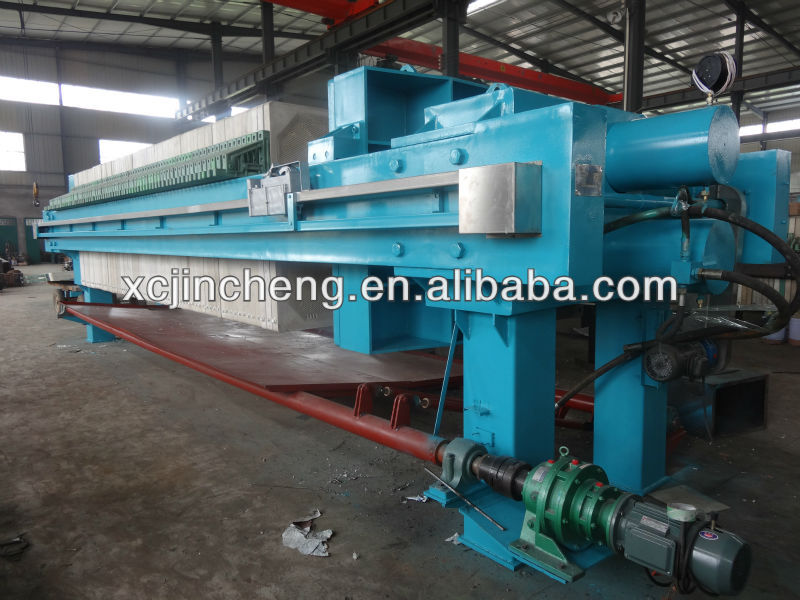

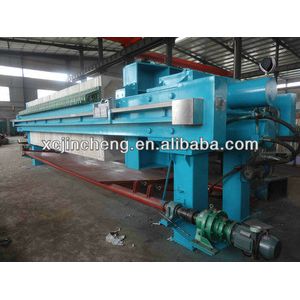

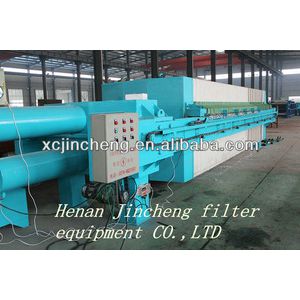

Automatically Pull Plate Filter Press

Description of Automatically Pull Plate Filter Press

Automatic drawing plate filter machine has simple structure, strong applicability, intermittent operation of solid-liquid separation equipment, simple structure, convenient applicability to install.

Application of Automatically Pull Plate Filter Press

It is widely applied in many fields such as coal washing industry, petroleum industry, chemical industry, ceramic industry, pharmacy, food industry, textile industry, printing and dyeing industry, paper making industry, waste water treatment industry etc.

Frame part of Automatically Pull Plate Filter Press

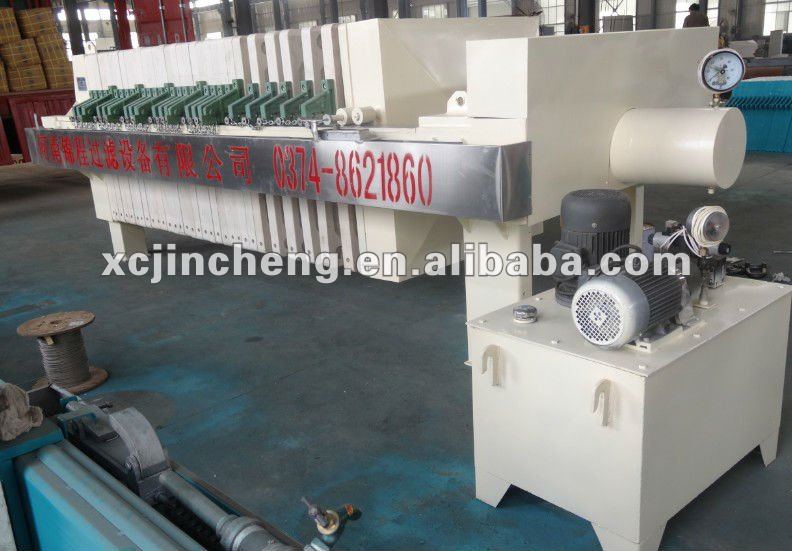

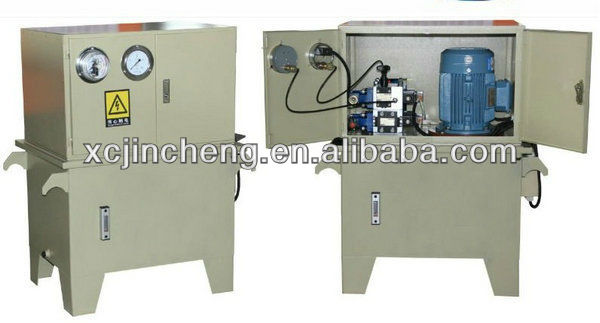

Hydraulic pressure station of Automatically Pull Plate Filter Press

BXK BJX BXMD of Automatically Pull Plate Filter Press

Beam of Automatically Pull Plate Filter Press

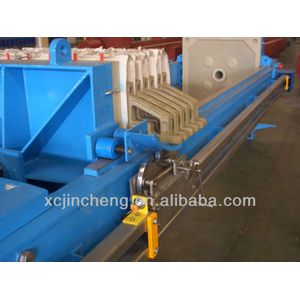

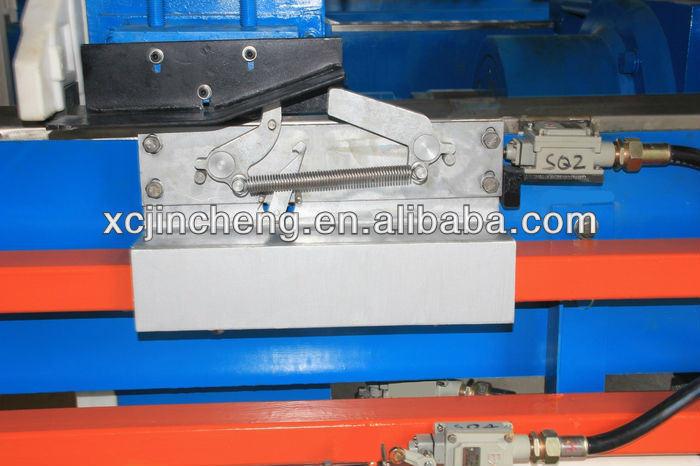

Pull board the car of Automatically Pull Plate Filter Press

Filter plate of Automatically Pull Plate Filter Press

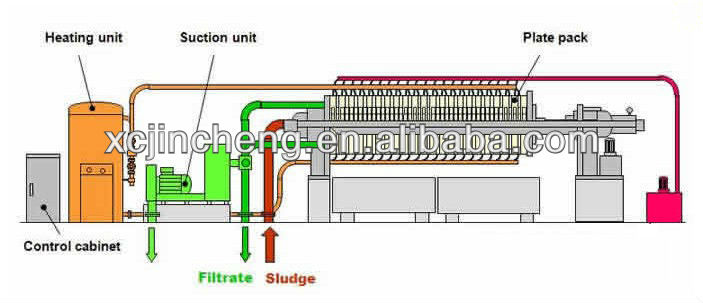

Working principle of Automatically Pull Plate Filter Press

Under the action of the pressure of the feed pump, the material and the liquid are sent into each filter chamber, and the solid and the liquid are separated by the filter medium filter cloth. A filter residue is formed on the filter cloth until the filter chamber is filled to form a cake.

Feature of Automatically Pull Plate Filter Press

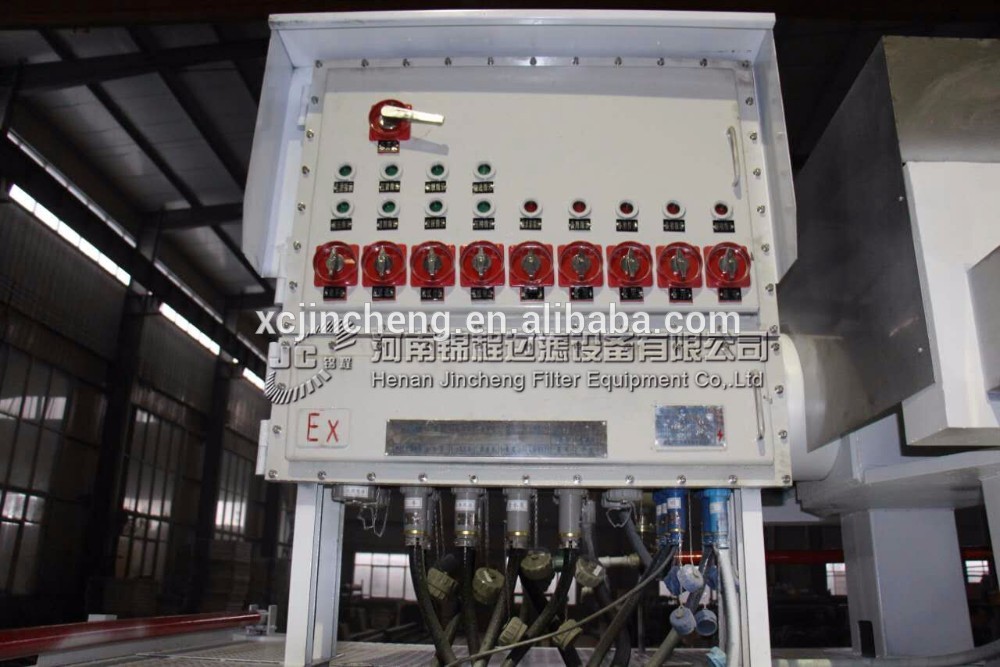

1. It is controlled by Simense PLC and reserves DCS remote interface
2. Automatic Hydraulic maintaining pressure
3. Main beam is made of high quality carbon steel with sand blasting processing and it is of high intensity and corrosion resisting
4. Pure reinforced PP filter plate resistes to stronger corrosion and endure high pressure
and service longer.
5. Every plates is tested under high closing pressure
6. Simple in structure, good effect,easy to use, wide application
7. High efficiency and labor saving: according to clients' requirements and project situlation, many devices.

Why choose our product  Sludge dewatering machine filter press:

We have professional team in sludge filteration which have many research staffs who have devoted themselves to the industry for more than 20 years, and our High-Efficiency Circular Filter Press for Sludge Dewatering.

1),Long history : our factory established in 1988,and we are the leading enterprise in filter press industry .
2),we are one of the main constitutor of press filter regulations .
3),we are a professional team which have many research staffs who have devoted themselves to the industry for more than 20 years .
4),We offer different material’s filter plate according to different industry , while other providers couldn’t make it .

5), Our products are sold to many companies which most of them are top500 . eg , East hope company .
6),We manufacture the filter plate ourselves , so we could guarantee its quality ,while other providers buy it from others.

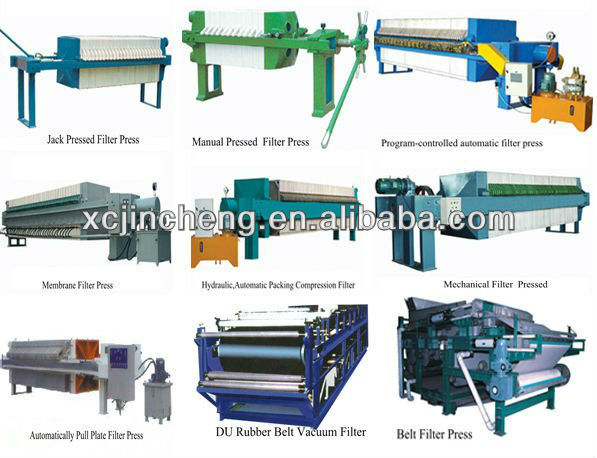

Some of our other products

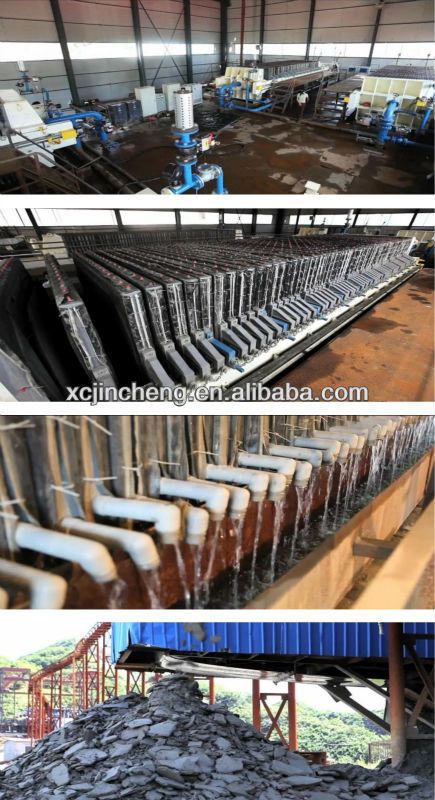

Some of our case
