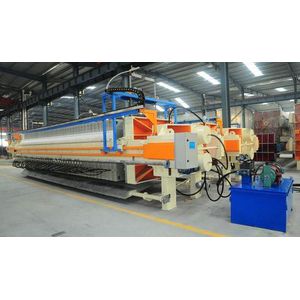

630 mm plates slurry recessed small filter press

Hydraulic station adopts ABB motor, it is steady in operation.

Technical Feature

  • New
  • Automatic
  • 1-8000 l
  • Henan, China (Mainland)
  • MS
  • XMA/XMZ
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$3~300

PRIMARY PARAMETERS

Condition
New
Automatic Grade
Automatic
Production Capacity
1-8000 l
Place of Origin
Henan, China (Mainland)
Brand Name
MS
Model Number
XMA/XMZ
Voltage
220/380V 50HZ 3PHs
Power(W)
15
Weight
3.2 T
Dimension(L*W*H)
9120*1800*2820mm
Certification
CE ISO
Warranty
24 month
After-sales Service Provided
Engineers available to service machinery overseas
surface treated
spray painting
raw material
carbon steel astm a53 GrB
filting plate
Polypropylene or Tpe
feeding pressure
0.6 Mpa
plate test presure
20 Mpa
plate size
870/1000/1250/1500/2000mm
filter area
30-1000 m2
cake discharge
maual
Filter chamber volume
460-20,000L
Cake thickness
30/40 mm

DETAIL DESCRIPTION

630 mm plates slurry recessed small filter press



Main Types:

  • Membrane Filter Press
  • Hydraulic Pressure FIlter Press
  • Mechanical Filter Press
  • Filter Press For Jack Clip
  • Stainless Steel Plate Filter Press
  • Program-controlled Automatic Filter Press
  • Auto varicose/liquid collection/sldge storage furnel



The Features :



1.Big pressing force(17-20MPa) can avoid leakage effectively.


2.Hydraulic station adopts ABB motor, it is steady in operation.


3.Auto closing and auto opening.


4.Labor saving.


5.It specially apply to models with large capacity, it can ensure good filtering effect.



The Benefits:


1.Structure is made of Q235 high quality carbon steel. It adopts automatic welding, solder side is flat, weld-joint is solid and durable, it can perfectly avoid distortion. It has reached the advanced technology in Europe and the United States.


2.Main-beam is processed by high speed centrifugal sand blasting to remove rust and iron oxide scale, then painted by epoxy micaceous iron primer to get better rustproof and corrosion resistance effect.


3.Side bar is covered by stainless steel 304 shell to protect itself from wearing. The smooth surface of shell also make plate shifting more easily.


4.Plate is made from PP. It is tasteless and non-poisonous, safe with food and pharmacy industry. It is characterized by light weight, easy operation, acid and alkali resistance, high temperature and high pressure resistance.


5.Hydraulic system adopts ABB motor, it is steady in operation and easy in maintenance. Pistons are made of steel #45 after surface specially processed to get better anti-wearing and high hardness performance.


6.Electric control cabinet adopts renowned electrical components, it can realize auto closing, auto opening, auto pressure maintaining and trouble-free operation.

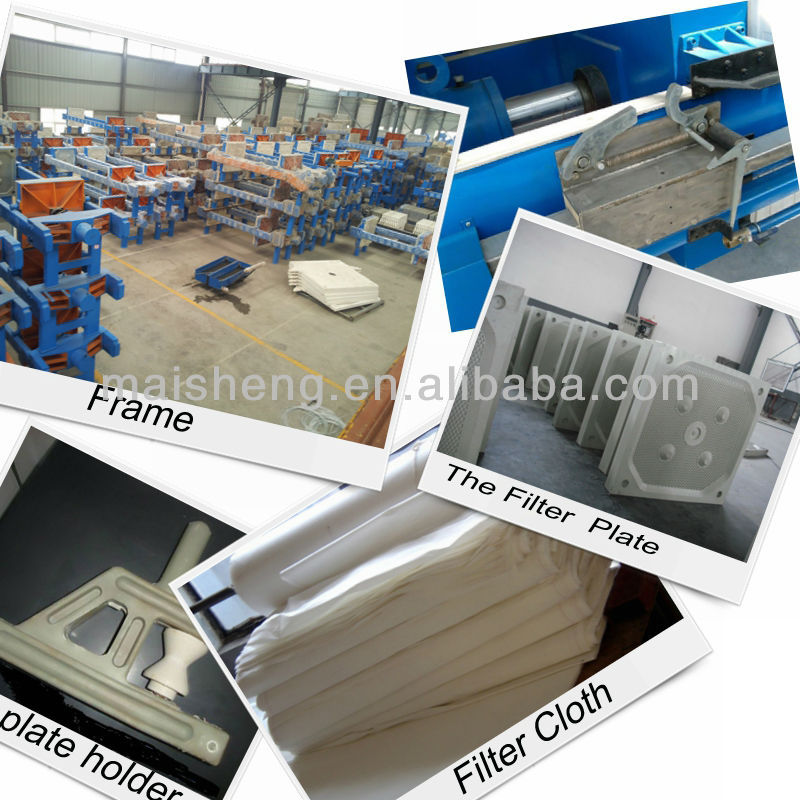

The Main Parts of Filter Press Machine:

Where does filter press used for:



How it works:

Technical Parameters:

Specification

Filter

area (m2)

Filter plate size (mm)

Filter cake thickness (mm)

Filter chamber volume (L)

Filter plate number (pcs)

Filtrating pressure (Mpa)

Motor power (kw)

Weight (kg)




XZ30/870-30U

30

870*870

30

427

23

0.6

2.2

3046



XZ40/870-30U

40

534

29

3593



XZ50/870-30U

50

748

38

4057



XZ60/870-30U

60

902

46

4597



XZ70/870-30U

70

1056

54

5136



XZ80/870-30U

80

1210

62

5636



XZ50/1000-30U

50

1000*

1000

752

28

0.6

4.0

4128



XZ60/1000-30U

60

908

34

4636



XZ70/1000-30U

70

1063

40

5143



XZ80/1000-30U

80

1219

46

5651



XZ100/1000-30U

100

1505

57

6628



XZ120/1000-30U

120

1816

69

7644





More Detailed Photos About Filter Press Equipment :



We have excellent ocean shipping  experience:

we take what clients care:

we do what we are good at:

(Each part in  the whole production line for filter press machine)

Certificate we have:

What do we need:



In order to give you a responsible quotation, Plesae  inform us the following information:

1).  What's the material you are going to deal with?

2).  What's the size  of  solid ?

3).  What's the granularity of the final products are you going to achive?

4).  What's the capacity per batch(L) you are going to achieve?

5) . What's the solid percentage (%) ?

6).  What's the filter temperature?

7).  What's the PH value ?

8).  What's the power? 380V50Hz3Phs?

Our engineers will suggest you the most suitable one for you according to your information.



....
