Saving energy and protecting environment automatic press filter

Hydraulic station adopts ABB motor, it is steady in operation.

Technical Feature

  • New
  • Automatic
  • Henan, China (Mainland)
  • MS, MS
  • 3ph/380V50HZ.3ph/415V/50HZ
  • 4.0kw
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~100

PRIMARY PARAMETERS

Condition
New
Automatic Grade
Automatic
Place of Origin
Henan, China (Mainland)
Brand Name
MS, MS
Voltage
3ph/380V50HZ.3ph/415V/50HZ
Power(W)
4.0kw
Weight
6800~45460kg
Dimension(L*W*H)
4810x1200x1160(mm)
Certification
CE Certificate
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas, Engineers available to service machinery overseas
cake discharge
maual
filter area
30-1000 m2
plate size
800/870/1000/1250/1500/2000mm
plate test presure
20 Mpa
feeding pressure
0.6 Mpa

DETAIL DESCRIPTION

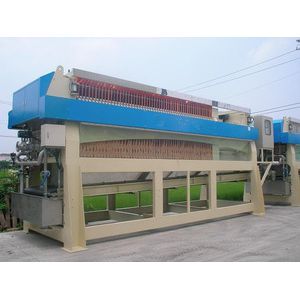

Saving energy and protecting environment automatic press filter

automatic press filter

Our Main Types:

  • Membrane Filter Press
  • Hydraulic Pressure FIlter Press
  • Mechanical Filter Press
  • Filter Press For Jack Clip
  • Stainless Steel Plate Filter Press
  • Program-controlled Automatic Filter Press
  • Auto varicose/liquid collection/sldge storage furnel



The Features :



1.Big pressing force(17-20MPa) can avoid leakage effectively.


2.Hydraulic station adopts ABB motor, it is steady in operation.


3.Auto closing and auto opening.


4.Labor saving.


5.It specially apply to models with large capacity, it can ensure good filtering effect.





The Benefits:


1.Structure is made of Q235 high quality carbon steel. It adopts automatic welding, solder side is flat, weld-joint is solid and durable, it can perfectly avoid distortion. It has reached the advanced technology in Europe and the United States.


2.Main-beam is processed by high speed centrifugal sand blasting to remove rust and iron oxide scale, then painted by epoxy micaceous iron primer to get better rustproof and corrosion resistance effect.


3.Side bar is covered by stainless steel 304 shell to protect itself from wearing. The smooth surface of shell also make plate shifting more easily.

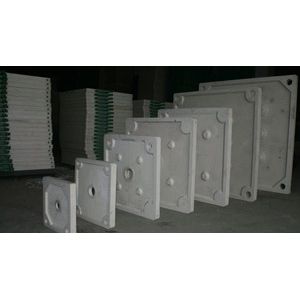

4.Plate is made from PP. It is tasteless and non-poisonous, safe with food and pharmacy industry. It is characterized by light weight, easy operation, acid and alkali resistance, high temperature and high pressure resistance.


5.Hydraulic system adopts ABB motor, it is steady in operation and easy in maintenance. Pistons are made of steel #45 after surface specially processed to get better anti-wearing and high hardness performance.


6.Electric control cabinet adopts renowned electrical components, it can realize auto closing, auto opening, auto pressure maintaining and trouble-free operation.

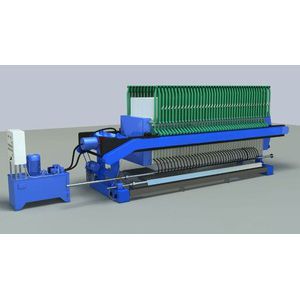

The Main Parts of Filter Press Machine:

Where does filter press used for:



How it works:

Technical Parameters:

Specification

Filter

area (m2)

Filter plate size (mm)

Filter cake thickness (mm)

Filter chamber volume (L)

Filter plate number (pcs)

Filtrating pressure (Mpa)

Motor power (kw)

Weight (kg)




XZ30/870-30U

30

870*870

30

427

23

0.6

2.2

3046



XZ40/870-30U

40

534

29

3593



XZ50/870-30U

50

748

38

4057



XZ60/870-30U

60

902

46

4597



XZ70/870-30U

70

1056

54

5136



XZ80/870-30U

80

1210

62

5636



XZ50/1000-30U

50

1000*

1000

752

28

0.6

4.0

4128



XZ60/1000-30U

60

908

34

4636



XZ70/1000-30U

70

1063

40

5143



XZ80/1000-30U

80

1219

46

5651



XZ100/1000-30U

100

1505

57

6628



XZ120/1000-30U

120

1816

69

7644





We assure to offer Perfect production technology:

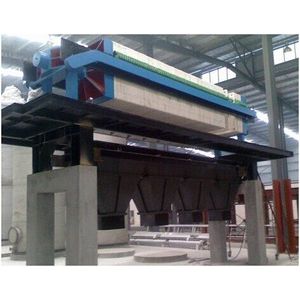

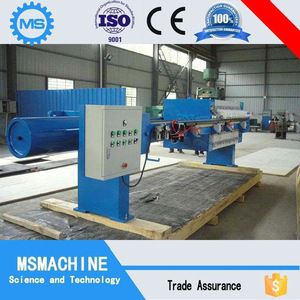

More Detailed Photos About Filter Press Equipment :



we do what we are good at:

(Production Dpt For each part of Filter Press Machine)



We have excellent ocean shipping  experience:

we take what clients care:





Services:



Pre-sales Service

  •   Offering comprehensive technical and business consultation services;
  •   Proposing th e most suitable scheme and equipment for our clients;
  •   Designing and fabricating targeted products according to the special requirements of clients;
  •   Training periodically high qualified service technician.

After-sales Service

  •   Highly inspecting equipments in every working procedure, quality comes first;
  •   Fast & Safe Delivery;
  •   Assisting our clients for foundation construction of equipments;
  •   Dispatching engineers to install and debug equipments;
  •   Training the first-line operators on site;
  •   Regularly visit clients to solve production problems;
  •   Providing life-long maintenance service;
  •   Providing technical exchanging;



Certificates we have:

What we need to know:



In order to give you a responsible quotation, Plesae  inform us the following information:

1).  What's the material you are going to deal with?

2).  What's the size  of  solid ?

3).  What's the granularity of the final products are you going to achive?

4).  What's the capacity per batch(L) you are going to achieve?

5) . What's the solid percentage (%) ?

6).  What's the filter temperature?

7).  What's the PH value ?

8).  What's the power? 380V50Hz3Phs?

Our engineers will suggest you the most suitable one  according to your information.



...
