FBZ steel pump for auto suction

FBZ automatic suction pump is single level and suction centrifugal pump, without bottom valve but can transport liquid without filling liquid again after the first filling. It holds the character of tight structure, easily moving, etc. Wide used in chemic

Technical Feature

  • Tight structure
  • Easily moving
  • Safe and reliable
  • Little error
  • No bottom valve
  • corrosion resistance
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1000~100000

PRIMARY PARAMETERS

Brand name
TIANMA
Application
chemical vintage, beverage, alcohol, food
Process input material
-
Process output material
-
Place of origin
China
Equipment material
SS & CS
Power (kW)
0.75-37
Weight (kg)
Depends
Outer dimension (mm)
Depends
Warranty
One year
Delivery
30 days
Main spare parts
-

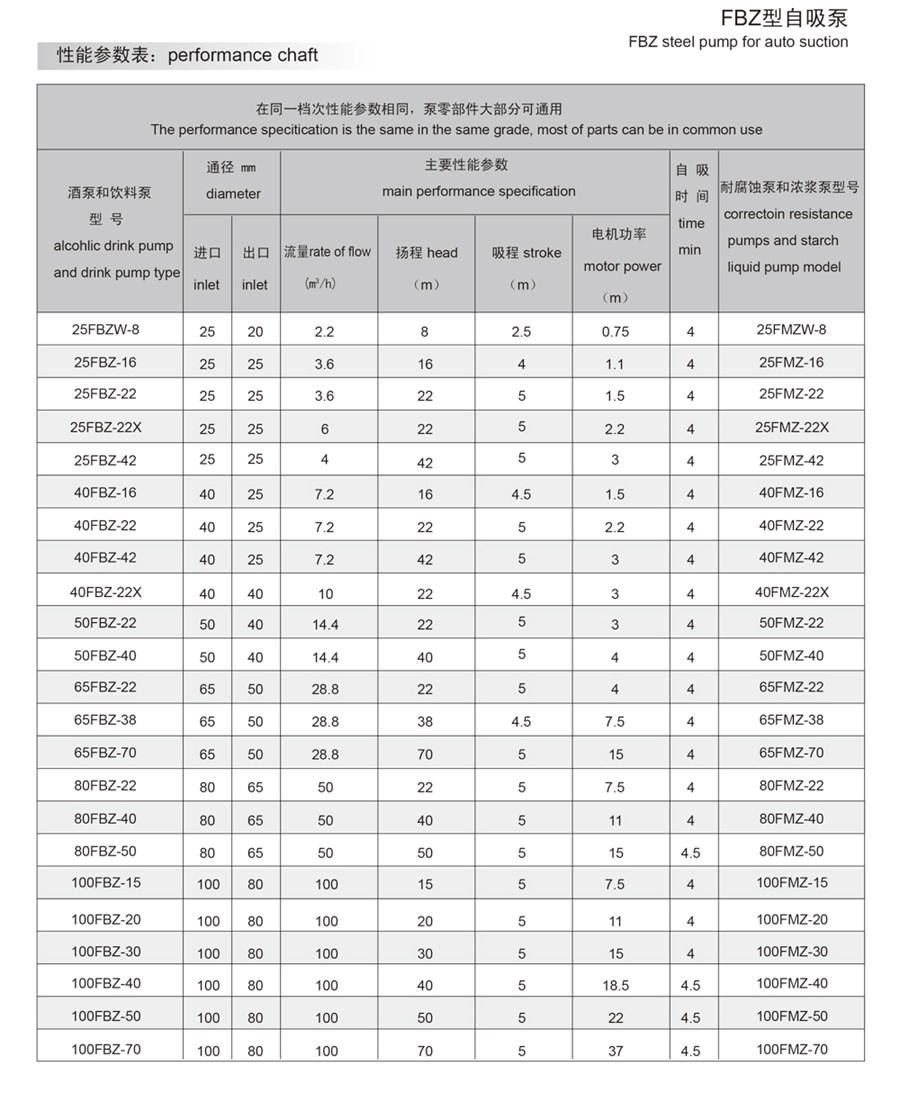

MODEL SPECIFICATIONS

Model 25FBZW-8 25FBZ-16 25FBZ-22 25FBZ-22X 25FBZ-42 40FBZ-16 40FBZ-22 40FBZ-42 40FBZ-22X 50FBZ-22 50FBZ-40 65FBZ-22 65FBZ-38 65FBZ-70 80FBZ-22 80FBZ-40 80FBZ-50 100FBZ-20 100FBZ-30 100FBZ-40 100FBZ-50 100FBZ-70
Inlet diameter(mm) 25 25 25 25 25 40 40 40 40 50 50 65 65 65 80 80 80 100 100 100 100 100
Outlet diameter(mm) 20 25 25 25 25 25 25 25 40 40 40 50 50 50 65 65 65 80 80 80 80 80
Rate of flow(m3/h) 2.2 3.6 3.6 6 4 7.2 7.2 7.2 10 14.4 14.4 28.8 28.8 28.8 50 50 50 100 100 100 100 100
Head(m) 8 16 22 22 42 16 22 42 22 22 40 22 38 70 22 40 50 15 30 40 50 70
Stroke(m) 2.5 4 5 5 5 4.5 5 5 4.5 5 5 5 4.5 5 5 5 5 5 5 5 5 5
Motor power(m) 0.75 1.1 1.5 2.2 3 1.5 2.2 3 3 3 4 4 7.5 15 7.5 11 15 7.5 15 18.5 22 37
Time(min) 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4.5 4 4 4.5 4.5 4.5

DETAIL DESCRIPTION


FBZ steel pump for auto suction


FBZ automatic suction pump is single level and suction centrifugal pump, without bottom valve but can transport liquid without filling liquid again after the first filling. It holds the character of tight structure, easily moving, etc. Wide used in chemical vintage, beverage, alcohol, food indrustry
