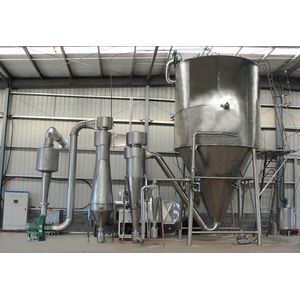

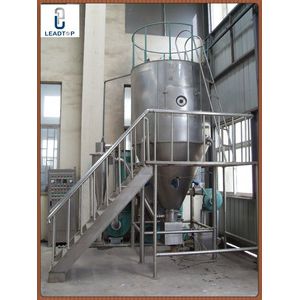

LPG-25 Spray Drying Equipment
Spray drying is the widest used technology in the liquid shaping technology and in the drying industry. Centrifugal Atomizing (Spray) Drying Equipment is most suitable for producing powder, particles or solid block products from materials of solution, emulsion, soliquoid and pumpable paste states. Therefore, spray drying is useful to create the desired particle size, residual water contents, the stocking density, and the particle shape needed to meet precise standards
Item | Specification |
Water Evaporation | 25kg/h |
Method of Atomizing | High Speed Centrifugal Atomizer (mechanical drive or stepless frequency speed regulation is available) |
Revolution of atomizer(rpm) | 22000 |
Diameter of Atomizing disc (mm) | 60 |
Dried Powder Recovery Rate (%) | Around≥95 |
Length of Covered Area(m) | 4 |
Width of Covered Area(m) | 2.7 |
Height of Tower Body(m) | 4.5 |
Hoisting height of Nozzle(m) | 2.5 |
Air input Temp | 140~350℃ |
Air output Temp | 70~90℃ |
Tower Height | 4500mm |
