FL-200 Fluid Bed Dryer

The powder granule in fluid bed appears in the state of fluidization.

Technical Feature

  • New
  • Fluid Bed Drying Equipment
  • Zhejiang, China (Mainland)
  • LTPM CHINA
  • FL-200
  • based on customer requirment
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$5~80

PRIMARY PARAMETERS

Condition
New
Type
Fluid Bed Drying Equipment
Place of Origin
Zhejiang, China (Mainland)
Brand Name
LTPM CHINA
Model Number
FL-200
Voltage
based on customer requirment
Power(W)
Electronic Heating
Dimension(L*W*H)
Main Machine
Weight
2000kg(main machine)
Certification
CE
Warranty
1Year
After-sales Service Provided
Engineers available to service machinery overseas
Item Name
Fluid Bed Drying Machine
Model
FL-200
Capacity
100-180kg/batch
Heating System
Steam,Electronic,oil and coal are available
Operation System
PLC control with touch screen operation
Material Consist
Stainless Steel 304 and 316L(Optional)
Function
Drying with granulating and drying with Coating
Ceritification
CE
Standard
GMP
Manufacturer
LTPM CHINA

DETAIL DESCRIPTION

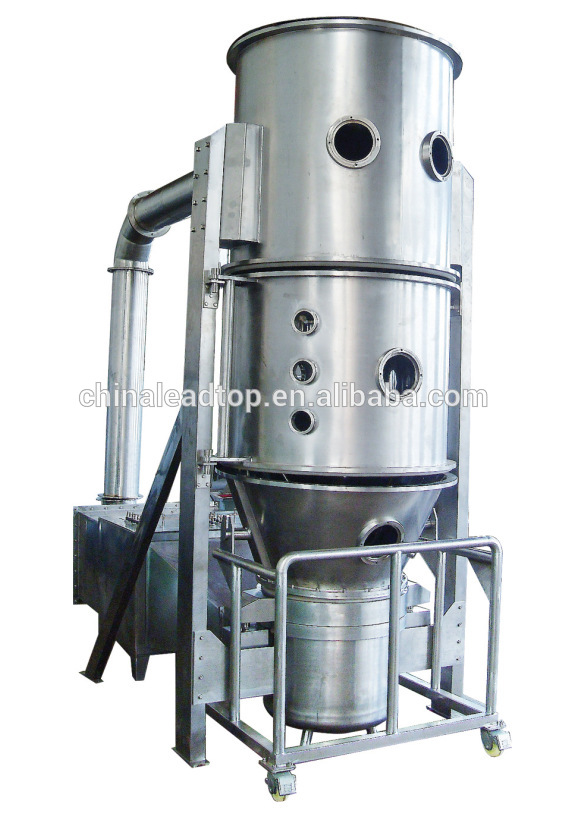

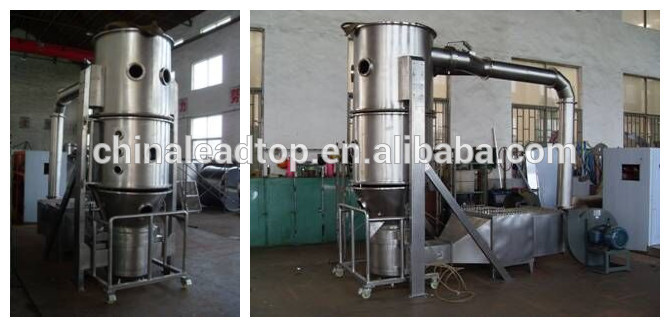

FL-200 Fluid Bed Dryer





Product Description



The powder granule in fluid bed appears in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive is sprayed into the container. It makes the particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.





Application



1.Drugs granulation and coating
2.Granulation: Tablet particles, granule particles, capsule particles
3.Coating: particles, pill covers, color-prepared, slow-release, films, enteric coating
4.Food granulation and coating Granulated sugar, coffee, cacao powder, cream, juice powder, amino acids, sauce, puffed food
5.Pesticide, paint pigment, dry granulation Powder, granules, block materials





Functions



1.By using powder granulation, to improve the liquidity and thinner dust.
2.By using powder granulation, to improve solubility property.
3.Mixing—granulation—drying can be finished in one device (one-step granulation)
4.To adopt antistatic filtering mediums, to ensure safe operation.
5.Caking agent atomizer adopts multi-fluid spray gun to maintain uniform spray particles and to increase the rate of qualified products greatly.
6.No dead-corner of equipment; it is easy and rapid of feeding or discharging materials and clean of washing to satisfy the GMP standard.





Technical Data


Model

200

Volume (L)

670

Amount to be treated (kg/per time)

100/300

Power of fan (kw)

30

Consume of steam 0.4MPa(kg/h)

282

Consume of compressed air   (m3/min)

1.1

Noise,dB (A)

(fan is installed separately) ≤75

Main machine height  (m)

2.34×1.7×3.8

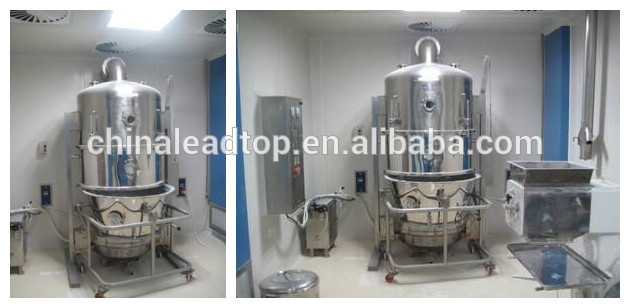

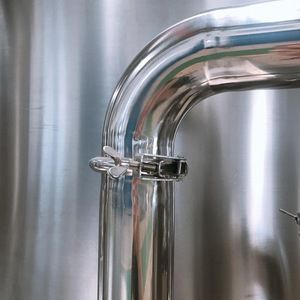

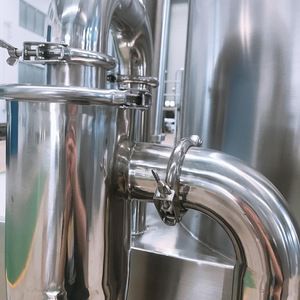

Machine Details

















Our Services



1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

5. We have Technical Support in below Foreign Cities:

California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Lahore (Distributor)

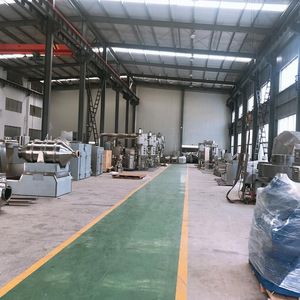

Company Information
