Mini small lab scale spray dryer machine for sale
1. Large color touch screen.
2. PID temperature control real-time control technology, accurate temperature control.
3. Automatically clear to avoid jam of nozzle, the clear frenqucy is adjustable.
4. High temperature borosilicate glass for drying chamber, easy to observe.
5. Self-protection function, air fan is not start, the heater will not work.
6. Low noise, less than 50db.
1.Feature and Description
1.Special for lab research, Min 20-30ml liquid to finish one test.
2.All borosilicate glass for easy visual monitoring of process status.
3.Spray chamber, cyclone separator, receiving tank are all made of Borosilicate glass which can resist strong acid/alkali, high temperature. It can work in a no-pollution and stable environment.
4.Easy to clean and very simple to assemble and break down.
5.The air compressor is no oil and don’t pollute compress air. The sound is low than 50db and following the GMP understands.
6.inlet/outlet temperature is accurate controlled by PID
7.The unit is self contained and supplied complete and ready for immediate operation.
8.Using screen touchable face display operation, control temperature, airflow volume, air pressure, pump speed and de-blocker frequency.
9.Product feeding with RS2559605 rotary pump, capacity is adjustable
10.Automatic de-blocking device prevents the nozzle from becoming blocked and variably controlled.

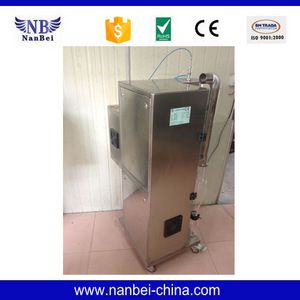

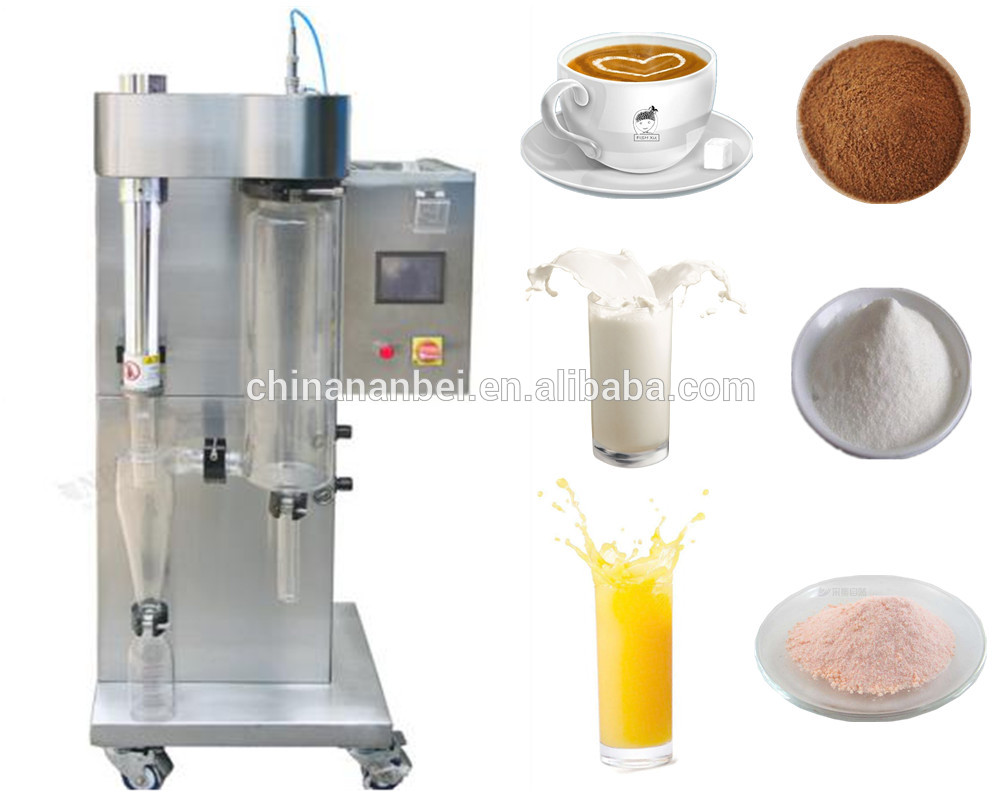

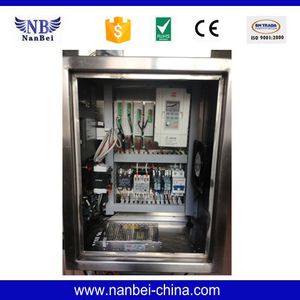

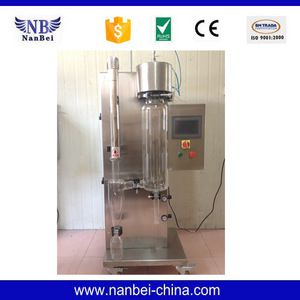

2.Picture for Our product
3.Usage and Application
various fields where the production of a free powder sample is required.
NBSP-1500 has successfully processed samples in the following areas: Beverage, Flavours and colourings, Milk and egg products, Plant and vegetable extracts, Pharmaceuticals, Synthetics Heat sensitive materials, Plastics polymers and resins, Perfumes, Blood, Ceramics and superconductors Biochemicals, Dyestuffs, Soaps and detergents, Foodstuffs, Adehesives, Oxides, Textiles, Bones, Teeth and tooth amalgam and many others.
4.Technical data
Model | SP-1500 |
Max capacity | 1500-2000ml/h |
Temperature range of Inlet air | 30℃ -280℃ |
Temperature range of outlet air | 40℃ -120℃ |
Precision of temperature | ± 1 ℃ |
Dryer time | 1.0-1.5 S |
Speed of squirmy pump | 30-2000ml/h, |
Consume of dryer air | 0-330m3 /h, max pressure: 686Pa |
Consume of spray air | 0-4.2m3 /h, spray pressure: 2-5bar |
Spray system | standard 0.7mm jet options of 0.5/1.0/1.5/2.0/2.5mm |
Spray direction | downwards co-current |
Power | 3.5KW 220V |
Dimensions | 650×500×1550 ( mm ) L x W x H |
5.Packing and Shipping
1.Company Show
2.Factory Show
1.Certification
2.Warranty and After-Sale Service
♥♥We Supply 1 Year Warranty , And Lifelong Free Technical Guiding And Training.♥♥
