20-138rpm speed thin film evaporator:

Introduction:

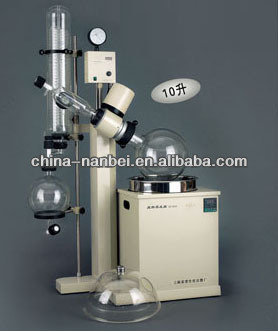

1.RE-5210 laboratory rotary evaporator.

2.Production-oriented large-capacity rotating steam rotary evaporator flask. Increase the evaporation area,placed in a water bath under vacuum,side spin,while heating,so proliferating of high-performance solution evaporated.

3.It is widely used in the size of the sample concentration,drying,extraction,recycling and so on.

4.It is the ideal equiement for mass production of chemical industry,medicine,food,environmental protection,institutions of higher learning and scientific research laboratories and industries and mining units.

Features:

1. Host parts: The introduction of foreign advanced transmission system,reasonable structure,durable and pratical.

2.Control,temperature parts:The introduction of foreign advanced frequency control system,temperature control system to ensure accurate performance of the instrument.

3.Water bath: one made of imported stainless steel plate stamping,automatic vertical lift.

4.Sealing parts: The PTFE material selected foreign countries,through special processing technology to enhance sealing,corrosion resistance and wear resistance.

5.The main structure: High quality aluminum alloy and stainless steel,more complete and improve the equipment of a reasonable performance.

6.Electric Automatic Lifting system has the function of implantable guide bush sliding speed smooth no impact.

7.Water bath pot electric lift,up the largest decline in range of 0-190mm

8.With transparent protection cover,heat preservation ,energy conservation,explosion proof,spray proof,antifouling.

Specifications:

1.Rotary bottle capacity:10L(20liters) Fa-lan's mouth diameter 125mm

2.Collection bottle capacity:5L

3.Master speed: Frequency conversion adjusting speed(adpot imported Frequency Converter),digital display speed,10-120rmp.

4.Rotating motor:Three-phase AC induction motor 220v single phase power supply 125w

5.Condenser:Vertical Condenser,specialty high-performance three-reflux condenser

6.Water bath:One time forming of stainless steel water bath pot.

7.Temperature controller: Temperature digital display,setting temperature precisely 0C-99C.

8.Supply voltage:220V/50Hz

9. Heating power:5000w

10.Instruments Dimension:L*W*H:95*55*165cm

11.Lifting:Electric lifting water bath(0-190mm)
