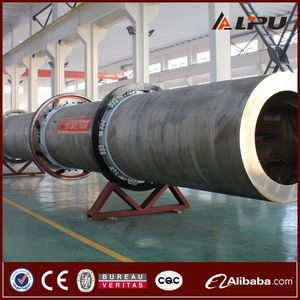

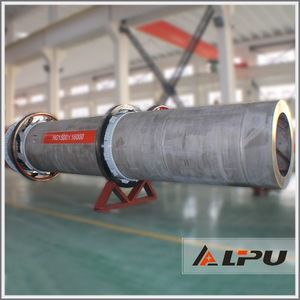

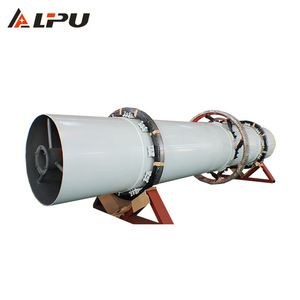

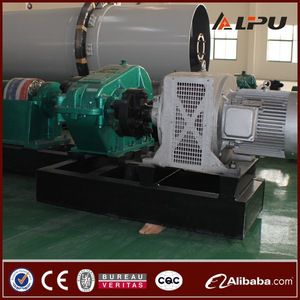

Solid Construction and Low Consumption Spray Dryer in Salt

Many domestic and international customers visit our factory every year.

Technical Feature

  • New
  • Rotary Drying Equipment
  • Shanghai, China (Mainland)
  • LIPU spray dryer in salt
  • HG Serious
  • According to different capacities
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~99

PRIMARY PARAMETERS

Condition
New
Type
Rotary Drying Equipment
Place of Origin
Shanghai, China (Mainland)
Brand Name
LIPU spray dryer in salt
Model Number
HG Serious
Voltage
According to different capacities
Power(W)
4-75kw
Dimension(L*W*H)
According to different capacities
Weight
5.1-97t
Certification
CE,ISO9001
Warranty
One Year, One Year
After-sales Service Provided
Engineers available to service machinery overseas
Spare parts
Supply for free
Application
Dry metallic and nonmetallic mineral, clay in cement industry
Price
Negotiation
After sale service
For whole using life
Factory visit
welcome
OEM and design
Available
Volume
2.26-147.8m3
Operation training
Provide
Brand name
LIPU

DETAIL DESCRIPTION

Frequently Asked Questions

Q: Can I visit your factory?

A: Yes. Many domestic and international customers visit our factory every year.



Q: How long is the warranty of your equipment? Do you supply spare parts?
A: Our warranty period is one year generally. We can supply spare parts.



Q: Do you provide after-sale service?
A: Yes. We have a professional after-sale service team to promptly and thoroughly solve your problems.



Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.



Q: Do you provide beneficiation flow chart?
A: Yes. Our experienced engineers are specialized in designing process flow for various ores beneficiation, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc.



Q: Can you test our samples?
A: Yes. You can send your samples to us for test and analysis.



Q: Have you made the whole ore dressing lines?
A: Yes. We have made several large ore dressing lines at home and abroad.

Solid Construction and Low Consumption Spray Dryer in Salt

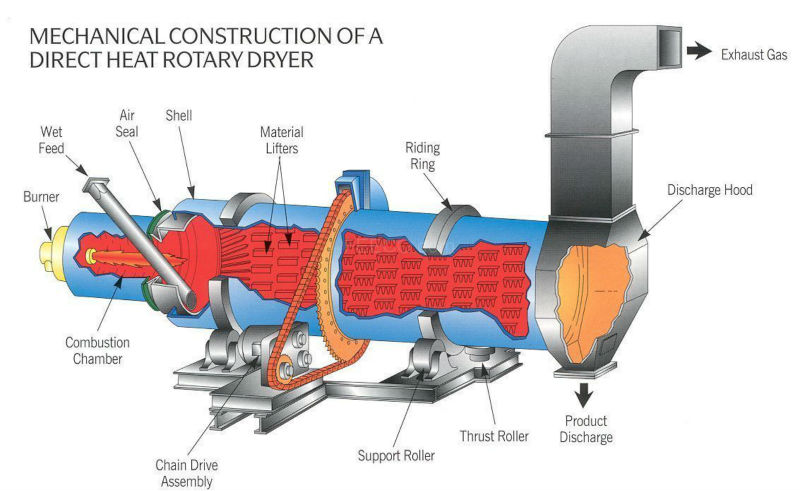

Brief Introduction of Spray Dryer in Salt:

HG series of rotary dryer is one of the traditional drying equipments and suitable for drying the concentrate by metallic and non-metallic magnetic separation,flotation,gravity concentration ,cement clay, coal slime, ore, steel slag, quartz sand, kaolin, peng bentonite, etc.

Performance Features of Spray Dryer in Salt:

1.It can change operation parameters according to different material property , the dryer cylinder  can form full section material fall which makes the heat exchange more fully.

2.New type feeding and discharging devices completely eradicate the disadvantages of traditional dryer like feeding jams, feeding discontinuously and unevenly, returning materials, and reduce the load of dust removal system .

3.Scale plate sealing is used to connect shell and feeding and discharging device , good sealing greatly reduce the shell internal heat loss, thus directly reducing the fuel consumption.

4.Counter-current drying method obtains higher evaporation intensity; Fair current drying method and indirect drying way are suitable for drying temperature sensitive material.

5.New burner satisfies the customers’ demand for saving energy and high efficiency. It can choose diesel oil, heavy oil, natural gas, coal gas etc to be fuel instead of the only choice for coal as fuel in the past.

Features of Spray Dryer in Salt:

1.Certificate:ISO9001:2000,CE,CV Certs.
2.Volume:1.7-225.2m3.
3.Dry metallic nonmetallic mineral.
4.Dry coal in coal mine.

5.High efficiency.
6.Low energy consumption.
7.Convenient for transportation.
8.Reliable operation.

Technical Parameters of Spray Dryer in Salt:

Model

Shell diameter (mm)

Shell length (mm)

Shell volume (m3)

Rotary speed (r/min)

Power(kW)

Weight(t)

HG0.6×6

600

6000

1.7

1--8

3

2.9

HG0.8×8

800

8000

4

1--8

4

3.5

HG1×10

1000

10000

7.9

1--8

5.5

6.8

HG1.2×6

1200

6000

6.8

1--6

5.5

6.7

HG1.2×8

1200

8000

9

1--6

5.5

8.5

HG1.2×10

1200

10000

11.3

1--6

7.5

10.7

HG1.2×11.8

1200

11800

13.4

1--6

7.5

12.3

HG1.5×8

1500

8000

14.1

1--5

11

14.8

HG1.5×10

1500

10000

17.7

1--5

11

16

HG1.5×11.8

1500

11800

21

1--5

15

17.5

HG1.5×15

1500

15000

26.5

1--5

15

19.2

HG1.8×10

1800

10000

25.5

1--5

15

18.1

HG1.8×11.8

1800

11800

30

1--5

18.5

20.7

HG1.8×15

1800

15000

38.2

1--5

18.5

26.3

HG1.8×18

1800

18000

45.8

1--5

22

31.2

HG2.2×11.8

2200

11800

44.8

1--4

22

30.5

HG2.2×15

2200

15000

53.2

1--4

30

36.2

HG2.2×18

2200

18000

68.4

1--4

30

43.3

HG2.2×20

2200

20000

76

1--4

30

48.8

HG2.4×15

2400

15000

67.9

1--4

30

43.7

HG2.4×18

2400

18000

81.4

1--4

37

53

HG2.4×20

2400

20000

90.5

1--4

37

60.5

HG2.4×24

2400

24000

108.6

1--4

45

69.8

HG2.8×18

2800

18000

110.8

1--3

45

71.6

HG2.8×20

2800

20000

123.2

1--3

55

76.8

HG2.8×24

2800

24000

147.8

1--3

55

85

HG2.8×28

2800

28000

172.4

1--3

75

95

HG3×20

3000

20000

141.4

1--3

55

87

HG3×24

3000

24000

169.7

1--3

75

105

HG3×28

3000

28000

198

1--3

90

123

HG3.2×24

3200

24000

193

1--3

90

120

HG3.2×28

3200

28000

225.2

1--3

90

140

Producing Process of Spray Dryer in Salt:

Delivery Site of Spray Dryer in Salt:

Work Site of Spray Dryer in Salt:
