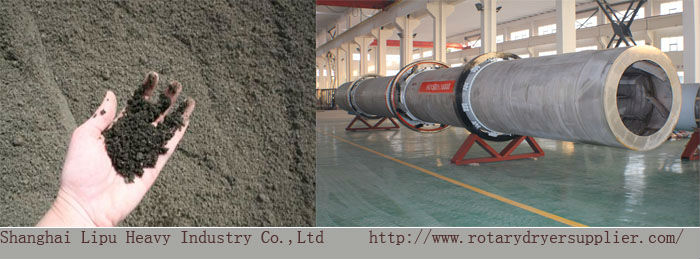

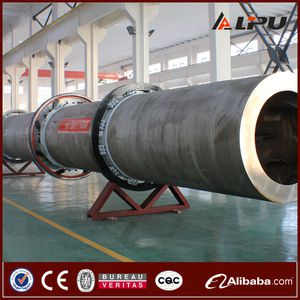

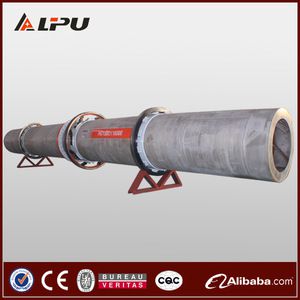

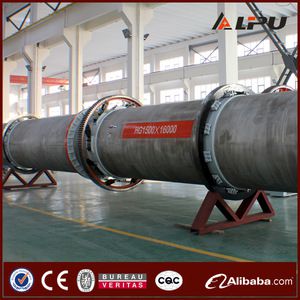

Features of Sawdust Drum Rotary Dryer Price :
1.Certificate:ISO9001:2000
2.Volume:2.26-147.8m3
3.Dry metallic nonmetallic mineral
4.Dry coal in coal mine
5.High efficiency;
6.Low energy consumption;
7.Convenient for transportation;
8.Reliable operation

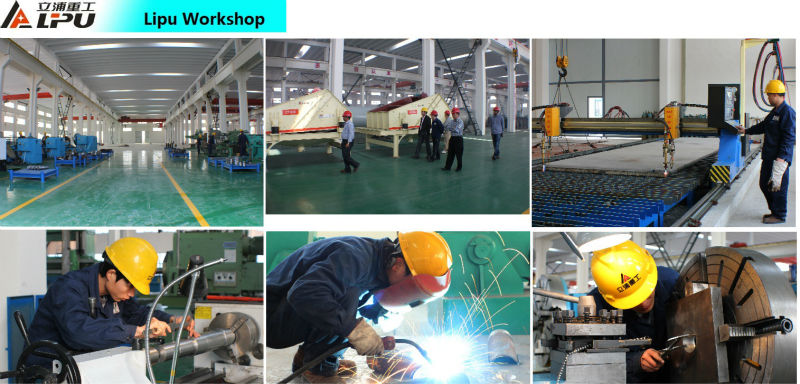

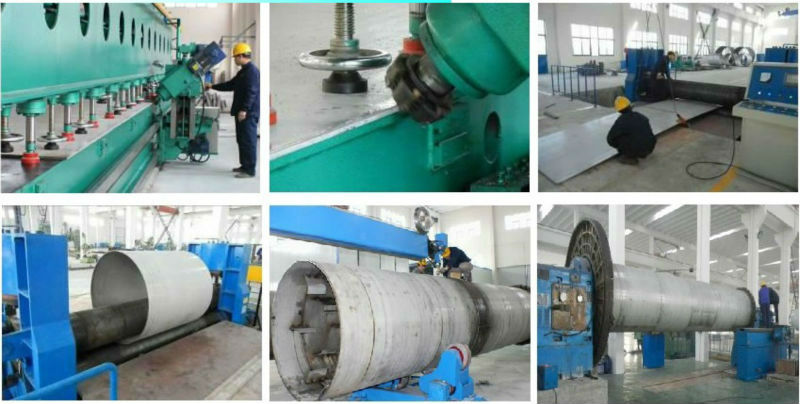

Producing Process of sawdust drum rotary dryer price:
Application of Sawdust Drum Rotary Dryer Price :
Sawdust Drum Rotary Dryer Price is suitable to dry metallic and nonmetallic mineral, clay in cement industry and coal in coal mine, etc. Rotary dryer can be widely used to dry various materials, and it is simple to be operated.

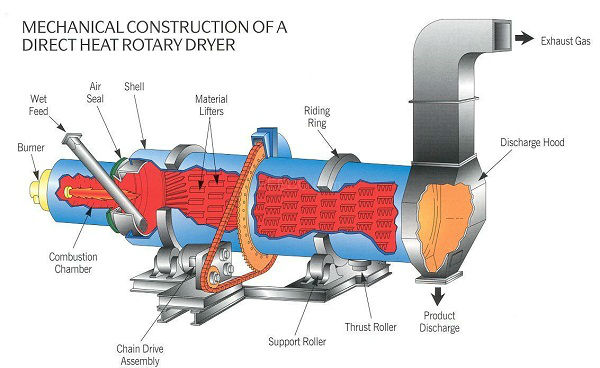

Sawdust Drum Rotary Dryer Price Working principle:

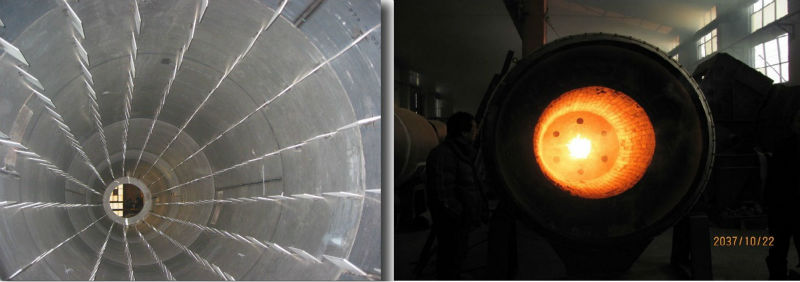

Materials are sent to hopper of rotary dryer by belt conveyor or bucket elevator.The barrel is installed with slope to horizontal line. Materials enter the barrel from the higher side, and hot air enters the barrel from the lower side, materials and hot air mix together. Materials go to the lower side by gravity when the barrel rotates. Lifters on the inner side of barrel lift materials up and down to make materials and hot air mix completely. So drying efficiency is improved.

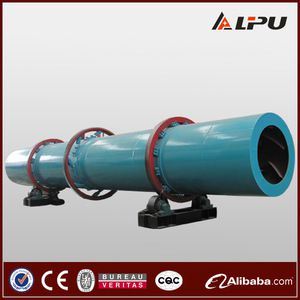

Sawdust Drum Rotary Dryer Price Product parameter
Model | Shell diameter (mm) | Shell length (mm) | Slope(°) | Rotary speed(r/m) | Weight(t) | Power (KW) | Volume (m3) |
Φ0.6×8 | 600 | 8000 | 3-5 | 8 | 5.1 | 6-4 | 2.26 |
Φ0.8×10 | 800 | 10000 | 3-5 | 7.2 | 6.9 | 6-4 | 5.02 |
Φ1.0×10 | 1000 | 10000 | 3-5 | 6.73 | 7.5 | 6-5.5 | 7.85 |
Φ1.2×12 | 1200 | 12000 | 3-5 | 5.8 | 13.1 | 6-11 | 13.31 |
Φ1.5×12 | 1500 | 12000 | 3-5 | 4.8 | 22.3 | 6-15 | 21.2 |
Φ2.2×14 | 2200 | 14000 | 3-5 | 3.2 | 52.8 | 30 | 53.22 |
Φ2.4×18 | 2400 | 18000 | 3-5 | 3 | 73.3 | 37 | 81.43 |
Φ2.8×24 | 2800 | 24000 | 3-5 | 2.59 | 97 | 75 | 147.8 |

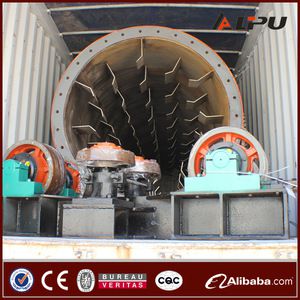

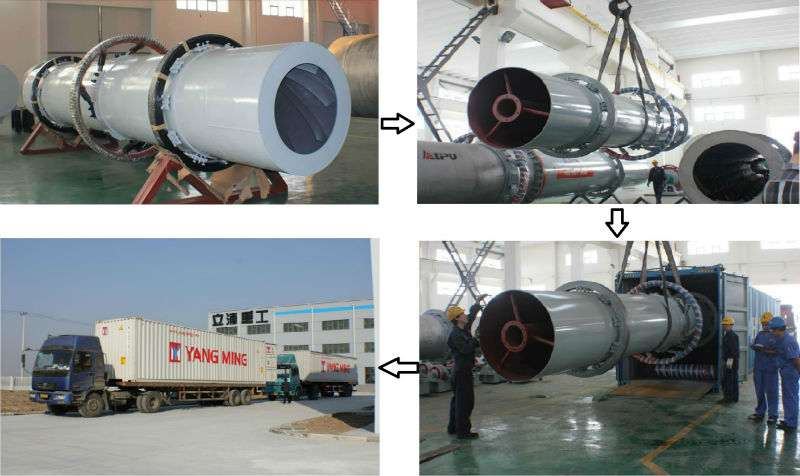

Delivery site of Sawdust Drum Rotary Dryer Price
