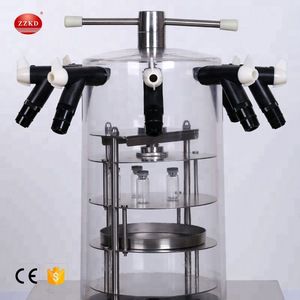

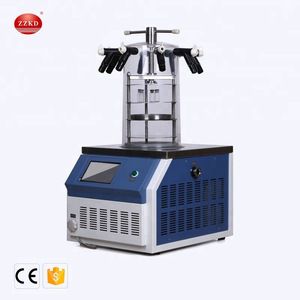

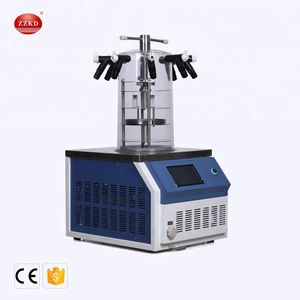

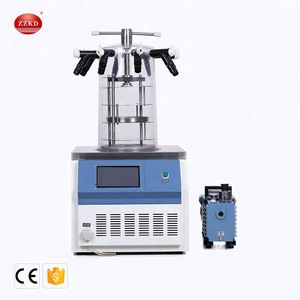

hot selling laboratory mini vacuum freeze spray dryer for flower medicine food drying
Freeze drying is a drying process in which water is frozen, followed by its removal from the sample, initially by sublimation and desorption. Freeze- drying is a process of drying in which water is sublimed from the product after it is frozen, suitable for the manufacture of certain heat-sensitive substances.
Application of Food Freeze Drying Machine:
- Pharmaceutical
- Blood Serum
- Food Drying
- Herbs Drying
| Model | 10N Top-Press Multi-Manifolds |
Power Supply | 110V/60Hz or 220V/50Hz |
Power(w) | 950 |
Freeze Area(m2) | 0.08 |
Sample Tray Size(mm) | Ø 3×180 |
Plate Load Capacity(L) | 1 |
No-load Temperature(℃) | <-56 |
Vacuum Degree(Pa) | <10 |
| Inter~layer spacing | 70mm |

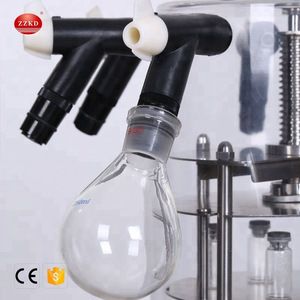

| The mumber of multiple manifold | 8 |
Ability to Capture Water(Kg) | 3 |
Cold trap size(mm) | Ø215×160 |
| Dimension | 450*580*380mm |

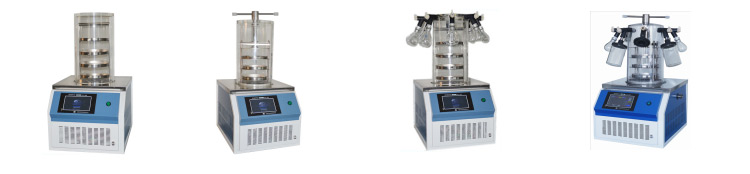

The vacuum drying machine have four types:Ordinary, Top-Press, Ordinary Multi-Manifolds, Top-Press Multi-Manifolds.
Scientz-10N | Ordinary | Top-Press | Ordinary Multi-Manifolds | Top-Press Multi-Manifolds |
No-load Temperature | <-56℃
| |||
Freeze Area | 0.12 m2 | 0.08 m2 | 0.12 m2 | 0.08 m2 |
Plate Load Capacity | 1.5 L | 1 L | 1.5 L | 1 L |
Ability to Capture Water | 3Kg
| |||
Vacuum Degree | <10Pa
| |||
Machine Dimension | W450×D580× H(380+450) mm
| |||
Sample Tray Size | 4×Φ200mm | Ø 3×180 mm | 4×Φ200mm | Ø 3×180 mm |
Power | 950W
| |||
Power Supply | 110V/60Hz or 220V/50Hz | |||
Interlayer spacing | 70 mm
| |||
Cold trap size | Ø215×160 mm
| |||
The number of Schering bottles
| Ø22: 260 | Ø22: 165 | Ø22: 260 | Ø22: 165 |
Ø16: 480 | Ø16: 285 | Ø16: 480 | Ø16: 285 | |
Ø12: 920 | Ø12: 560 | Ø12: 920 | Ø12: 560 |
Advantages of laboratory mini vacuum freeze spray dryer:
1. Products in the freeze-drying chamber to complete the sterile state of drying, desorption of water and the whole pressure plug and other operations.
2. Suitable for liquid processing, easy to operate, easy to simplify the operation process, sterile environment to facilitate control.
3. Can remove the material 95 to 99% of the water, good stability, easy to long-term preservation of the active ingredients of drugs.
4. Many biological products, drugs, food in the water and heat under the action is easy to produce degeneration or decomposition, in order to long-term preservation, the most appropriate way is to freeze at low temperatures dry.

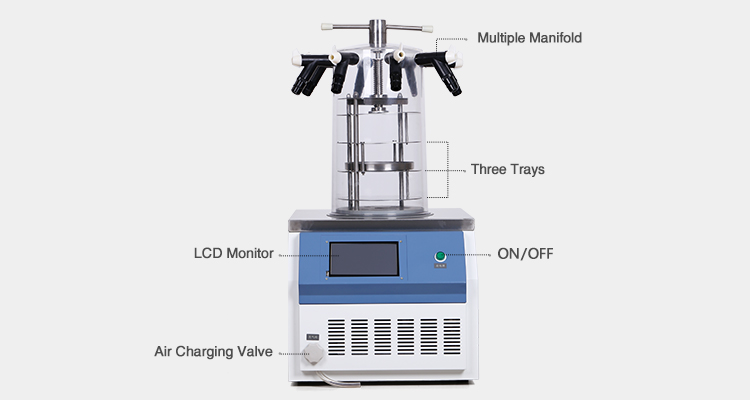

Feature of mini vacuum freeze spray dryer:

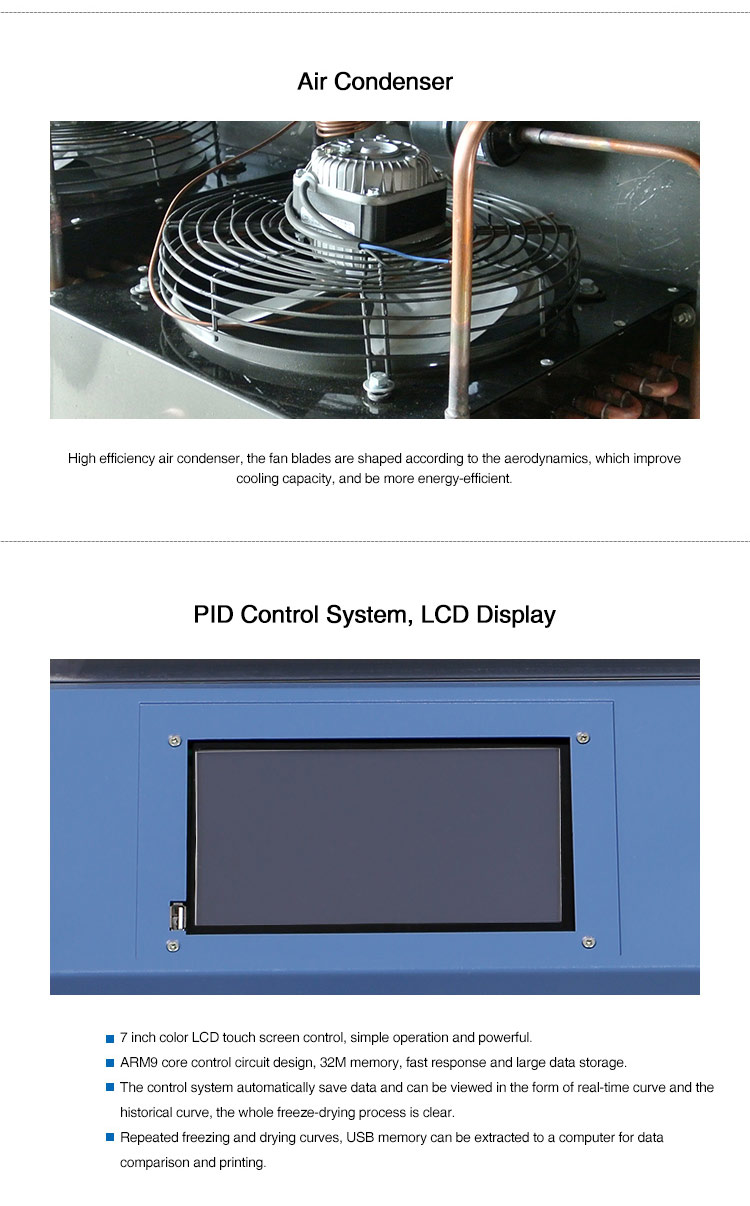

1. Touching-screen operation, PID controlling, displaying drying curve;
2. The sample tray is square so it`s easy to clean and operate;
3. Configuration of the inflation valve, rechargeable dry inert gas;

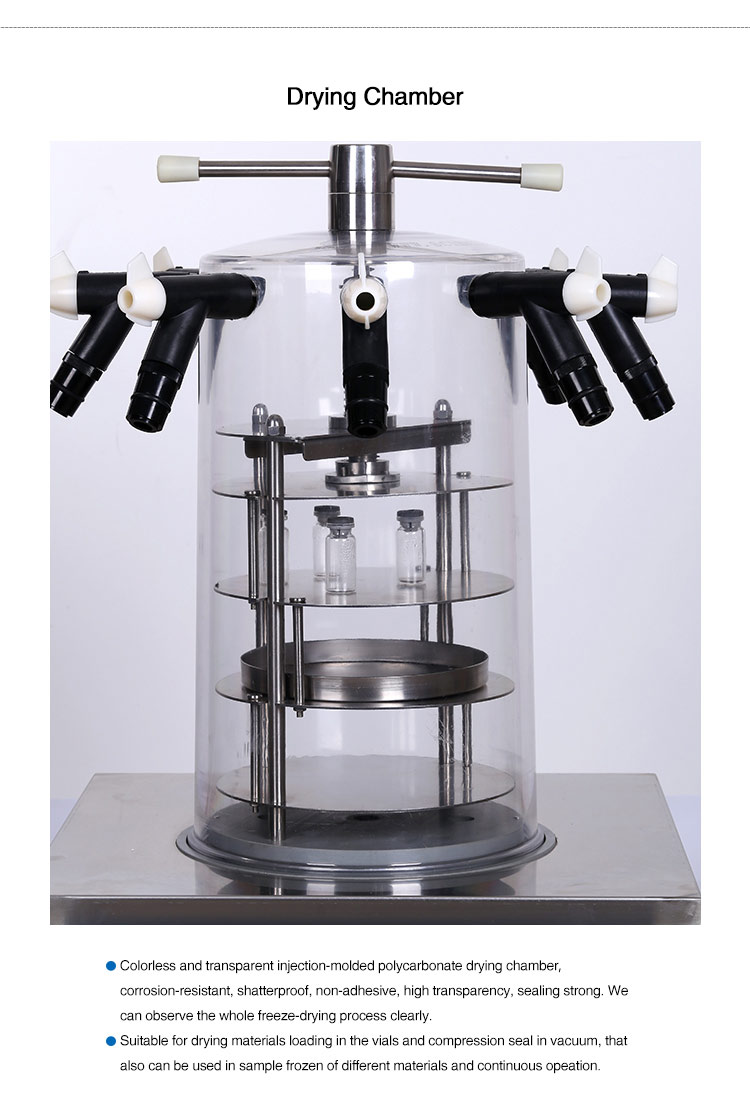

4. The drying chamber adopts transparent organic glass door the changing process of material is clear;
5. The test device is optional.

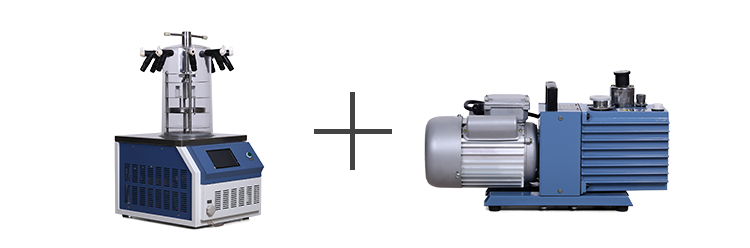

Related Product:

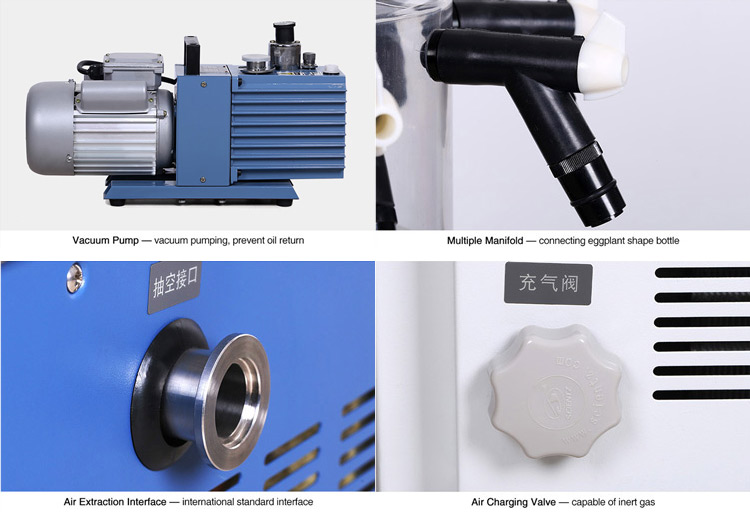

Rotary Vane Vacuum Pump: provide vacuum source, prevent oil return
Zhengzhou Keda Machinery and Instrument Equipment Co., Ltd. is a famous manufacturer of lab equipment located in the central China.
The main product is high temperature circulating water/oil bath,rotary evaporator, short path distillation, glass reactor, circulating water vacuum pump, low temperature reaction bath (slot), cooling chiller,drying oven, high-pressure reaction kettle, freeze dryer, water/oil bath, magnetic heating stirrer, hydrothermal synthesis reactor, heating mantle, lift jack, etc.
Our company has become a pacesetter of the lab instruments in China.
We are confident in providing professional products and service you want,
Click the picture below to enter our website to learn more information.
Pre-sale Service:
24 Hours online service for your consult.
Help choose right model,and a series of service,person,advise.
Provide discount for many sets order
Choose payment term you convienent.
Promptly production and delivery,inform you in time.
After sale service:
1 year warranty service and all life maintenance.
Technical Egineer are avalible for oversea trainning.
Free change for some parts
Remote control technical consult
Free installation DVD
Maintenance plan
Packing:
- The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case.
- Both neutral and cuistomized packing are available.
- The product will be packed in wooden case, and also can be packed by others ways as your request.
Shipping:
- We can ship the goods to you by international express,such as DHL, UPS, TNT and so on. And you can choose the appropriate way based on your timeline and budget. Besides, you can choose to use your own shipping agent.
| Shipping method | Note |
| Express | Door to door, very convenient, don't need to clearance or pick-up |
| By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport,which you can have a local shipping agent to do for you. |
| By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port, which you can have a local shipping agent to do for you. |
We can provide product with competitive price and good quality.
For more details, welcome to contact us! Click "Send" now!
