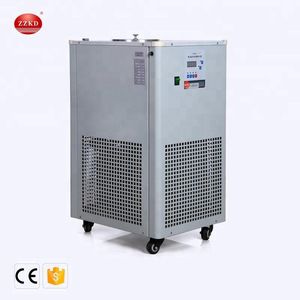

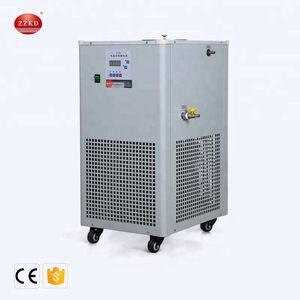

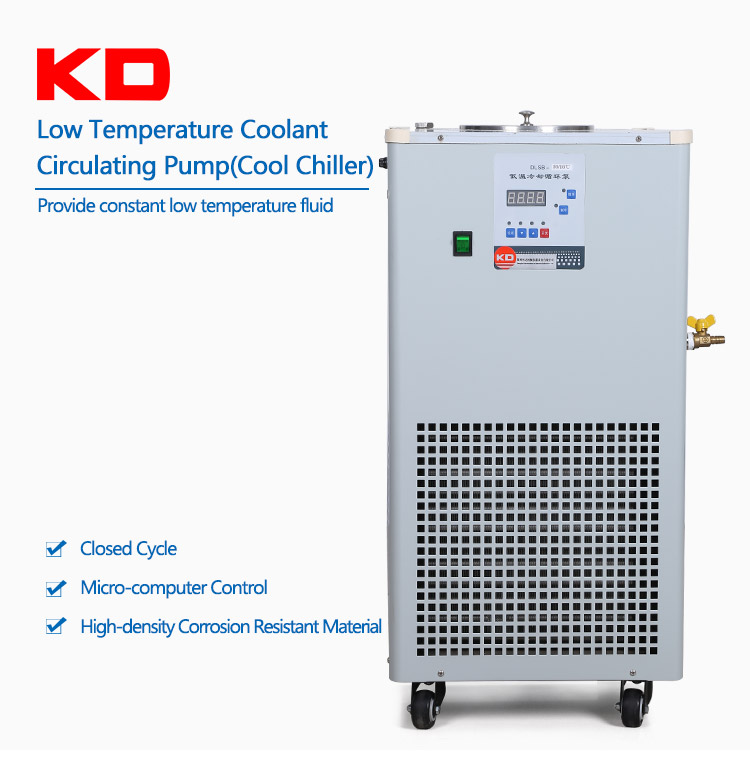

Lab Use Low Temperature Circulating Cooling Chiller
Cooling water circulating pump brief introduction:
Low-temperature circulating pump also know as Low temperature cooling water / liquid circulation pump. This device adopt mechanical refrigeration, the main function is provide low temperature liquid, low temperature water bath. It can also connect with rotary evaporator, vacuum freeze drying oven , cycle water vacuum pump, magnetic stirrer and so on, to achieve the chemical reaction or drug store under low temperature condition.
Product features
(1)Air-cooled and hermetically sealed compressor units (import) with dependable quality;
(2)The dedicated and high-quality relays, protective devices and capacitors of the refrigerating units;

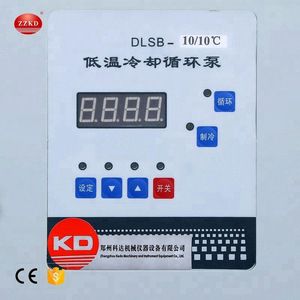

(3)Digital Read Out of temperature and microprocessor controller for temperature, simple and easier to see;
(4)It can be matched with a variety of instruments (rotary evaporators, fermentation tanks, chemical reactors, freeze-drying equipments, pharmaceutical reactors, etc.);
(5)Bigger cooling capacity and faster cooling speed, which have greatly improved the working efficiency;

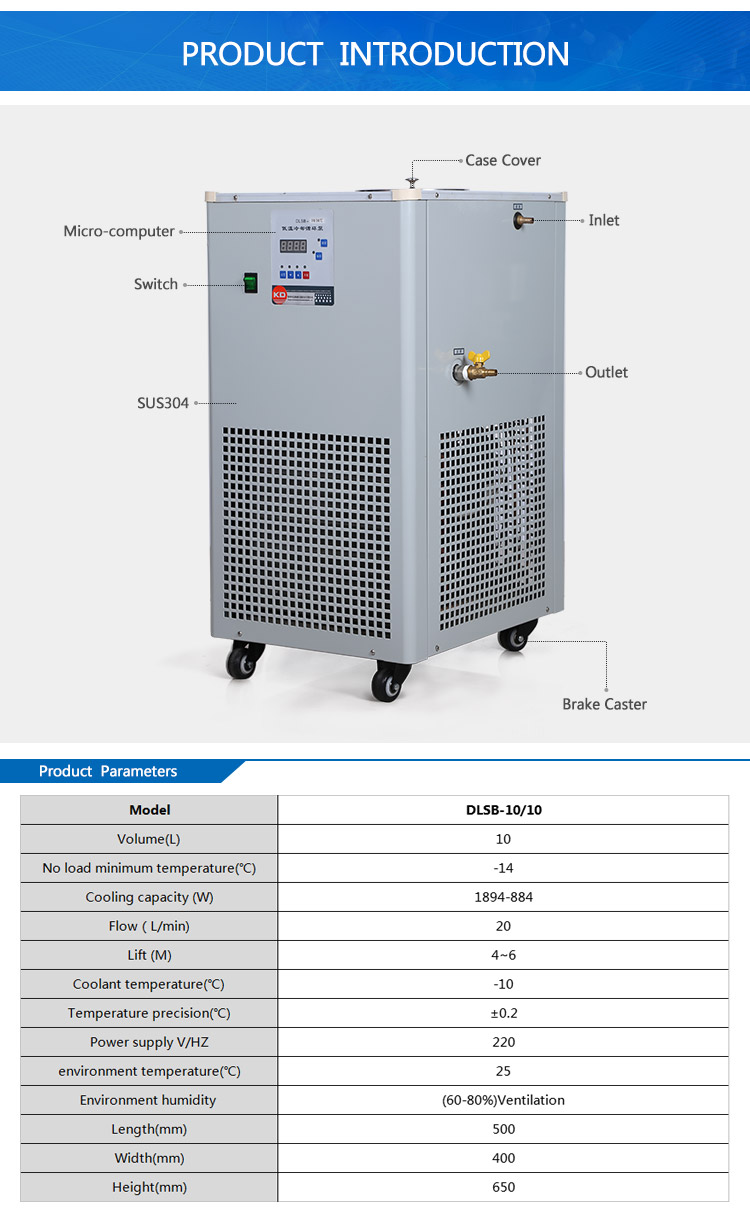

Technical Parameters
| Refrigerant performance | Circulating performance | Temperature control performance | Working condition | ||||||
Model | Volume (L) | No load minimum temperature(℃) | Cooling capacity (W) | Flow | Lift | Coolant temperature (℃) | Temperature precision (℃) | Power supply V/HZ | environment temperature (℃) | Environment humidity |
DLSB-5/10 | 5L | -15 | 1328-319 | 20L/min | 4-6m | -10℃ | ±0.2 | 220 | 25 | (60-80%) Ventilation |
DLSB-5/20 | -24 | 1328-319 | -20℃ | ±0.2 | 220 | 25 | ||||
DLSB-5/25 | -27 | 1894-447 | -25℃ | ±0.2 | 220 | 25 | ||||
DLSB-5/30 | -33 | 2733-627 | -30℃ | ±0.2 | 220 | 25 | ||||
DLSB-5/40 | -42 | 2036-602 | -40℃ | ±0.2 | 220 | 25 | ||||
DLSB-5/60 | -62 | 2036-330 | -60℃ | ±0.2 | 220/380 | 25 | ||||
DLSB-5/80 | -82 | 2036-180 | -80℃ | ±0.2 | 220/380 | 25 | ||||
DLSB-5/120 | -123 | 3888-160 | -120℃ | ±0.2 | 220/380 | 25 | ||||
DLSB-10/10 |
10L
| -14 | 1894-884 | -10℃ | ±0.2 | 220 | 25 | |||
DLSB-10/20 | -23 | 2733-813 | -20℃ | ±0.2 | 220 | 25 | ||||
DLSB-10/25 | -28 | 3256-990 | -25℃ | ±0.2 | 220 | 25 | ||||
DLSB-10/30 | -32 | 2036-1022 | -30℃ | ±0.2 | 220 | 25 | ||||
DLSB-10/40 | -42 | 2628-748 | -40℃ | ±0.2 | 220 | 25 | ||||
DLSB-10/60 | -62 | 3679-510 | -60℃ | ±0.2 | 220/380 | 25 | ||||
DLSB-10/80 | -82 | 3679-160 | -80℃ | ±0.2 | 220/380 | 25 | ||||
DLSB-10/120 | -122 | 4997-120 | -120℃ | ±0.2 | 380 | 25 | ||||
DLSB-20/20 | 20L | -24 | 3255-990 | -20℃ | ±0.2 | 220 | 25 | |||
DLSB-20/30 | -33 | 2628-1350 | -30℃ | ±0.2 | 220 | 25 |
Company introduction:

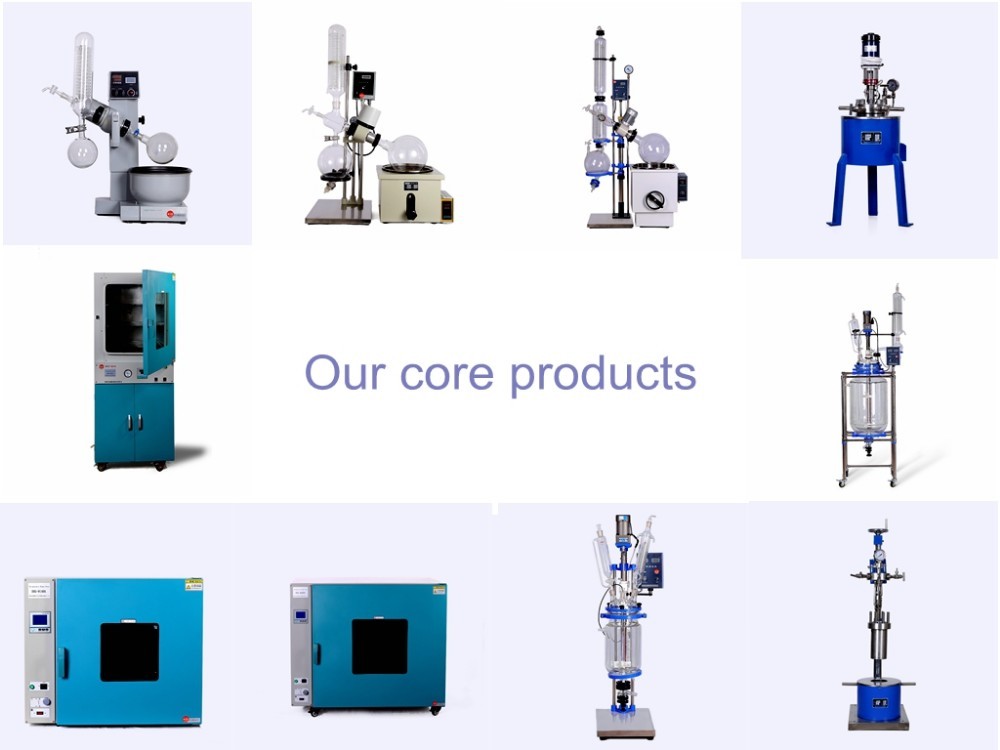

Zhengzhou Keda Machinery and Instrument Equipment Co., Ltd. is specialized in R & D, production, sales, teaching and chemical biology pharmacy equipment integrated company. The main products are rotary evaporator, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, low temperature reaction bath (slot), low temperature cooling fluid circulating pump(cool chiller), vacuum drying oven, blast drying oven, freeze dryer, water/oil bath, magnetic heating stirrer, overhead mixer, ultrasonic cleaning machine, lift platform, etc. Besides, we act as agents of some domestic and foreign famous enterprise products, sustaining high praise in domestic junior colleges and universities, scientific research units, etc. Our products are sold to USA, Australia, Asia, Brazil, Iran, Egypt etc. countries and our customers have been fully affirmation.
Factory Size: 1,000-3,000 square meters
Year Established: 2009
Total Revenue : US$1 Million - US$2.5 Million
Registration No.: 410105000067362
Main Markets: Central America, Mid East, Oceania, Africa, South America
Please click on the picture:
Packaging:
-The glass parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
Shipping:
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent.
| Shipping method | Note |
| Express | Door to door, very convenient, don't need to clearance or pick-up |
| By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport, which you can have a local shipping agent to do for you. |
| By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port, which you can have a local shipping agent to do for you. |
Warranty & Service:
Pre-service
24 Hours online service for your consult.
Help choose right model,and a series of service,person,advise.
Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
1.What's the minimum order quantity?
One set at present
2.What kind of payment term do you accept?
Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term will be discussed during the deal.
3. How will you delivery these goods?
It will be decided according to your quantity. Normally we will choose International Express, Air and sea.
4.How will package glass equipment?
We package these glass equipment in good and non fumigation standard plywood case
5.Can you accept OEM terms?
Sure.
We have the confidence in providing the professional products that you want.
For more details, welcome to contact us! Click "Send" now!
