Vacuum concentration crystallizer equipment/vacuum crystallizer
Dear customer
We are manufacturer producing non-standard pressure vessel.All of our products are customized. If the products do not meet your quality requirement or delivery time, you will receive 100% refund for all of the orders.We provide OEM and ODM service.
1,Parameters
| Volume(m3) | Main Material | Working Pressure(MPa) | Working Temperature(℃) | Motor | |||
| Vessel | Coil(Jacket) | Vessel | Coil(Jacket) | Power(KW) | Speed(r/min) | ||
| 5.75 | 1Cr18Ni9Ti Q235B | -0.1 | 0.3 | 50 | 138 | 2.2 | 10 |
| 5.2 | 00Cr17Ni14Mo2 0Cr18Ni9 | 0.1 | 0.66 | 0-80 | 163 | 5.5 | 86 |
| 39 | 0Cr18Ni9 | -0.09 | 0.3 | 75 | 145 | 30 | 10.5-105 |
The crystallizing tank mixture after the reaction, the sandwich domestic demand chilled water or chilled water rapid cooling crystallization apparatus, the key lies in the mezzanine area the size of agitator structure and material in the form of exports, tank body of high precision polishing, and tank cleaning without dead angle to seeking to meet the technical conditions of use. The company of different process requirements, with rich experience in design and manufacturing, the production of equipment in line with the requirements of GMP validation. Crystal tank capable of producing 0.3-5m3.
Application in pharmaceutical, fine chemical industry, biological engineering and other industries, the tank can be equipped with jacket, coil, insulation (heating, cooling, thermal insulation). The equipment adopts SUS304 stainless steel, the inner wall of the tank is treated by the mirror polishing process, the design of the whole closed to ensure that the material is always in a state of no pollution operation.

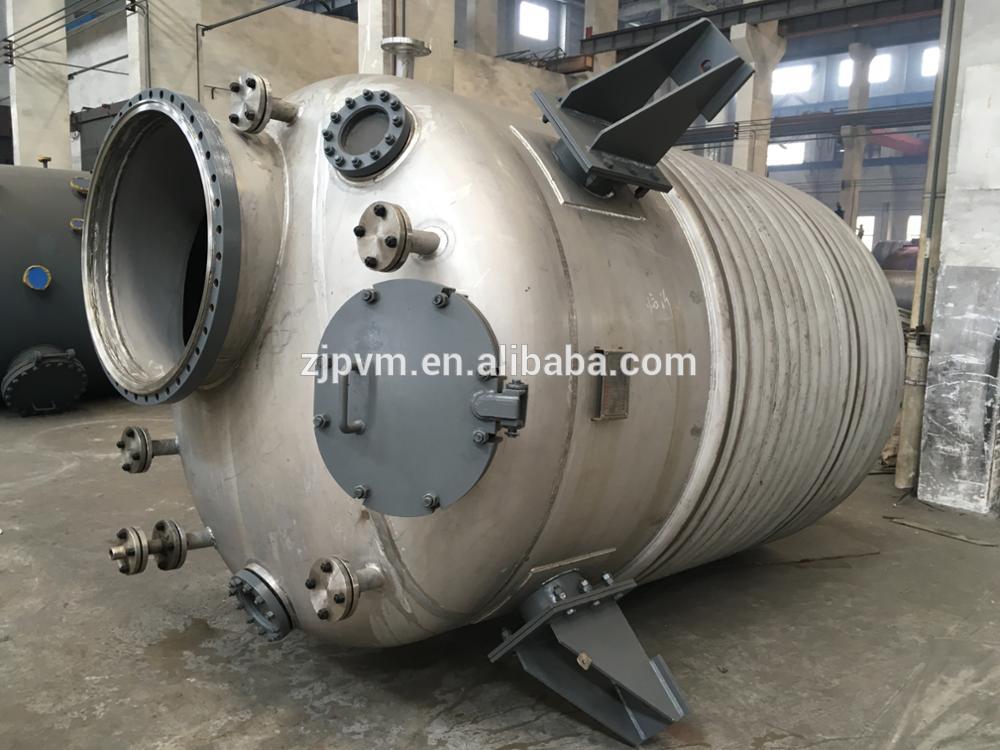

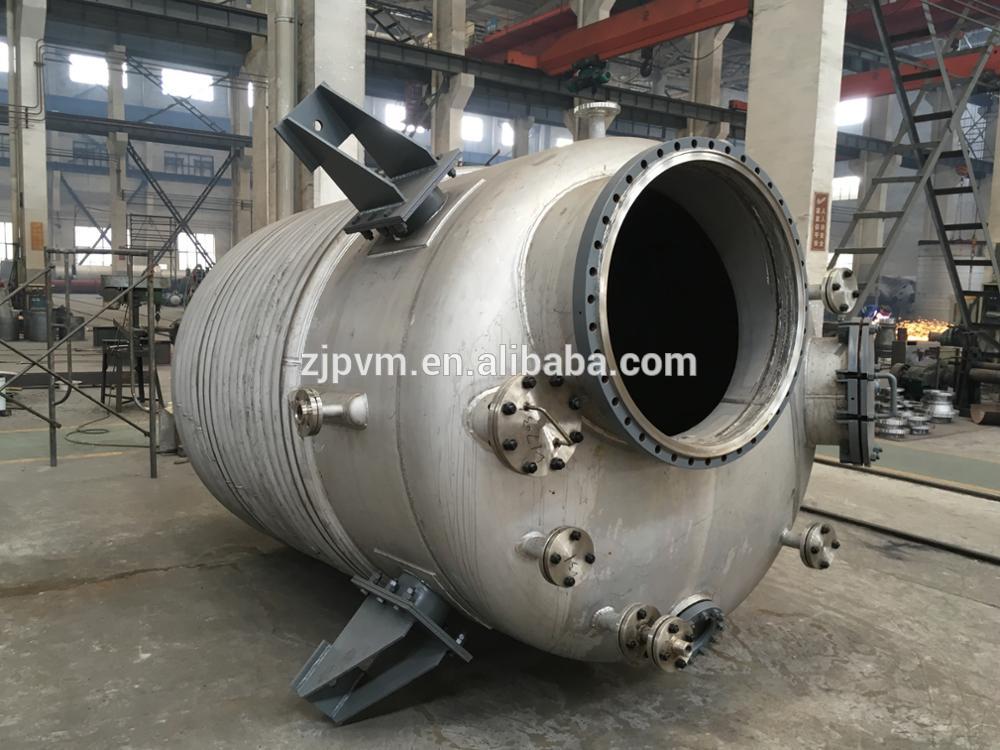

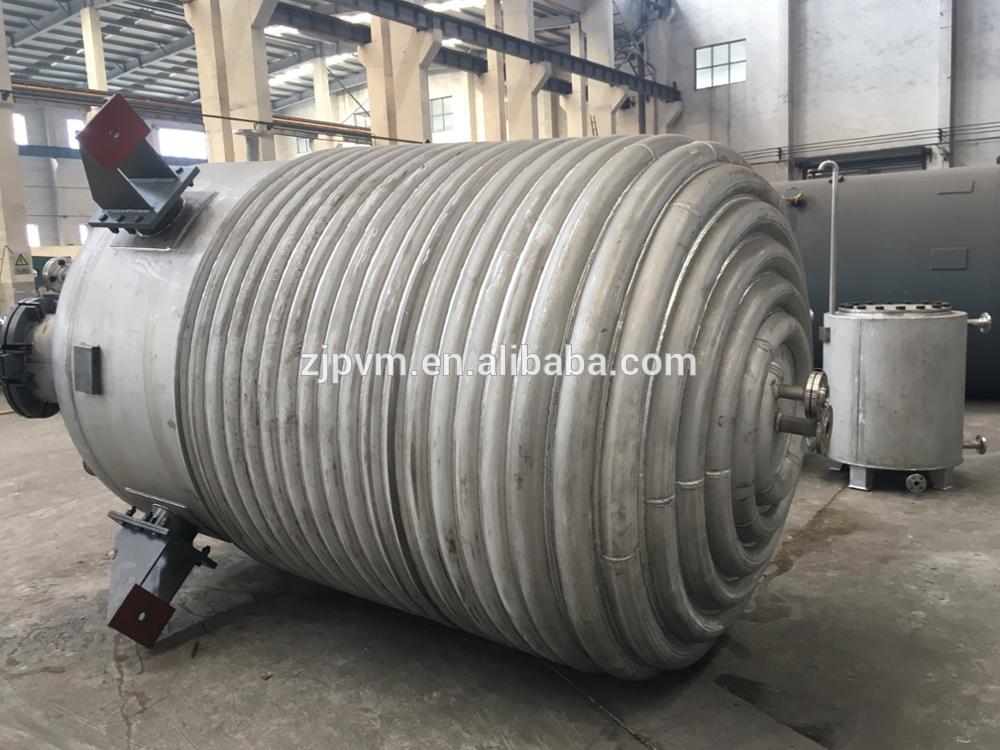

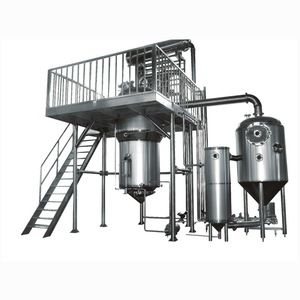

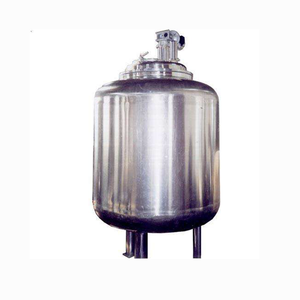

2,Product Dispaly

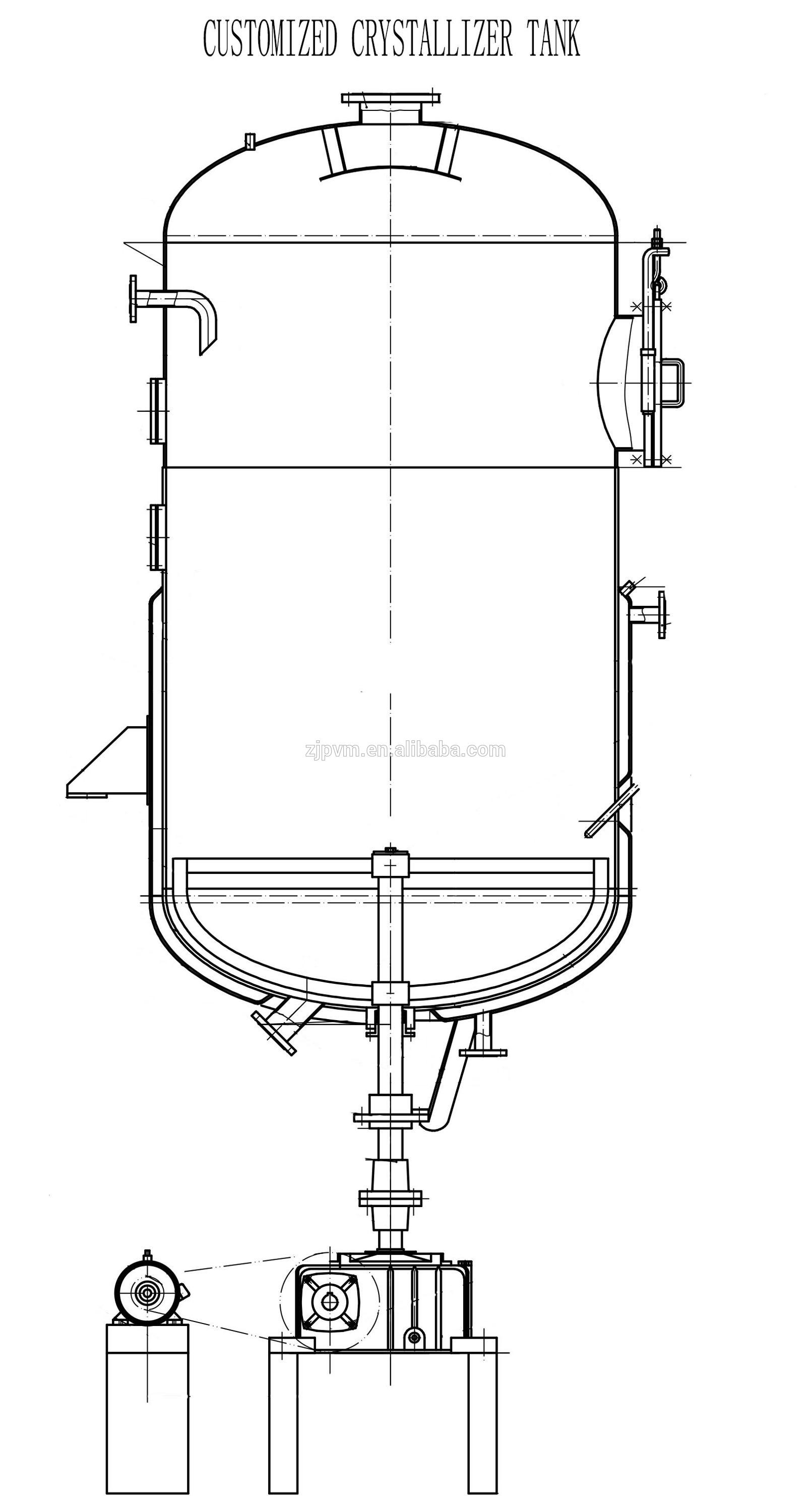

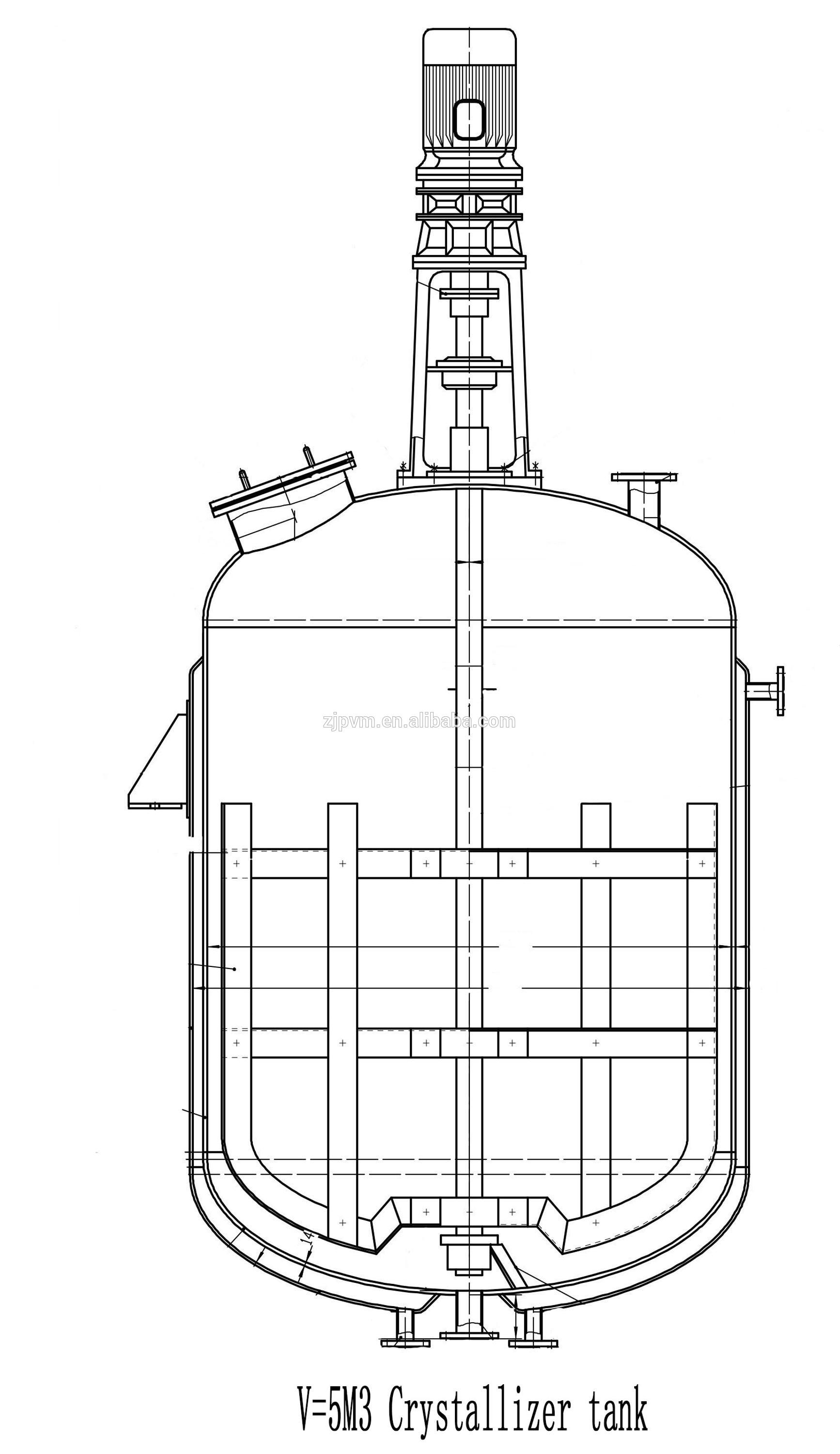

3,Structure
1. Crystallization tank is made of stainless steel 316L or 304.
2.Internal surface finish adopts electrolytic polishing or mechanical mirror polishing ra<0.4um
External wall uses all-welded structure for thermal insulation, with PU or perlite. The surface finish is mirror polished too .
3.Crystallization tank is equipped with sanitary vent filter 0.2um
4.The tank Can withstand 121 degree high temperature sterilization, with sanitary pressure gauge.
5. The crystallizing tank has a temperature monitoring device, two sight glasses, cleaning ball and nitrogen inlet.
6.Shaft seal using a special sanitary mechanical seal, to ensure that the material is not contaminated.
7.The frequency control device can be used in crystallizing tank, with a wide adjust range of stirring shaft speed.

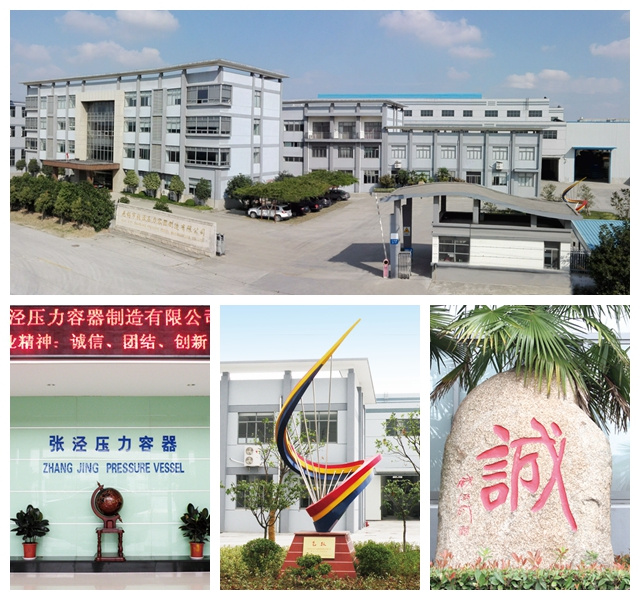

Wuxi City Zhangjing Pressure Vessel Manufacture Co.,Ltd. established in early 1970s',is a manufacturer of high standard pressure vessels and also engineers pressure vessels solution portfolio.We passed the national pressure vessel manufacture lisence since 1993.The company has the ISO9001:2008 quality management system certification and quality certificate of the International Certification Network(IQNet) since 1999.We hold Manufacture License for Category Ⅰ,Ⅱ&Ⅲ (Class A2) pressure vessel and ASME "U" Stamp certificate.
We have a complete quality assurance (QA) system to assure projects comply with national pressure vessel standard and ASME code.We provide ASME Boiler and Pressure Vessel Code (BPVC) customization construction services to fabricate pressure vessels,process tanks,heat exchangers,storage tanks and boiler components.
Q: Can you give us a quotation right now?
A: Sorry, our products are all different and special. Please give us detailed technical data. Then we will make a design and quotation for you as soon as possible.
Q: Do you have any one in stock?
A: Sorry, we don’t. Our products are all manufactured according to customers’ requirements. So our products are all different and special.
Q: Can you give us the technical drawing and data?
A: Our products are all custom made.Usually you need to provide us with the drawings.And if you do not have it,some important data is also necessary.We can help you design it after we signed the contract and confidentiality agreement.
Q: Do you provide after-sales service?
A: Yes, we do. This product is guaranteed up to one year from purchase unless man-made damage. If there is anything wrong with product itself quality problem, we will change or repair it at our charge. If not, we will provide after-sales service at your charge.
 |
|
