Customized multiple effect evaporator with good price
Dear customer
We are manufacturer producing non-standard pressure vessel.All of our products are customized. If the products do not meet your quality requirement or delivery time, you will receive 100% refund for all of the orders.We provide OEM and ODM service.
1,Parameters
| Heat Exchanger Area(M2) | 1.5 | 3 | |
| Working Pressure(MPa) | Barrel | -0.09 | -0.1 |
| Jacket (Upper/Middle/Bottom) | 0.4 | 0.45/0.45/0.42 | |
| Working Temperature(℃) | Barrel | 65 | 120 |
| Jacket (Upper/Middle/Bottom) | 95 | 151/151/30 | |
| Motor | Power(KW) | 2.2 | 3 |
| Speed(RPM) | 85 | 132 | |
| Main Material | Barrel | TA2 | 06Cr19Ni10 Q235-B |
| Jacket | TA2 |
The evaporator series (three effect & multi effect falling film evaporator) allowed arranging special process flow according to different feature of material. It can also designed according to customer's special requirement.
Its outstanding advantage lies in the point that it can fulfill the continuous operation and low temperature evaporation. It saves energy and time with low loss and maximize remain the material's color, fragrance and favor. It can satisfy the continuous production requirements. This product is mainly used in the industries such as food, Chinese and Western pharmaceutical, biochemical pharmaceutical, further processing of agricultural and auxiliary products, health drinks, juice, fine chemical, light industry, PRO-environment etc.

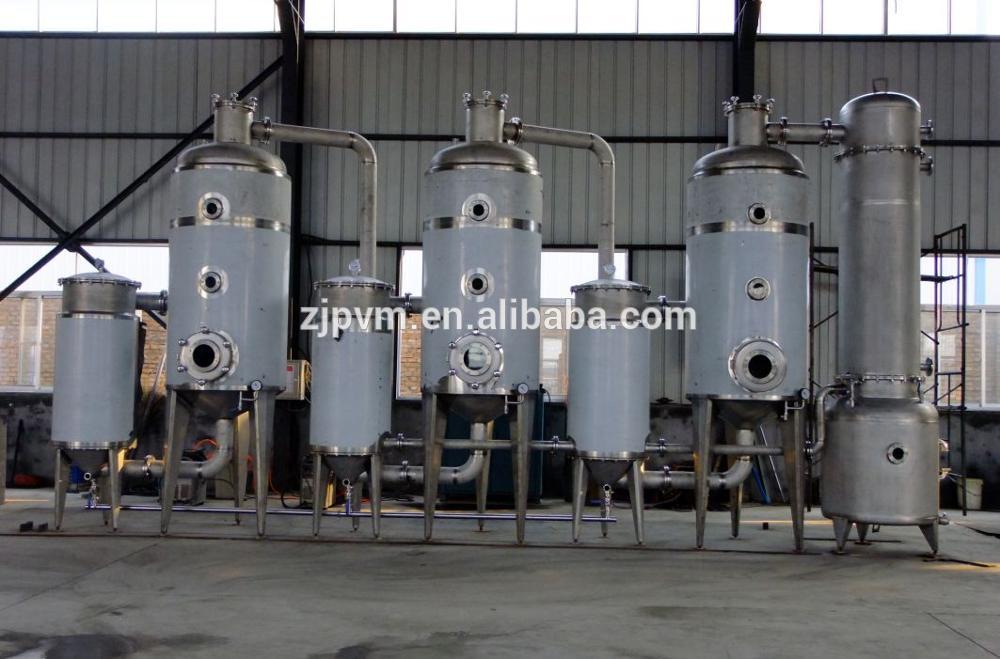

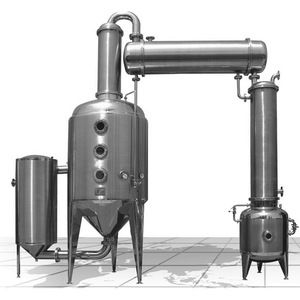

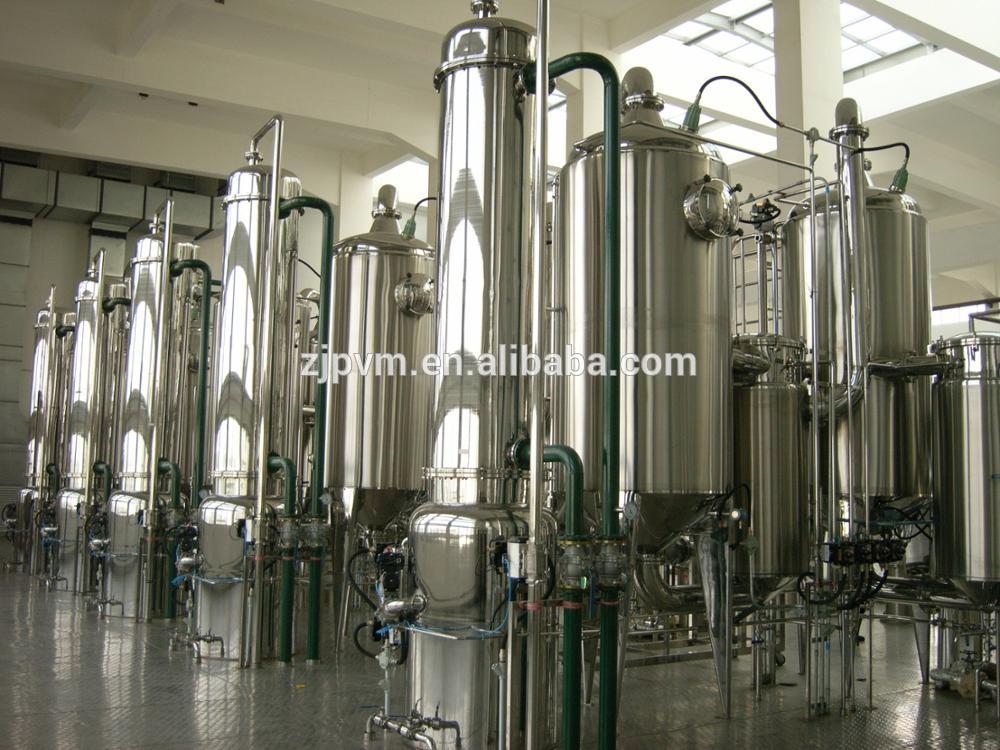

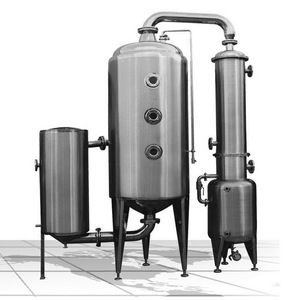

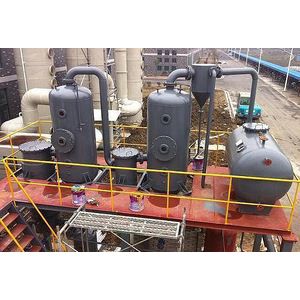

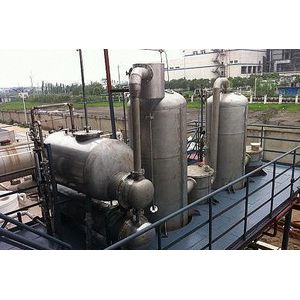

2,Product Dispaly

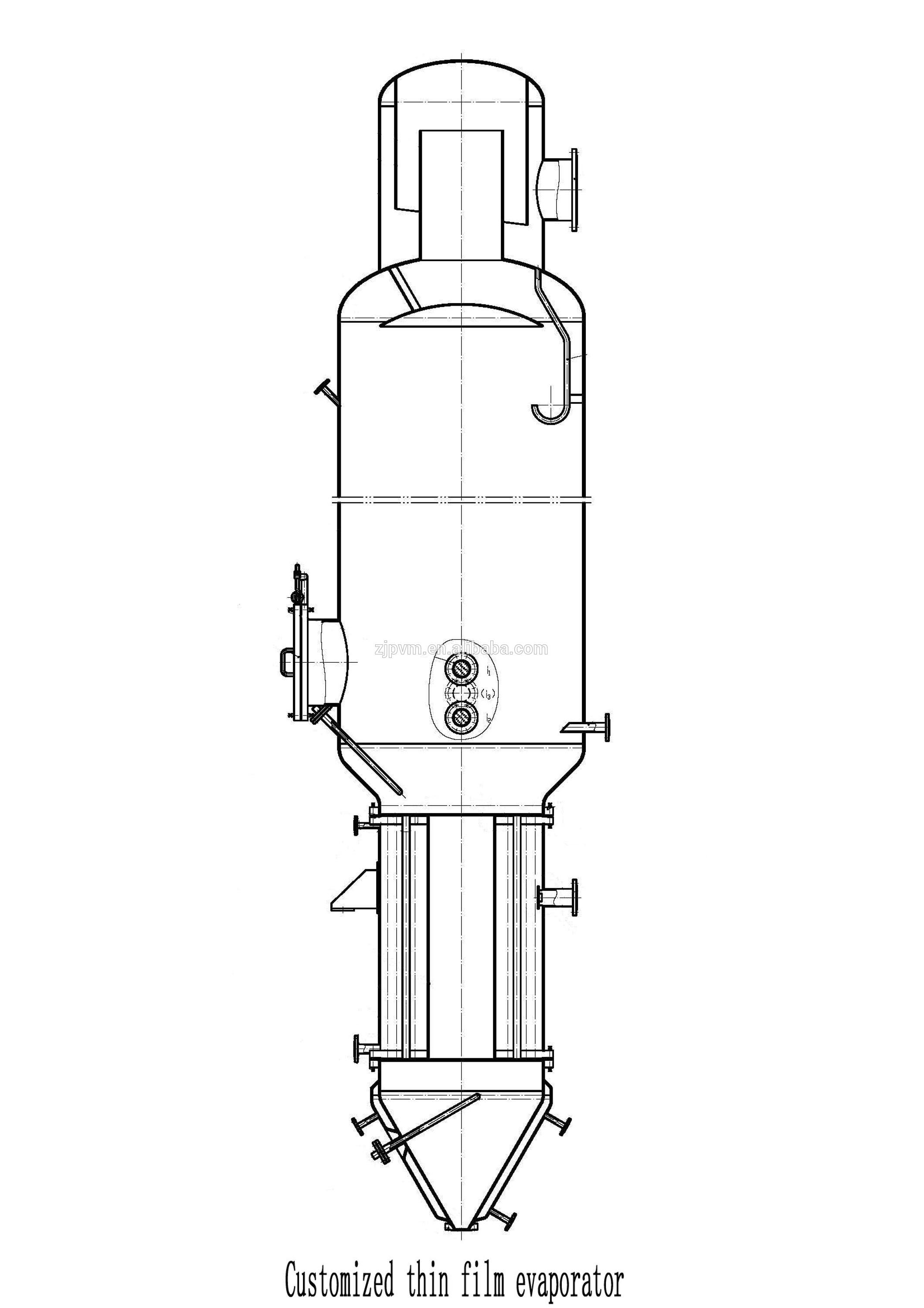

3,Structure

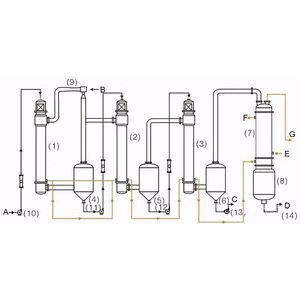

Multiple-effect falling film evaporator consists of (first-effect, second-effect, third-effect)separators and evaporators and preheaters,condenser and vacuum pump, feeding pump,circulation pump, discharge pump, condensed water pump, pipeline and fittings, etc. It is equipped with CIP spraying cleaning ball, vacuum gauge, thermometer,pressure gauge,and so on.
Wuxi City Zhangjing Pressure Vessel Manufacture Co.,Ltd. established in early 1970s',is a manufacturer of high standard pressure vessels and also engineers pressure vessels solution portfolio.We passed the national pressure vessel manufacture lisence since 1993.The company has the ISO9001:2008 quality management system certification and quality certificate of the International Certification Network(IQNet) since 1999.We hold Manufacture License for Category Ⅰ,Ⅱ&Ⅲ (Class A2) pressure vessel and ASME "U" Stamp certificate.
We have a complete quality assurance (QA) system to assure projects comply with national pressure vessel standard and ASME code.We provide ASME Boiler and Pressure Vessel Code (BPVC) customization construction services to fabricate pressure vessels,process tanks,heat exchangers,storage tanks and boiler components.
Q: Can you give us a quotation right now?
A: Sorry, our products are all different and special. Please give us detailed technical data. Then we will make a design and quotation for you as soon as possible.
Q: Do you have any one in stock?
A: Sorry, we don’t. Our products are all manufactured according to customers’ requirements. So our products are all different and special.
Q: Can you give us the technical drawing and data?
A: Our products are all custom made.Usually you need to provide us with the drawings.And if you do not have it,some important data is also necessary.We can help you design it after we signed the contract and confidentiality agreement.
Q: Do you provide after-sales service?
A: Yes, we do. This product is guaranteed up to one year from purchase unless man-made damage. If there is anything wrong with product itself quality problem, we will change or repair it at our charge. If not, we will provide after-sales service at your charge.
 |
|
