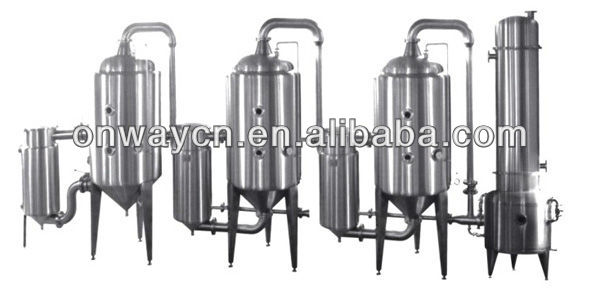

WZT series Triple-effect energy-saving evaporator crystallizer  is used in Chinese Medicine, Western mdeicine, glucose, starch, gourmet powder, diary product chemical industry etc to condense. Esp. Suitable for the hot sensitive materials to condense at the low temperature, specifications can be selected according to its volume.

  evaporator crystallizer

Main Advantage- evaporator crystallizer

It is energy saving concentrator ,the characteristic of this dual effect is the steam can be twice use . take 1000L tri- effect concentrator for example,it can save 5,400 tons of steam, 140,000 tons of water, 130,000 watt of electric per year, it is about save  equal to RMB 200, 000Yuan per year

Characteristics and performance- evaporator crystallizer

1. The device- evaporator crystallizer uses the modes of outer-heated natural cycle and vacuum negative pressure evaporation featuring swift evaporation with conventration proportion of 1.45, and normally without open-mouth pan for collection of ointment.

2. The concentrator uses three-effect synchronously vapor, which utmost extent utilize the vapor. The energy consumption can be 70% less than the single-effect concentrator. It is about in less than one year that the client can get back teh concentrator investment capital.

3. Features of the multiple functional operation:

(1) the reclaimable alcohol concentration is about 80%;

(2) three-effect canconcentrate three different materials;

(3) Also can collects ointment together again and again;

(4) intermittent and continuous material feeding is available;

(5)Feeding by first-effect, then through second-effect and three-effect to form ointment once time.

4. Materials is been concentrated in the condition of vacuum, without pollution, thick taste and even quality. The present material can be concentrated presently, which features convenient cleaning and immune to block.

5. Comparing with other manufacturers, we equipped with a foam breaker on the top of the evaporator to avoid material decrement phenomenon. The foam breaker were adopt with quick-open type flange featuring convenient cleaning, one person operate and reduce labor tensity.

6. The part inside the concentrator in contact with the material is made of stainless steel USU304. The thermal layer made of polyurethane is available at the heater and evaporator. The surface is with treatment of sand grinding and polishing, comply with the GMP standard.

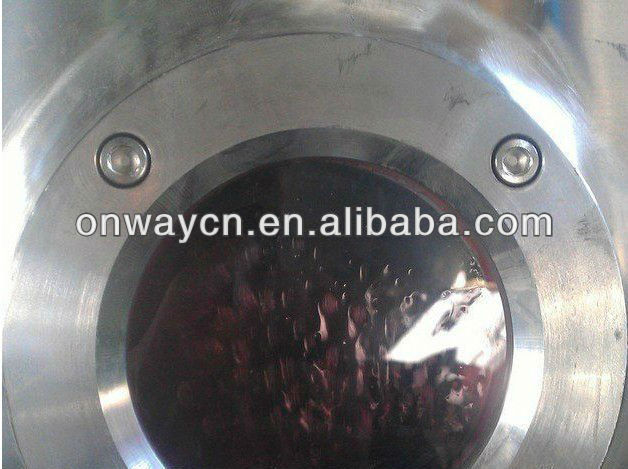

Below is the crystalline in evaporation crystallizer

Below is the final product of cotaltous sulfate crystalline.

Technology parmeter- evaporator crystallizer
