The MVR is no need the stem

MVR only requires enough energy to run the compressor to compress the steam, so the steam latent

heat is always repeated recycling

Our design can provide your company with the following advantages:

l        Ultra-low energy consumption    ----------------------- Lower operating costs

l        Low temperature evaporation     ------------- difficult to fouling and difficult to corrosion

l        Short residence time of wastewater ----- -------- - Improve the treatment rate

l        Simple process, reliable results ---------------- - Reduced maintenance costs

l        Fully automated operation, safe and reliable ------ - Reduce labor costs

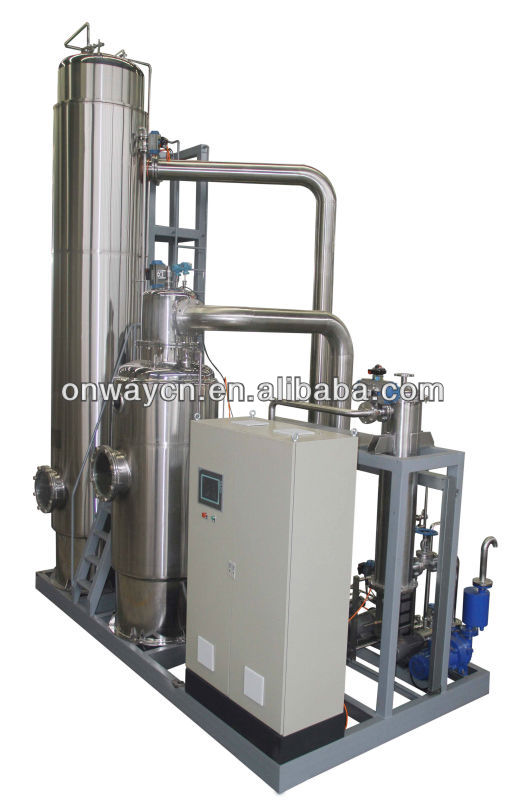

MVR evaporator system consists of three parts:

First part:Evaporator system- main constituted by a heat exchanger-304material, water vapor separator.

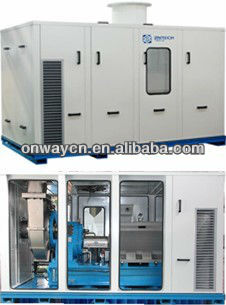

Second part: MVR system- a vapor compressor, high-speed motor,inverter

Third part: PLC control system- including the control valve, the fluid valves and other valves,and PLC software

In summary the adventages of MVR system are as follow:
1.Energy saving: high thermal efficiency, energy saving, lower power consumption,the energy consumption is about   1/6To 1/5 of traditional evaporator. significantly reduc the operation cost
2.Environmental protection
  2.1No steam
  2.2No boiler
  2.3No coal
  2.4No cooling water
3.Low operating costs: only the traditional evaporators One-third to half
4.Evaporating temperature is low, difficult to corrosion stainless steel equipment, difficult to scale, very suitalbe for heat-sensitive material
5.Automatic: The entire system realized automatic control from the filling, preheating, evaporation, cleaning, maintenance and other steps of the. Avoid human error, reduce the labor costs, improved product quality
6.Small footprint
7.Avoiding the purchase of boilers, chimney construction investment and maintenance costs

6. Operating costs

Operating cost calculation based on the following:

Working time :         24h/day

                     330days/y

Electricity unitary cost: 0.12USD / KW/h

Steam unitary cost:     14.USD / T

Cost for evaporate capacity-10000/h
	MVR	Traditional evaporator
vapor compressor	25/h	USD24
material feeding pump	22 kw/h	USD2.64	22 kw/h	USD2.64
discharge pump	7.5 kw/h	USD0.9	7.5 kw/h	USD0.9
vacuum pump	2.2 kw/h	USD0.264	2.2 kw/h	USD0.264
water circulate pump	11kw/h	USD1.32	11kw/h	USD1.32
Steam	0	0	88000kg/h	USD123.73
cooling water				6.4
Cost per hour	USD29.124	USD135.254
Cost per year	USD230,662	USD1,071,211
Saving money per year: USD840,548



VAPOR COMPRESSOR EVAPORATOR
