automatic MVR evaporator for coffee processing line

PRIMARY PARAMETERS

Condition

New

Application

Food Processing

Power Source

Natural Gas

Process

Thermal

Place of Origin

Shanghai, China (Mainland)

Brand Name

BEYOND

Model Number

BYMVR-1

Voltage

380V

Power(W)

55KW

Dimension(L*W*H)

6000*4500*12000

Weight

8900kg

Certification

ISO9001

Warranty

12 months

After-sales Service Provided

Engineers available to service machinery overseas

Material

SUS304

Conctrol type

PLC full automatc control

application

waste water treatment and food industry

External dimension

6m*4.5m*12m

Processing Types

Coffee

DETAIL DESCRIPTION

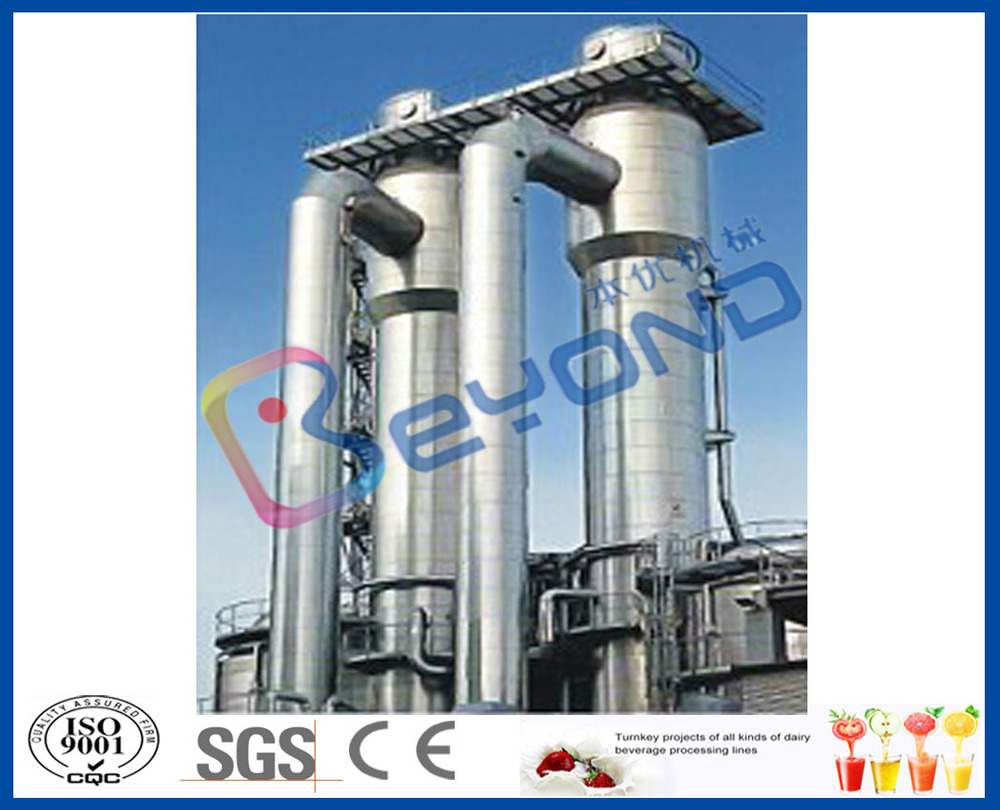

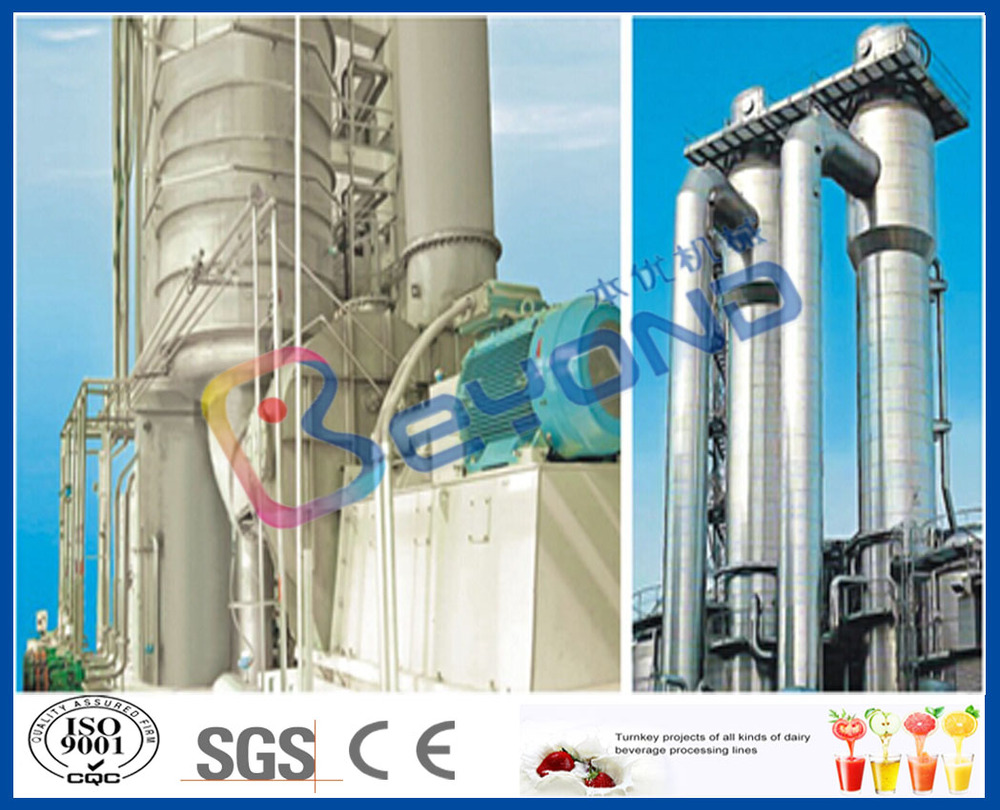

Automatic MVR evaporator for coffee processing line

Summary:

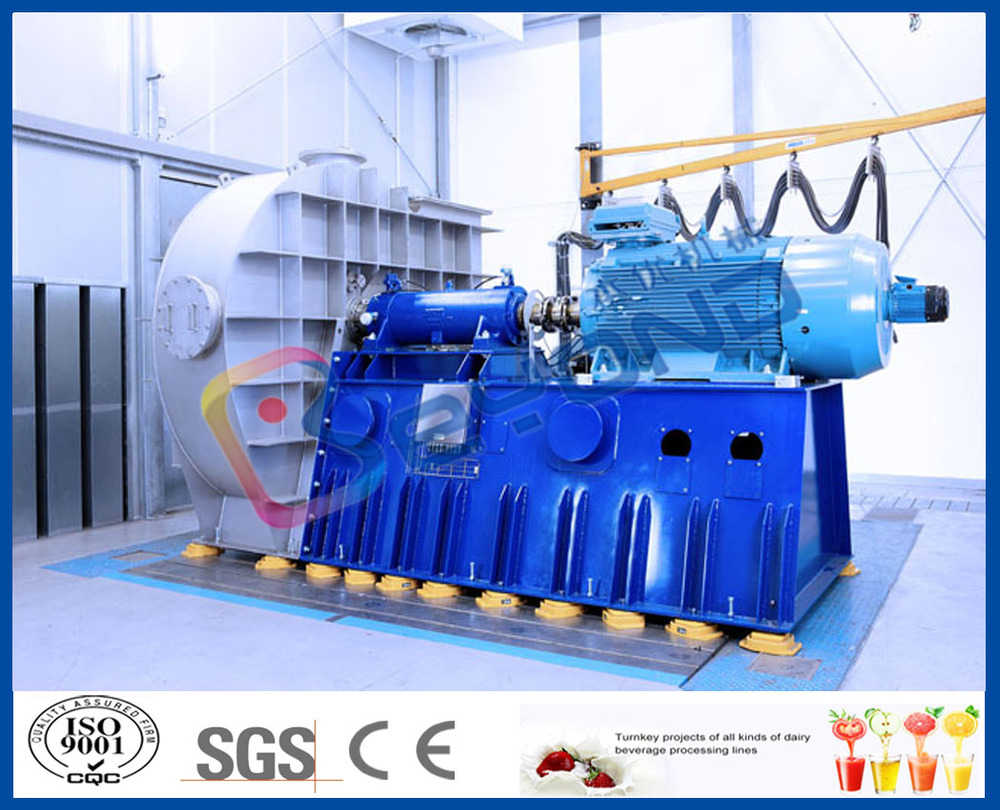

Mechanical vapor compression MVR or MVC (Mechanical Vapor Compression) evaporator, the principle is to use the secondary steam which is produced through compressing the steam by the steam compressor , secondary steam heat and temperature is increased by the compressor, steam compressed into the evaporator as the heat source, again makes the raw material liquid start evaporation, so there is no need to rely on external fresh steam, just need to rely on the evaporator system itself circulating to achieve the purpose of evaporation. Through the PLC control system, configuration software and engineering software to control the temperature, pressure, speed motor system, maintain stable, intelligent and efficient operation of the evaporator.

Performance characteristics and scope of application:

No waste heat steam emissions, energy-saving effect is very significant, which is equivalent of 10 effect evaporator.
Using this technology can achieve to countercurrent washing of secondary steam, therefore the dry matter content in condensed water is far lower than the number of evaporator.
Using low temperature negative pressure evaporation (50-90 °C), help to prevent the degeneration resulted from high temperature evaporation.
MVR evaporator is a substitute of traditional multi-effect falling-film evaporator, is based on single effect evaporator through the reuse of the secondary steam countercurrent washing and recompression. All material that applicable for single effect and multi-effect evaporator, are suitable for use in the MVR evaporator, technically have the substitutability. It has perfect characteristics of environmental protection and energy saving. Because of its significant energy-saving effect, MVR evaporator technology started rapid development in foreign countries at the beginning of 70's, now is widely used, which is used in industrial wastewater treatment and dairy, sugar, starch, alumina, papermaking, caprolactam, seawater desalination, coking plant (recovery of sulfur dioxide production sulfur ammonia), salt chemical industry, and other many production areas.

Technical parameters (evaporation according to the customer need to design)

Model	BYMVR-0.5	BYMVR-1	BYMVR-1.5	BYMVR-2	BYMVR-5	BYMVR-10	BYMVR-15
Evaporation capacity	500kg/Hr	1000kg/Hr	1500kg/Hr	2000kg/Hr	5000kg/Hr	10000kg/Hr	15000kg/Hr
Inlet saturated steam capacity(kg/Hr)	500	1000	1500	2000	5000	10000	1500
Inlet saturation temperature (c)	55.295	71.631	82.109	90	90	90	90
Outlet temperature (c)	12.590	14.145	15.185	16.000	16.000	16.000	16.000
Outlet the saturation temperature (c)	67.885	85.776	97.294	106.000	106.000	106.000	106.000
Inlet saturation pressure kPa (A)	15.975	33.441	51.567	70.117	70.117	70.117	70.117
Inlet saturation pressure kPa (A)	28.432	59.596	91.921	125.029	125.029	125.029	125.029
Compression ratio	1.780	1.782	1.783	1.783	1.783	1.783	1.783
Motor power (kw)	40	55	75	95	132	550	640
Outlet volume flow (m^3/s)	0.795	0.7971	0.7985	0.7997	0.7997	0.7997	0.7997
exhaust velocity(m/s)	22.736	22.795	22.837	22.87	22.87	22.87	22.87
Outlet volume flow (m^3/s)	4X4X10	6X4.5X12	8X5.5X14	8X5.5X14	9.5X6X15	12.6X6.5X17	13.6X7X17
