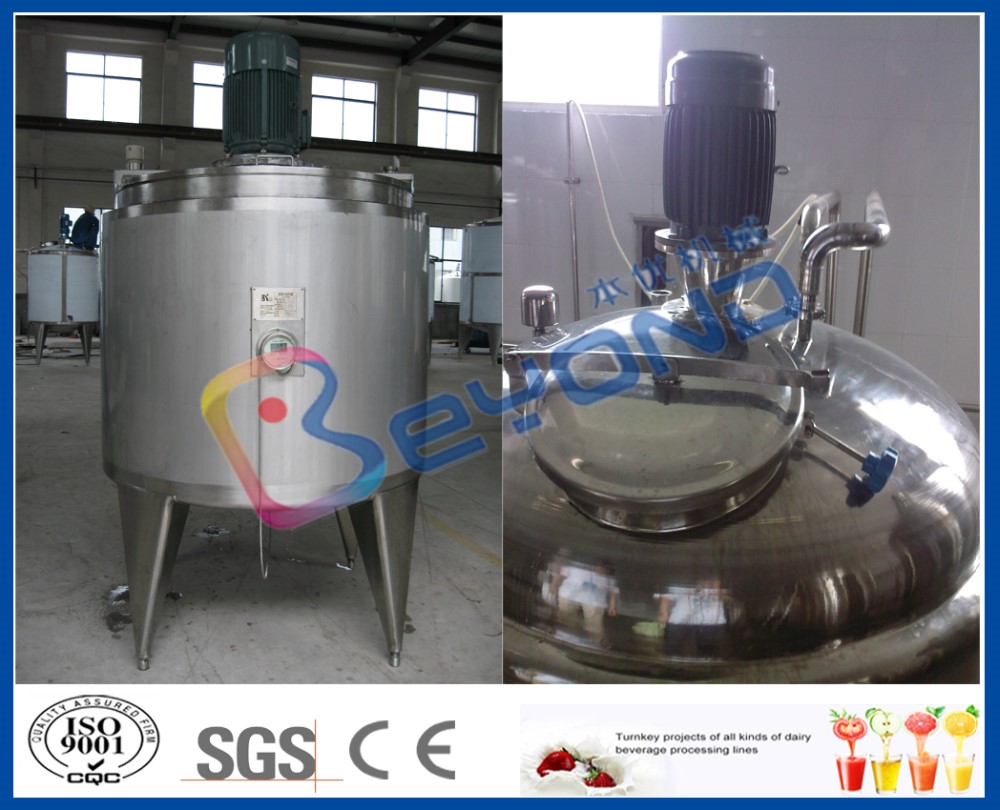

High speed mixing (shearing) tank
Usage:
High speed shearing emulsification tank, one of the most advanced blenders in China presently, is widely used in milk, drink and food etc. It can be used in any liquid-liquid, liquid-solid product including emulsion reagent, paint, dye, pigment, paper and so on, which may needs agitation, dispersion, emulsification, equalization, milling, suspending and dissolving in chemical or light industry.
Structure:
This tank has its own agitator with the sealing pairing of rotor and stator to ensure that the materials can be cut in high speed of near one million per minute. And anyone can be chosen among three stators in this structure.
It can be made to be single layer, double layer or three layer.
Contact person: Jenny
Mobile:+86-13585849199
Tel:+86-021-57172333-Ext8601
Skype:chenli8989(@)hotmail.com
WhatsApp/Viber/Wechat/Imo: +86-13585849199

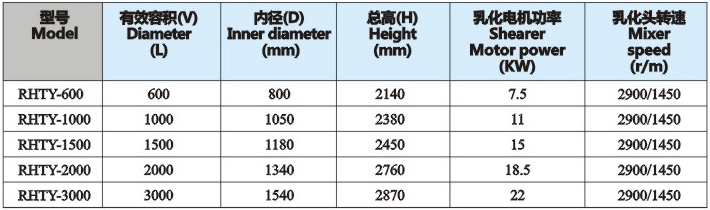

Technical parameters:

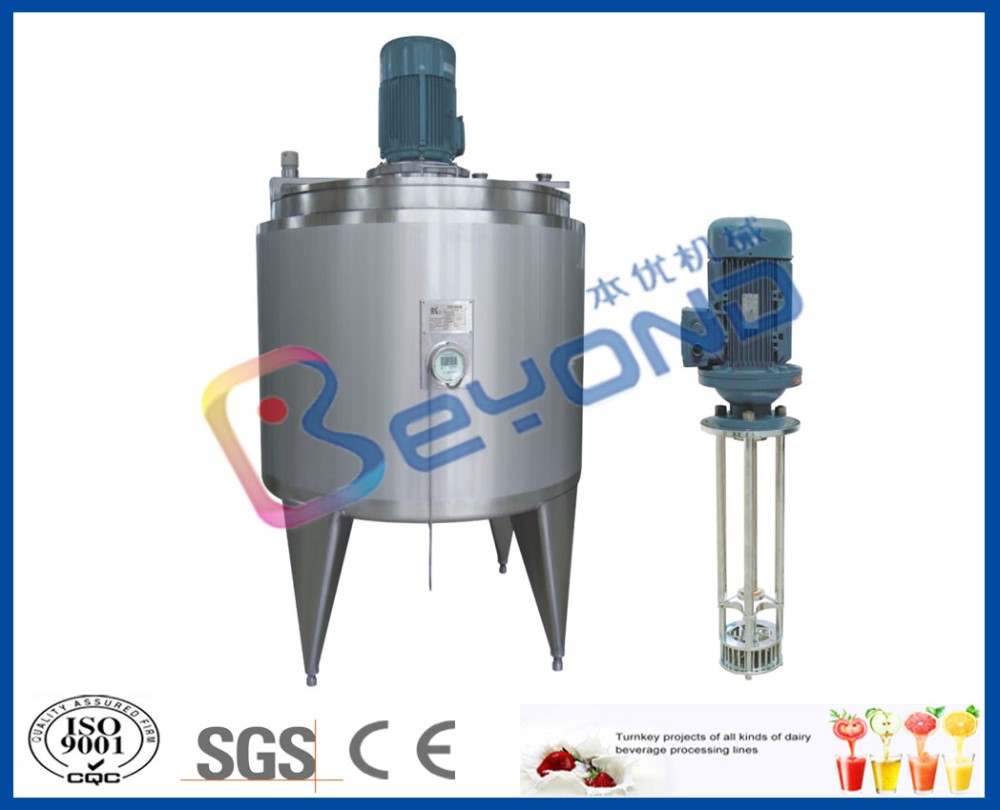

Description of high speed mixing tank:
made of sus304 stainless steel used for mixing sugar,mixing milk powder,emulsifier etc. agitator 2900rpm
this mixing tank is one of the most advanced mixing machines in China presently,

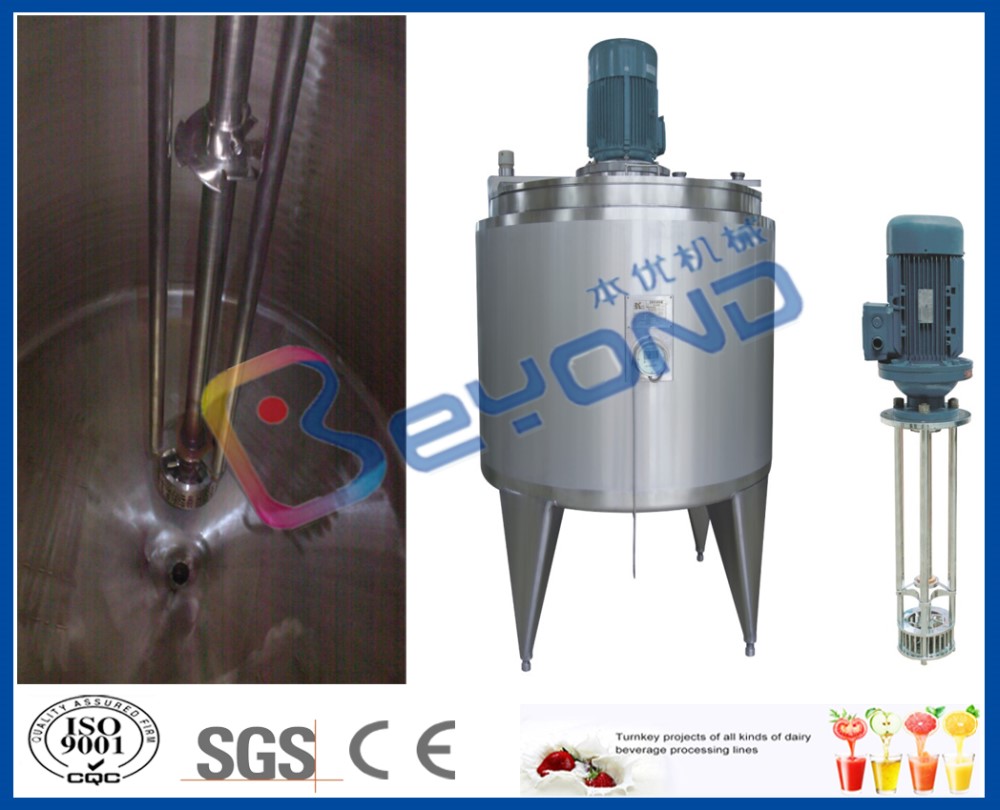

This tank has high speed agitator with the sealing pair of rotor and stator.
this tank is totally made of sus304 stainless steel,
with 60mm thick PU as heat insulation, which can keep warm of product inside of the tank;
inner shell 3mm,outer shell 2mm;
flat removable cover;
with inlet and outlet of water;
with digital show thermometer;
with product outlet at bottom;
high speed agitator(shearer) mounted from top to near of the bottom;
with 4 legs as supporters.
widely used to melting sugar, powder milk, and other dissolvable additives.
it is very popularly used in the milk and juice and other food production lines
China
