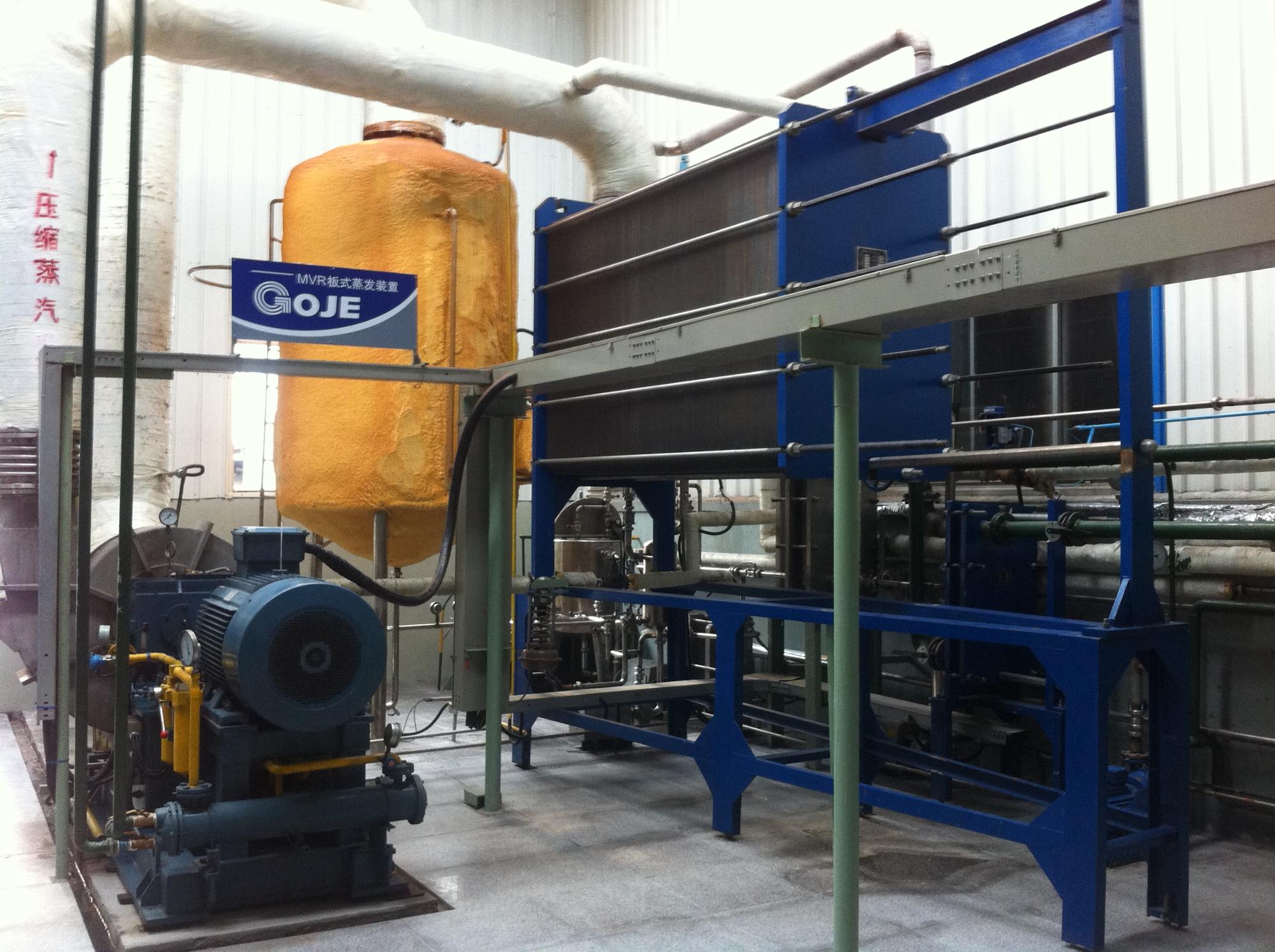

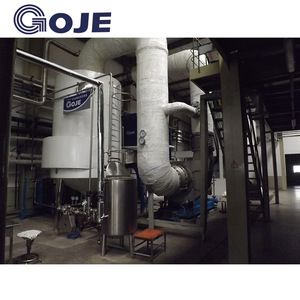

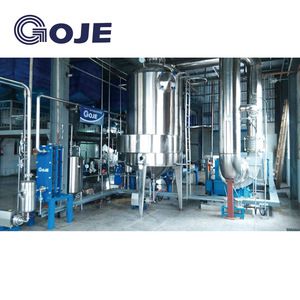

GOJE advanced technology mvr falling film plate evaporator for food processing
1.Mechanical vapour recompression (MVR) and evaporation
This device has won national new and high-tech product award and also passed the accreditation for being the first set of major equipment in the province and the city.
Working pinciples: Compress secondary steam by using steam centrifugal compress or other steam com pression device to make sure its physical properties meet with the requirements for heating steam; evaporation that uses it as heating steam only requires fresh steam supply when the machine is started. After entering normal operation, there is no need to supply new steam and no (or very little) secondary steam needs condensation. Therefore MVR evaporation substantially cuts down steam demand but will consume more power.
2.Advantages
Compare to shell-tube evaporator,plate type evaporator has following advantages:
1.High efficiency
2.Small and coverage and compact structure
3.Sort retention of the material
4.low liquid holdup
5.Easy installation and maintenance
6.Easy inspection
7.Low investment cost for equipment

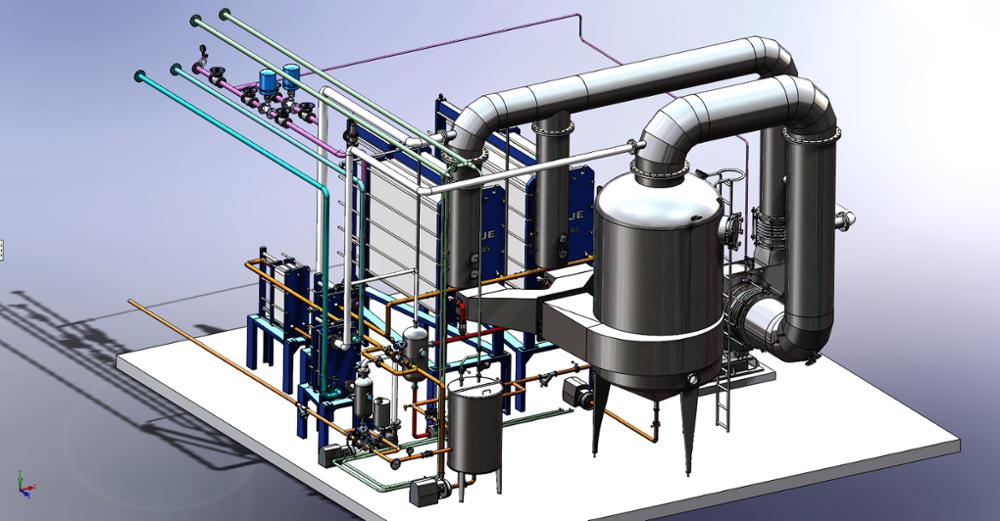

3.Schematic diagram
2.Economic Efficiency Comparison between 4-effect Evaporation Device and MVR Plate Type Evaporation Device
(Technical parameters: lOt/h, admission 75℃,discharge 85℃,a temperature rise of 10℃)
Program | Project name | Consumption | Water converted | Unit Price | Cost per hour | Annual operation | Remarks |
4-effect | Steam consumption | 2.9 t/h |
| 170 yuan/t | 493 yuan | 3944000 |
|
Power consumption | 50 kw/h |
| 0.69 yuan/Kwh | 34.5 yuan | 276000 |
| |
Cooling water amoun | 170 t/h | 0.354 kwh/t | 0.69 yuan/kwh | 41.5 yuan | 332200 |
| |
Total annual operating cost(calculated on a basis of 8000 hours) | 4552200 |
| |||||
MVR Plate Type | Steam consumption | 0.055 t/n |
| 170 yuan/t | 0 | 0 | Little at boot time |
Power consumption | 251 kw |
| 0.69 yuan/Kwh | 173.19 yuan | 1385500 |
| |
Cooling water amoun | 3 t/h | 0.354 Kwh/t | 0.69 yuan/kwh | 0.733 yuan | 5900 |
| |
Total annual operating cost(calculated on a basis of 8000 hours) | 1391400 | This operating cost is calculated on |
1.The estimated investment cost for a 10-ton MVR plate type evaporator Is approximately 4 million Yuan.
2.The annual operation cost of a 10-ton evaporator is 3,160,800 million Yuan higher than that of a 10-ton MVR plate type evaporator.
3.Therefore, the total investment of a 10-ton MVR plate type evaporator, deducting the total difference between a multi-effect evaporator, shall be recovered within 15 months, i.e. 1 year and 3 months (4 million/3.1608 million Yuan*12 months)
Note: As the steam and power prices vary from place to place, different technologies also result in varied investment return, actual cost shall be subject to the final design.
You can click here for more products.
ISO9001 quality management system certification and more than 20 patent certification was awarded.our goods verified by CNAS and IAF and some other third parties inspection
Jiangsu S-JE technology Co.,Ltd. is a newly established sub-company of Nanjing Gaojie Light industrial Equipment Co.Ltd. and has an export license. Jiangsu S-JE technology Co.,Ltd. specializes in supplying GSA-F series plate heat exchanger and imported plate; the largest domestic caliber plate condenser at home; semi-welded liquid ammonia evaporator; foreign imports of film and lifting film, falling film evaporator and plate evaporation system engineering services.Our company has experience in exporting heat exchange equipment and evaporating equipment to global. Our main markets are North America, Asia, Middle East and Africa.Now we are also developing new products to expand more market. We have our own designer and R&D group to develop new products and we can also creat new products in accordance with customers’requirements.Our company warmly welcomes all customers to visit our company. We hope to establish long-term and close cooperative relationships with our customers in order to achieve win-win benefits.
Our advantage
First: We have the most complete models plate heat exchanger at home and broad.
Second: We have heat exchanger sub-detachable, semi-welding, full welding, wide flow and irregular flow channel
Three: We have the entire system of integrated evaporation and design strength, the form of the evaporator at home and abroad ,the most full of film, falling film, lifting film series and a dozen different specifications of the model. Separate and semi-welded evaporator plates, equivalent to imported plates.
Four: We have the overall process design capabilities for the biological fermentation industry..
Five: We have heat exchanger and evaporator mold development strength.
Our Factory
FAQ
Q : 1. Can I have a sample PO?
A : Yes, welcome to place sample order to test and check quality.Mixed samples are also OK.
Q : 2. What is your the lead time for production?
A : Generally Sample needs 1-3 days,mass production needs 15-30 days,also depands on your request.
Q : 3. Can you accept mixed batch of different products?
A : Yes,we can provide different product mix wholesale.
Q : 4. what payment terms do you accept?
A :Trade assurance,TT,Western Union.
Q : 5. what is the warranty for your products?
A :We provide one year warranty for the products..
Q : 6. Are you trading company or manufacturer?
A :Yes,We are manufacturer.Welcome to visit our factory and check our pruducts.
If you have any other questions,Please feel free to contact us!
