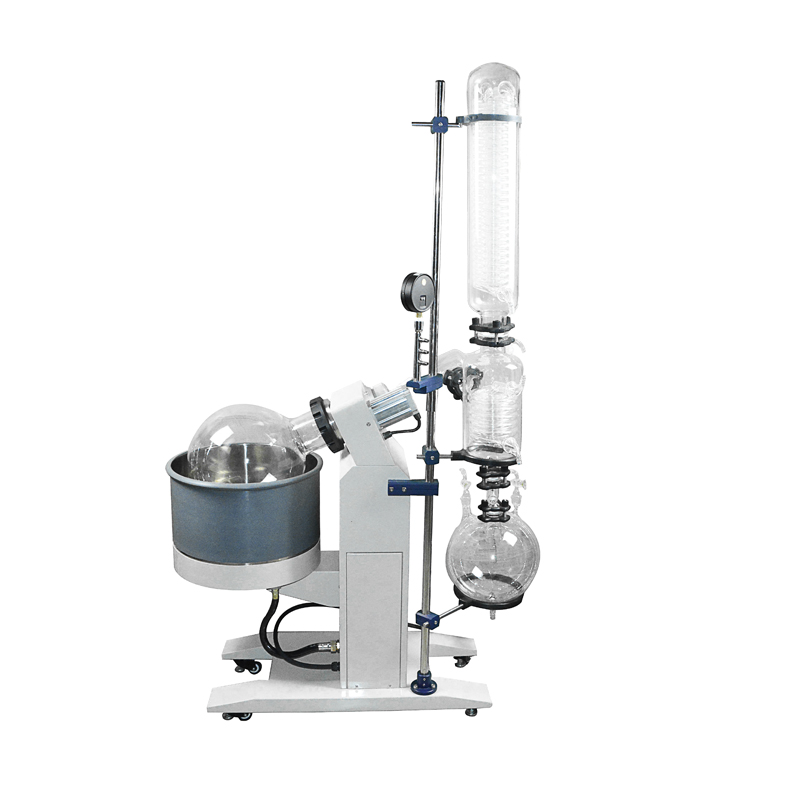

Mini Multiple Effect Rotary Evaporator

Equip PTFE valve between condenser and receiving flask, easy operation and good sealing.

Technical Feature

  • New
  • Pharmaceutical Processing
  • Electric
  • Rotary
  • Henan, China (Mainland)
  • Lanphan
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$3~3

PRIMARY PARAMETERS

Condition
New
Application
Pharmaceutical Processing
Power Source
Electric
Process
Rotary
Place of Origin
Henan, China (Mainland)
Brand Name
Lanphan
Model Number
R-1010A
Voltage
220V/50HZ
Power(W)
4.8KW
Dimension(L*W*H)
1100*500*1750mm
Weight
206KG
Certification
ISO
Warranty
One Year
After-sales Service Provided
Overseas third-party support available
Name
New Design Rotary Evaporator
Temperature control(u2103)
Digital temperature contrd-180
Max vacuum degree(Pa)
399.9Pa(<3mmHg)
Rotary Flask (L)
10L
Receiving Flask(L)
5L
Lifting Distance(mm)
0-160mm
Main Engine Rotary Speed (rpm)
20-130rpm
Glass Rotary Axis Size
50mm
Rotary Flask Bottleneck Size
120mm
Water Bath Size
350*220mm

DETAIL DESCRIPTION





Product Description

R-1010A rotary evaporator adopts stepless speed function to make rotary flask rotates in constant speed, the material

formed a large area of thin film, then the constant temperature water bath begin to uniform heat the rotary flask and the

material is evaporated in high speed under vacuum condition, the solvent steam is refrigerated by efficient glass

condenser and received to receiving flask.

       R-1010A rotary evaporator is a newly designed rotary evaporator of our company, this series has 5L, 6L, 10L, 20L,

       50L for selection

       R-1010A has new breakthroughs based on RE-1002 rotary evaporator

1. Equip PTFE valve between condenser and receiving flask, easy operation and good sealing.

2. Check valve control, continuous charging, available for vacuum switch in working condition. The check valve also

 could be replaced with hand-operated valve to convenient for operation, better sealing performance.

3. The discharging valve is made from teflon, consider of thermal expansion, other valves use glass valve element.

4. The water bath is electric lifting, lifting part use deceleration reinforcement motor, lifting process is more stable.

5. Use thicken rotary bottleneck to enhance loading bearing strength.

6. Use thicken rotary axis to enhance evaporation efficiency.

7. If the rotary evaporator sudden power lost during operation, when reconnect the power, it will automatic stop

    heating.

Spectifications

ModelR-1005A/R-1006A R-1010AR-1020AR-1050A

Optimum

 Ambient

Temperature

 (℃)

5-35
Power(V/Hz)Single Phase 220V/50Hz(water bath&motor)
Single Phase 220V/60Hz(water bath&motor)
Single Phase 110V/50Hz(water bath &motor)
Single Phase 220V/50Hz(water bath & motor)
Single Phase 220V/60Hz(water bath & motor)
Three Phase 220V/50Hz(water bath),single phase motor
Three Phase 380V/50Hz(water bath),single phase motor

Main Engine

Speed

Regulation

Digital Display Frequency

 conversion

stepless speedregulation

Digital Display DC stepless speed regulation

Main Engine

Rotary

 Speed (rpm)

20 -14020 -13020 -110

Rotary

 Motor

 Power(W)

100250

Temperature

 Control (℃)

Digital display temperature control, normal temperature-180

Max vacuum

 degree (Pa)

399.9(under 3mmHg)

Rotary

Flask (L)

5/6 Flange 05010 Flange 012520Flange 012550 Flange 0125

Rotary Flask

 Bottleneck

Size (mm)

40120

Glass Rotary

 Axis

Size (mm)

2850

Receiving

 Flask (L)

351020

Condenser

 Tube

main condenser,

double

 badcflow condenser

Main condenser +

subordinate

condenser,

 double

backflow condenser

Main condenser

+subordinate condenser,

three backflow condenser

Condensation

Area(㎡)

27

Main 0.42

Subordinate 0.22

Main 0.8

Subordinate 0.39

Main 0.91

 Subordinate0.52

Evaporative

Capacity (L/h)

water≥2
ethyl alcdid≥5.4
water≥32
ethyl alcohd≥8.6
water≥5
ethyl alcohol≥14.3
water≥9
ethyl alcohol≥24.5

Water

Bath Material

Stainless Steel (Covered with Silicone Rubber Case)

Water

Bath

Size (mm)

Φ300xl70Φ350x220Φ450^260Φ550x320
Lifting FunctionElectric Lifting

Lifting

 Distance (mm)

0 〜1500〜1600〜1900〜180
Total Power(kW)2.24.86.38.3

Packing

Dimension (mm)

950*450*10301100*500*17501200*600*19001400*700*2200




Vacuum Water Distiller 10L,Laboratory Glass Distiller,Water-Saving Water Distiller

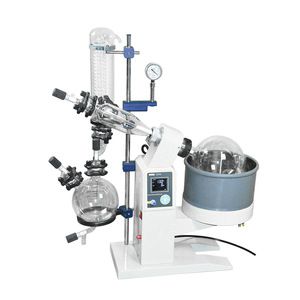

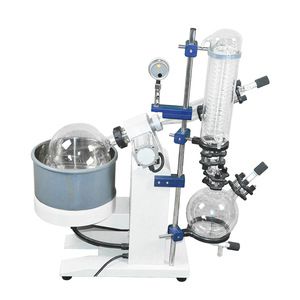

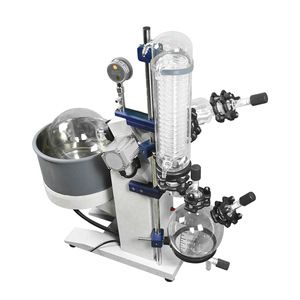

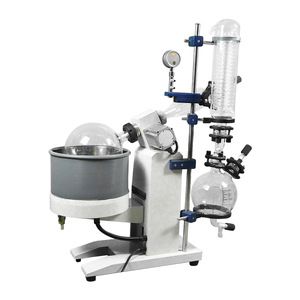

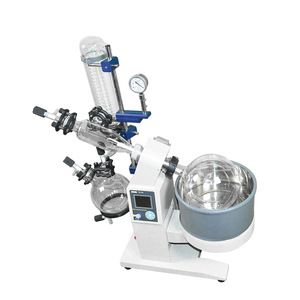

Product Details

1. Special designed vacuum meter, high precision and good quality.

2. Main condenser and auxiliary condenser structure, double backflow snakelike condenser increased cooling area and

promote cooling efficiency.

3. LCD screen display both temperature and rotating speed, operation is simple and convenient.

4. Flange connection make it easy to dismount, high fastening strength.

5. Rotary bottleneck and flange are thicken manufactured to improve loading bearing strength.

6. Equip with wrench to convenient for rotary flask dismantling.

7. The check valve between auxiliary condenser and receiving flask could be replaced with hand-operated valve to

convenient for use, better sealing efficiency.

8. Use belt brake universal wheel, convenient and efficient.

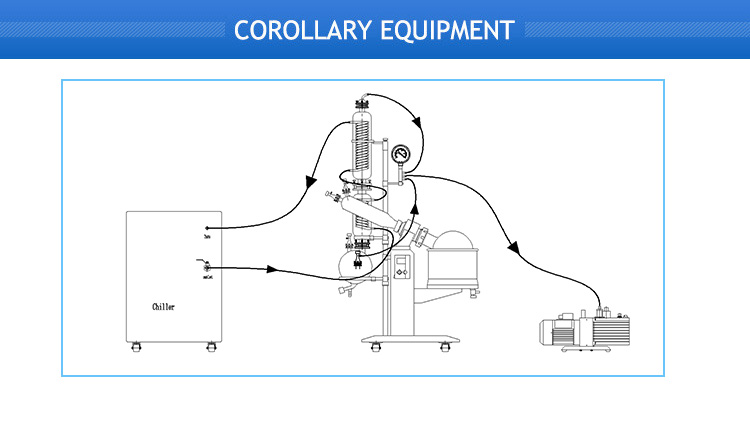

  1. Rotary evaporator matching use with circulating water vacuum pump to offer a vacuum environment for reduced pressure distillation, they are widely used for vacuum filtration, vacuum evaporation, vacuum degassing, etc..

  2. Rotary evaporator matching use with GDSZ series high and low temperature circulating pump to quickly cooling or warming, the circulating pump is an efficient equipment for quick temperature adjustment.

  3. Rotary evaporator matching use with DLSB series low temperature cooling liquid circulating pump to conduct chemical reaction and medicine storage which requires low temperature environment.





Vacuum Water Distiller 10L,Laboratory Glass Distiller,Water-Saving Water Distiller

Application

Rotary evaporator is mainly used for the concentration, crystallization, drying, separation and solvent recovery in medicine, chemical engineering and biopharmacy industry. Under vacuum condition, thermostat heating and make rotate bottle rotate in constant speed, material formed a large area thin film in bottle wall and evaporate efficiently. Solvent steam cooling by efficient glass condenser and collect to bottle, greatly enhanced the evaporation efficiency. Especially suitable for the concentration and purification of easily decomposed biological products.

R-1010A  rotary evaporator designed for the purpose of mass production need, is mainly used for pilot plant production in biology, chemical engineering, pharmacy and food industry.

The specific application as follows:

  1. Medicine: various application in laboratory of quality control, research and development departments: distillation/concentration/drying;

  2. Chemical: daily application in quality control and research laboratory: distillation/backflow reaction/re-crystallization/sublimation;

  3. Education: widely application in academic education: comprehensive evaporation application;

  4. Food/beverage: used for quality control and research of new ingredient: distillation/concentration/drying;

  5. Environmental analysis: used for prepare supervision sample of environment pollution: Soxhlet extraction/concentration;

  6. Fodder: used for quality control and research of new ingredient: distillation/concentration/drying.

Workshop

Our Services

Pre-sale Service

  1. According to product's using condition, technicians will offer rationalization proposals to assist clients to select proper types;

  2. Provide detailed product performance specification;

  3. Provide professional quoted price;

  4. Provide 24-hour technical consulting reply.

  5. Provide other corollary equipment according to client requirements.

In-sale Service

  1. Begin to supervise from raw material, its qualified rate can reach to 100%;

  2. Whole manufacturing process are in strict accordance with promised procedure requirements, product qualified rate can reach to 100%;

  3. Provide product's inspection record of key junctures to customers;

  4. Provide production schedule photos to customers at regular intervals;

  5. Package and transport products strictly accordance with export standard;

  6. Provide transportation schedule information to clients timely.

After-sale Service

  1. Provide targeted installation video;

  2. Under the premise of correct installation, normal maintenance and using, we guarantee one-year warranty period;

  3. When warranty period has expired, our sold products enjoys lifetime guarantee repair, we only charge cost price for changing product's standard component and sealing component;

  4. During installation and adjustment period, our after-sale service staff will communicate with customers frequently to know product's running state in time. Assist customers to install and adjust products until customers are satisfied;

  5. If product has malfunction during operation period, we'll offer you satisfied answer in time. We'll reply you within 1 hour and provide solution or send staff to spot within 24 hours after receiving maintenance notification.

  6. Lifelong free technical support. Conduct satisfaction survey and inquiry equipment running condition to clients by telephone or e-mail semiannually from the first day of equipment running, put on records of acquired information.

  7. Provide assistant service if product is damaged during transportation.

FAQ



  1.  Ask: What’s the operating principle of rotary evaporator?
    Answer: Under the condition of negative pressure, evaporating flask rotating in the thermostat water bath, which makes solution form a thin film in bottle wall, so as to increase the evaporation area. Evaporating efficiently under low temperature, then condensate recycling through condenser pipe and concentrate to isolate the material to reach experiment requirements.

  2. Ask: What's the core technology of Rotary Evaporator?
    Answer: The key is system's gas tightness, that is whether system can keep high vacuum degree under all sorts of solvent's corrosion and movement state. Henan Lanphan' s R series instrument, which is sealed by composite material four fluorine rubber and glass, can stand all sorts of solvent, has reliable gas tightness and can maintain a high vacuum degree above -0.096MPa.

  3. Ask: What factor decides the working efficiency of Rotary Evaporator?
    Answer: For same type equipment, mainly includes: steam temperature, vacuum degree and cooling water temperature. Restricted by some material's thermolability, the steam temperature may have certain limitation when working, so high vacuum degree and low cooling water temperature are two main factors for efficiency improving (can select cryopump to lower the temperature)

  4. Ask: What's the difference between vertical and inclined condenser?
    Answer: They have no difference essentially. Vertical condenser is gradually popular because of its small space usage and convenience for transportation and use. Most high-capacity instruments use vertical condenser.

  5. Ask: What's the design basis of main engine and water bath kettle rising and falling?
    Answer: It's mainly from the consideration of convenience, safe and economical. Generally, small-size rotary evaporators below 5L use main engine rising and falling and evaporators which are above 5L use water bath kettle rising and falling.

  6. Ask:How about the anti-explosion ability of R series Rotary Evaporator?
    Answer:Our company's Rotary Evaporator adopt alternating current dynamo, stepless speed regulating (or frequency control), no electric brush and no spark in operation. Water bath kettle which goes with the evaporator adopts nitrogen-sealed relay control, silicon-controlled contactless switch and vacuum switch. Manual control switch adopt twice circuit control which make electric current less than 3mA and has favorable anti-explosion feature.

  7. Ask:How to select all kinds of rotary evaporator?
    Answer: As for structure, our R series products all have excellent corrosion resistance ability and leakproofness ability. According to the solvent volume, 2L, 3L, 5L's machine is fit for lab and sample test; 5L, 10L, 20L's machine is fit for medium experiment; 20L, 50L's machine is fit for medium experiment and production, especially suitable for the extraction of metal ion-avoiding polluted material.

  8. Ask: What's the feature of rotary evaporator comparing to other evaporators?
    Answer:It has the advantage of small structure, efficient, easy to observe and no metal ion pollution. It is applicable for laboratory, production and valuable material extraction. Its leakproofness ability can compare favorably with foreign equipment while it remain improvement in appearance and humanization design.

  9. Ask: How to select vacuum pump for rotary evaporator?
    Answer:We recommend water-circulating pump which can bear all sorts of solvent corrosion and can vacuumize to -0.095MPa(to satisfy using requirements). According to the solvent volume, we can offer various vacuum pump types.





Vacuum Water Distiller 10L,Laboratory Glass Distiller,Water-Saving Water Distiller





Vacuum Water Distiller 10L,Laboratory Glass Distiller,Water-Saving Water Distiller




Packaging:

  1. Carton+wooden cases.

  2. Customized packaging can be available.

Shipping:

  1. We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on.

  2. You can also choose the appropriate one based on your timeline and budget.

  3. You can choose to use your own shipping agent.

Shipping methodNote
ExpressDoor to door, very convenient, don't need to clearance or pick-up
By airAirport to airport, you need to do the customs clearance and pick up the goods at your local airport, which you can have a local shipping agent to do for you.
By seaPort to port and you need to do the customs clearance and pick-up the goods at your local port, which you can have a local shipping agent to do for you.
Advantages

1. Based on RE-2002 rotary evaporator, the R-1010A rotary evaporator is more beautiful in appearance, better

performance and higher configuration.

2. Main structure is steady and high quality.

3. Water bath is small in volume, resistant to corrosion and high temperature, thermal insulation and prevent scald.

4. Use specially-made flange connection, high fastening strength and easy to assemble and disassemble.

5. Use DC motor, low energy consumption, high efficient, strong overload capacity, no spark and good reliability.

6. DC speed regulator, wide speed regulation range, fast dynamic response, smooth velocity change, large low speed

torque.

7. LCD screen is clear and convenient, it display both temperature and rotating speed.

8. Equipped with universal wheel at the bottom, convenient and efficient.

9. Consider of PTFE valve may be burst by valve element thermal expansion, we use glass valve element for inlet/outlet

valves and charging valves on 10L above rotary evaporators.

10. Equip with PTFE needle valve in receiving flask, support for discharging during experiment process, better sealing

performance.
