China Hot Sale Multi-purpose Mini Vane Rotary Vacuum Pump

to search key words via your mobile browser.

Technical Feature

  • Henan, China (Mainland)
  • Lanphan
  • 2XZ
  • Vacuum Pump
  • rotary vane
  • Water
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

Place of Origin
Henan, China (Mainland)
Brand Name
Lanphan
Model Number
2XZ
Theory
Vacuum Pump
Structure
rotary vane
Usage
Water
Power
Electric
Standard or Nonstandard
Standard
Fuel
electric
Pressure
High Pressure
Application
vacuum pump
Name
Rotary Vacuum Pump
Extreme pressure(Pa)
u22646*10-2
Rotating speed(r/min)
1400
Motor power(kw)
0.37
Noise(dBA)
68
Oil vilume (L)
1
Size(mm)
520*140*250
G.W./N.W.(Kg)
22/20
Model
2XZ-2
Color
Customer Required

DETAIL DESCRIPTION

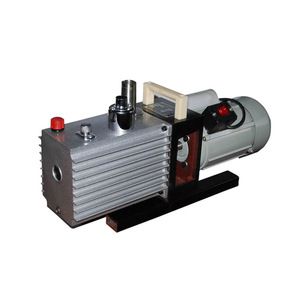

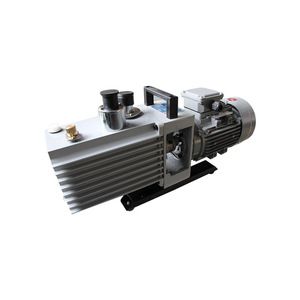

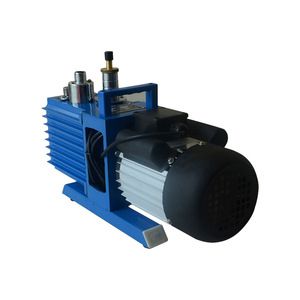

China Hot Sale Multi-purpose Mini Vane Rotary Vacuum Pump

Can not view pictures? Please visit m.alibaba.com to search key words via your mobile browser.

Product Description

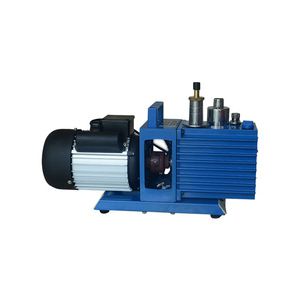

China Hot Sale Multi-purpose Mini Vane Rotary Vacuum Pump

2XZ-4 rotary vane vacuum pump is a double stage high speed direct coupling structure rotary vane type vacuum pump, which is the basic equipment used to pump gas of the sealing container. Its air bleed speed is 4L/s(50Hz), 4.8L/s(60Hz); partial pressure≤6×10-2 Pa; motor power is 0.55kw; oil volume is 1.2L. Pump cavity is provided with a rotor, the rotor slot with rotary vane. The rotor drives the rotary vane rotation, the rotary vane close to the chamber wall and separated air inlet port from the discharge port, and the air inlet area of cavity volume is periodically enlarged and inhale, discharge chamber volume is periodically reduced and compressed gas, open the exhaust valve to exhaust gas and then to obtain vacuum. Its working performance is composed of two parts, the high level and low level. Its suction is connected with vacuum equipment, when in operation The gas in container will have a large number of suction and discharge, when the equipment got vacuum, high pressure grade exhaust valve is closed, high-pressure grade inlet gas will be transferred to the second level, and through the second stage suction and discharge vacuum equipment, it can obtain a certain vacuum. Pump connecting shaft with motor, high speed, small appearance, compact structure, convenient mobility work.

  1. Pumping rate: 0.25~30L/s
  2. Gas type: Clean dry air without any other mixture at ambient temperature.
  3. Working requirements:
    When the inlet pressure is greater than 6500Pa, continuous working hours must not be more than 3 minutes so that avoid fuel injection to damage pump.When the inlet pressure is less than 1330pa, it is allowed to work continuously for a long time.
  4. Ambient temperature:5℃-40℃, the relative temperature is not higher than 90%.
Spectifications

Specification of China Hot Sale Multi-purpose Mini Vane Rotary Vacuum Pump

Model
Parameter
2XZ-0.252XZ-0.52XZ-12XZ-22XZ-42XZ-62XZ-82XZ-152XZ-25
Air bleed speed m³/h(L/s)50HZ0.9(0.25)1.8(0.5)3.6(1)7.2(2)14.4(4)21.6(6)28.8(8)54(15)90(25)
60HZ1.1(0.3)2.1(0.6)4.3(1.2)8.6(2.4)17.2(4.8)26(7.2)34.5(9.6)64.8(18)108(30)
Extreme pressure(Pa)partial pressure≤6×10-1≤6×10-2≤6×10-2≤6×10-2≤6×10-2≤4×10-2≤4×10-2≤4×10-2≤4×10-2
full pressure≤6.5≤1.33≤1.33≤1.33≤1.33≤1≤1≤1≤1
Rotating speed(r/min)50HZ140014001400140014001400140014001400
60HZ172017201720172017201720172017201720
Motor power(kw)0.120.180.250.370.550.751.11.52.2
Noise(dBA)636565686868707072
Oil vilume (L)0.50.60.711.22345
Size(mm)403*130*240447*168*260469*168*260514*168*282565*168*282565*200*342650*240*430700*240*430770*240*430
G.W./N.W.(Kg)16/1517/1618/1722/2024/2250/4070/6086/7598/85
Product Details

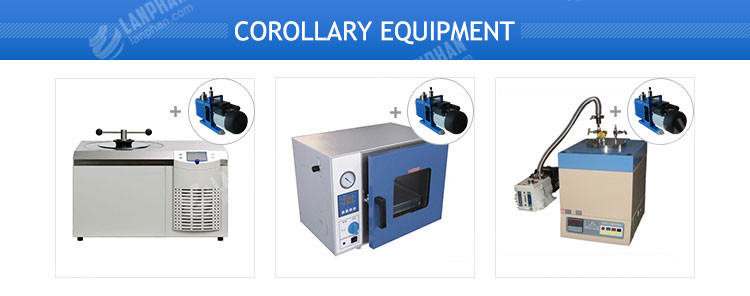

  1. 2XZ-4 Rotary Vane Vacuum Pump corollary use with freezer dryer to reach vacuum state, it’s an essential corollary equipment in medicine freeze drying, biology, food industry and agricultural products deep processing.
  2. 2XZ-4 Rotary Vane Vacuum Pump corollary use with vacuum drying oven for maintaining vacuum state inside the oven, they mainly applies in powder drying and baking in vacuum condition.
  3. 2XZ-4 Rotary Vane Vacuum Pump corollary use with vacuum crucible furnace to pump vacuum, they mainly used for the sintering, melting and analysis of metal, nonmetal and chemical compound.
Application

2XZ-4 Rotary Vane Vacuum Pump is widely used in aerospace, semiconductor, coating, food packaging, drying, refrigeration, scientific research, medical, electronic, chemical, pharmaceutical and other professional units, colleges, universities and other departments of the laboratory.

Our Services

Pre-Sales Service

  1. Provide 24-hour technical consulting reply.
  2. Provide professional quoted price;
  3. Provide detailed product performance specification;
  4. According to product’s using condition, technicians will offer rationalization proposals to assist clients to select proper product types;
  5. Provide other corollary equipment according to client requirements.

In-Sales Service

  1. Begin to supervise from raw material, its qualified rate can reach to 100%;
  2. Whole manufacturing process are in strict accordance with promised procedure requirements, product qualified rate can reach to 100%;
  3. Provide product’s inspection record of key junctures to customers;
  4. Provide production schedule photos to customers at regular intervals;
  5. Package and transport products strictly accordance with export standard.
  6. Provide transportation schedule information to clients timely.

After-Sales Service

  1. Provide targeted installation video;
  2. Under the premise of correct installation, normal maintenance and using, we guarantee one-year warranty period;
  3. When warranty period has expired, our sold products enjoys lifetime guarantee repair, we only charge cost price for changing product’s standard component and sealing component;
  4. During installation and adjustment period, our after-sale service staff will communicate with customers frequently to know product’s running state in time. Assist customers to install and adjust products until customers are satisfied;
  5. If product has malfunction during operation period, we’ll offer you satisfied answer in time. We’ll reply you within 1 hour and provide solution or send staff to spot within 24 hours after receiving maintenance notification.
  6. Lifelong free technical support. Conduct satisfaction survey and inquiry equipment running condition to clients by telephone or e-mail semiannually from the first day of equipment running, put on records of acquired information.
  7. Provide assistant service if product is damaged during transportation.
FAQ

Frequently asked questions of China Hot Sale Multi-purpose Mini Vane Rotary Vacuum Pump

  1. Q: What kind of gas is not suitable for 2XZ-4 of rotary vane vacuum pump to pump out?
    A: Corrosive to the metal, the chemical reaction to the pump oil, containing particles of dust, high oxygen content, explosive, and toxic gases.
  2. Q: The working environment of 2XZ-4 rotary vane vacuum pump?
    A: 5℃-40℃, the relative temperature is not higher than 90%. When the inlet pressure is less than 1333pa, it is allowed to work continuously for a long time.
  3. Q: How to delivery the product?
    A: According to the quantity. It is always by Express, by sea, by air.
  4. Q: What is the minimum quantity?
    A: 1 set at present.
  5. Q: What is the payment terms?
    A: T/T, Paypal, Western Union, Ali credit insurance, L/C etc.

Packaging:

  1. Carton+wooden cases.
  2. Customized packaging can be available.

Shipping:

  1. We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on.
  2. You can also choose the appropriate one based on your timeline and budget.
  3. You can choose to use your own shipping agent.
Shipping methodNote
ExpressDoor to door, very convenient, don't need to clearance or pick-up
By airAirport to airport, you need to do the customs clearance and pick up the goods at your local airport, which you can have a local shipping agent to do for you.
By seaPort to port and you need to do the customs clearance and pick-up the goods at your local port, which you can have a local shipping agent to do for you.
Advantages

Comparing to similar products, China Hot Sale Multi-purpose Mini Vane Rotary Vacuum Pump owns a lot of superiority:

  1. Small size, light weight, low noise;
  2. Easy to start;
  3. It has gas ballast valve, which can remove a small amount of water vapor;
  4. Equipped with automatic anti back oil double insurance device;
  5. Can be used alone, can also be used as the fore stage pump and pre pump of varieties of high vacuum system.
