Mechanical Vapour Recompression MVR Evaporator

which is evaporated from the liquid material to rise its temperature and pressure, so as to reuse it as heating source to evaporate the liquid material again.

Technical Feature

  • New
  • Distillation
  • Other
  • Vacuum Distillation
  • Shanghai, China (Mainland)
  • Chengdong
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$250~3

PRIMARY PARAMETERS

Condition
New
Application
Distillation
Power Source
Other
Process
Vacuum Distillation
Place of Origin
Shanghai, China (Mainland)
Brand Name
Chengdong
Model Number
MVR
Voltage
Accordingly
Power(W)
Accordingly
Dimension(L*W*H)
Accordingly
Weight
Accordingly
Certification
ISO/GMP
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Keywords
Mechanical Vapour Recompression MVR Evaporator
Processing
Fermenting Equipment
Processing Types
Milk

DETAIL DESCRIPTION

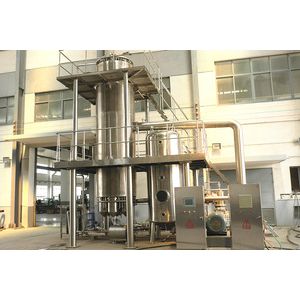

Mechanical Vapour Recompression MVR Evaporator

Use

MVR is called Mechanical Vapor Re-compression. It takes use of the compressor to re-compress the second vapour(low temperature and low pressure) which is evaporated from the liquid material to rise its temperature and pressure, so as to reuse it as heating source to evaporate the liquid material again. During the MVR evaporating process, there is no need to add extra original steam from boiler(or very little steam consumption when the liuquid temperature is too low). All we need to do is to supply electricity for the compressor to recompress the second vapour continuously so as to gain boundless energy source for the evaporation process.

It can be widely used to Milk, glucose, organic acid, VC, xylose, pharmaceutical, plant, chemical industry, environmental protection, waste recycling, paper making, salt making industry such as evaporation and concentration, evaporation crystallizaion, low temperature of evaporation process etc.



Feature

Clean energy, high thermal efficiency, low power consumption, no pollution, equipment stable operation, simple operation, high automation and equipment in compact, cover an small area space, and save the cooling system. Especially applys to the factory who want to expand the steam and water supply but space is insufficient, and need chilled water and condensation water for low temperature evaporation situazion, can save investment and gain good energy saving effect. It is a key recommendation national science and technology projects.

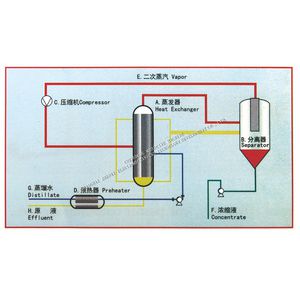

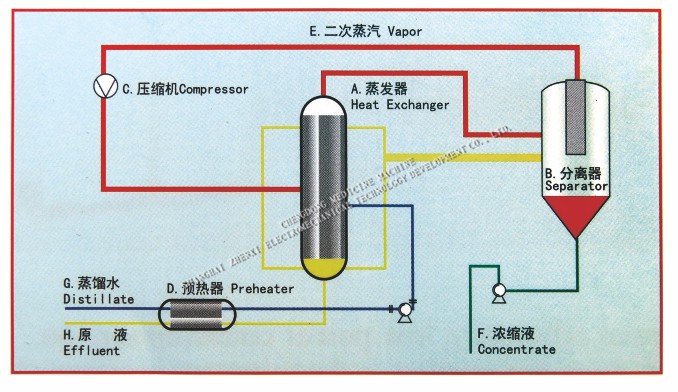

Flow Chart
