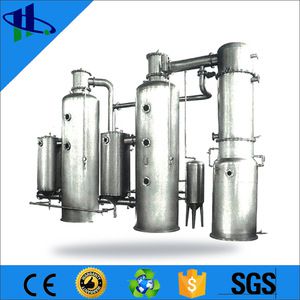

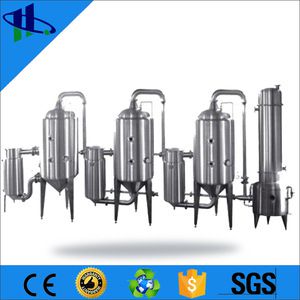

Triple Effect Falling Film Milk/Juice Evaporator

Low evaporation temperature:part of secondary steam can be inhaled into single-effect heater through spray type hot pressure pump, this would make full use of the heat and the evaporation temperature is low.

Technical Feature

  • New
  • Distillation
  • Electric
  • Vacuum Distillation
  • Anhui, China (Mainland)
  • HB
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$20~9

PRIMARY PARAMETERS

Condition
New
Application
Distillation
Power Source
Electric
Process
Vacuum Distillation
Place of Origin
Anhui, China (Mainland)
Brand Name
HB
Model Number
GXZ-12
Voltage
220V/ 380V
Power(W)
11kw
Dimension(L*W*H)
depend
Weight
6010kg
Certification
ISO 9001
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Product name
Triple Effect Falling Film Milk/Juice evaprator
Material
Stainless Steel
Sealing
Mechanical Sealing
Application Industries
Pharmaceutical/chemical industrial
Rotating Speed
3~11rpm
Vacuum degree
70
Height
7320
Brandname
HB
OEM
acceptable
MOQ
1 SET

DETAIL DESCRIPTION

Packaging & Shipping


Packaging Details: sea standard
Delivery Detail: 30 days after receipt of 30% deposit



Product Description



Specifications of Triple Effect Falling Film Milk/Juice evaprator

1.Material:SS316L/SS304
2.Steam pressure (Mpa):0.5-0.8
3.Evaporation temperature:45-90
4.Evaporation capaicty: 500~50000L/h

Triple Effect Falling Film Milk/Juice evaprator  characteristics:

1.Full closed process, fast and low temperature evaporation;
2.Inside pipes are mirror polishing seamless sanitary pipes, so material is not easy to paste on the pipe all, it's easy for cleaning;

3.Low steam consumption: 1kg steam can evaporte 3.5kg water;

4.Low evaporation temperature:part of secondary steam can be inhaled into single-effect heater through spray type hot pressure pump, this would make full use of the heat and the evaporation temperature is low.

5.Large concentration ratio: adopt falling film evaporation, which make the material liquid with larger viscosity be easy to flow and evaporate, hard to scale,  short cocentration time, the concentration ratio can reach to 1:5.

6.This equipment  can realize automatic production, intellectual system management, which is in conformity with GMP standard.

7.Can be desinged into different technological process according to the different characteristics of the materials , also can according to different users' requirements equip with automaticl control system.

 Application of Triple Effect Falling Film Milk/Juice evaprator

It's applicable for dairy products, pharmacy, glucose, starch,chemical industry,  xylose, citric acid, ammonium sulfate, biological engineering, environmental engineering and waste liquid recovery and treatement. etc.

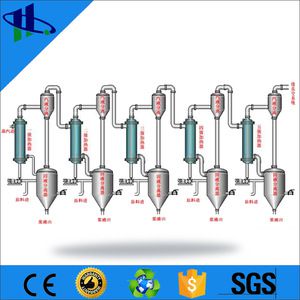

Triple Effect Falling Film Milk/Juice evaprator structure:

It consists of (first-effect, second-effect, third-effect)separators and evaporators and preheaters,condenser and vaccum pump, feeding pump,circulation pump, discharge pump, condensed water pump and system pipe fittings, etc. Equiped wit CIP spraying cleaning ball, vacuum gauge, thermometer,pressure gauge,and so on.







Company Information



Anhui HB Chemical Equipment Technology Co.,Ltd.is located in Langxi Industrial Park,of Xuancheng City, Anhui Province .
Our company covers an area of 60 acres, building area of 12000 square meters, formally put into operation in January 2011. Anhui Xuelang Huabao Chemical Equipment Technology Co., Ltd., mainly the production of 1, 2 class pressure vessel, reactor, heat exchanger, evaporator, non-standardequipment, registered capital: 500 million yuan.















our service

 We will give advices and suggestions to user according to the needs of various industries: provides various product standards, raw materials, inspect and test methods, standard and technology consultation according to user requirements; provides manufacturing according to buyer's requirements, customizing of non-standard product, such as ultra short / long series; provides company qualifications and credit proof etc.

We will provide reactor routine maintenance as well as training service for troubleshooting of common faults; provides remote or on-site reactor review, installation and operation technical guidance; for customer quality complaint, after technical support by telephone, professional customer service personnel will arrived at the scene if any further service is required; user's technical quality consultation will be replied within 24 hours; 12 months of product warranty period is provided; provide 24 - hour technical support hotline; provide various forms of after sale service for free during the warranty, provide life time after sale service and limited supply of free wearing parts for three years.
