Packaging Details: Sea Standard

 Delivery Detail:30days after recepit of 30% deposit

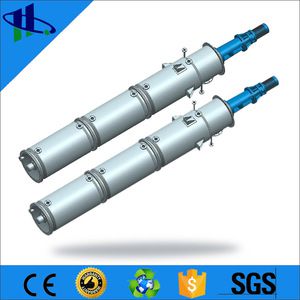

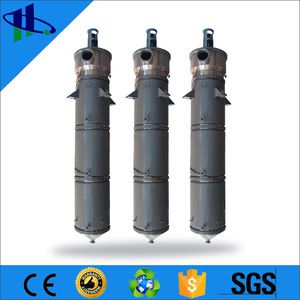

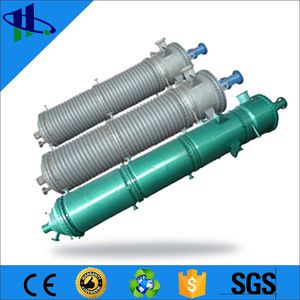

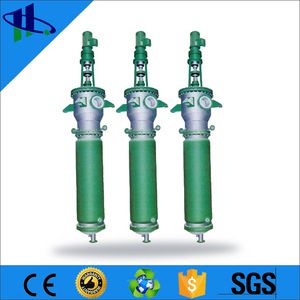

Main Features of Thin Film Evaporator

1)It features high heat conductivity coefficient and great power of evaporation. The evaporation capacity can reach 200 kg/m2 per hour, with a higher thermal efficiency.

2)The heating time for materials is shorter, which lasts about 5-10 second. In the vacuum condition, it is more favorable to process heat-sensitive materials, thus ensuring the quality of products.

3)We can adjust the viscosity of materials greatly. We can even deal with materials with the viscosity up to 100,000CP.

4)We can adjust the evaporation time of materials by changing the gradient of the groove on the scraper blade.

5)The inner shell for the evaporation section has undergone precision boring and polishing treatment, so the surface is not liable to be coked or scale formed.

6)It is easy to operate the machine and adjust product indexes. Under the sealed condition, continuous production by automatic control can be realized.

7)It takes little floor space with a simple structure. It is easy to maintain and clean

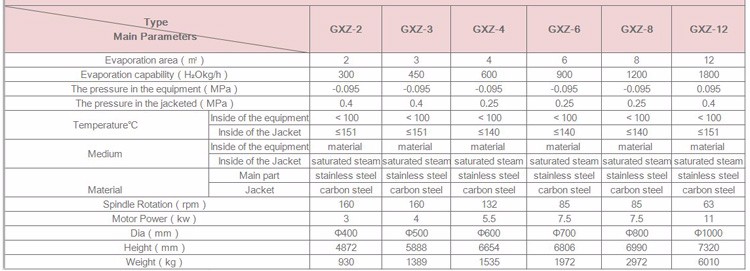

The Main Parameters of thin film evaporator

 Anhui HB Chemical Equipment Technology Co.,Ltd.is located in Langxi Industrial Park,of Xuancheng City, Anhui Province .
Our company covers an area of 60 acres, building area of 12000 square meters, formally put into operation in January 2011. Anhui Xuelang Huabao Chemical Equipment Technology Co., Ltd., mainly the production of 1, 2 class pressure vessel, reactor, heat exchanger, evaporator, non-standardequipment, registered capital: 500 million yuan.

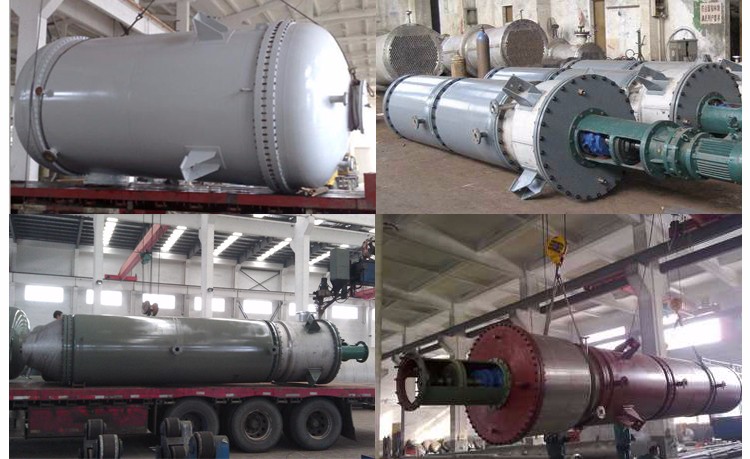

 Thin film evaporator workshop

 We will give advices and suggestions to user according to the needs of various industries: provides various product standards, raw materials, inspect and test methods, standard and technology consultation according to user requirements; provides manufacturing according to buyer's requirements, customizing of non-standard product, such as ultra short / long series; provides company qualifications and credit proof etc.

We will provide reactor routine maintenance as well as training service for troubleshooting of common faults; provides remote or on-site reactor review, installation and operation technical guidance; for customer quality complaint, after technical support by telephone, professional customer service personnel will arrived at the scene if any further service is required; user's technical quality consultation will be replied within 24 hours; 12 months of product warranty period is provided; provide 24 - hour technical support hotline; provide various forms of after sale service for free during the warranty, provide life time after sale service and limited supply of free wearing parts for three years.


Why Choose Us ?
1.Strong Technical support: senior engineer can offer you the best technical support .
2. Customization Production: size, model, package can be per customers' request.
3. Realizablw Quality: professional design team, strict QC system and strong transportation cooperation.
4. First-class Pre and After Service: we ensure the well processing of the practice of our products for customers.
