Professional manufacturer 220/380V ammonia falling film plate evaporator for chemical
This product has obtained national patent: ZL 201220046774.4

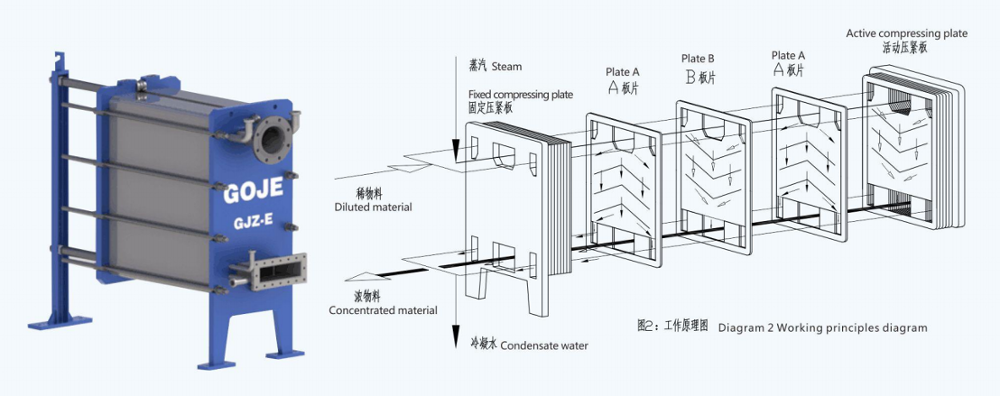

This is one of the most recently developed products suitable for the concentration of materals with high concentration and viscosity. The working principles and dimension of the single ddevice are shown in the diagram.
Technical data sheet of falling film evaporator | |||
Model | GJ-J150 | GJ-J700 | |
Design pressure | Steam side | 0.4 | |
Material side | 0.1~-0.092 | ||
Total heat transfer coefficient(W/m²*k) | 2000-5500 | ||
Maximal heat exchange area of a single unit(m²) | 40 | 650 | |
Maximal evaporation capacity(t/h) | 4 | 45 | |
Bxternal dimension(mm) | C | 9n+300 | 9n+830 |
W | 540 | 1400 | |
H | 1400 | 3390 |
Advantages:
Compare to shell-tube evaporator,plate type evaporator has following advantages:
1.High efficiency
2.Small and coverage and compact structure
3.Sort retention of the material
4.low liquid holdup
5.Easy installation and maintenance
6.Easy inspection
7.Low investment cost for equipment
Jiangsu S-JE technology Co.,Ltd. is a newly established sub-company of Nanjing Gaojie Light industrial Equipment Co.Ltd. and has an export license. Jiangsu S-JE technology Co.,Ltd. specializes in supplying GSA-F series plate heat exchanger and imported plate; the largest domestic caliber plate condenser at home; semi-welded liquid ammonia evaporator; foreign imports of film and lifting film, falling film evaporator and plate evaporation system engineering services.Our company has experience in exporting heat exchange equipment and evaporating equipment to global. Our main markets are North America, Asia, Middle East and Africa.Now we are also developing new products to expand more market. We have our own designer and R&D group to develop new products and we can also creat new products in accordance with customers’requirements.Our company warmly welcomes all customers to visit our company. We hope to establish long-term and close cooperative relationships with our customers in order to achieve win-win benefits.
Our advantage
First: We have the most complete models plate heat exchanger at home and broad.
Second: We have heat exchanger sub-detachable, semi-welding, full welding, wide flow and irregular flow channel
Three: We have the entire system of integrated evaporation and design strength, the form of the evaporator at home and abroad ,the most full of film, falling film, lifting film series and a dozen different specifications of the model. Separate and semi-welded evaporator plates, equivalent to imported plates.
Four: We have the overall process design capabilities for the biological fermentation industry..
Five: We have heat exchanger and evaporator mold development strength.
