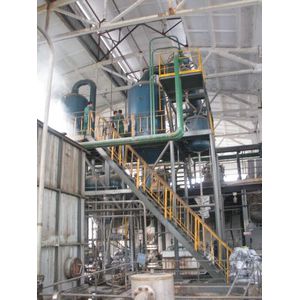

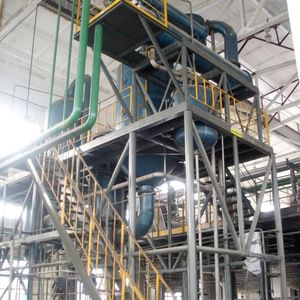

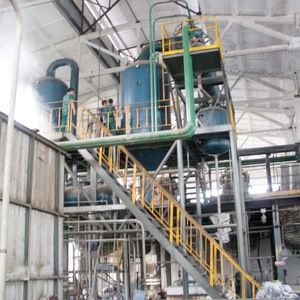

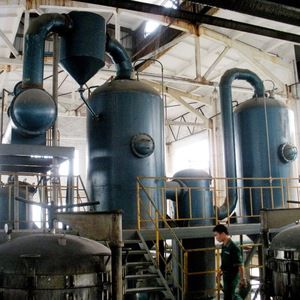

Trial Running Pilot Single Double Three Effect Forced type Falling Film Evaporator price
Project information : Mango/ orange / milk / whey concentrated project
capacity : We charged as 3 T / hr , 5T / hr , 10 T / hr ,15 T / hr
Porject before : Senagal / China / Iran /Indonesia ect

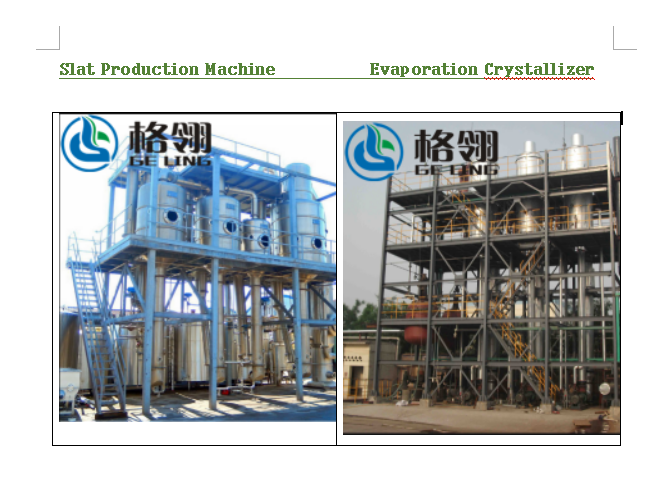

Our company other product : Single /double / Triple multiple/effect forced circulation evaporator: https://grling.en.alibaba.com/product/60294220582-801270383/_NH3_2SO4_Production_machine_Forced_circulation_evaporator_Crystallizer.html?spm=a2700.8304367.prewdfa4cf.11.71449eeaxlumCx

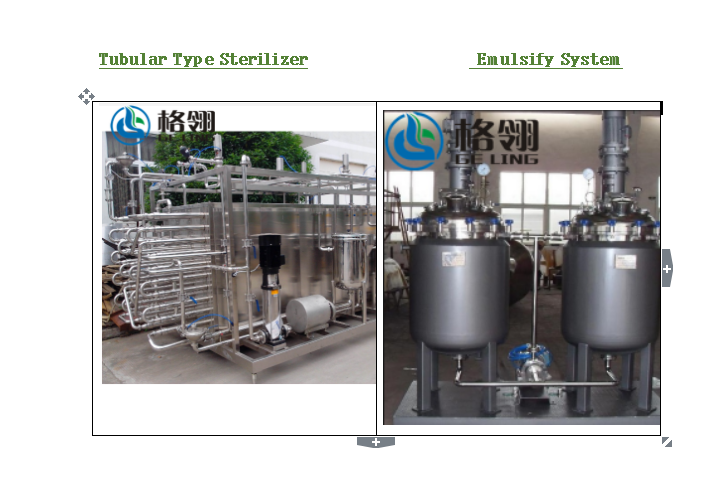

milk Pasteurizer /juice / drink sterilizer machine /Sterilization machine:
1. Introduction for the machine
The combination of tube type, plate type and tube plate can be used.
MVR mechanical compression and TVR steam compression technology can be added.
2. Scope of application
Falling film type single, double, triple , forth, fiveth. Sixth, seventh, eighth efficiency, effect evaporator, suitable for evaporation and concentration in milk, starch, glucose, xylose, pharmaceutical, chemical, biological engineering, environmental engineering, waste recycling and other industries, especially suitable for easy scaling easy evaporation strong or heat sensitive materials, including plate, pipe, tube plate combination, can join the MVR, the energy saving technology of TVR device.
3.system composition
Kinds of evaporator , all kinds of separator , condenser , hot press pump , vacuum & drainage system , all kinds of effet liquid & feeding & discharge pump , working plate , System composition of electrical and instrument control cabinet, valve and pipeline
4.Main features:
1).Full system design is reasonable and beautiful, stable operation, high efficiency and energy saving, low steam consumption, small pump flow rate, small installed power and low power consumption.
2). Large concentration ratio, falling film evaporation, so that the fluid with larger viscosity is easy to flow and evaporation, and the concentration time is short.
3) .Special design can be changed by simple operation to adapt to the production of different products.
4).Low evaporation temperature, liquid heating concentrated mild, suitable for heat sensitive materials.
5) .The quipment can run continuously.
6). Can be added to TVR to improve the utilization of energy.
7) .can be added to MVR to improve the utilization of energy.
8) . We use especially condenser , can working at the cooling water temperature as 30 DC or even more .
Port of loading: Shanghai port /Ningbo Port

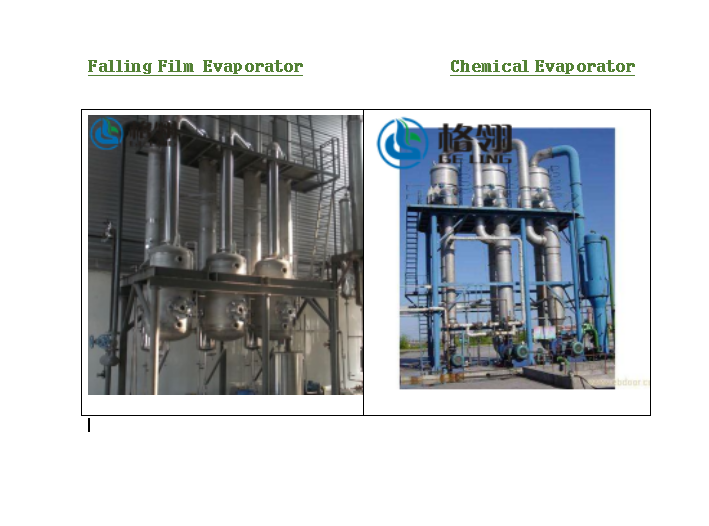

Geling(Shanghai)Environmental technology Co.,ltd is the leading company which have factory and office. business scope are: evaporator,(falling film,external circulation,forced type circulatioin evaporator), crystallizer(DTB, OSLO), Waste water treatment, solar energy equipment, Stainless steel tank, mixing tank, fermentation tank,Food Sterilizer, etc.

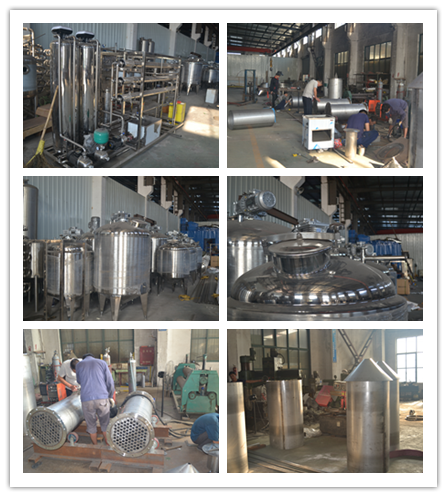

Drawing of every machine & our service process
Design: Client Provide the project information and parameters, We designt he evaporator for him.
Manufacture: manufacture the product according to the design by ourselves.
Purchase: We responsible for the raw material purchasing.
Sell: Sell client the completely machinery.

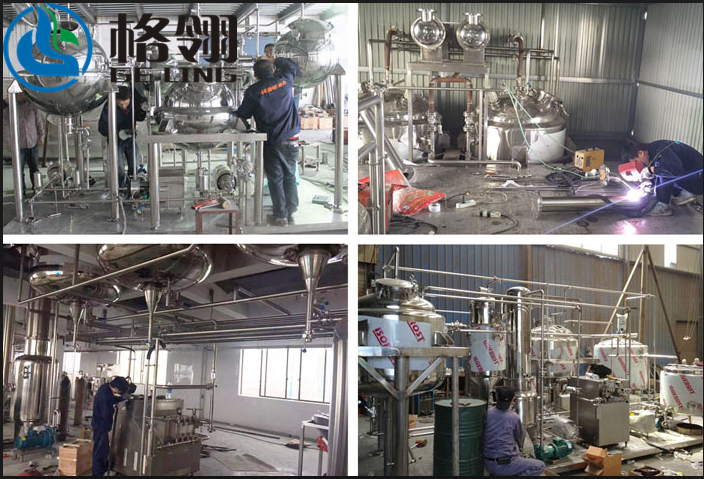

After-Service: Arrange engineer come to the site for machinery installation and commisioning.
Warranty:Product waranty 12 month.

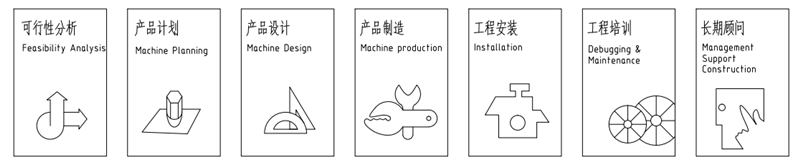

Produce processing Progress:Discussing -- Design--Client Placed the order--Purchase raw material--Make the Processing Drawing--Arrange to the factory--Start manufacture--Pre-install in our factory--marking--Polishing--Checking--Packing--Shipping --Installation&commisioning service--after-sales service .
Packaging: one system machinery could be packed in the container, instrument packed in wooden case. Usually 20ft,40OT,40HQ.
Shipping: Usually shipped by sea, also accept by air or by car.
We will ask the best shipping price for you , freight cost .
Q.Are you manufacture or trading company?
A.We are factory, we have our own design team and own workshop, with more than 10year's OEM experience.
Q.Can you make me quotation and send me your price list right now?
A.Sorry, our products are all none standards, need custom-made according to client's requirements, so pls let me know your requirements, we will make drawing and quotation for you.
Q. What's your MOQ?
A. 1PCS/SET.
Q.What's the payment terms?
A. 30%T/T as advance payment, 70% before shipment, we also accept irrevocable L/C at sight, Western Uunion, Money Gram.
Q.What's your delivery time?
A.25-50 working days according to your Qty.
Q.Can you send the machine to my sea port?
A. Yeah, we can, we accept FOB, C&F, CIF, CIP, both by sea and rail way. And our nearest port is Shanghai.
Q.Where is your factory located?
A. Our address: Shanghai industry zone, West heat of Qifu secience park , Fengxian Area , Shanghai , China .
Q.Do you provide installation&debugging service?
A. Yeah, if single machine, we will send you the installation drawing and documents first, if you still have problems, we will arrange our engineers go to your place for installation guiding. If production line, our engineer will go to your place do installation & debugging for you directly.
Q. Do you provide after-sale service?
A. The warranty period is one year. If there’s any problem of the equipment not caused by reasonable operation in one year,we will help you solve it (If it is small problem like spare part is broken, we will send you freely;other small problem we will guide you to solve it by phone or e-mail;If the problem cannot be solved by guiding,we will arrange technician come to your place to mend it after confirmation).
We set a R& D Center in our office with Many kinds of evaporator ( Forced circualtion evaporator ,falling film evaporator , External circulation evaporator , mixing tank . UF System , RO System , NF System , Resin column , all kinds of Testing equipment, Welcome to come to visit us and take your sample here we do experiment for you !
Antonia Shu (EXP.MANAGER) TEL:+00 86 137 6419 7304 or 00 86 186 1650 4539
Geling(Shanghai) Environmental Technology Co.,ltd
No.1358 Jiao Feng Road,Zhe Lin Town,Fengxian District, Shanghai,China.
TEL:86 021 37580557 FAX:86 021 37580557
SKY/ Whatsapp: +00 86 186016504539
Before you want to get the quotation from us , please May I ask some basic information about your project ?
1.What is the raw liquid ? which juice ?
2. If you want to concentrate your juice , How about the feeding concentration & discharge concentration ?
2.What's the processing capacity per hour?
3.What's the Feeding temperature?
4.What's the Sterilization temperature?
5.How long need to be hold when sterilization?
Please provide above data in the enquiry, thanks.
