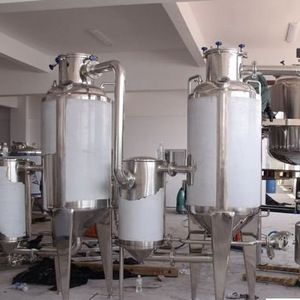

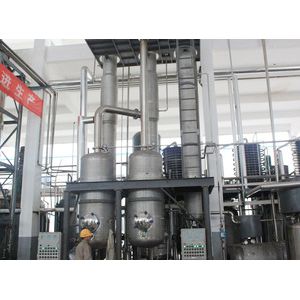

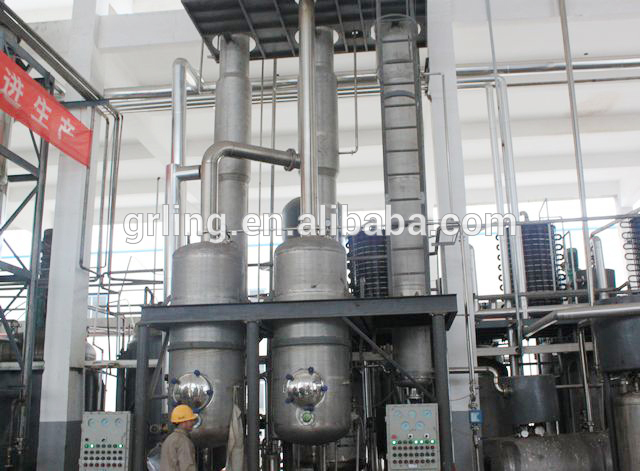

Double-effect Vacuum concentrator (evaporator)
usage:
This equipment is used for the concentration of medicine and dairy, recycling of alcohol.
It is suitable for low temperature vacuum concentration of thermal sensitive material.
structure:
The equipment consists of 5 parts:main body of concentrator,condenser,vapor-liquid separator,cooler and liquid receiving barrel.
Performance
This equipment is manufactured of stainless steel, provided a high-pressured water automatically spraying system. It is possible to get in the cooling water to the clamp cover. The transmission spot uses the mechanical seal. And to guarantee the production process safely as well as to conform to the GMP quality specification, we use the explosion proof electrical machinery.
Main parameter:
Model
| SY-II-500 | SY-II -1000 | SY-II -1500 | SY-II -2000 |
Evaporation capacity (Kg/H)
| 500 | 1000 | 1500 | 2000 |
Circulation water wastage T/H
| 6 | 12 | 15 | 18 |
Evaporating temperature
| First effect | 80-90 | Second effect | 55-70 |
Vacuum degree
| First effect | 0.02-0.04 | Second effect | 0.05-0.06 |
Steam pressure(Mpa)
| Less than 0.25 | Concentrator ratio | 1.2-1.3 | |
Dimension length×width×heightm
| 4×1.5×3.3 | 5×1.6×3.5 | 6×1.6×3.7 | 6.5×1.7×4.3 |
Steam consumption Kg/h
| ≤250 | ≤500 | ≤750 | ≤1000 |
Port of loading: Shanghai port /Ningbo Port
China
