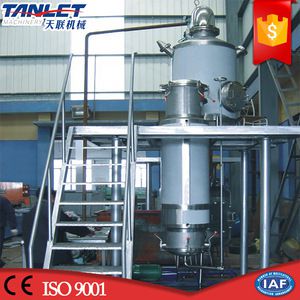

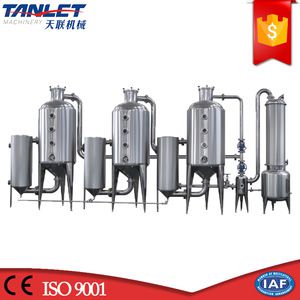

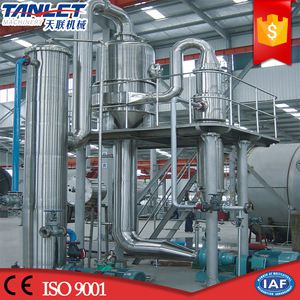

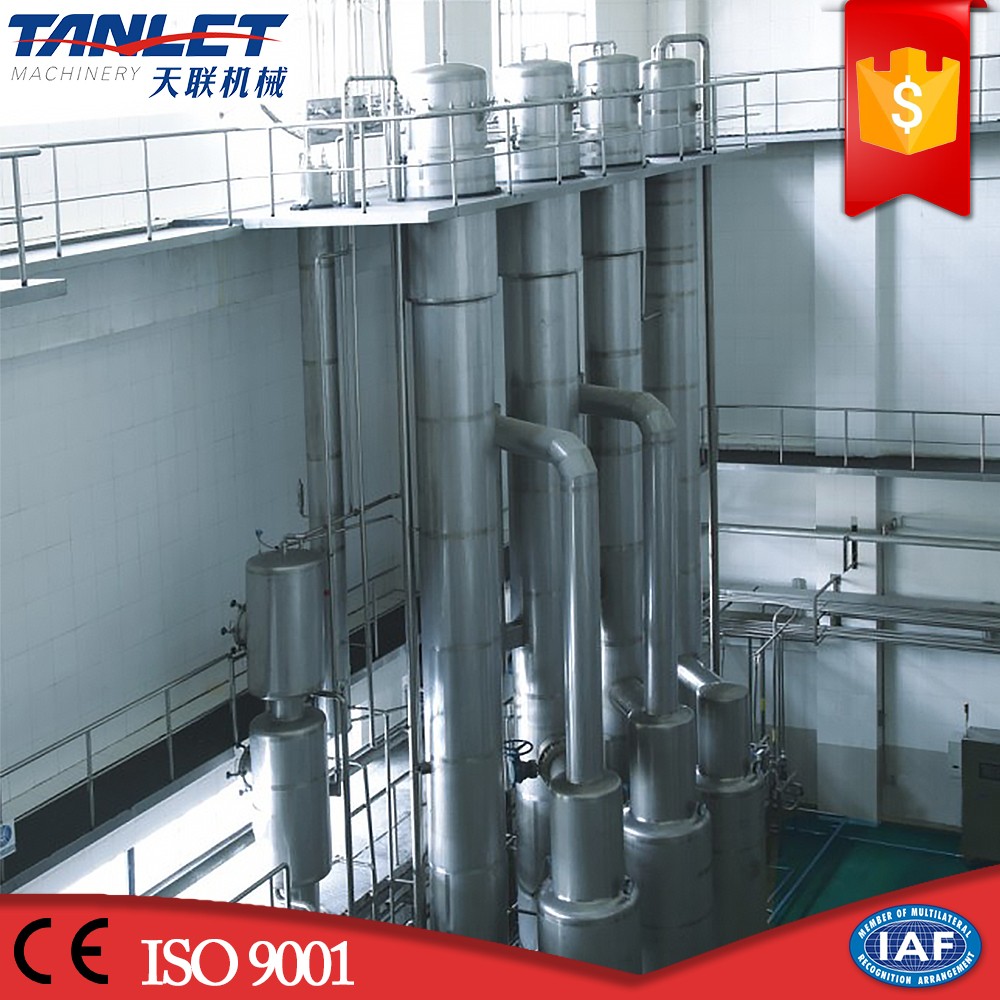

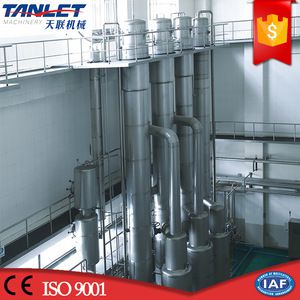

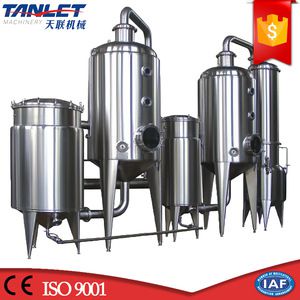

Stainless steel industrial thin film rotary vacuum evaporator
Brief
The concentrator is applicable to concentration of traditional Chinese herbal Western medicine, glucose, starch, MSG, dairy and chemical industry etc. It is especially suitable for low temperature vacuum concentration of heat sensitive substances.
It can carry out continuous sterilization and concentration. After carefully calculated and precisely designed and improved by professional designers of our company, it has more features and benefits than the original one. The period of being heated of materials is short and the evaporation temperature is low. It has small influence on the products color, flavor and nutritious content, which is especially applicable to concentration of milk etc.heat sensitive substances.
Main Parameters
| Model | TLNS-30 | TLNS-600 | TLNS-700 | TLNS-1250 | TLNS-2000 | TLNS-2500 | TLNS-3000 | TLNS-3200 | TLNS-5000 | TLNS-6400 | TLNS-8000 | TLNS-10000 |
| Moisture Evaporation (kg/h) | 30 | 600 | 700 | 1250 | 2000 | 2500 | 3000 | 3200 | 5000 | 6400 | 8000 | 10000 |
| Material Disposal Quantity | 40 | 800 | 940 | 1680 | 2688 | 3360 | 4032 | 4300 | 6720 | 8500 | 11000 | 13800 |
| Inlet Material Density (%) | >11.5 | |||||||||||
| Outlet Material Density (%) | 45-48 | |||||||||||
| First Evaporation Temp. (0C) | 68-72 | |||||||||||
| Second Evaporation Temp. | 45-52 | 45-52 | 45-52 | 45-52 | 45-52 | 55-60 | 55-64 | 55-60 | 55-64 | 55-60 | ||
| Forth Evaporation Temp. (0C) | 44-48 | 44-48 | 44-48 | 44-48 | 44-48 | |||||||
Steam Cost (kg/h)
| 17 | 7.2 | 5 | 9 | 14 | 18 | 21 | 20 | 32 | 40 | 32 | 55 |
| Cooling Water Cost (T/h) | 5 | 9 | 14.2 | 15 | 18 | 24.5 | 28 | 31 | 44.4 | 45 | 60 | 83 |
Pcaking: Standard packing
Wooden case is avaliable for stainless steel industrial thin film rotary vacuum evaporator
Delivery: 1-45 days after the deposit confirmed
User demands analysis
Engineering design
Product manufacturing
Automatic control integration
Vertification service
Engineers are avaliable to go abroad to help installation.
