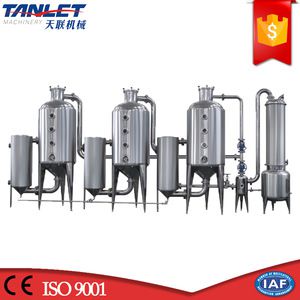

falling film evaporator
Usage:
1.Brief

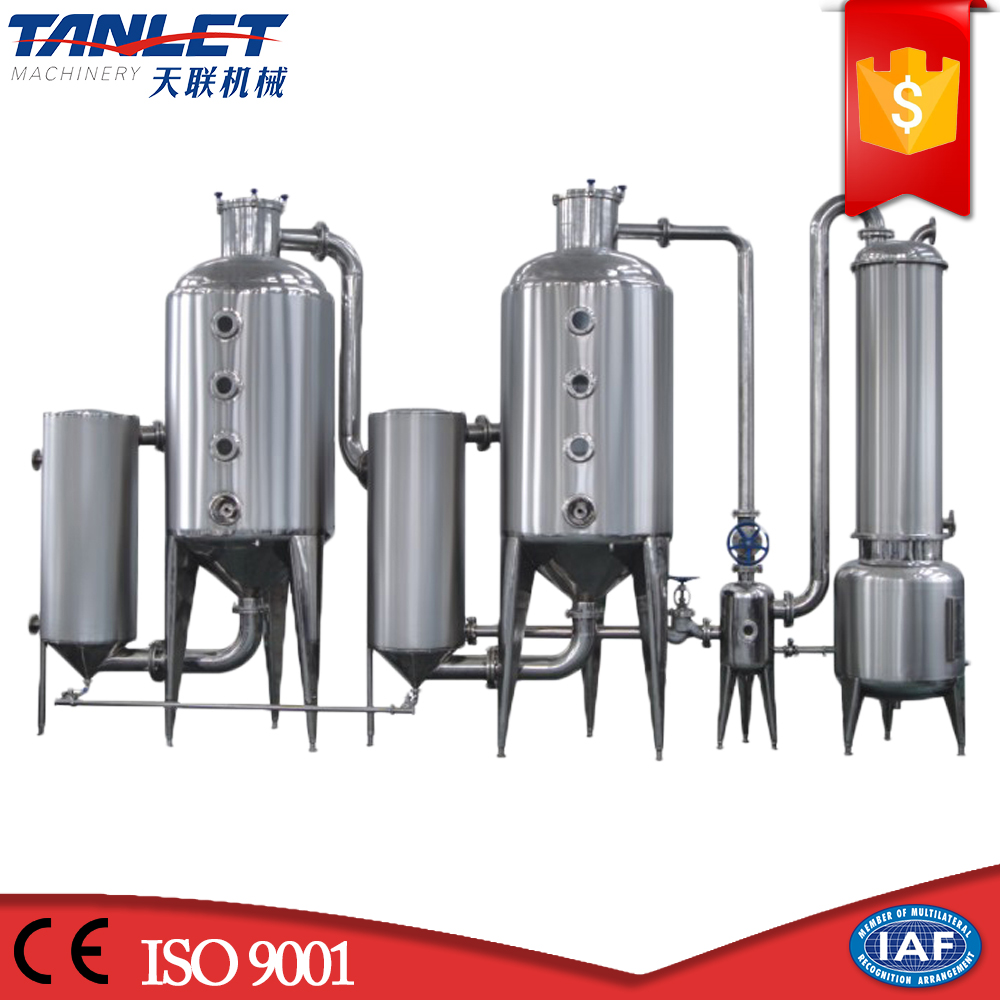

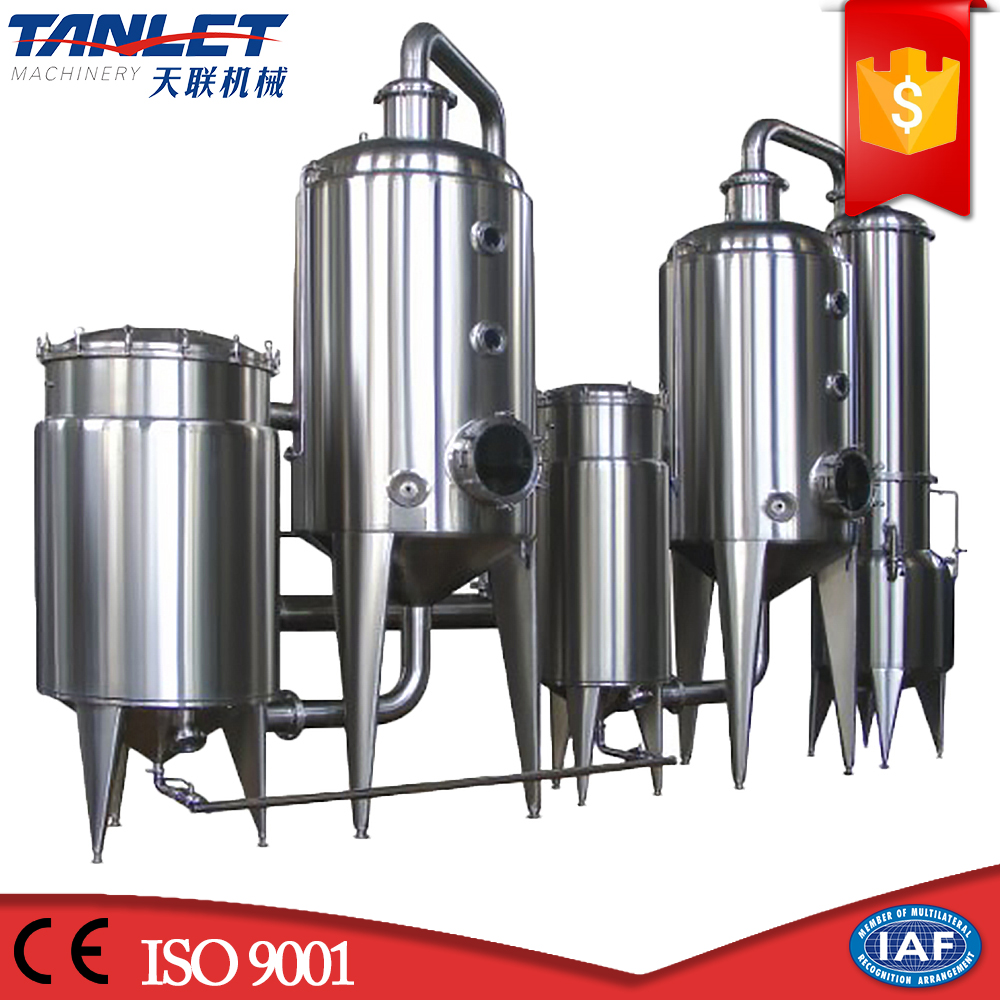

Double-effect concentrator is mainly used for concentration of the liquid materials of Chinese herbal, Western medicine, food, beverage, chemical industry, light industry, best solution for Chinese herbal, Western medicine and other heat sensitivity materials, solvent can be recovered.
2.Advantages
A.Heating chamber is separated with evaporation chamber, easy to clean and replace.
B.Vacuum concentration can reinforce the evaporation effect.
C.Low request on the heat source, provided a possibility to take low-pressure steam or waste heat as heating source.
D.Best solution to concentrate the heat sensitivity materials.
E.External heating circulation and vacuum evaporation ratio=0.55:1
G.Energy-saving. For JIN II-1000 model, it could save 3500 tons of steam, 90,000 tons of cooling water and 80,000 kW*h of electricity, compares to same size of single-effect machinery.
Main Parameter
| Model | SJN II 500 | SJN II 1000 | SJN II 1500 | SJN II 2000 | SJN II 3000 | |
| Max Evaporating Capacity (kg/h) | 500 | 1000 | 1500 | 2000 | 3000 | |
| Steam Cost (kg/h) | ≤250 | ≤500 | ≤750 | ≤1000 | ≤1500 | |
| Water Cost (T/h) | 6 | 12 | 15 | 18 | 25 | |
| Steam Pipe (mm) | 40 | 50 | 50 | 65 | 80 | |
| Dimension (mm) | L | 4000 | 5000 | 6500 | 5500 | 6800 |
| H | 1500 | 1700 | 1800 | 2000 | 2000 | |
| W | 3300 | 3500 | 4000 | 4200 | 4500 | |
| Evaporating Temp. (oC) | First Effect | 80-90 | ||||
| Second Effect | 55-70 | |||||
| Designed Pressure (MPa) | 0.09 | |||||
| Vacuum Degree (MPa) | First Effect | -0.04 | ||||
| Second Effect | -0.06 | |||||
| Concentration Ratio | 1.1~1.3 |
Here is a brief on us:
- Since 1998, with 17 years of experience
- 3 factories totally covered 40,000+sq.m.
- Annually sales $31.5million, still keeps growing.
- 30+ R&D, 200+ employees professional service.
- Leader of this industry in nationwide.
Click here to see more products
Click here to learn more about us
Click here to contact us
========↓ ↓ ↓ keep moving down, more surprises await! ↓ ↓ ↓ ========
| Q: Are you manufacturer or trading company? |
| A: TANLET is a professional manufacturer. |
| Q: Where is your factory located? |
| A: All of our three factories are located in Wenzhou, Zhejiang, China. 1 hour flight to Shanghai, 2 hours to Guangzhou, 2.5 hours to Beijing. |
| Q: What is your business scope? |
| A: Chinese Herbal, Western Medicine, Food, Beverage, Dairy and B |
| Q: How could we confirm the details of the products? |
| A: TANLET will provide all the drawings for you to confirm. |
| Q: Will you charge us for drafting if we have special requests? |
| A: No, we will not. Free of charge to make a draft or offer. ODM |
| Q: How long the warranty will be? |
| A: 1 Year warranty. |
| Q: How about the installation? And what if the machine goes down |
| A: Yes, we will do that. There are two options: |
| a. We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side. |
| b. On-line service will be provided. If still under guarantee period, the necessary accessories and parts will be provided free, but the transportation cost of it shall be on you side. |
| Q: Do you take L/C? |
| A: Yes, we accept Western Union, T/T and irrevocable L/C payable |
| Q: Can we become your distributor in our country? |
| A: Yes, we very welcome you! More details will be discussed if you are interested in being our agent. |
