R5005KD 50L thin film evaporator

and be flexible to assemble all optional devices to meet your demand.

Technical Feature

  • New
  • Distillation
  • Electric
  • Vacuum Distillation
  • Shanghai, China (Mainland)
  • SENCO
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$11~12

PRIMARY PARAMETERS

Condition
New
Application
Distillation
Power Source
Electric
Process
Vacuum Distillation
Place of Origin
Shanghai, China (Mainland)
Brand Name
SENCO
Model Number
R5005KD
Voltage
220V, 50HZ/60HZ
Power(W)
Motor Power
Dimension(L*W*H)
130x80x200H (cm)
Weight
230Kg
Certification
CE & ISO
Warranty
One Year
After-sales Service Provided
Overseas third-party support available
Capacity (L)
50L
Temperature Control
180u00b0C +/- 0.2u00b0C precise control
Distillation
yes
Reflux
customized option
Reachable Vacuum
133Pa
Bath Power
6KW
Evaporating Speed(H2O)
9L/H
Rotation Speed
3~110 rpm
Condensing Surface
1.5 square meters
Package
Wooden Box

DETAIL DESCRIPTION

 Product Introduction:

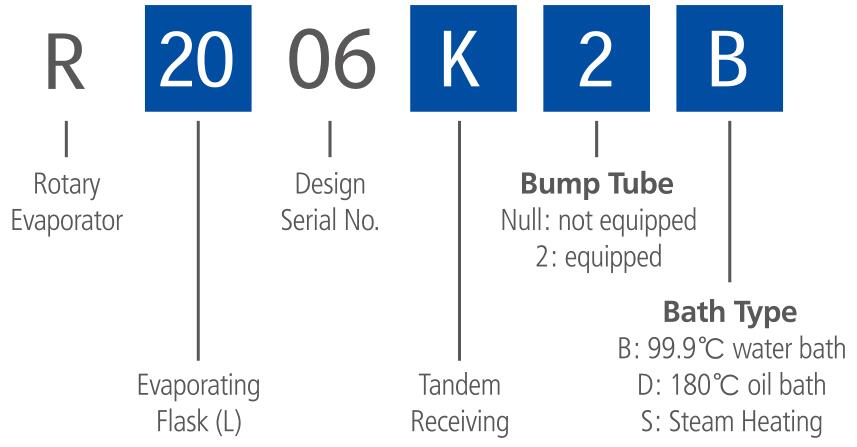

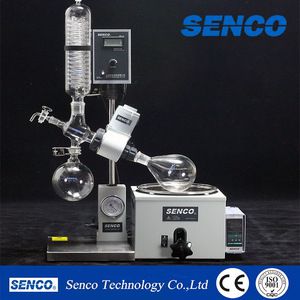

ROTARY EVAPORATOR SENCO (50L w/Water or Oil Bath)

Evaporating flask's Capacity: 50L
Bath Temp.: 99°C max(water bath) or 180°C max(oil bath)

Relevant Model with water bath(reach 100°C):
R5005KB - Tandem receiving system and be flexible to assemble all optional devices to meet your demand.
R5006KB - Tandem receiving system and electric bath lift.
R5005K2B - Tandem receiving system and Equipped Bumping Tube is to prevent the unexpected solution bumping into receiving falsk.
R5006K2B - Tandem receiving system and electric bath lift. Equipped Bumping Tube prevent unexpected solution bumping into receiving flask.

Relevant Model with oil bath(reach 180°C):
R5005KD - Tandem receiving system and be flexible to assemble all optional devices to meet your demand.
R5006KD - Tandem receiving system and electric bath lift.
R5005K2D - Tandem receiving system and Equipped Bumping Tube is to prevent the unexpected solution bumping into receiving falsk.
R5006K2D - Tandem receiving system and electric bath lift. Equipped Bumping Tube prevent unexpected solution bumping into receiving flask.

Features:
- High vacuum performance is able to reach 133Pa(1.33mbar, 1 Torr);
- Long lasting sealing performance, majority user do not replace sealing part in one year;

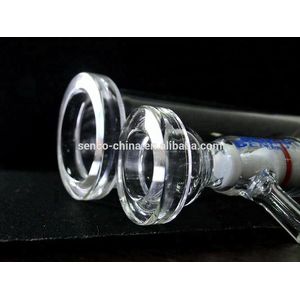

- Full flange connection which guarantees pressure tightness in static joint connection.

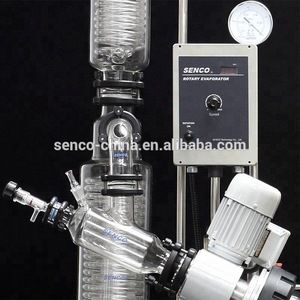

R5005KD

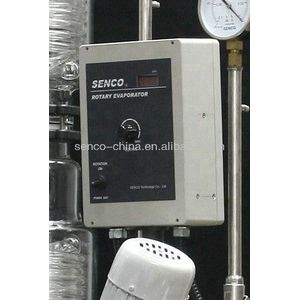

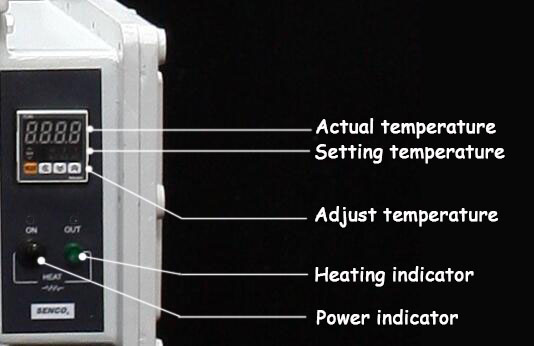

 Temp. controller

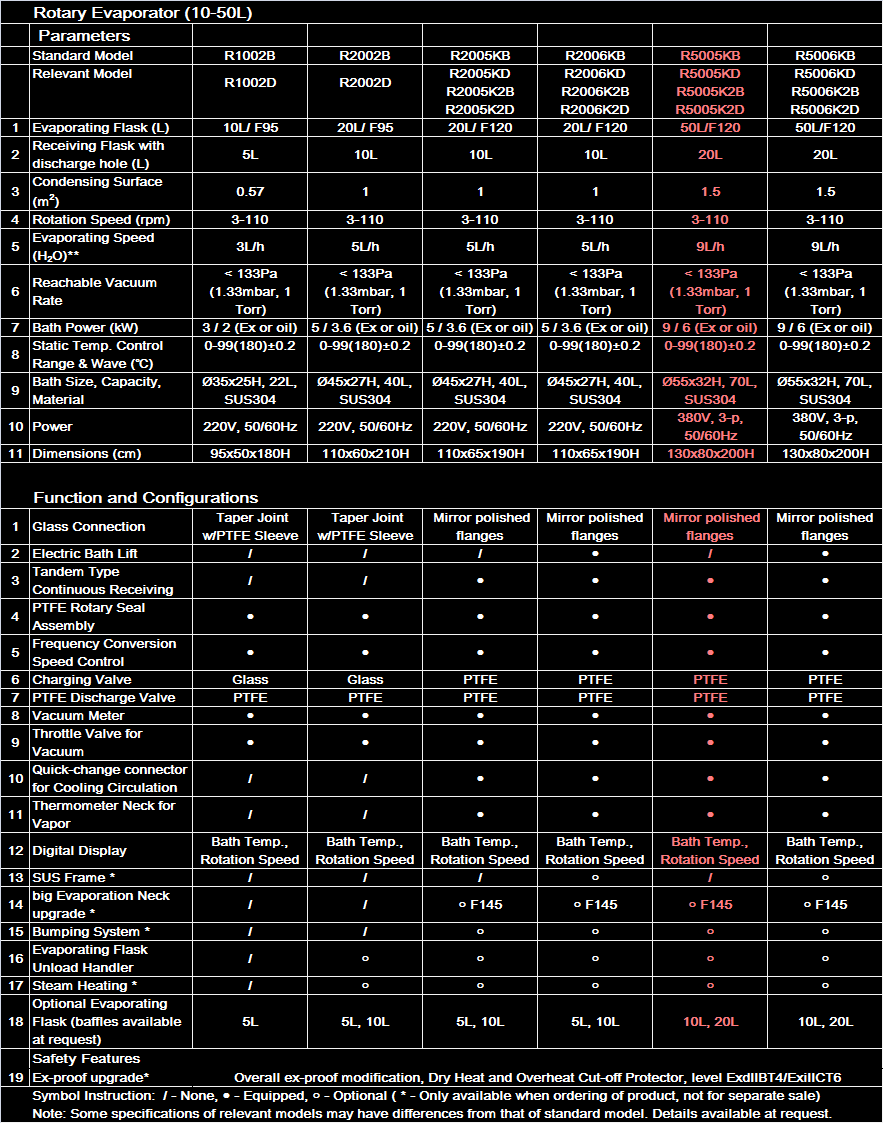

Parameters:

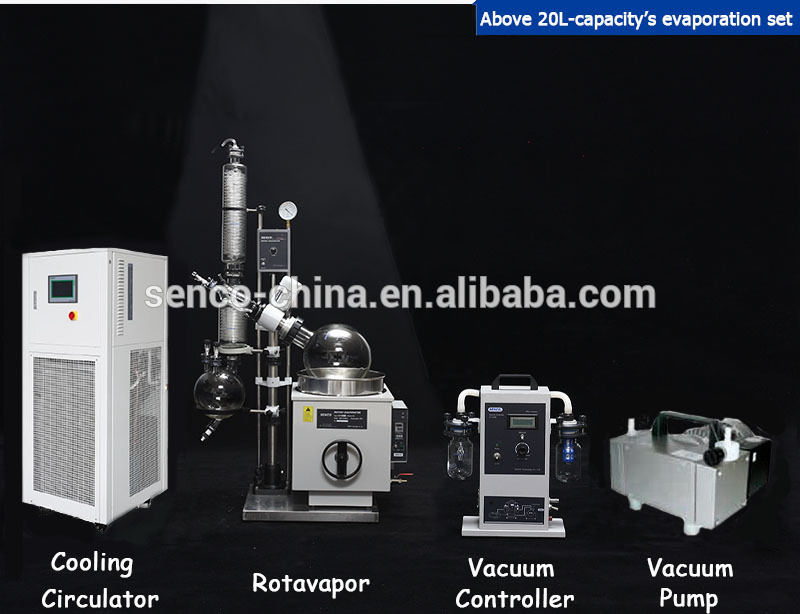

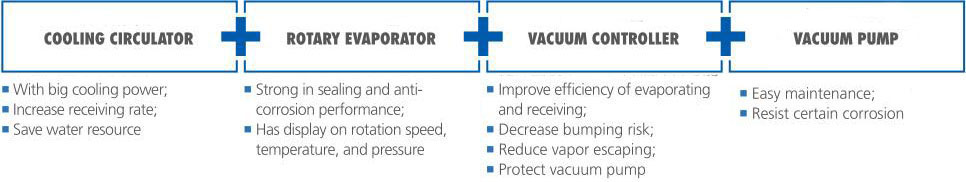

Commonly required products for ”50L Lab Evaporation Set

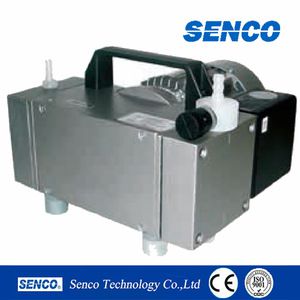

           LX-700        R5005KD        VC100C       MPC301z
Promotion note: Vacuum controller purchased with rotary evaporator together will be on 80% off price.

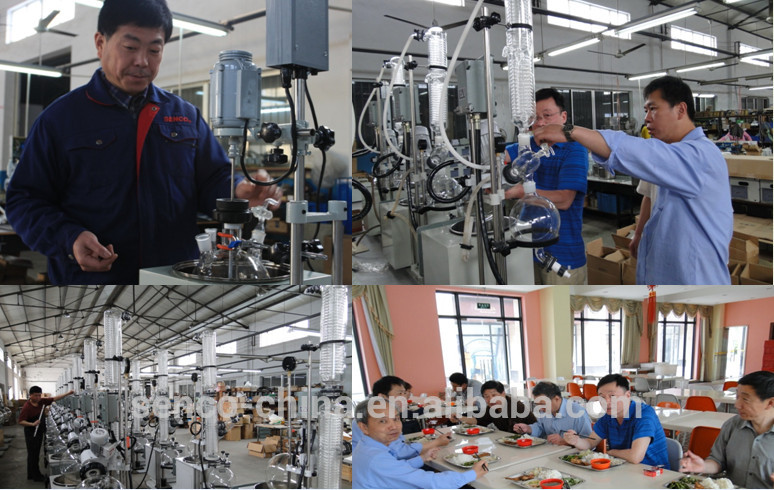

Company Information:

*Engineering team presided over by professor level chief engineer who has over 30 years practical working experience.  Products inherit characters of Safe, Durable and Efficient.

 *Factory occupies 2300m2 land, is able to guarantee pure Senco quality and fast delivery.  Genuine products assured from factory direct sale.




Certificate:




Our Service:

In-sale Service:

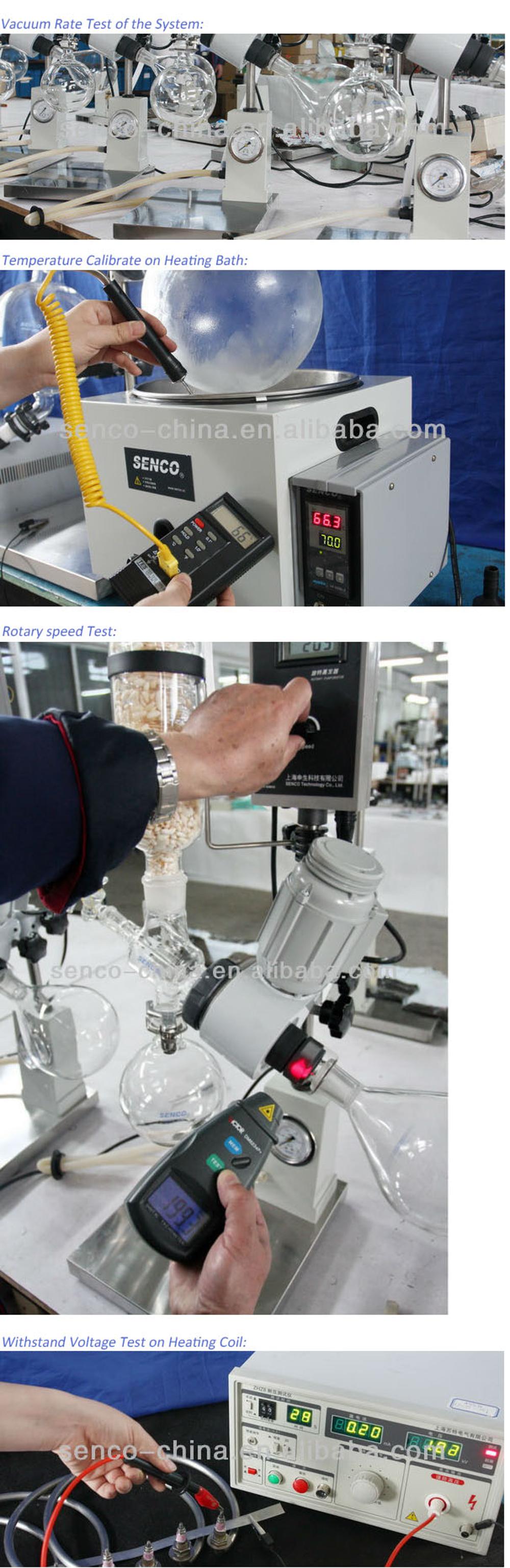

1.Begin to supervise from raw material, it is high qualified rate for our products;

2.Whole manufacturing process are in strict accordance with promised procedure requirements,

3.Package and transport products strictly accordance with export standard;

4.Provide transportation schedule information to clients timely.






Packaging & Shipping:

Packaging:

1.Carton cases or Wooden cases.

2.Customized packaging can be available.

Shipping:

1.We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on.

2.You can also choose any appropriate shipping method based on your timeline and budget.

3.You can choose to use your own shipping agent.




FAQ:


1. Are you manufacturer or trading company?
A: We are professional manufacturer of lab instruments with a history of 20 years and 8 years' export.

2. How to choose suitable equipment ?
A: Please tell us your work flow and special requirements (For example: capacity, temperature range,
pressure, power supply, etc ), we will recommend you suitable equipment according to your requirements,
application experience and feedback from our clients.

3. How to solve the equipment trouble during using ?
A: Please send us email of the problem, pictures or a small video will be much better, we will find the
problem and help you to solve it.
If there is a broken, we will send you a new part via express, and it is free in the warranty period.

4. Will you provide service beyond the warranty?

A: Yes. 13-month free parts replacement or mail back repair in China due to manufacturing defect from shipping day. Circulators/Vacuum pumps have no oversea repair service.  User shall have ability to repair at local by self.  SENCO will offer remote instructions.
