senco multiple effect evaporator 2l factory direct sale

Diagonal condenser coil without vacuum meter and vent port.

Technical Feature

  • New
  • Distillation
  • Electric
  • Rotary
  • Shanghai, China (Mainland)
  • Senco
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~1

PRIMARY PARAMETERS

Condition
New
Application
Distillation
Power Source
Electric
Process
Rotary
Place of Origin
Shanghai, China (Mainland)
Brand Name
Senco
Model Number
R206B R206D R213B R214B R205B
Voltage
220V/50HZ, 60HZ
Power(W)
1.4kw
Dimension(L*W*H)
620*330*820mm
Weight
26kg
Certification
CE ISO
Warranty
One Year
After-sales Service Provided
Overseas service center available
Capacity (L)
0.1~2L
Bath (u00b0C)
100u00b0C or 180u00b0C +/- 0.2 u00b0C wave
Reachable Vacuum (Pa)
133pa
Rotation Speed
4~200
Max Evaporating Speed(H2O)
1.2L/H
Rotary flask
0.1~2L
Motor Power
25W
Bath Power
1.4KW
Power Supply
220V, 50/60Hz
Package
Carton Box

DETAIL DESCRIPTION

Product Introduction:

ROTARY EVAPORATOR SENCO (2L w/Water or Oil Bath)

Model with water bath:

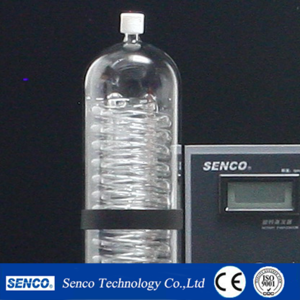

R213B-Diagonal condenser coil without vacuum meter and vent port. Cheaper and esp for reflux experiment.

R214B-Vertical condenser without vacuum meter. Inlet valve and reflux device is optional.

R205B-Vertical condenser without reflux joint. Have PTFE discharge valve to let distillate out of receiving flask.

R206B-Vertical condenser and be flexible to assemble all optional devices to meet your demand.

Model with oil bath:

R206D-Vertical condenser and use oil bath pot which can be up to 180°C.

Capacity: 0.1~2L(optional choosing for evaporating flask size can be 0.1~2L capacity)
Bath Temp.: 99°C max(water bath) or 180°C max(oil bath)


Features:
- High vacuum performance is able to reach 133Pa;

- Long lasting sealing performance, majority user do not replace sealing part in one year;
- Bath Lifting;

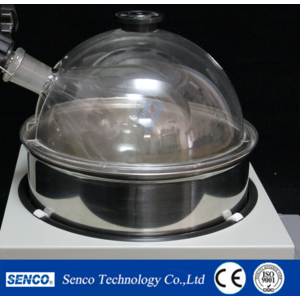

- Rich function, all models can be equpped with bath lid as option and customized as your demand;
- Popular model R206B & R213B among Senco rotary evaporators.

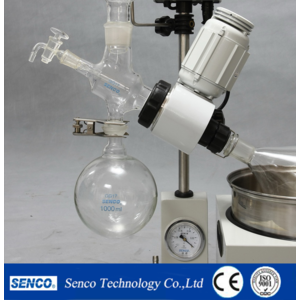

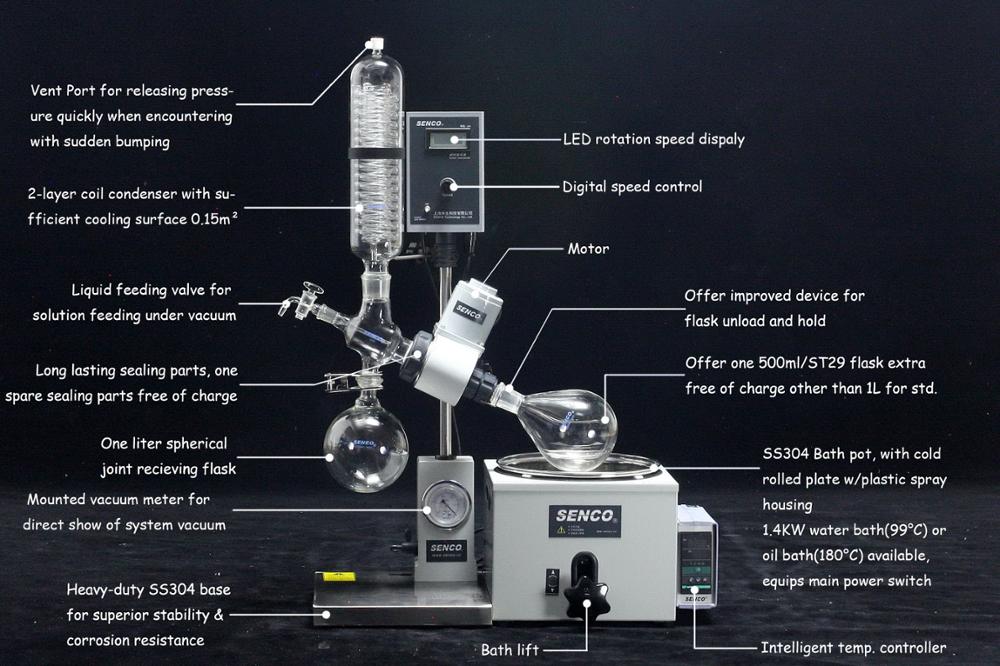

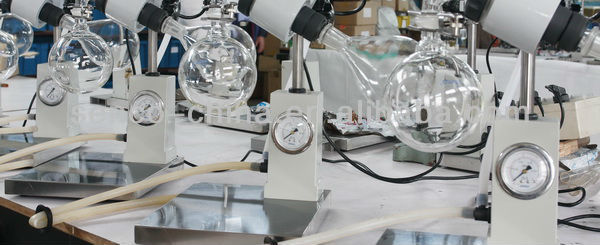

R206B

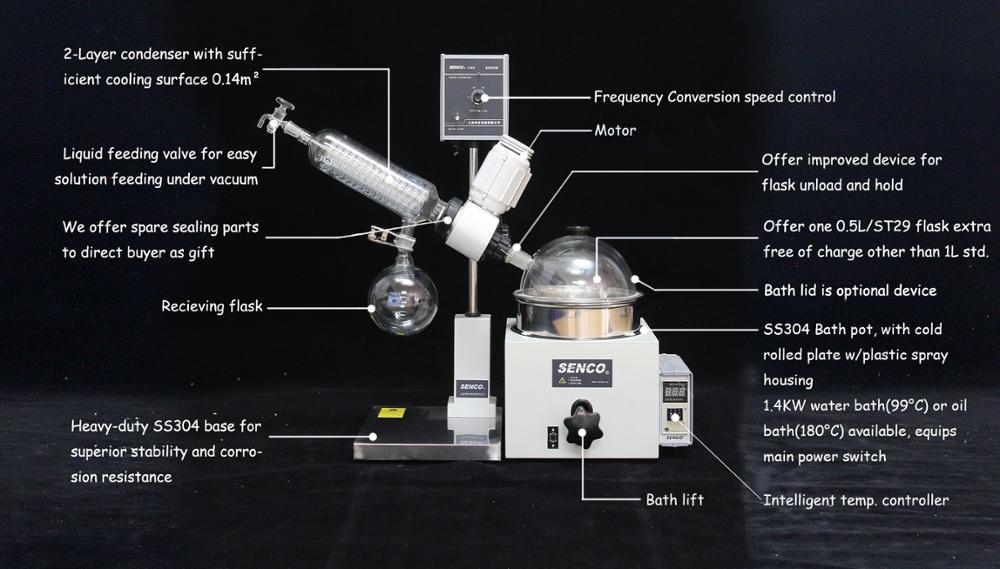

R213B

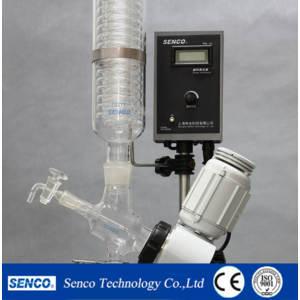

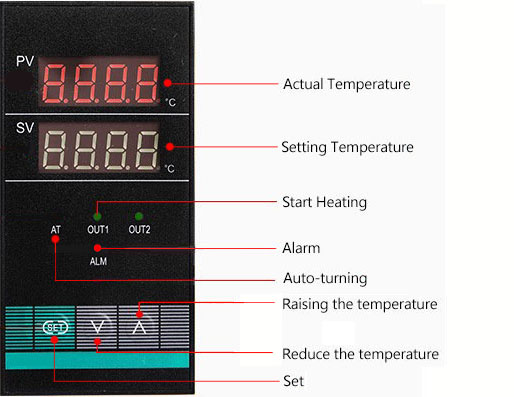

Temp. controller

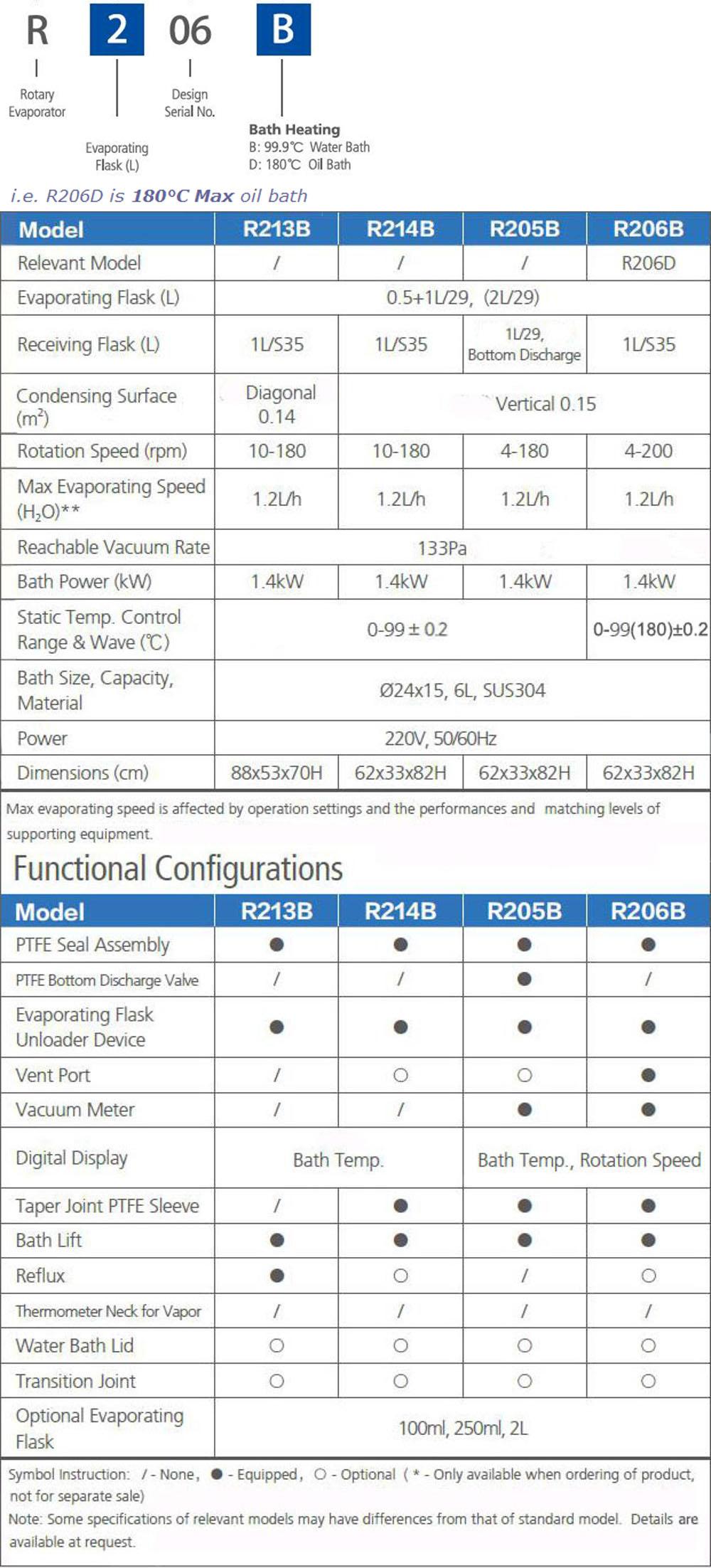

Parameters:

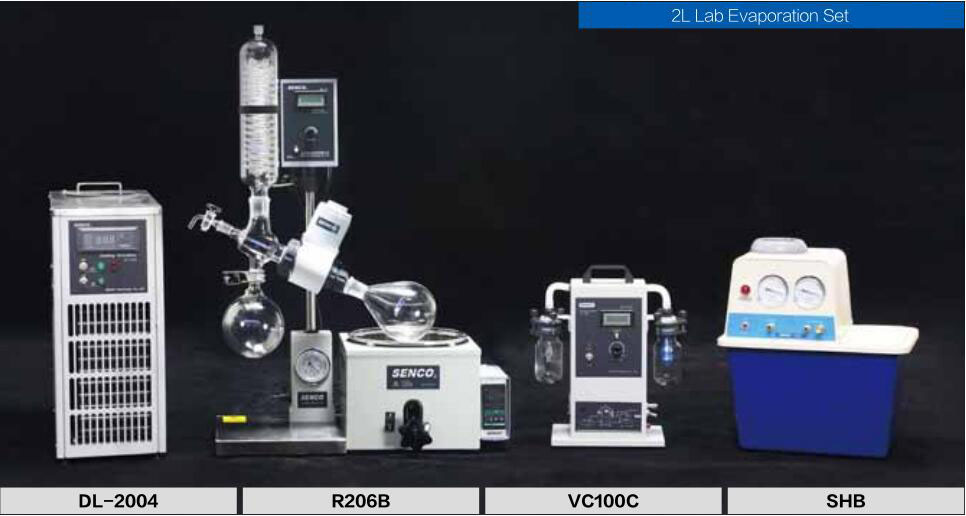

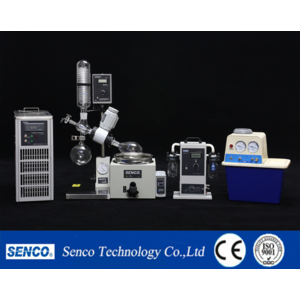

Commonly required products for “2L Lab Evaporation Set
        Cooling Circulator        Rotary Evaporator        Vacuum Controller         Vacuum Pump

Receiving rate 99% by Using SENCO "2L rotary evaporation set" to deal with solvents of low boiling point.

Promotion note: Vacuum controller purchased with rotary evaporator together will be on 80% off price.

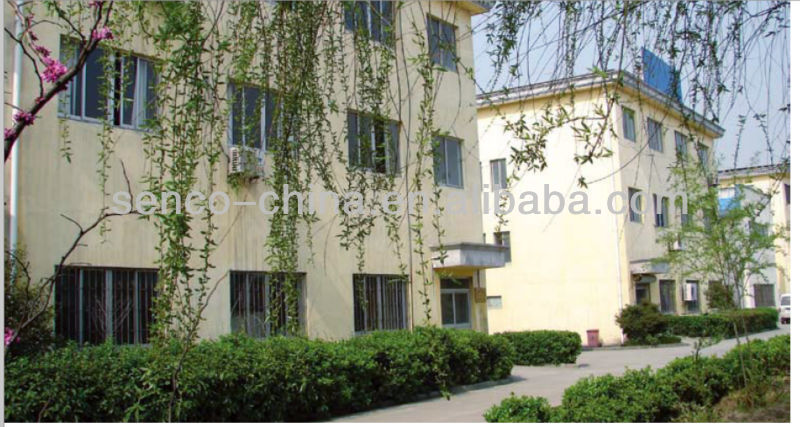

Company Information:

*Engineering team presided over by professor level chief engineer who has over 30 years practical working experience.  Products inherit characters of Safe, Durable and Efficient.

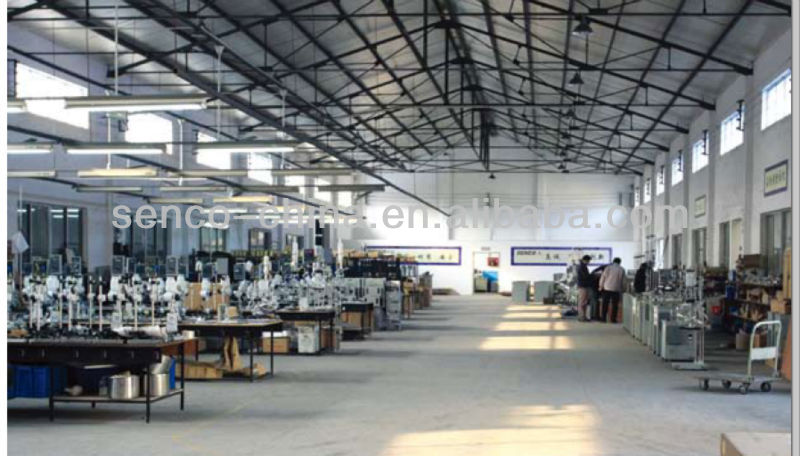

*Factory occupies 2300m2 land, is able to guarantee pure Senco quality and fast delivery.  Genuine products assured from factory direct sale.







Certificate:











Our Service:

 In-sale Service:

1.Begin to supervise from raw material, its qualified rate will be high rate;

2.Whole manufacturing process are in strict accordance with promised procedure requirements;

3.Package and transport products strictly accordance with export standard;

4.Provide transportation schedule information to clients timely.



Vacuum Rate Test of the System:

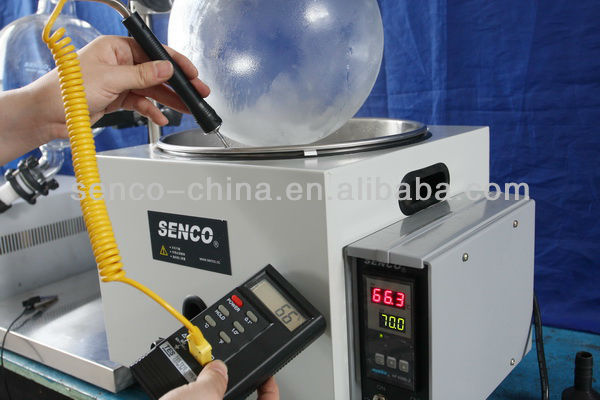

Temperature Calibrate on Heating Bath:

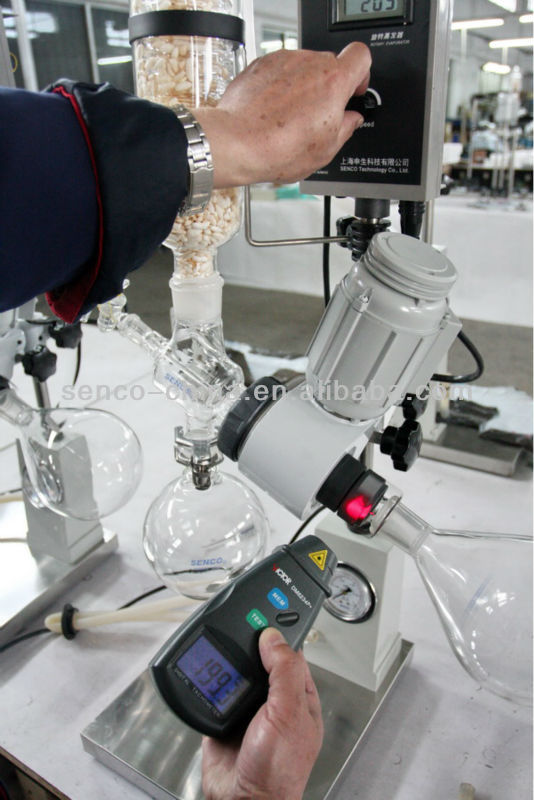

Rotary speed Test:

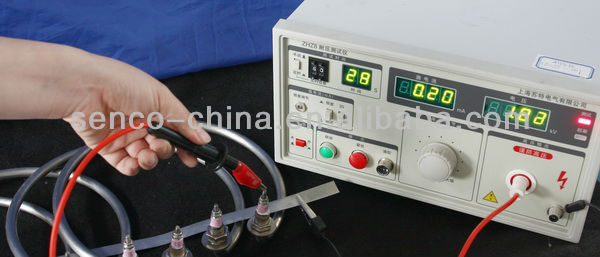

Withstand Voltage Test on Heating Coil:

After-sale Service:

1.Provide targeted installation video;

2.Under the premise of correct installation, normal maintenance and using, we guarantee one-year warranty period;

3.When warranty period has expired, our sold products enjoys lifetime guarantee repair, we only charge cost price for changing product's standard component and sealing component;

4.During installation and adjustment period, our after-sale service staff will communicate with customers frequently to know product's running state in time. Assist customers to install and adjust products until customers are satisfied;

5.If product has malfunction during operation period, we'll offer you satisfied answer in time. We'll reply you within 1 hour and provide solution or send staff to spot within 24 hours after receiving maintenance notification.

6.Lifelong free technical support. Conduct satisfaction survey and inquiry equipment running condition to clients by telephone or e-mail semiannually from the first day of equipment running, put on records of acquired information.

7.Provide assistant service if product is damaged during transportation.









Packaging & Shipping:



Packaging:

1.Carton+wooden cases.

2.Customized packaging can be available.

Shipping:

1.We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on.

2.You can also choose the appropriate one based on your timeline and budget.

3.You can choose to use your own shipping agent.







FAQ:

Q: Are you a trading company or a manufacturer?
A: We are a manufacturer,which has almost 20 years of experience in this industry and be able to
offer you the best price.
Q: what is the voltage phase for this machine?
A: 220V 50Hz single phase, 380V 50Hz three phase
110V 60Hz single phase also can made as the clients’ need
Q: What is the delivery time?
A: About 15 workdays upon the receipt of deposit
Q: How long is the guarantee?
A: We promise guarantee as one year for non-human damage factor.
Q: How should i do if meet some trouble while using?
A: Don’t worry about that, our professional solution and video will send to you immediately.
Q: What about payment term?
A: T/T in advance, 30% deposit, 70% balance before shipment.
Q: What is the MOQ?
A: 1 set
Q: Can you do OEM & ODM?
A: Yes
Q: Where is your nearest port?
A: Shanghai Port
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Shanghai City, China.You can fly to Shanghai airport directly.

Q: Discount?
A:We can offer relative cheaper price accoording to order quantity.









Welcome to Contact SENCO for detail discussion
