Thin film evaporator for oil for thermo evaporation

Shanghai HJLab offers highest performance, efficiency and safety.

Technical Feature

  • New
  • Distillation
  • Electric
  • Vacuum Distillation
  • Shanghai, China (Mainland)
  • Shanghai HJLab
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$4~500

PRIMARY PARAMETERS

Condition
New
Application
Distillation
Power Source
Electric
Process
Vacuum Distillation
Place of Origin
Shanghai, China (Mainland)
Brand Name
Shanghai HJLab
Model Number
RE-52 Series
Voltage
110V/220V
Power(W)
8000
Dimension(L*W*H)
1400*600*2300 mm
Weight
100 KG
Certification
CE ISO
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Power Supply
220V/50Hz
Rotation Flask
10~50L
Collecting Flask
5~20L
Motor
DC Brushless
Condenser
2-Stage+Triple Coil
Heating Power
4500 W
Temperature Control
Heating Bath & PID
Sealing
PTFE & Viton
Rotating Speed
0 ~ 120 RPM
Vacuum Degree
0.098 MPa

DETAIL DESCRIPTION

Product Description

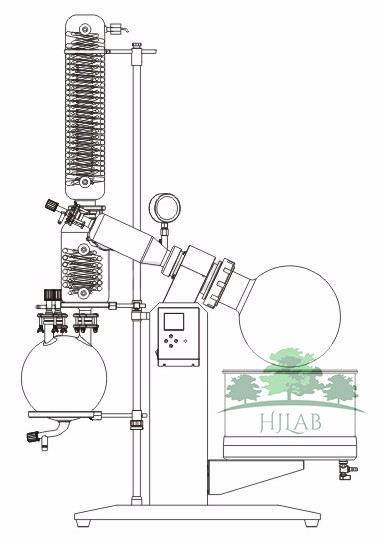

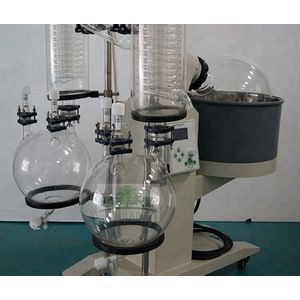

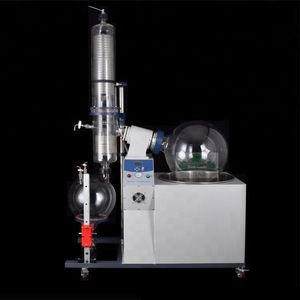

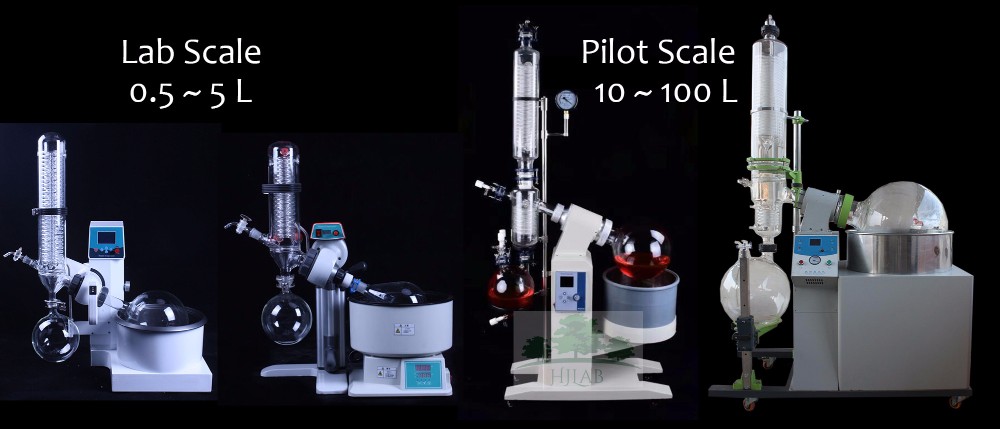

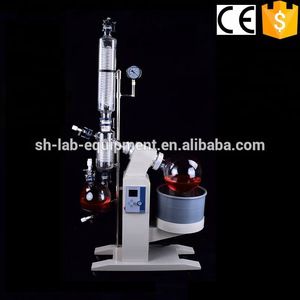

Industrial Rotary Evaporators (10 ~ 100 Liter)

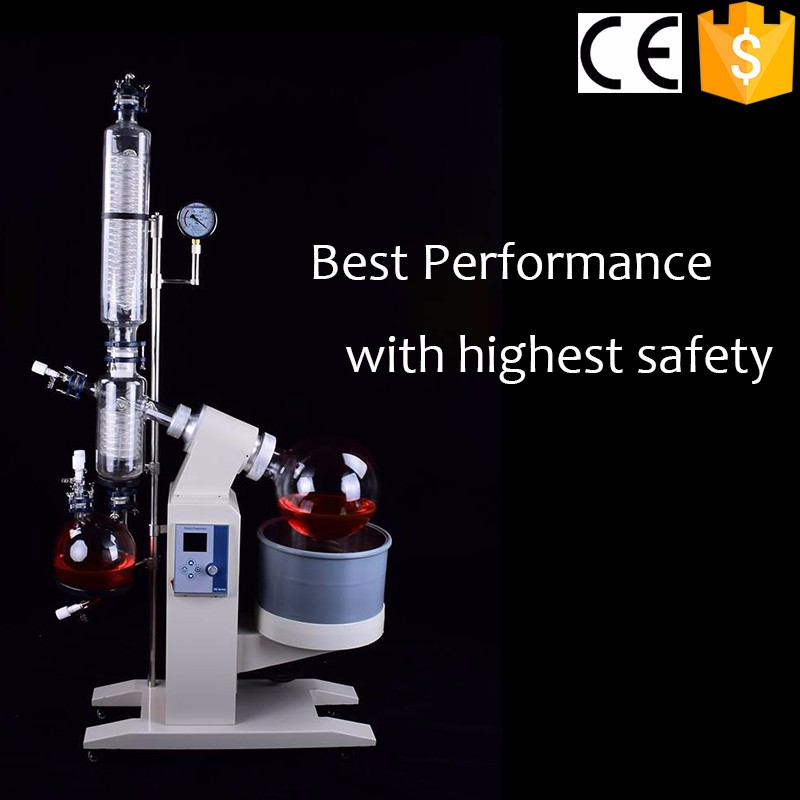

Best performance at highest safety

CE standard and China Factory Price

Shanghai HJLab offers highest performance, efficiency and safety. Intuitive operation and handling for reliable and highly productive industrial distillation.
Benefits
High performing
Fast distillation due to high heating capacity
Large batches in a flask of 10, 20, 30, 50 and 100 liters

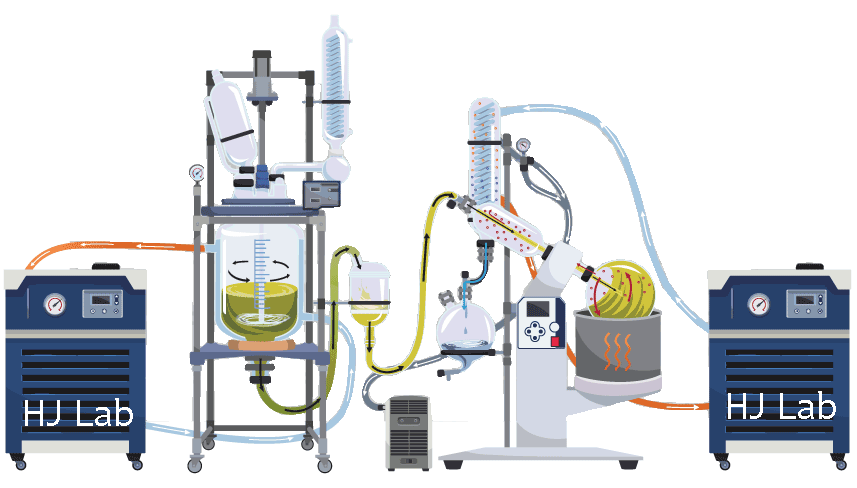

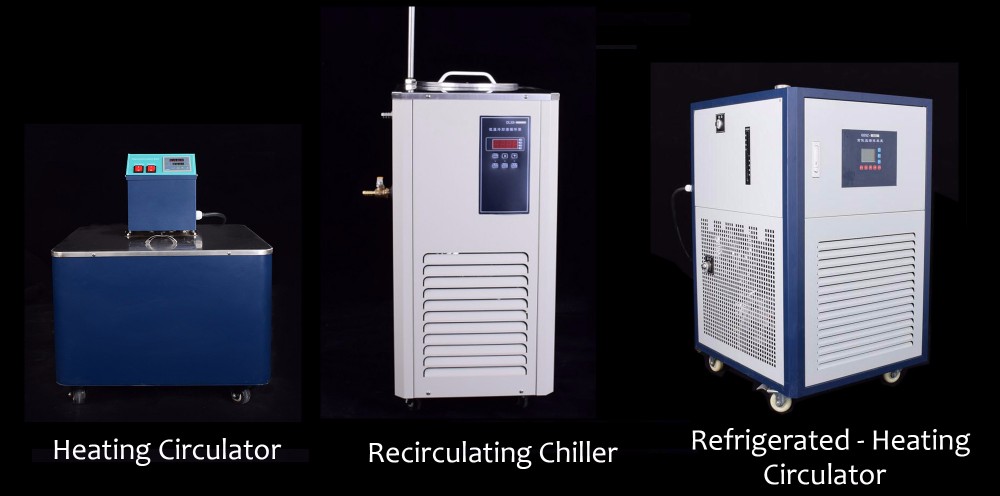

We offer the following related product for completing your portfolio
1) Recirculating Chiller

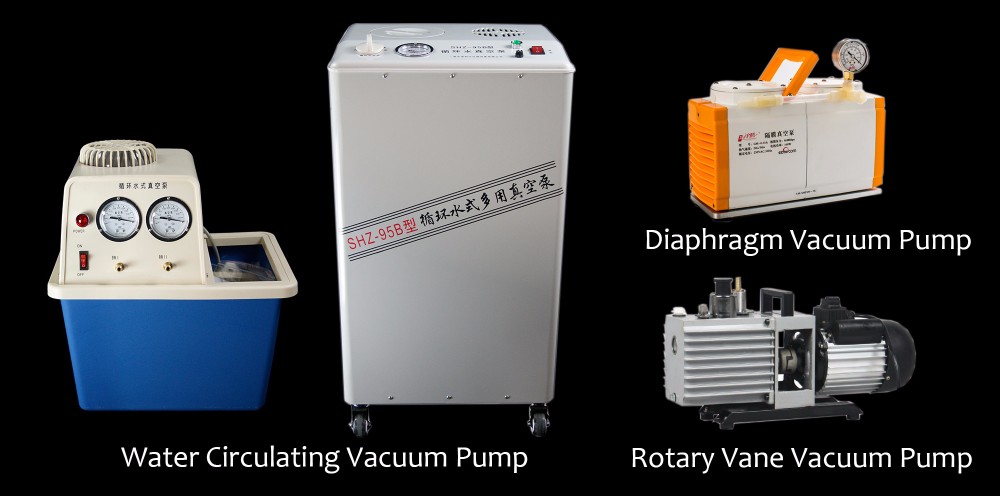

2) Water Circulating Vacuum Pump
3) Diaphragm Pump
4) Vacuum Controller
Easy and safe
•  Intuitive operation of the Rotary Evaporator and its vacuum controller(optional)
•  Excellent handling by large and easy readable display
•  Easy flask handling due to the unique flask coupling
• Safe handling and spring loaded valves protect the glass
Durable
•  Long life time due to exclusive use of corrosion-free stainless steel
•  Low maintenance by using high chemical resistant materials
•  Trouble-free operation thanks to robust industrial valves

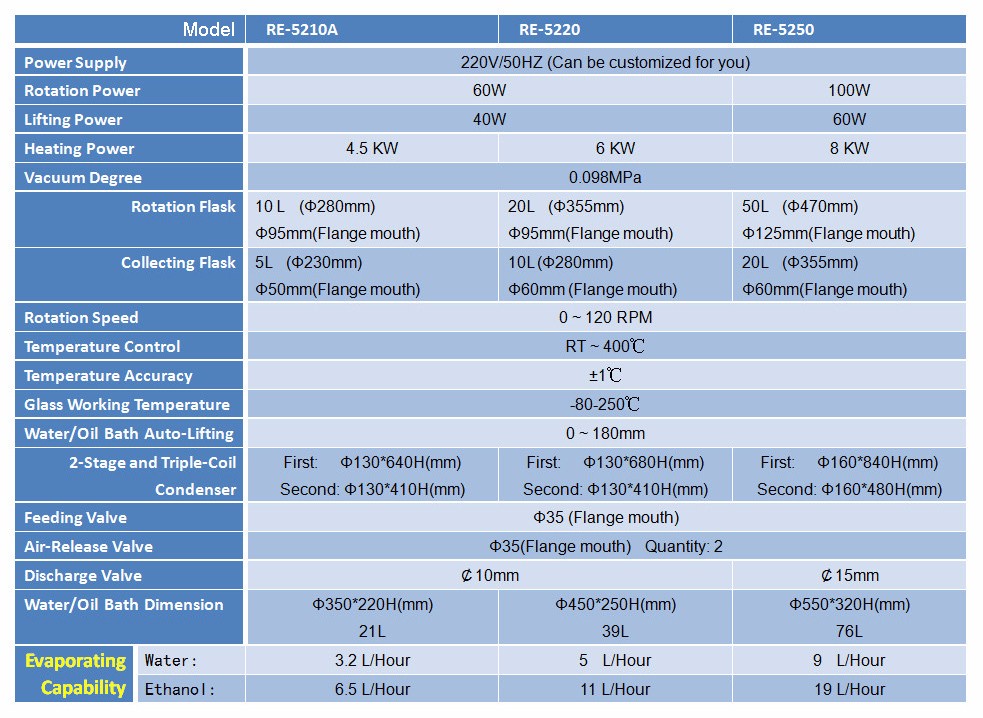

Technical Data
Electrical
Voltage
110V, 220V, 380V
Frequency
50 - 60 Hz
Max. power consumption
4500 - 8000 W
Standards
CE marking
Yes
Safety
Safety coated glassware
Yes, accept the evaporating flask
Over temperature protection of the bath
Automatic power-off if temperature is 10°C above set value
Rotation
Soft start
At any error
Bath lowering, heater off, rotation off
Type of error showed on display
Reset with main switch
Display
Bath temperature
Yes (1 °C steps)
Vapor temperature
Yes (1 °C steps)
Set rotation speed
Yes (1 rpm steps)
Set bath temperature
Yes (1 °C steps)
Actual vacuum
Optional Vacuum Controller
Set vacuum
Optional Vacuum Controller
Cooling
Condenser
2-Stages, Triple-Coils
Recirculating Chiller
Optional

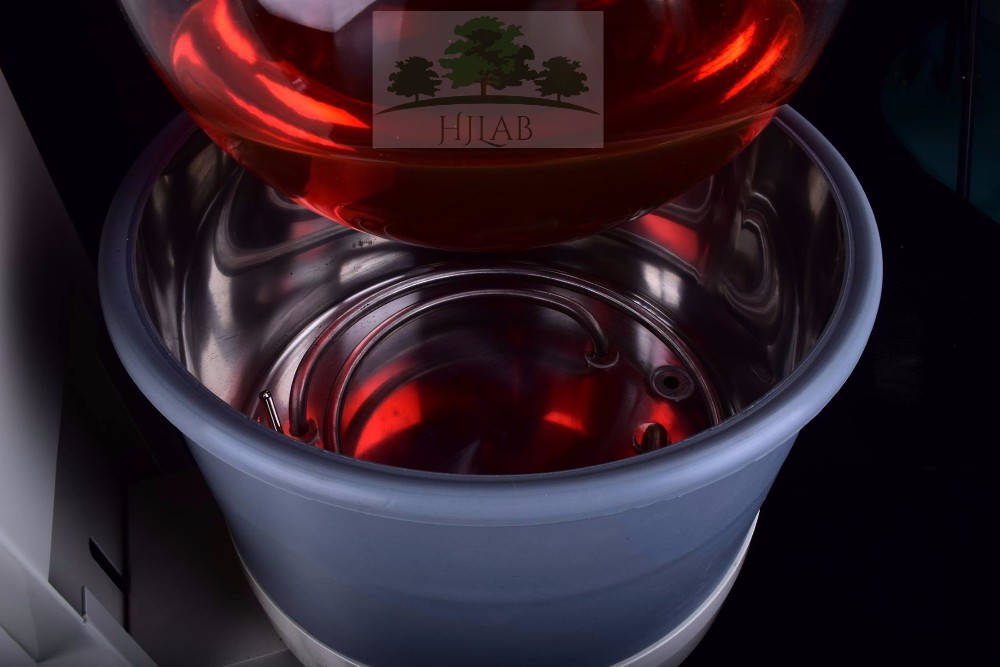

Heating bath
Medium
Water or Oil
Temperature range
Ambient to 200°C
Heating capacity
4500 - 8000 W
Accuracy
+/- 1 °C
Rotation
Motor
DC brushless motor
Controlling
Frequency converter
Speed
5 - 120 rpm
Accuracy
+/- 1 rpm at 5 rpm to +/- 5 rpm at 120 rpm
Material
Housing
Stainless steel (SS 304)
Gear head
Aluminum cast
Painting
Powder coated with
Bath pan
Stainless steel (SS 304)
Heating element
Stainless steel (SS 304)
Glass
Borosilicate 3.3
Leakage of the complete system
Fluorine rubber and Teflon bidirectional combined sealing
<1 mbar/min
Sensor
Vapor temperature
PT100
Bath temperature
PT100
Speed sensor
Hall-sensor
Vacuum
Optional vacuum controller

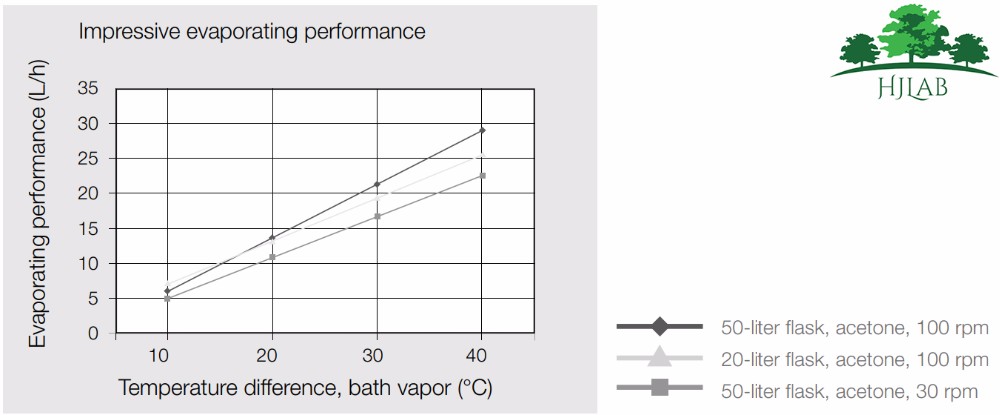

For other solvents the following maximum general figures apply(50-liter evaporating flask):
Water
Methanol
Ethanol
Toluene
Ethylacetate
Hexane
Trichlorethane
9 L/h
14 L/h
19 L/h
36 L/h
38 L/h
55 L/h
40 L/h

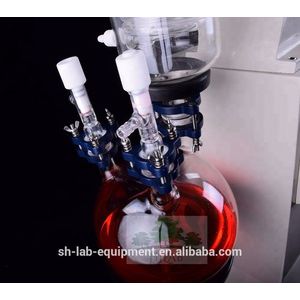

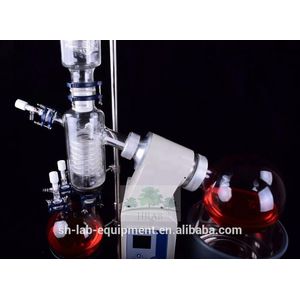

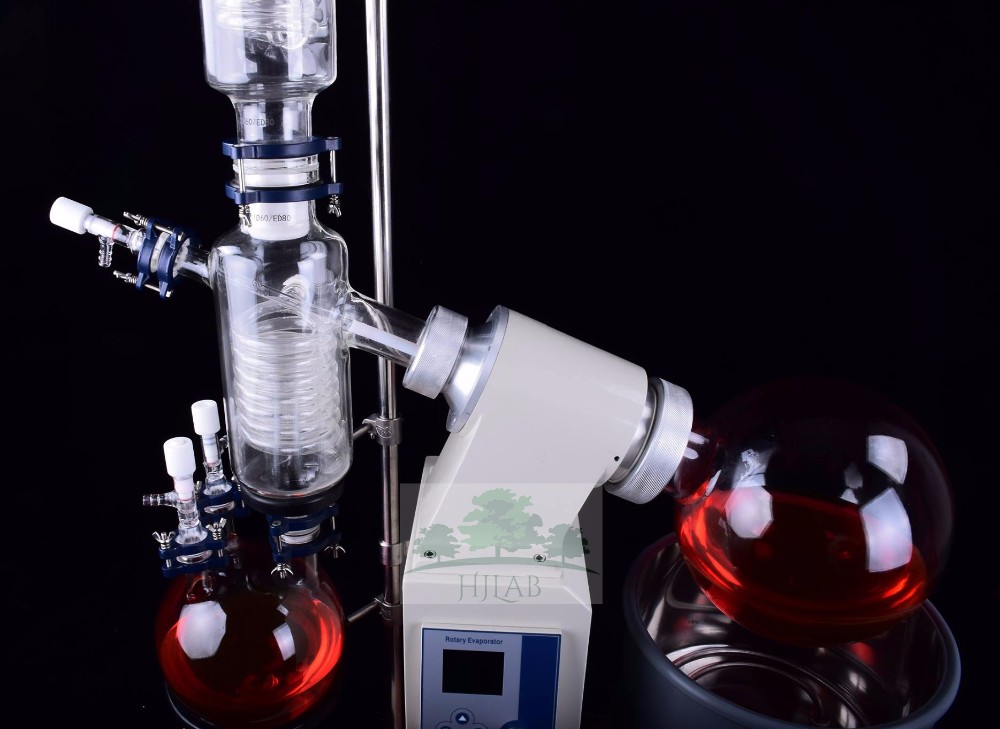

Product Detail

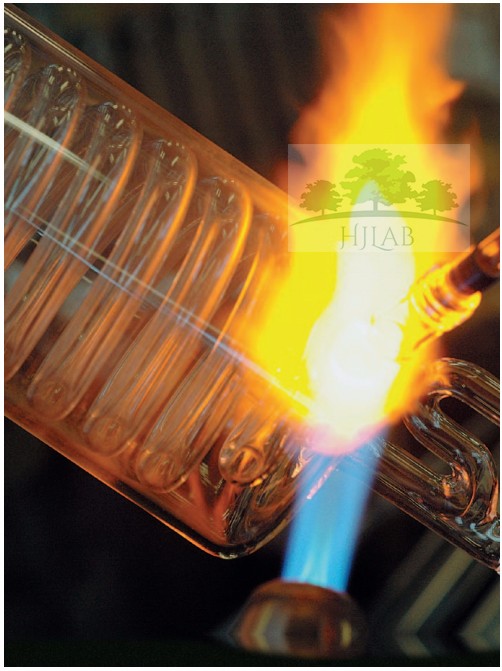

Shanghai HJLab Glass Quality Criteria
High-quality glass
Inert industrial glass(borosilicate 3.3, ISO3585), resistant to chemicals, little dulling from contact with acids and alkalis.
Generous wall thickness
Uniform thickness, also at the base, hence fewer breakages.
Resistant to temperature changes of 200°C
Heat-resistant, suitable also for oil baths, no thermal bursting
Exactly centred flanged screw couplings
No loss of vacuum, no untrue running of evaporating flasks, no splashing in the heating bath
Closed surface
No sticking of substances, no entrainment, easy cleaning
Related Products
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Quick response with detailed reasonable quotation

* Confirm price, quantity, shipment, delivery time and payment terms.

* Sample testing support.

* View our Factory with video meeting.

After-Sales Service

* 1 year complimentary warranty

* Training how to install the machine, training how to use the machine.

* Free lifetime maintenance service and 24-hours technical support

* Engineers available to service machinery overseas.

Warranty & Services
1.  Warranty period: one year from the purchase day.
2. During the warranty period, use the product in accordance with the printed instructions but encountered a problem and then we will provide free maintenance.
If the product didn't work and after the confirmation and then we'll send a new one for free.
3. Engineers available to service machinery overseas
4. Beyond the warranty period, the product problems also can be solved by our company, but charge component cost and maintenance cost properly.
5. We welcome your call our hotline or email us for consulting, maintenance and other services.
6. OEM and ODM available
7. "Good quality, Reasonable price, Punctual delivery, Sincere service" is our company's commitment to you
Packing & Delivery

1. Wooden packing

2. Fumigation certification, certification of original

3. The goods can be shipped by sea, air or train, small goods or spare parts will be shipped by express.

4. Also you can specify your own forwarder.

Our Company

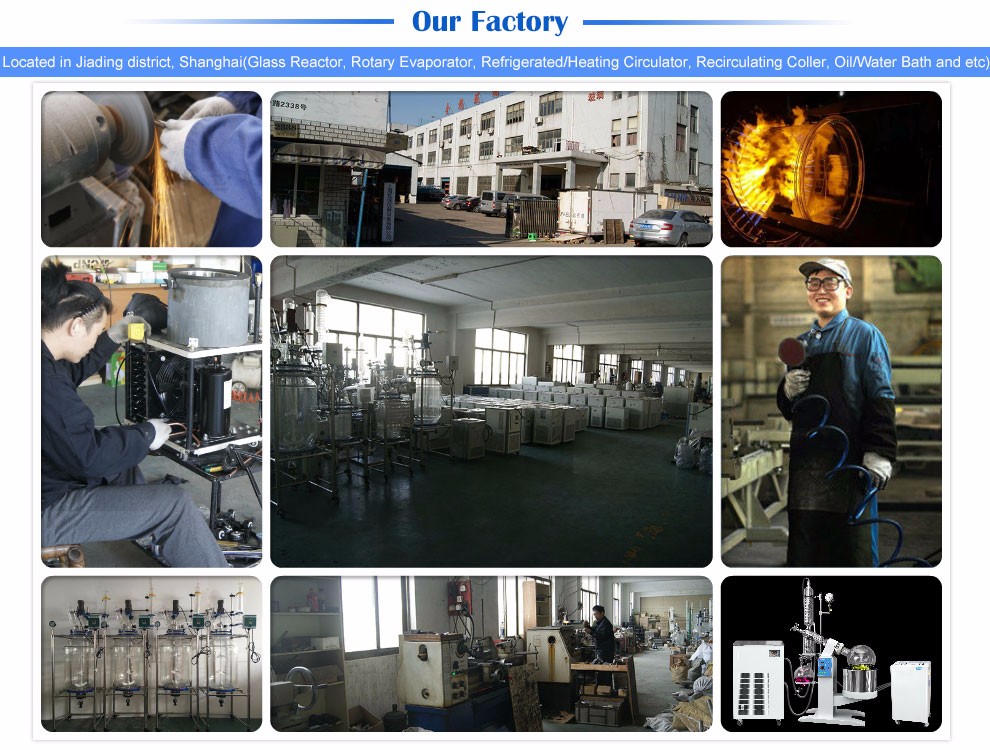

Shanghai HJLab Instruments is one professional Chinese manufacturer of lab and pilot apparatus applied in biochemical, pharmaceutical, fine chemical and research field.

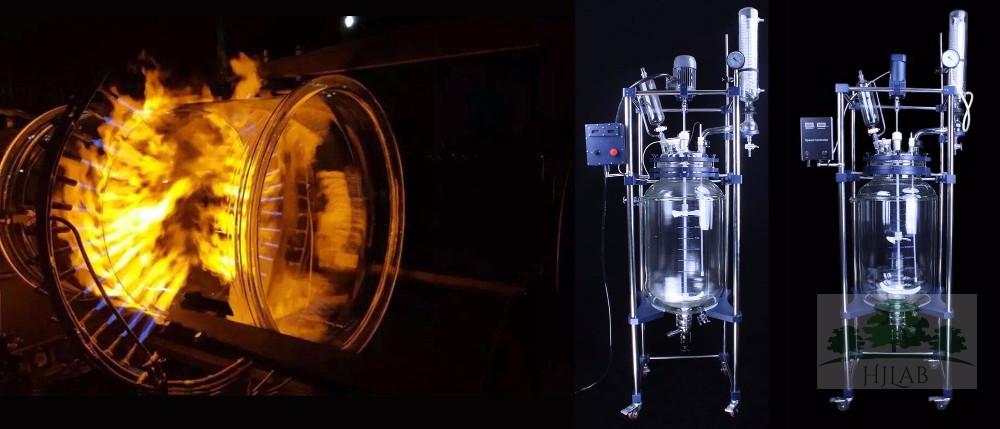

Main products are Rotary Evaporators, Glass Rectors and complementary Vacuum Pumps, Heating/Cooling Circulators, etc.


With nearly 10 years development, HJLab accumulated rich customer groups and huge amount of application experiences; Brand has won wide market recognition on reliable technology, low repair rate, sincere service and strong customization ability.


We work during out of our regular working hours (9AM to 6PM Beijing Time).

"Good quality, Reasonable price, Punctual delivery, Sincere service" is our company's commitment to you.

So Please feel free to give us a call or drop us a message, and you will be our next story of success.
