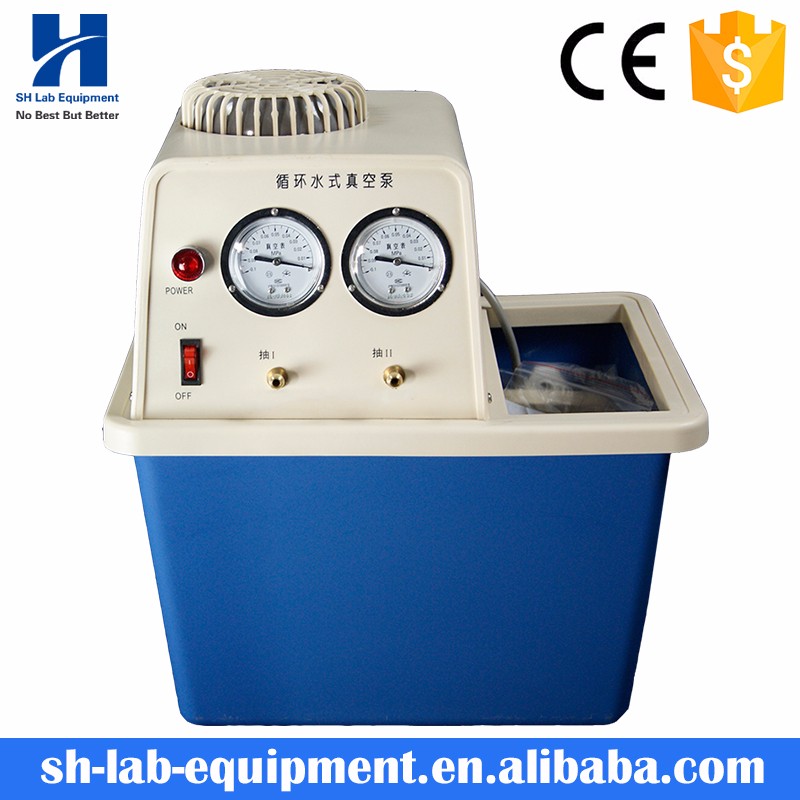

Water Circulating Vacuum Pump
The series of Multi-purpose Circulating Water Vacuum Pump using water as circulating fluid to create negative pressure by ejecting, providing vacuum condition for the processes of evaporation, distillation, crystallization, drying, sublimation, reduced pressure filtration and etc.
They are particularly designed for labs and small scale tests in universities and colleges, scientific research institutes, chemical industry, pharmacy, biochemistry, foodstuff, pesticide, agricultural engineering and biological engineering.

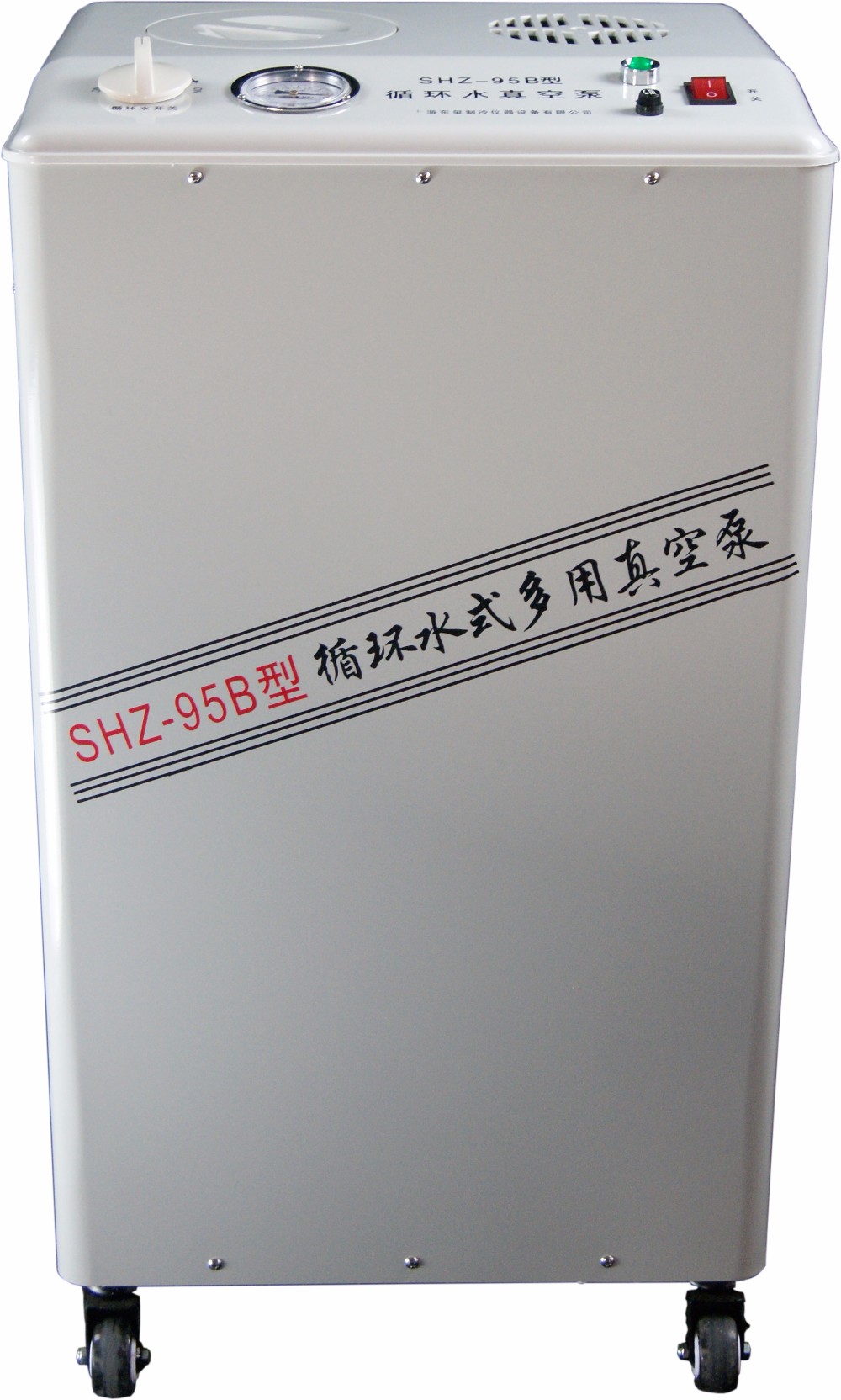

| Model | SHZ-D (III) | SHZ-95B |
| Power (W) | 180 | 370 |
| Flow (L/Min) | 60 | 80 |
| Lift (M) | 8 | 12 |
| Maximum Vacuum (Mpa) | 0.098 (20 mbar) | |
| Sucking rate for single tap (L/Min) | 10 | |
| Voltage | 220V/50Hz | |
| Tank Capacity (L) | 15 | 50 |
| Quantity of Tap | 2 | 5 |
| Dimension (mm) | 400*280*420 | 450*340*870 |
| Weight | 15 | 37 |
Main Features
1) Saving resources by recirculating water.
2) Saving more than 35% of electricity than other types of vacuum pump.
3) Specially designed fluid muffler can improve vacuum level by reducing the gas in water, keeping it quiet running by reducing the friction between gas and water
4) Double-head, double-gauge, which can be used alone or in parallel.
5) Resistant to acid, alkali and solvents.
6) Viton gasket sealing, avoiding invasion of corrosive gas.
7) Replacing water more regularly when it is used to pumping corrosive gas.

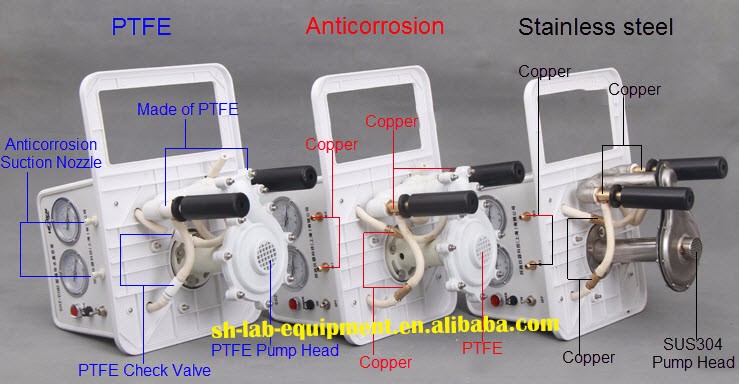

8) Tank, reservoir, ejector, tee junction, check valve and suction nozzle are all made of PP material.
9) The body of pump and impeller are made of stainless steel 304 (Optional).

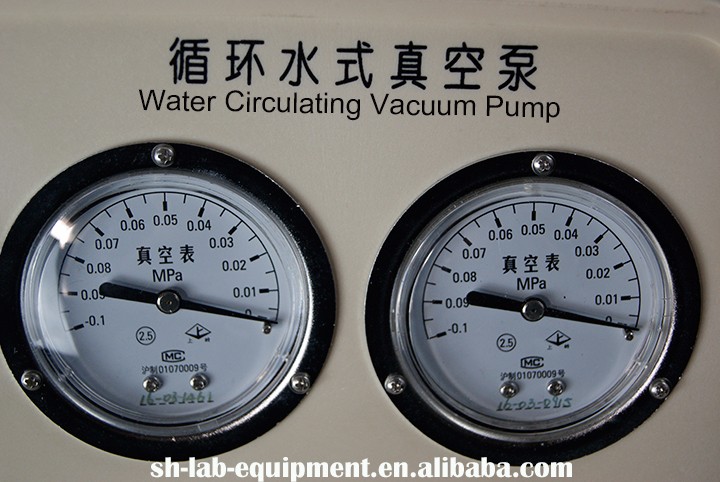

Double Gauge
Motor Protection Cover

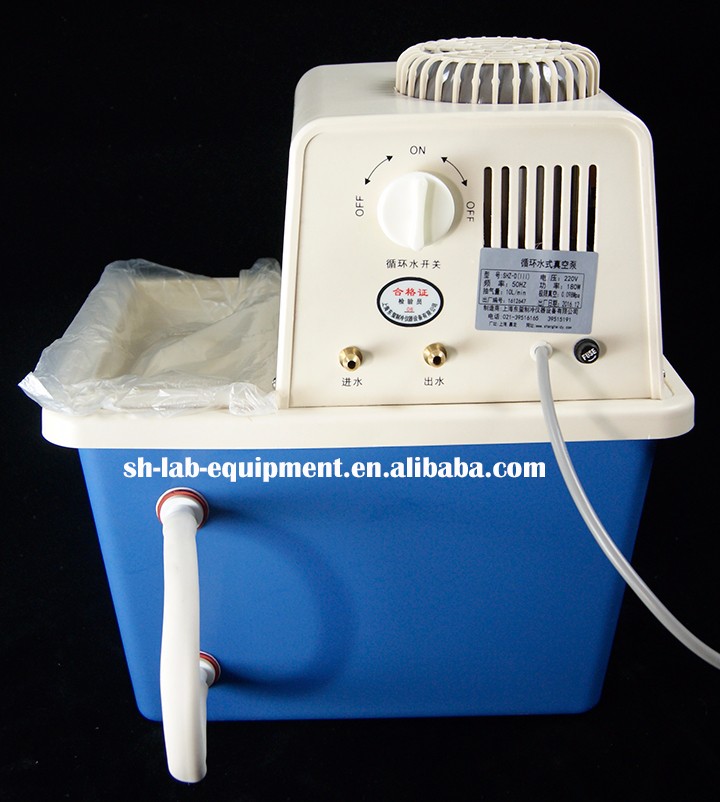

Vacuum Pump Power switch

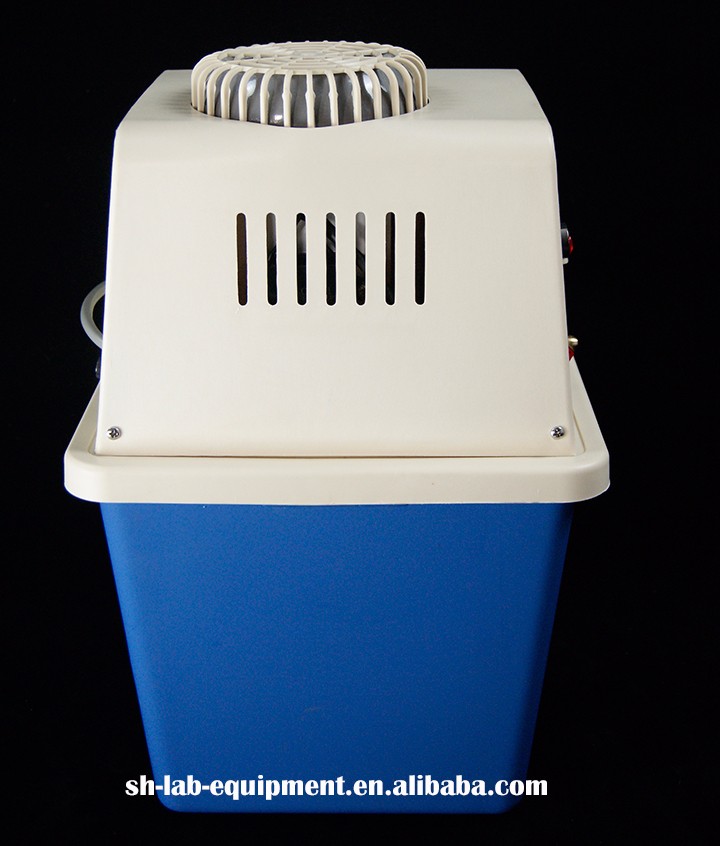

Vacuum Pump Back Side
Pre-Sales Service
* Inquiry and consulting support.
* Quick response with detailed reasonable quotation
* Confirm price, quantity, shipment, delivery time and payment terms.
* Sample testing support.
* View our Factory with video meeting.
After-Sales Service
* 1 year complimentary warranty
* Training how to install the machine, training how to use the machine.
* Free lifetime maintenance service and 24-hours technical support
* Engineers available to service machinery overseas.
1. Wooden packing
2. Fumigation certification, certification of original
3. The goods can be shipped by sea, air or train, small goods or spare parts will be shipped by express.
4. Also you can specify your own forwarder.
HUJIA Instruments is one professional Chinese manufacturer of lab and pilot apparatus applied in biochemical, pharmaceutical, fine chemical and research field.

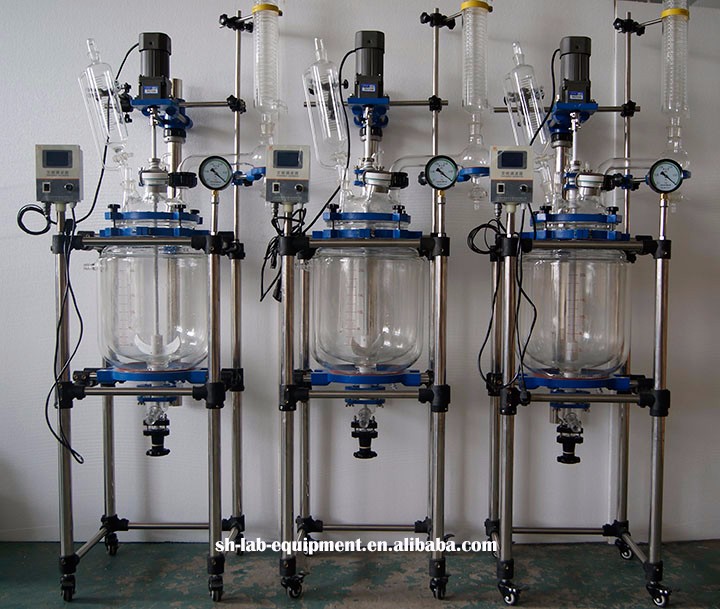

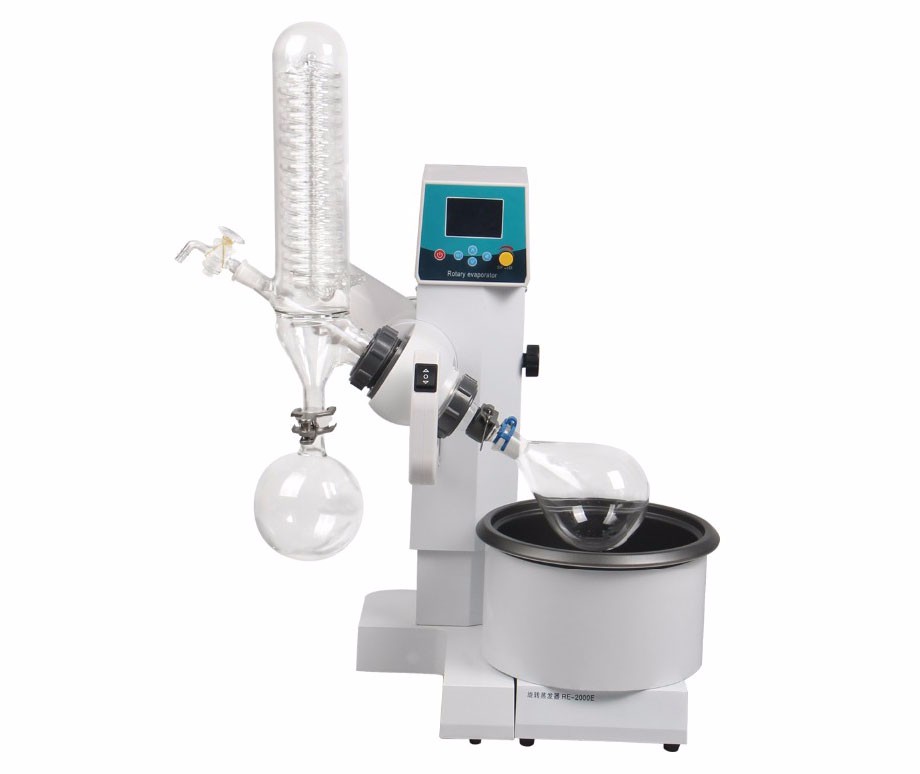

Main products are Rotary Evaporators, Glass Rectors and complementary Vacuum Pumps, Heating/Cooling Circulators, etc.
