3L Benchtop Lab Distiller Rotary Vacuum Thin Film Evaporator, University rotavapor for distillation

Rotary Evaporator is the use of vacuum pressure, constant temperature heating conditions, using the rotating bottle constant speed rotation, the formation of large area thin film, high evaporation equipment installations.

Technical Feature

  • New
  • Distillation, School, Hosipital, Lab, Research Institution
  • Electric
  • Vacuum Distillation
  • Shaanxi, China (Mainland)
  • TEFIC
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~896

PRIMARY PARAMETERS

Condition
New
Application
Distillation, School, Hosipital, Lab, Research Institution
Power Source
Electric
Process
Vacuum Distillation
Place of Origin
Shaanxi, China (Mainland)
Brand Name
TEFIC
Model Number
RE-5203A
Voltage
220V
Power(W)
1.5kw
Dimension(L*W*H)
580*460*800mm
Weight
35kg
Certification
CE ISO
Warranty
12 Months
After-sales Service Provided
Engineers available to service machinery overseas
Material
Teflon composite bath
Temp Range (Degree C)
RT~90u00b11u2103(Water Bath)
Condenser
Vertical Type, Double Serpentine Tube
Rotating Bottle Capacity (L
3L
Collect Bottles (L)
1L or 2L
Purpose
Concentration ,Distillation
Down Mode
motor lifting, 0~150mm
Bath Power (kw)
1.5KW
Max Evaporating Speed (H2O)
1.5L/H

DETAIL DESCRIPTION

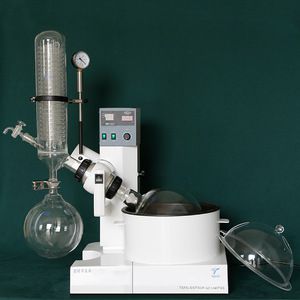

RE series 3L Rotary Evaporator





Description of RE series 3L Rotary Evaporator

   Rotary Evaporator is the use of vacuum pressure, constant temperature heating conditions, using the rotating bottle constant speed rotation, the formation of large area thin film, high evaporation equipment installations.

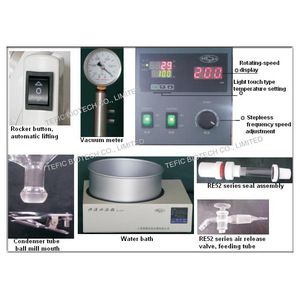

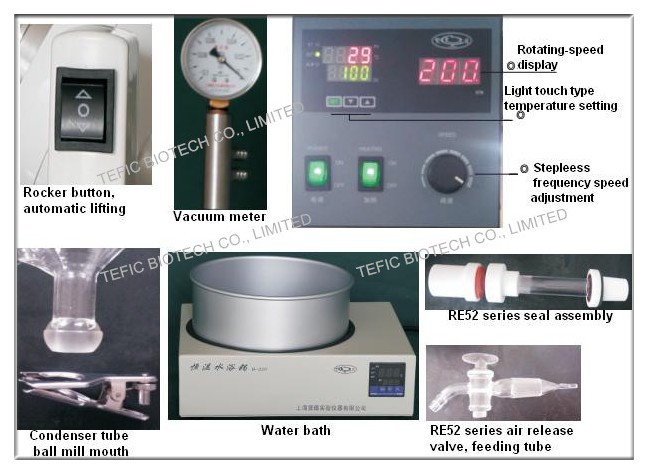

Features of RE series 3L Rotary Evaporator

1. Built-in vacuum controller, High vacuum performance
2.  PTFE sealing
3.  Automatically adjust the ascending or descending of rotary flask
4.  Digital display and control
5. Easy assembling design: to be assembled within 30 minutes.
6. Double layer cooling coils for improved condenser performance.
7.  High quality borosilicate glass 3.3 with excellent physical and chemical properties
8.  Cost-saving modular design and can be customized by clients’ requirements







Technical parameters of RE series bench top rotary evaporator



 RT-180℃ Oil bath it optional

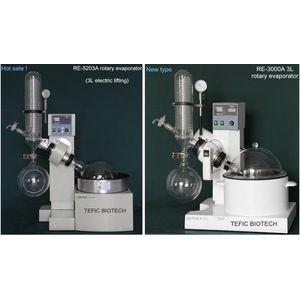

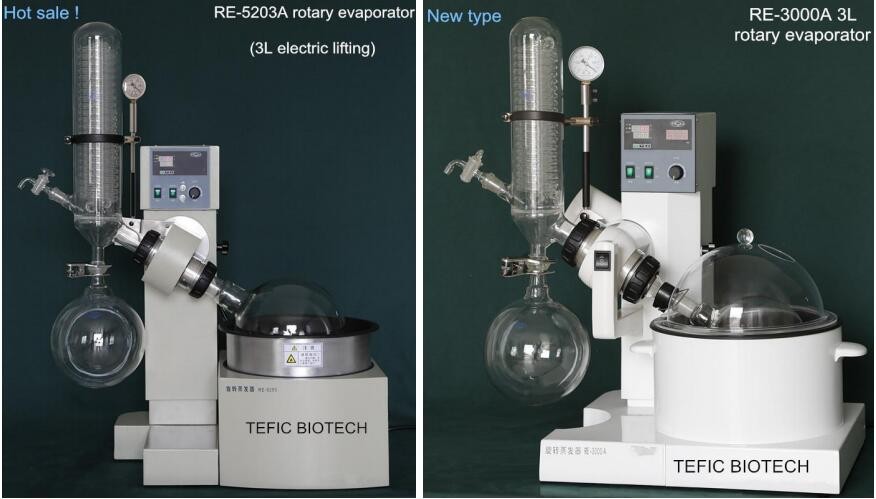

Rotary Evaporator sets







 Rotary Evaporator parts&accessories



























 FAQ

1. What's the max temperature?
Temp range:RT-180 degree centigrade oil bath

Temp range:RT-99 degree centigrade water bath



2. What's the size do you have?
We can offer you 0.25L,0.5L, 1L,2L,3L, 5L, 10L, 20L, 50L.


3. What can do with the rotary evaporator?
Mainly Vacuum distillation

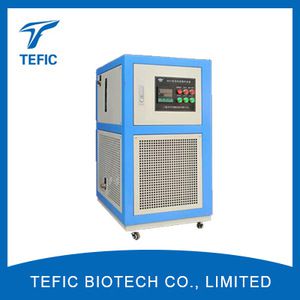

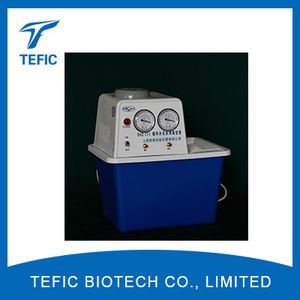

4. Can you offer the supporting facilities?
Yes, we can offer you the vacuum pump, heating and cooling system as you demand.
