2L Labratory Spray Dryer
Introduction of 2L Labratory Spray Dryer:
Laboratory table top spray dryer is the latest type of Tefic which adopts advanced international technology and spare parts.
Tefic Laboratory Spray Dryer assembles many of new design, for example, small size for free moving, combining air compressor and electrical heater inside the cabinet, glass spray and cyclone separator for inspecting. All the data and functions are controlled by PLC.
Technical parameters of 2L Labratory Spray Dryer:
| mondel | TF-S2L |
| Max capacity | 1500-2000ml/h |
| Temperature range of Inlet air | 40°C -300°C |
| Temperature range of outlet air | 40°C -140°C |
| Precision of temperature | ± 1 °C |
| Dryer time | 1.0-1.5 S |
| Speed of squirt pump | 50-2000ml/h |

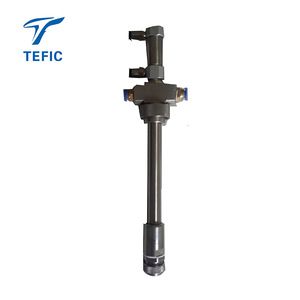

| Spray system | Two- fluid nozzle (0.75/1.0/1.5/2.0/2.5mm) |
| Spray direction | downwards co-current |
| Heater power | 3KW 220V |
| Total power | 10KW 380V |
| Heat source | Electric |
| Air compressor | Built-in oil-free air compressor |
| Dried powder restoring rate | ≥95% |
| Net weight | 140kg |
| Overall dimension | 940*850*1500mm |
2L Labratory Spray Dryer Features:
a. Easy operation
b. LCD touch screen
c. Min.50ml Max. 2000ml/h

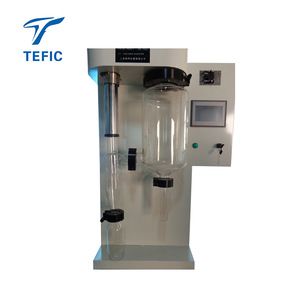

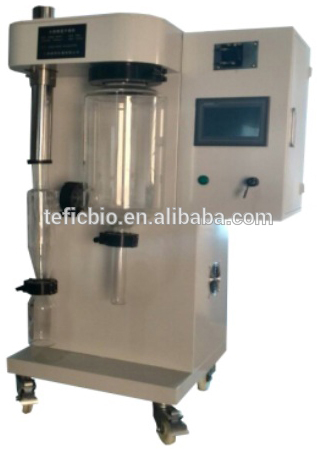

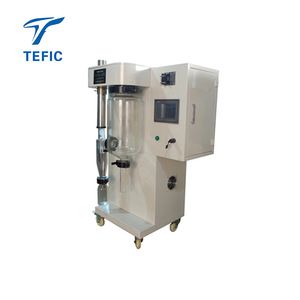

TEFIC mini spray dryer actual pictures
