Application

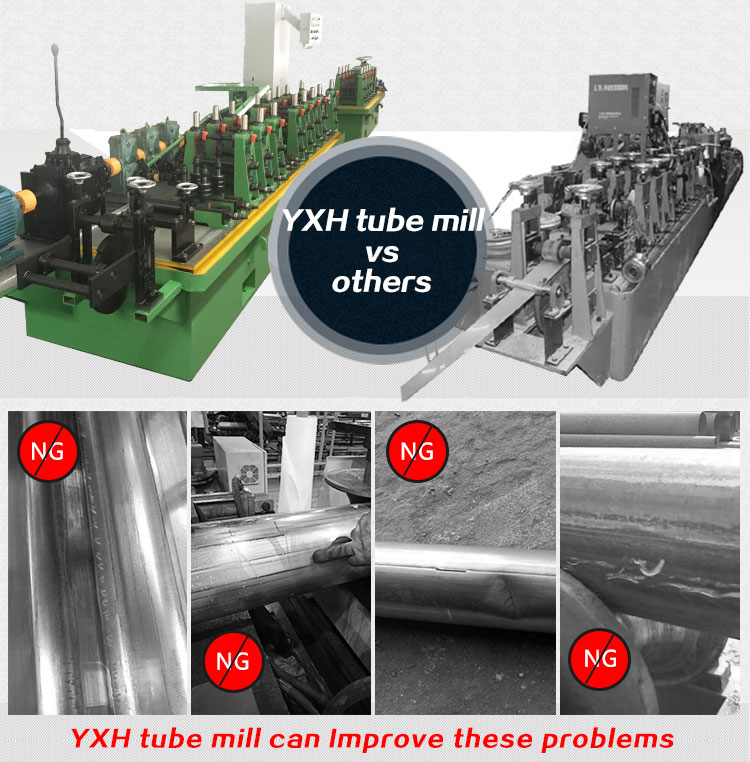

Advantages

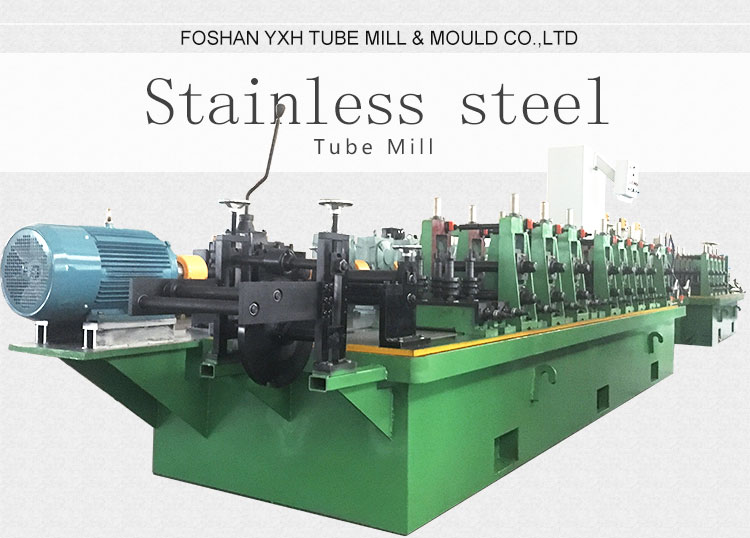

Product Description
| Brand: | YXH | Product: | stainless steel pipe making machine |
| Colour: | White/Green/Blue | Voltage: | 220/380/415/440V |
| Useful time: | More than 10 years | Warranty Time: | 1 year |
| After-Sales Service Provide: | Engineers available to service machinery overseas | ||
| Usage: | Mainly to produces stainless steel pipes used for industrial area,such as air conditioner,auto exhaust,sanitary pipe appliance,sending liquid (oil,milk,beer) etc. |
Parameter
| Type | Horizontal Shaft Dia(mm) | Vertical Shaft Dia(mm) | Material | Pipe Diameter(mm) | Pipe Thickness(mm) | Capacity (m/min) | Major Power (KW) | Installation Size (L*W)(m) |
| ZG30 | 30 | 25 | ss,cs,etc | 6-25.4 | 0.2-0.8 | 1-20m/min | 4KW | 19.5×1.0 |
| S-ZG40 | 40 | 25 | ss,cs,etc | 6-31.8 | 0.2-1.0 | 1-20m/min | 5.5KW | 20.0×1.0 |
| ZG40 | 40 | 25 | ss,cs,etc | 8-50.8 | 0.2-1.5 | 1-15m/min | 7.5KW | 21.5×1.1 |
| B-ZG40 | 40 | 25 | ss,cs,etc | 8-63.5 | 0.3-2.0 | 1-10m/min | 11KW | 21.5×1.1 |
| ZG50 | 50 | 30 | ss,cs,etc | 19.05-76.2 | 0.4-2.5 | 1-7m/min | 15KW | 24.0×1.2 |
| ZG60 | 60 | 40 | ss,cs,etc | 38.1-114 | 0.5-3.0 | 1-5m/min | 15KW | 26.0×1.4 |
| ZG80 | 80 | 50 | ss,cs,etc | 76.2-168 | 1.0-4.0 | 1-3m/min | 22KW | 38×2.2 |
| ZG100 | 100 | 60 | ss,cs,etc | 159-325 | 1.0-6.0 | 1-3m/min | 30KW | 56×2.3 |

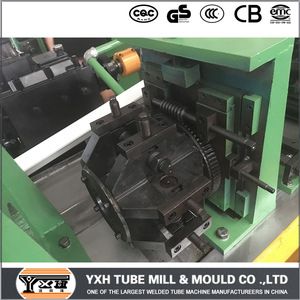

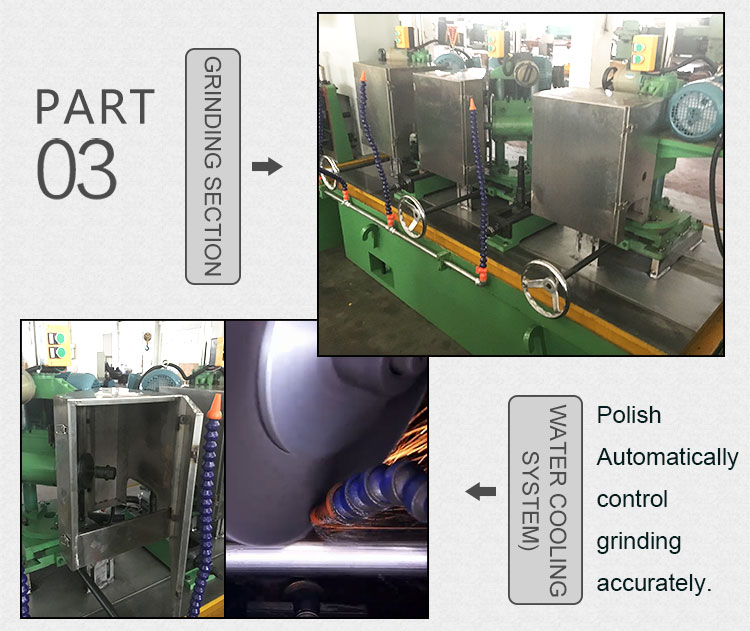

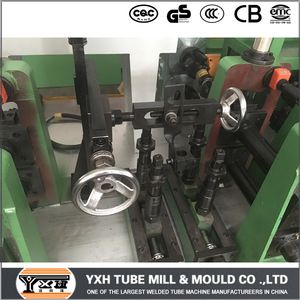

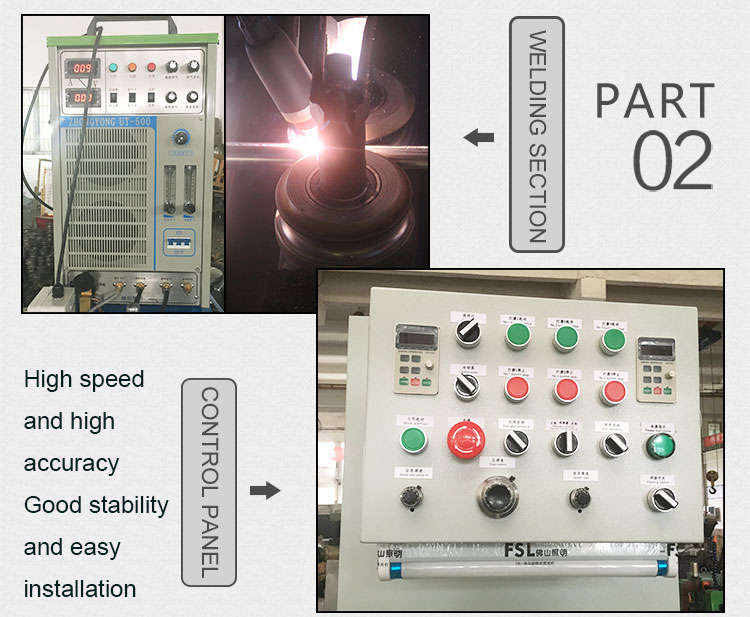

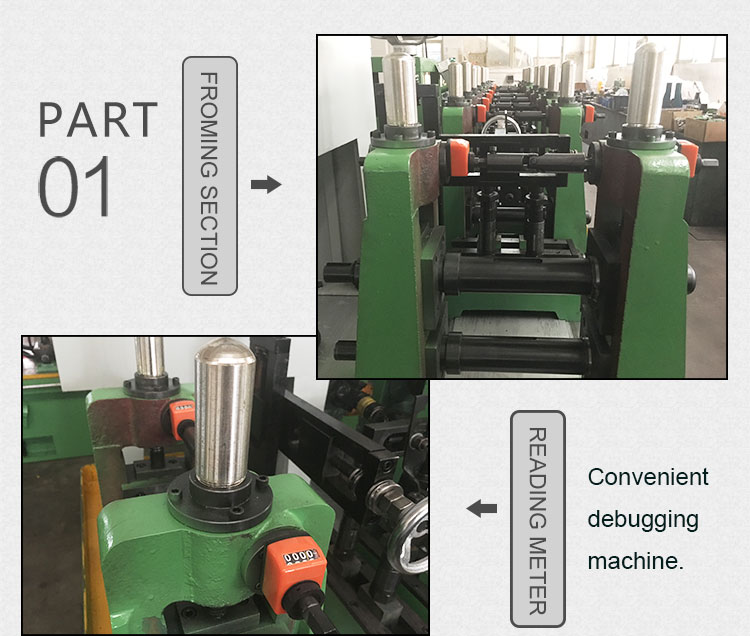

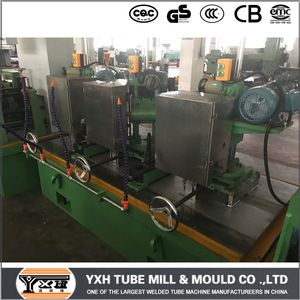

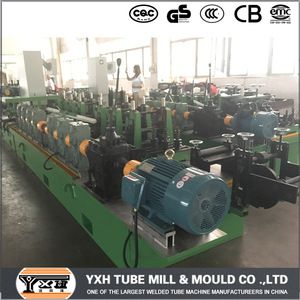

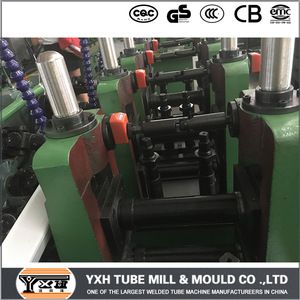

Details

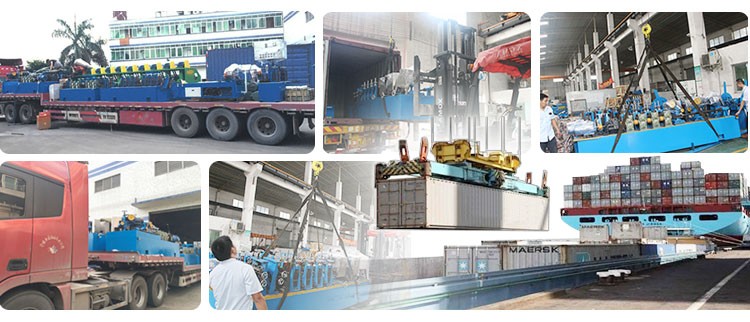

Packaging & Shipping
- We use steel wire and wooden frame to fix the tube making machine;
- In addition, used shockproof film to protect the main motors.
- We use the container to deliver goods to our customer. Generally speaking, we start at FOSHAN port, but we also can start at other port according to customer's need.
