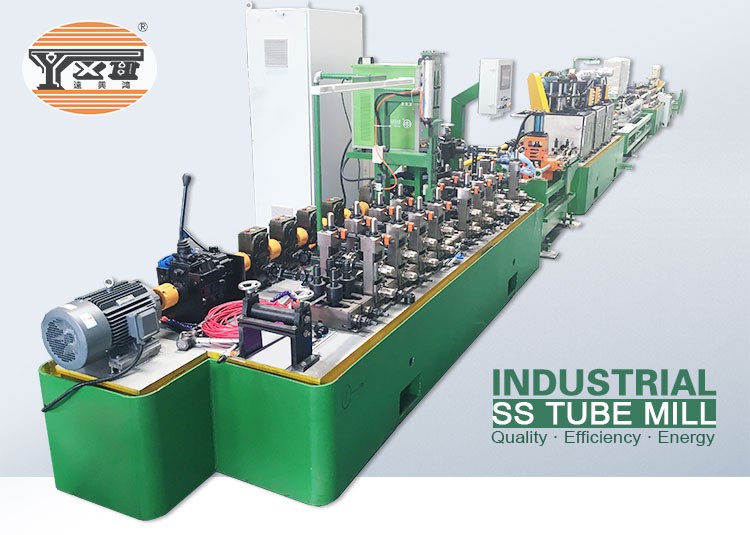

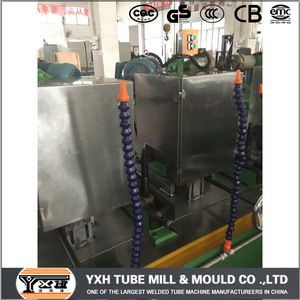

Welding Line for the Production of Stainless Steel Pipes

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Condition

New

Type

Pipe Welding Machine

Pipe Material

Stainless Steel

Application

Industry

Production Capacity

1-3m/min

Place of Origin

Guangdong, China (Mainland)

Brand Name

YXH

Model Number

GG40

Voltage

220/380/415/420/440V

Power(W)

11KW rear 7.5 KW

Dimension(L*W*H)

about35x1.8x1.7m

Weight

9.5T

Certification

ISO9001

Warranty

1 Year

After-sales Service Provided

Engineers available to service machinery overseas

Keyword

Steel Pipe Production Line

Pipe diameter

12.7-50.8 mm

Pipe Wall Thickness

0.3-2.5 mm

Pipe shape

Round, square ,rectangle, etc.

Useful life

More than 10years

Usage

Industrial Areas

Color

The color at the design

Market

The global world

Pre-sell service

Workshop and production output design

After-sell service

Installation, training, skilled engineer for working

DETAIL DESCRIPTION

Product Description

Brand:	YXH	Product:	stainless steel pipe making machine
Colour:	White/Green/Blue	Voltage:	220/380/415/440V
Useful time:	More than 10 years	Warranty Time:	1 year
After-Sales Service Provide:	Engineers available to service machinery overseas

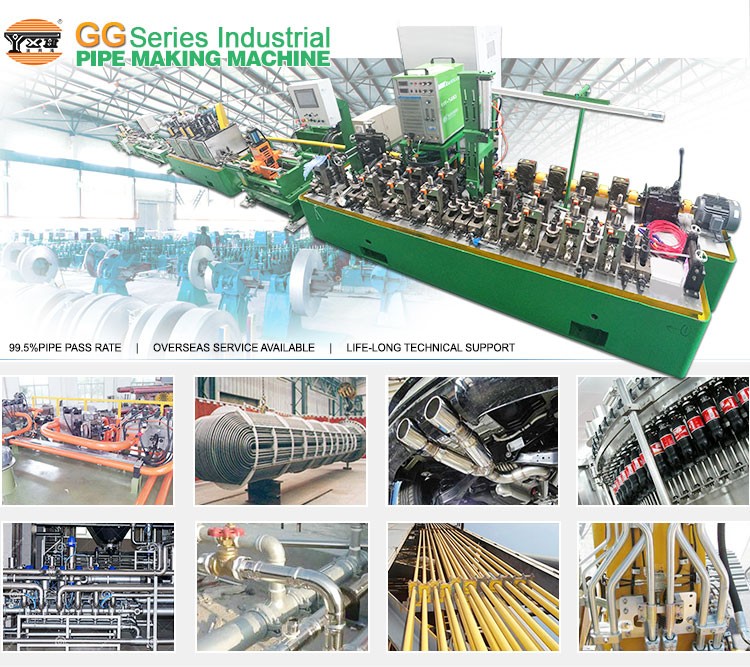

Usage:	Mainly to produces stainless steel pipes used for industrial area,such as air conditioner,auto exhaust,sanitary pipe appliance,sending liquid (oil,milk,beer) etc.

Parameter

Technical date	GG40	GG50	GG60	GG80	GG100	GG120
Pipe Dia.(mm)	12.7-50.8	25.4-76.2	38.1-114	50.8-168	133-273	159-325
Wall thickness(mm)	0.3-2.5	0.5-3.5	0.5-4.5	1.0-5.5	1.5-8.0	2.0-10
Major motor(KW)	2 motors driven front 11 kw rear 7.5kw	2 motors driven front 15 kw rear 11kw	2 motors driven front 18.5 kw rear 15kw	2 motors driven front 22 kw rear 18.5kw	2 motors driven front 30 kw rear 22kw	2 motors driven front 45 kw rear 30kw
Polishing motor(KW)	3kw x 3/set	3kw x 3/set	3kw x 3/set	3kw x 3/set	4kw x 4/set	4kw x 4/set
Note	we accept orders with client's designs.

Details

1.un-coiler
2.Strip Jointer (optional)
3.Horizontal Accumulater (optional)

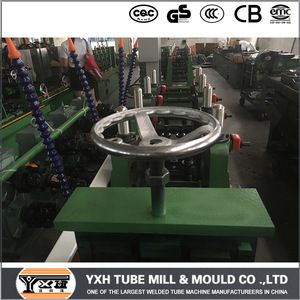

4.Strip guide + Strip leveler

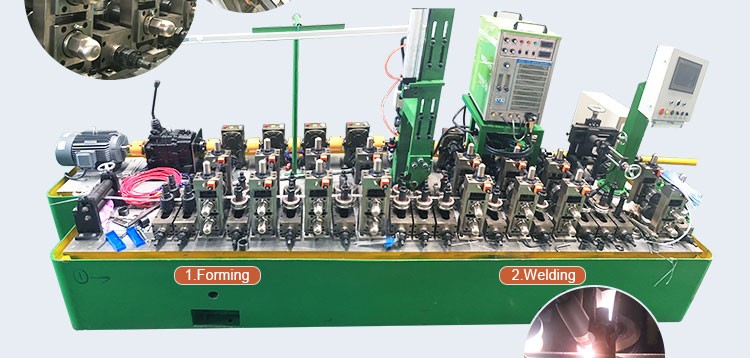

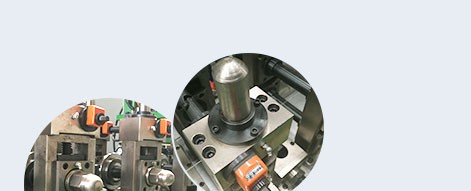

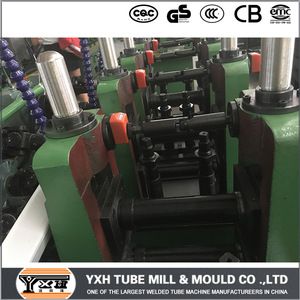

5.Forming Section Industrial: break down 4 + by-pass 3 + Fin pass 4

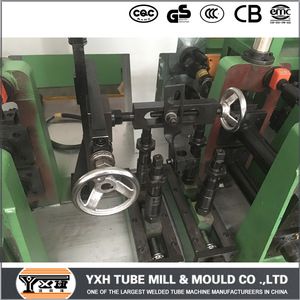

6.Welding Section (Squeezing Roll set 3) + anti-twister(Welder: Tig/Plasma+Tig/Tig+ Plasma+Tig, according to required working thickness & speed)

7.ECT (optional)

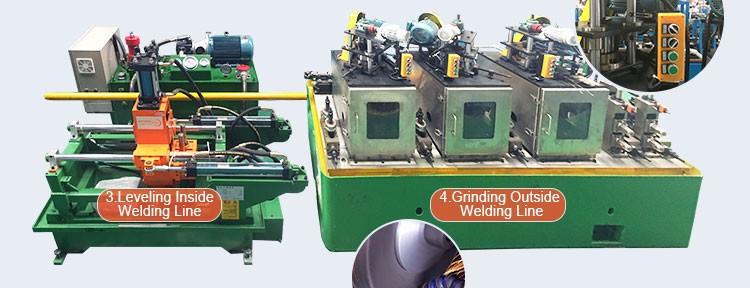

8.Seam polisher 3~4 units

9.Inside bead rolling (min. OD 16mm max. speed 6m/min)

10.1st sizing 2 (for decorative only one section 3~4 units required)

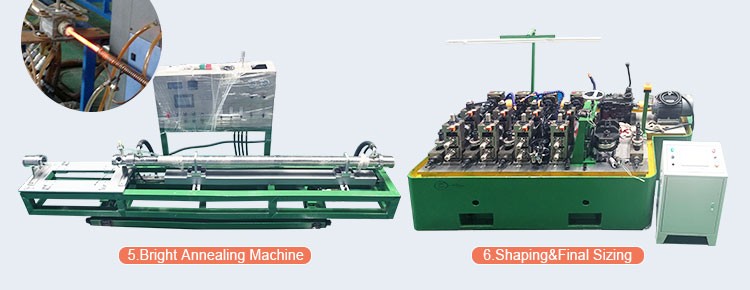

11.Bright Annealing + Anti-twister (optional)

12.2nd sizing (3~4)

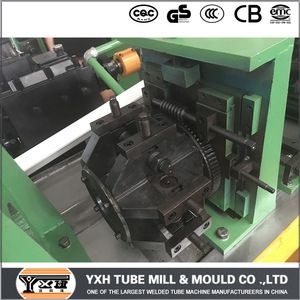

13.Turk-Head (1 unit for round, 2~3 units for square)

14.ECT (eddy current tester)

15.OD check (optional)

Advantages

Application

Industrial steel pipe/tube welding machine Applicable:

To suit for Industrial pipes: All units are applicable for the description stated above.At ASTM standard:

A312: Mechanical pipes
A249: Heat-exchanger & Condensor …… etc.
A269: Boiler piping ……..etc.
A270: Sanitary application.

Our Services

Packaging & Shipping

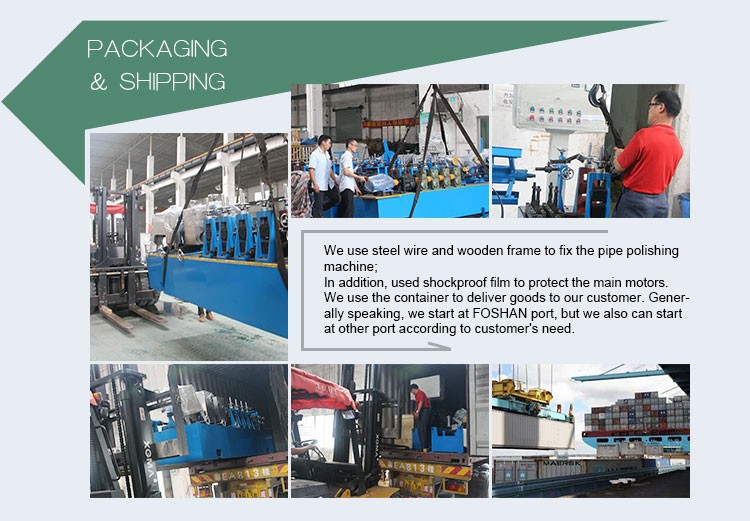

We use steel wire and wooden frame to fix the Pipe production line;
In addition, used shockproof film to protect the main motors.
We use the container to deliver goods to our customer. Generally speaking, we start at FOSHAN port, but we also can start at other port according to customer's need.
