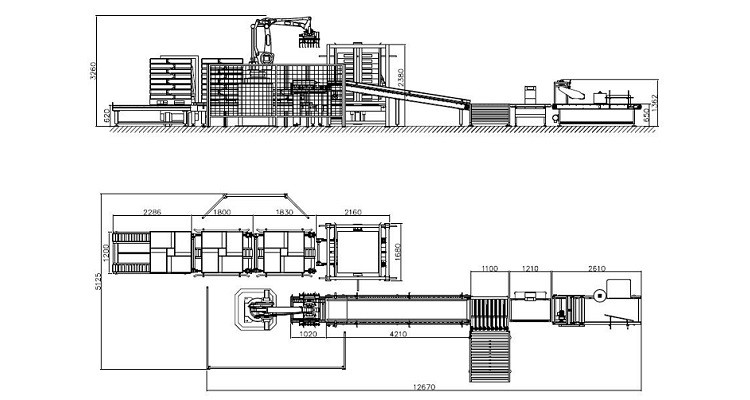

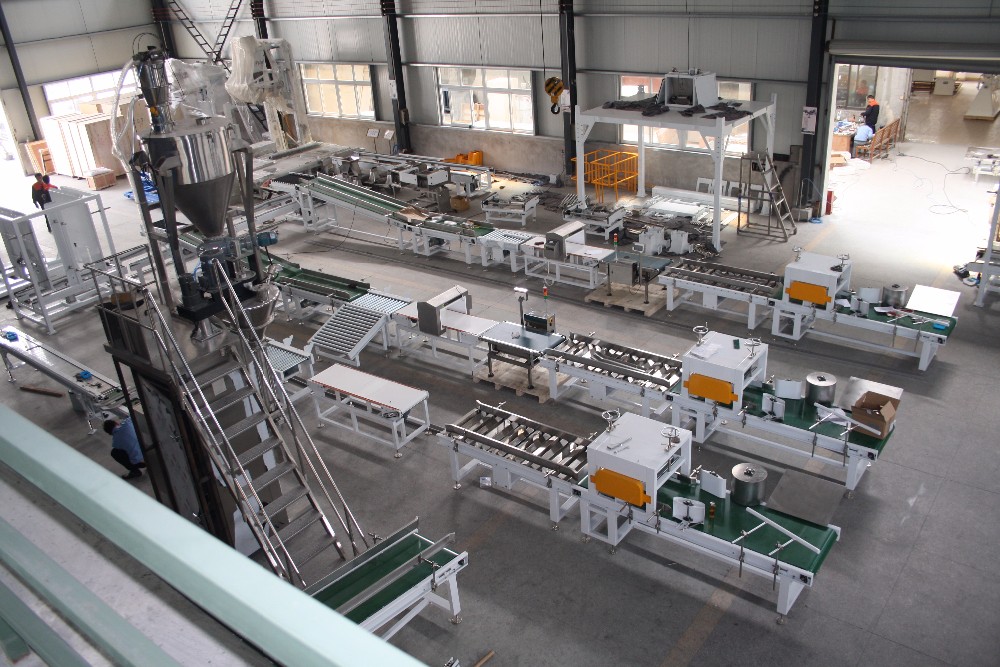

Automatic urea packing system from packing to palletizer
Palletizer(or palletiser) is the equipment which can automatically stack the bags, cartons or other packaging materials transported by the conveyor according to the working way of the customers' requirements, and transport the materials to be stacked. Automatic stacking, stacking multi-layer, and then push out facilitate for forklifts transport to the warehouse.
The device uses PLC + touch screen control, intelligent operation and management, simple and easy to master. Can greatly reduce labor and reduce labor intensity.

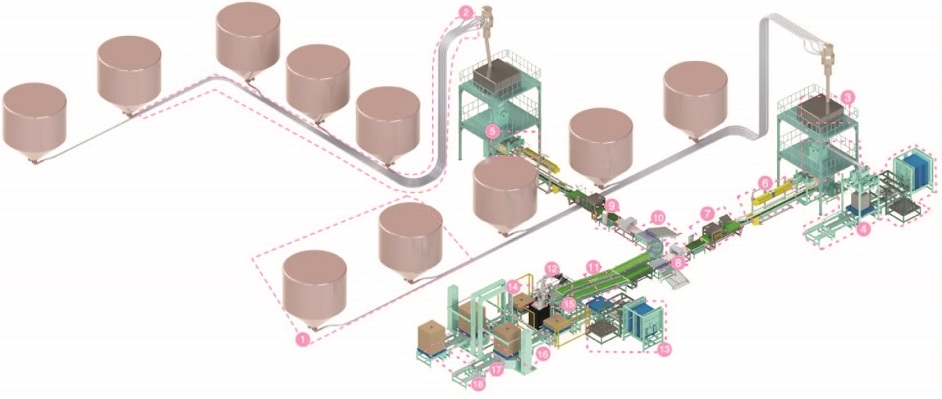

| Name Of Equipment | |||||||||||
| 1 | storage bin | 4 | weighing scale | 7 | turn bag shaped machine | 10 | rejecting machine | 13 | pallet dispenser | 16 | wrapping machine |
| 2 | peneumatic conveying | 5 | bag filling machine | 8 | metal detector | 11 | inclined belt conveyor | 14 | palletizer conveyor | 17 | output conveyor |
| 3 | storage hopper | 6 | sealing & sewing machine | 9 | check weigher | 12 | robot palletizer | 15 | bag pick-up conveyor | 18 | buffering conveyor |
Product samples :
Details:

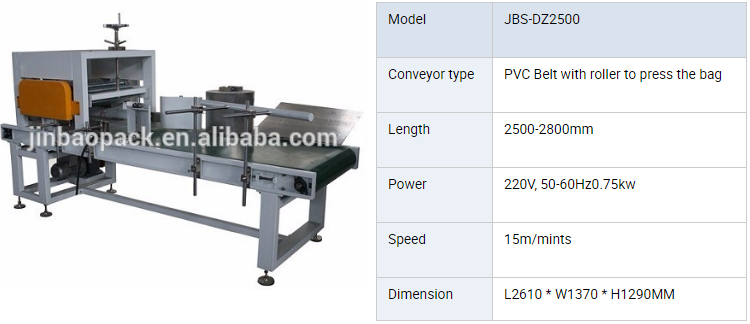

A. JBS-DZ2500 turn bag shaped conveyor
This belt conveyor make the bag turn down and shapped the bag to the next work position. It will be necessary and easy for robot to pick up.
B. Metal detector

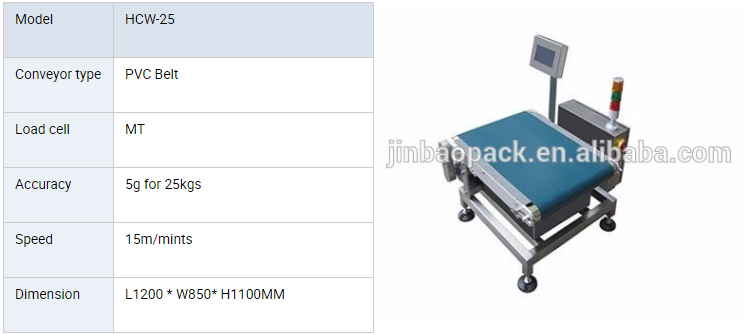

C. HCW-25 weight check scale
The maximum checking weight for this check scale can load 150kgs. It is used for checking the bag weight in case there is something wrong in the filling work position. It can guarantee the qualification rate of factory products.

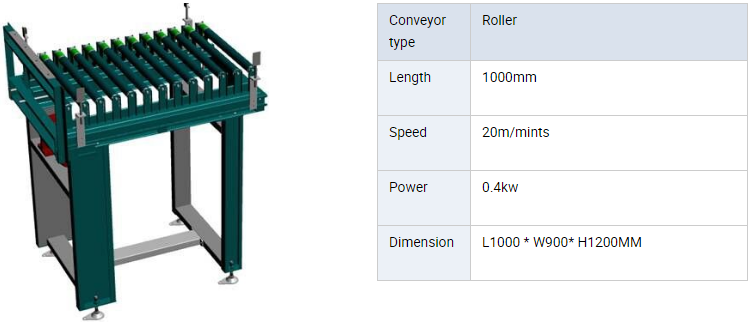

D. Rejecting machine
* It can accept the disqualification signal from metal detector and check scale.
* Qualification bag can be sent to next position by roller conveyor.
* Disqualification bag will be sent to the left or right no power roller conveyor.

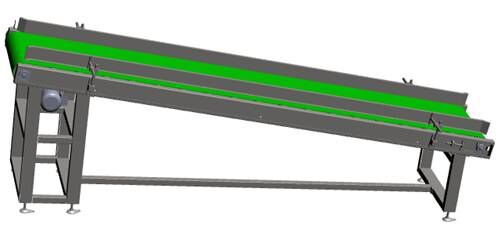

E. JBS-P4200 Incline buffering conveyor

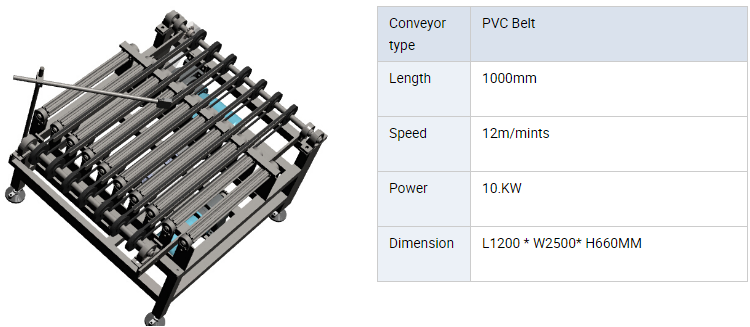

F. JBS-Z1000 robot pick up conveyor

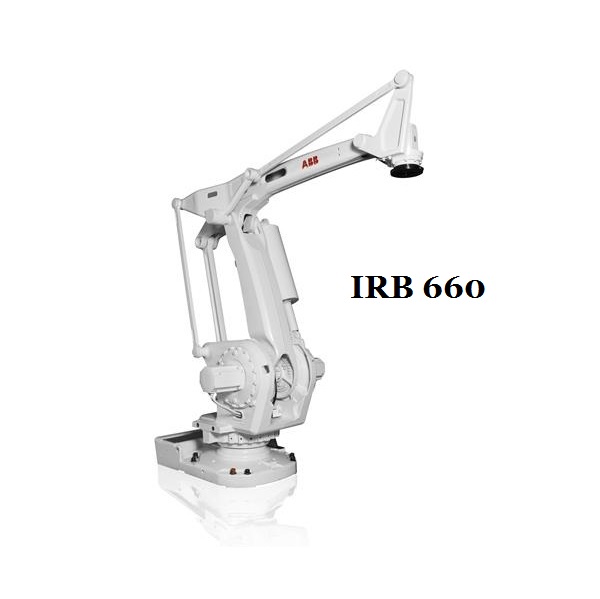

G. ABB Robot
We cooperated with ABB robot company aim to provide you the best quality robot to use in your factory.and we are responsible for after sale service.
That is why we can provide you the turkey solution .
| Robot type | Gripper |
| Drive | pneumatically |
| Load | 1100kg |
| Power | 0.4kw |
| Dimension | L1000 * W900* H1200MM |
| Repetitive position precision | 0.2mm |
| Level of protection | IP67 |
| Working radius | 2.4m |
| Temperature | 0-45℃ |
| Tempos | 2190time/hour |

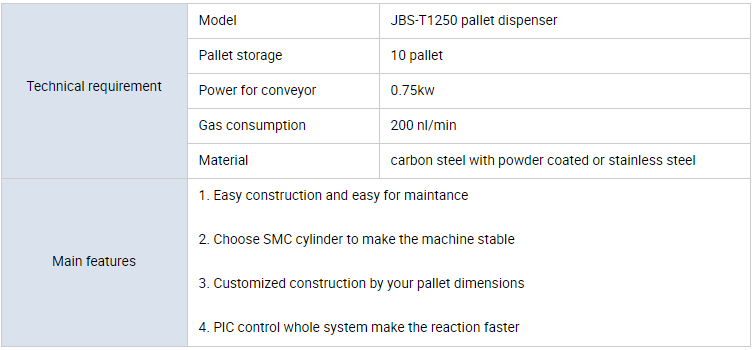

H. Pallet dispenser
* There is a lifting construction below the pallet. There are 10 pallet can be put on this machine.And there is a conveyor beside for transporting to the next working position.
* The whole system finish the action for pallet storage, dispenser and conveyor .
Packaging:
Machine packing inside is plastic films and outside is fumigation wooden case.
Our wooden case is very strong,it can bear long time shipping on the sea.
And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine corrosion.
Shipping:
Upon receipt of payment , delivery date will be in 3-15days
By Air, by Sea or by Express (DHL etc)
Shipment cost will depend on the destination, shipment way,size and the weight of the goods.
Warranty period & After service
Life-time warranty.
Any problem caused by our party within one year from the date of shipment, we will provide free spare parts for the repairment.
After one year, we can provide the spare parts, but the user should pay for the related cost, including cost of the spare parts, delivery cost etc.
Shanghai Jinbao Packaging Machinery Co., Ltd specializes in the production and sale of packaging machine, packaging and palletizing line, big bag automatic weighing packaging production line, particle packing machine, powder packing machine, automatic mixing packaging production line, and material handling at the front end of the package, according to customer requirements the specific system.
Q: Are you trading company or manufacturer ?
A:We are manufacturer with trade team for international service.
Q: How long is your delivery time?
A: Normally 45 days after confirmed order. 30 days could be available in low season for some items (during May to July), and 65 days during new year and hot season (Jan to March).
Except for special cases.
Q: How do we test your machinery ?
A: When the machine complete manufactured, we will send video for check, and you also can come to our factory to test and learn how to operate it.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
