1.Product Application

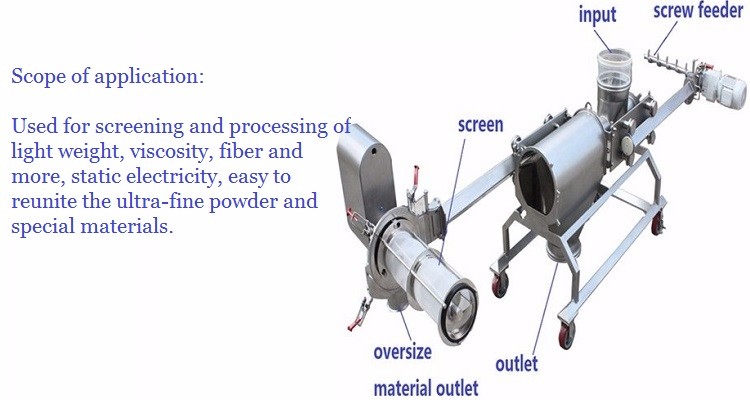

Horizontal cyclone sieve mesh is cylindrical, placed in the body.Material through the screw conveying system, mixing and atomization with air then flow into a net barrel.The material is driven by the centrifugal force and the cyclone propelling force through the wind turbine blades in the net tube, so as to force the material to be sprayed through the net and discharged from the fine material discharge port,those not pass through the net is discharged from the coarse material discharge port along the cylinder wall.

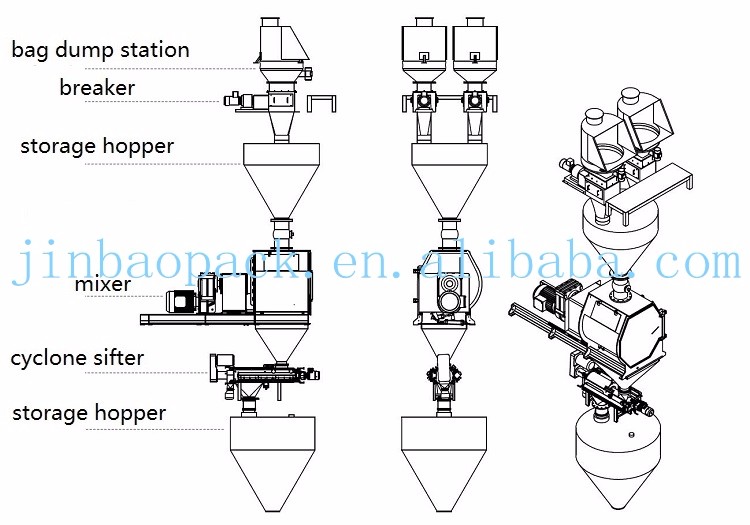

2.Application industry
| STAINLESS STEEL FLOUR SHIFTER | |
| Model | CS-200 |
| Screening output | Mesh size output 0.2mm = 0.8Ton/Hour 0.4mm = 2.2Ton/Hour 0.6mm = 4.0Ton/Hour 0.8mm = 5.5Ton/Hour ≥1.0mm = 6.0Ton/Hour |
| Feeding model | Screw / auger |
| Speed(RPM) | Screw feeding: max 120rpm Rotor : max 800rpm |
| Power(KW) | Screw feeding: 1.1kw Rotor : 1.5kw |
| Machine weight | 300kg |
| Dimension(L*W*H) | 2220*780*1170mm |
1)The design principles:safety,easy-clean,health,durable,and good-looking.
2)Innovative design with rotary erasing knife for screen basket,to smash the lumps through the screen into the outlet for fine product,to prevent the lumps together with the coarse-product discharging out to reduce the product loss.

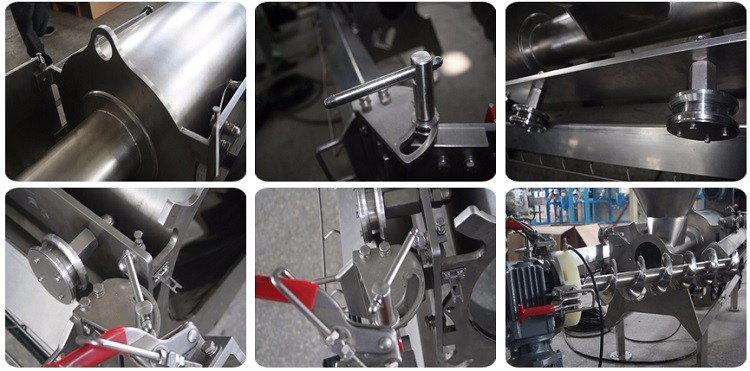

3)Specialized extraction device pull buckets allows both of the feeding screw and screen basket totally to the outside without any tools,for thorough clean and inspection,quick exchange for spare parts, and easy maintenance.
4)The screening mesh is held by simple rings,can freely vibrate,and thus clean itself.
5)The build-in baffle prevents too much fine product getting into the coarse-product outlet, to reduce the product loss.
6)Reliable safety switches are settled to ensure the higher safety performance,safety class “ISO13849-1” C class.
7)Good performance for sealing,imported seal ring specialized for powder from Germany,and also ways by gas positive pressure sealing.
8)Whole machine with SS304,waterproof motor(IP65),could be washed by water,and meet the food industry requirements.

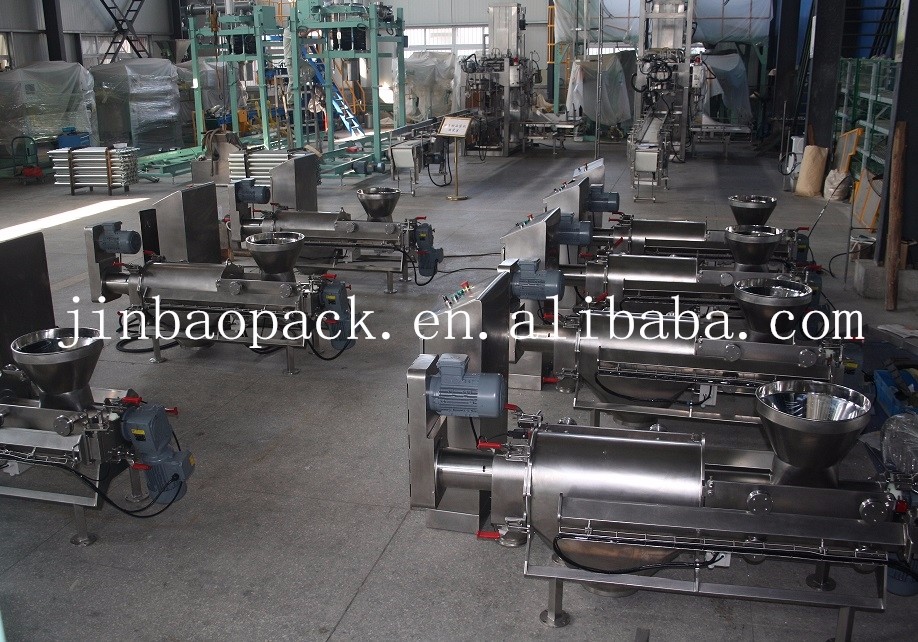

We are manufacturer
