Best price sus semi-automatic rfid card controlled access entry system tripod turnstile gate

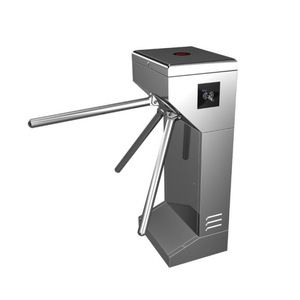

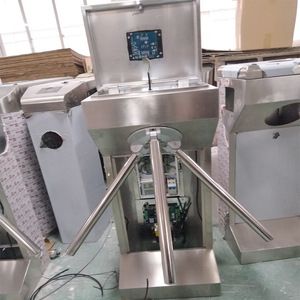

What is ROANPU Smart tripod turnstile>>>
♣The turnstile provides a basic tripod to control access smoothly and effectively by basic
operation,and also prevent illegal in and out.The machine is well in design,rustproof,durable
and can resist external destroy.
♣According to different machine centers,intelligent tripod turnstile can be divided into fully
automatic tripod turnstile and semi-automatic tripod turnstile .Their difference are fully
automatic product can finish any work by power .The arm will automatically drop when it is
powered off .And the arm will automatically go up when power is turned on again .
♣To semi-automatic product ,the arm can drop automatically when it is powered off .But
when the power is turned on ,the arm will be raised by hand.

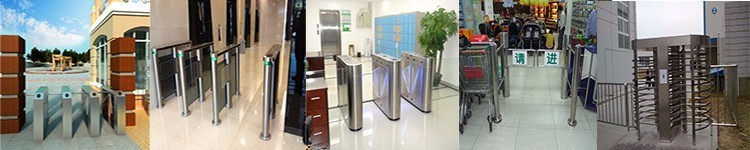

♣Application:subway station,hoverport,tourism,sports,exhibition,swimming hall,residence area,enterprise entrance and exit attendance,specical access control etc.
| Technical parameter of Smart tripod turnstile>>> | |
| framework | 304 grade stainless steel thickness |
| specification | 420*330*980mm |
| weight | 40kg |

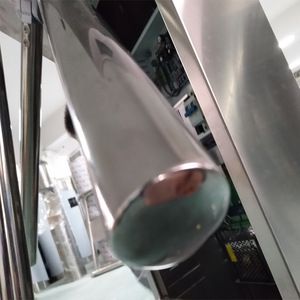

| arms length | 510mm |
| working voltage | AC220V±10%,50HZ±10% |
| logic voltage | 24V |
| interface | one standard port-RS485 |
| transit speed | 20-30 persons per minute |
| working environment | indoor /outdoor |
| working temperature | -40°c ~ 60°c |
| readable cards | IC/ID card |
| protection grade | IP54 |
| opening gate time | 1S |
| relative humidity | ≤90%,no -condensation |
| Feature & Function of ROANPU Smart tripod turnstile>>> | |

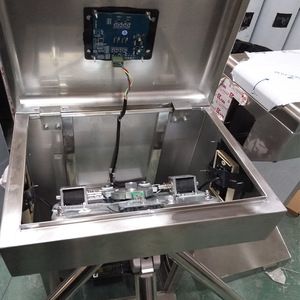

| 1.Single/double walkway--controlled in one direction or both. 2.A valid lock action can allow one passage at one time. 3.Normally open--the machine will unlock when a valid signal is received. 4.It will lock automatically if passage through turnstile is not completed within per-set time,the set time can be adjusted via parameter change. 5.Emergency configuration:the tripod will drop automatically by power off or by hand to provide a clear walkway for escape in the event of an emergency. 6.Control panel with count and LED digital function. 7.Traffic light:a red cross symbol will illuminate to indicate the unit is not available for pass,and a green arrow indicate the direction of allowable passing. |
Optional functiof ROANPU tripod turnstile>>>
| Smart tripod turnstile packing>>> | |
| Size(cm) | 105*49*42 |
| Weight(kg) | 40 |
| Packing details | The wooden box is fumigated, inner is with carton package, protect machine not damage. |
| Delivery>>> | |
| Transportation by air or by sea is support, according to customer require choose the best solution. | |
| Payment>>> | |
| T/T in advance |
Shenzhen Roanpu technologies co,.ltd ,a China leader supplier for Channel management equipment and intelligent security system solutions, is the joint of trade and industry.Mainly products:intelligent car park management system,intelligent turnstile gate management system and access control management system.
Our services>>>
♥.Trade assurance---You will get refund up to 100% Trade assurance order amount if the goods is not ship on time or don't meet the quanlity requirement.
♥.24 hours online---You will get our quotation within 24 hours.
♥.One year warranty---You will get the spare parts if any break down.
Why chose Roanpu>>>
| 1.OEM&ODM service |
| 2.Be producted via laser cutting machine |
| 3.Strong compatibility |
| 4.A wide range application |
| 5.All turnstile was made of 304 grade stainless steel |
| 6.Easy install and operation |
| 7.Fast delivery |
| 8.Professional solutions |
| 9.Wonderful team |
| 10.Popular for foreign market,reasonable price and quality |
Q:1.What’s the different between Single core and double core?
A:Flap gates: Single core only with one retractable Flap bar, Double core with two retractable flap bar on both side.
Swing gates: single core is one side with Swing bar, Double core with two swing bar on both side.
Q:2.Can we connect your access control system to the Original system?
A:Yes, we can provide SDK development or Software Data base connection port.
Q:3.Can your barrier gates using at outdoor, and can it waterproof?
A:Yes, the barrier gates with the design for waterproof.
Q:4.How we install the barrier gate? Is it easy to install the gates?
A:Yes,its easy to install the gates, we have do most of the jobs before send the gates to you. You just need use screw to fix the gates, and connect the power cable and the internet cable.
Q:5.Quality Control:
A:All of the productions must go throught a full professional test procedure before the shipment:
Any questions,please feel free to contact us⇓⇓⇓
