Security Access Control System Electric Sliding Turnstile Barrier Gate
Introduction:
Intelligent sliding gate is a well-developed, and produced intelligent channel management equipment, is the main channel for intelligent management of high-tech products, the equipment will be mechanical, electronic, microprocessor control and a variety of identification technology organic To meet the integration of a variety of identification system equipment and the use of reliable security devices, alarm devices, direction instructions, and extended friendly LED display interface to coordinate the realization of intelligent channel control and management.
Intelligent swing gate can be compatible with IC cards, ID cards, bar code cards, fingerprints and other cards is the use of other equipment for the access to personnel to provide a civilized, orderly way of passage, effective management personnel access.
Specifications:
1. Power Supply: AC220V±10V ,50Hz / AC110V±10V ,60Hz
2. Power Consumption: 100W/24V
3. Temperature: -15 to 60 degrees
4. Humidity: <95%, without concretion
5. Passage Width: 550-600mm
6. Passing Speed: 30 persons/min (normal open), 20 persons/min (normal close)
7. Arm Open/Close Time: 1s
8. Input Interface: +12V electrical signal or impulse signal with width more than 100ms, drive current >10mA
9. Communication Interface: RS485 (Distance: <=1200m)
10. Material: Housing - 304 stainless steel
Arm - Plexiglass
11. Dimension: 1200*330*990mm
Arm Length: 285mm
12. Weight: 90kgs
13. Working Environment: Indoors or outdoors with shed
14. Arm Turning: Single direction or Bi-direction
Functions and Features:
| 1. Problem-self-checking function. |
| 2. Many options of working ways: bi-direction card reading; one direction card reading and another no reading; one direction card reading and another freely. And single direction photocell controlled passing and close. Working ways can be set in the control panel. |
| 3. When power off, arm open automatically and power on again, arm will be held automatically. |
| 4. When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the control panel. |
| 5. Auto-reposition function: After card read, passenger not pass within regulated time period, full-height turnstile will cancel this passing right. And the regulated time period for passing can be set by managers. |
| 6. If passenger pass without card read or valid card read, sliding barrier will alarm untill passenger get back from the sliding barrier and then take a valid card to be read for passing. |
| 7. Sliding barrier is with 485 interface for long-distrance control concern. |
| 8. Anti-rush function: if there is no open single, arm will be holding tightly. |
| 9. Double anti-clipping function: photocell anti-clipping and mechanical anti-clipping.When passenger is going through the flap barrier, photocell will detect out this situation and will not close. After passenger passed, arm will close automatically. During its reposition, if arm meets any obstacle, arm will get back automatcially or stop working for a while with very slight force. Also it will alarm. |
| 10. Sliding barrier is with standard electrical interface for the integration of various readers and writers. |
| 11. Sliding barrier can count how many passenger has passed and will show it in the LED display. |
| 12. Direction display to guide passenger which direction is to go. |
| 13. Card-reading with memory or without memory function. |
| 14. Sliding barrier can control the population inside in the control of software. |
| 15. Stable running with little noise. |

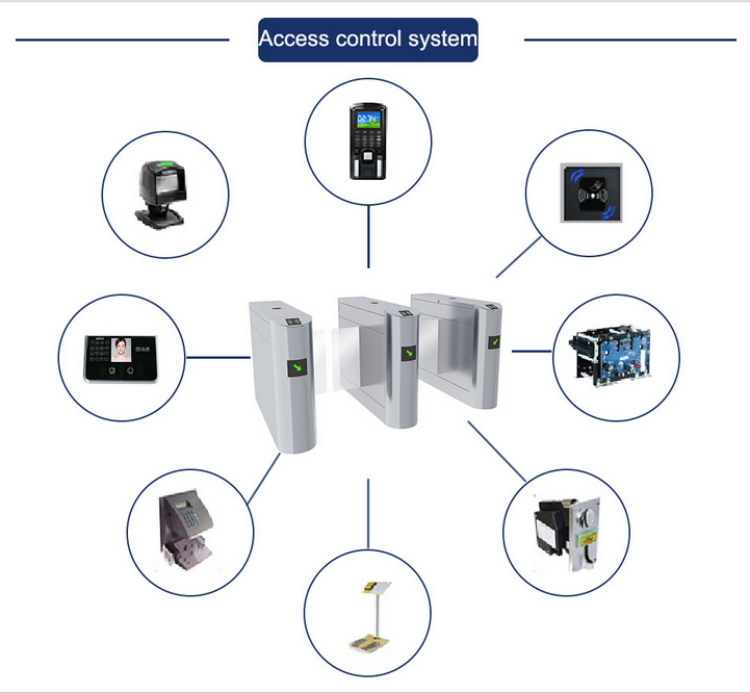

Sliding turnstile with access control system:
Product Application:
Can be widely used in stations, docks, subways, factories, buildings, intelligent district, hotels, clubs, enterprises and other institutions.
