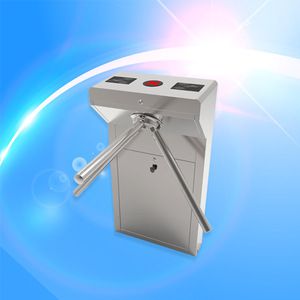

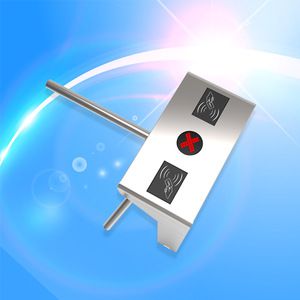

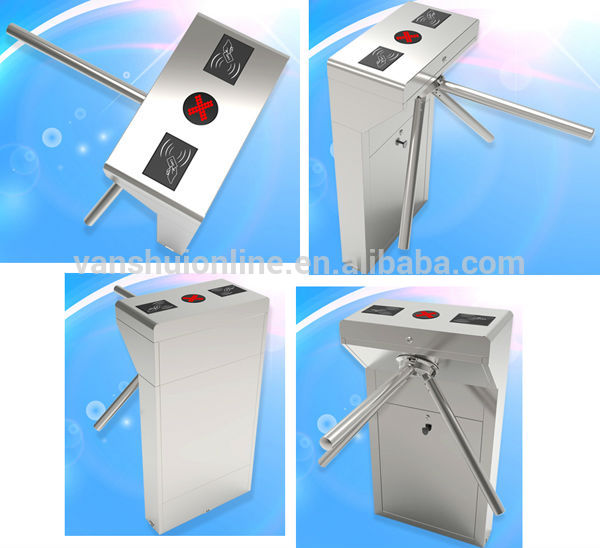

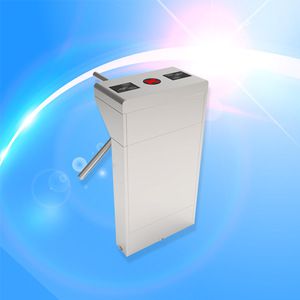

1. RFID Semi automatic bi-direction vertical tripod turnstile.
2. The housing of our tripod turnstile adopts SUS304 stainless steel materials; it is robust and durable design.

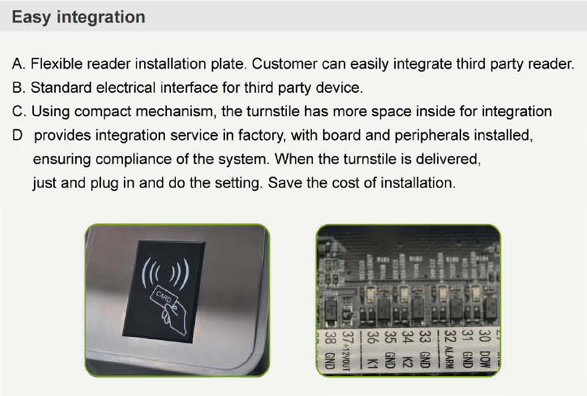

3. The standard electrical interfaces are flexible for integration with external systems; they could be integrated 4. with multiple devices like RFID card readers. Meanwhile, they are equipped with specialized interface for firefighting linkage.
5. Our tripod turnstiles can be used for access control, time attendance management applications and suitable for stations, wharfs, tourist attractions, exhibition and convention centers or special channel control for communities, factories, enterprises and public institutions etc.
6. Unified quality standards are implemented to ensure overall reliability, stability and fluency.
Features
Specification
Power Supply | AC 220V/110V, 50/60Hz |
Operating Temperature | -28°C-60°C |
Operating Humidity | 5%-85% |
Working Environment | Indoor/Outdoor(shelter) |
Rated Power | 60w |
Flow Rate | 25-48 passage/minute |
Ingress Protection | IP54 |
Casework Material | USU304 |
Pictogram Indication | YES |
Control System | Input controlled by dry contact |
Emergency Button Input | YES |
Dimension | 52CM*98CM*28CM+ Arm Length 50CM |
Package Dimension | 60CM*108CM*38CM |
Net Weight | 34KG |
Gross Weight with Package | 40KG |
Optional Function | Alternative Material or shape, third-party access control integration, ticket system integration, passage counter |
Certifications
China
